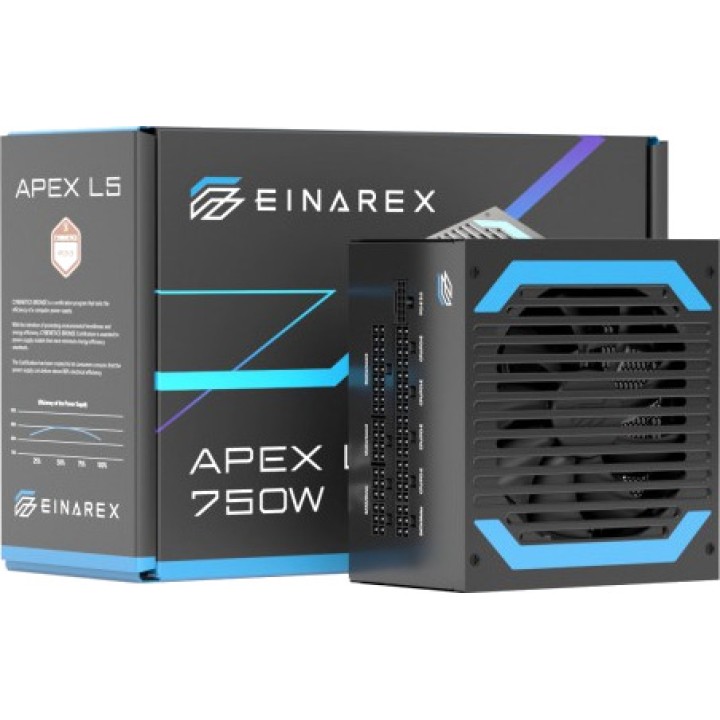

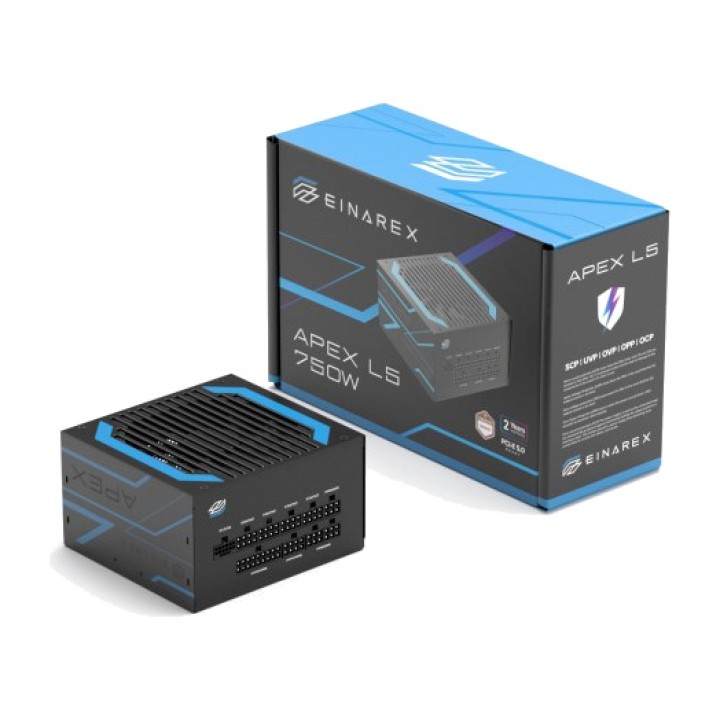

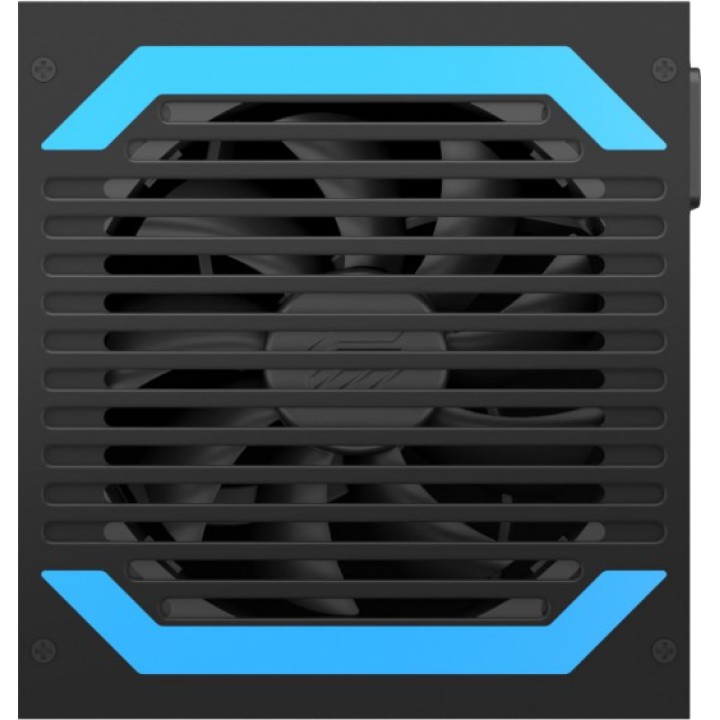

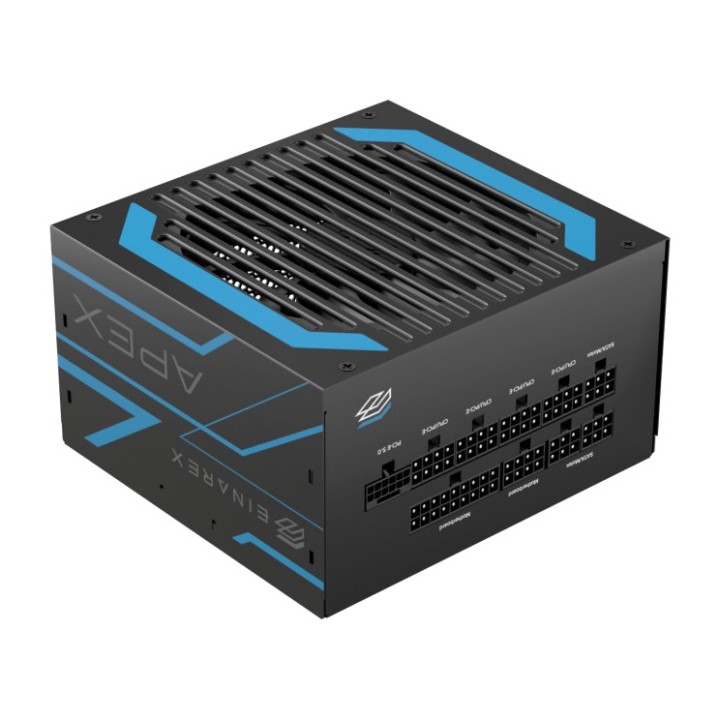

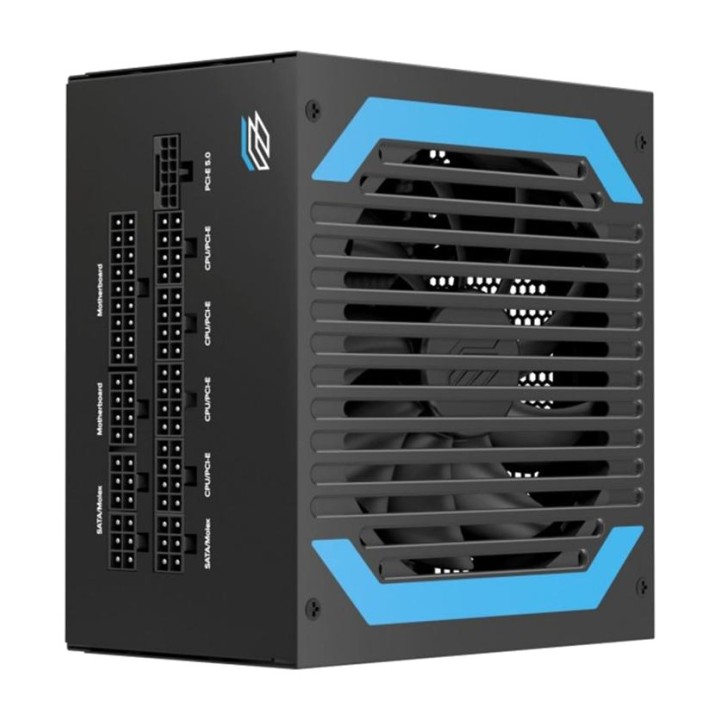

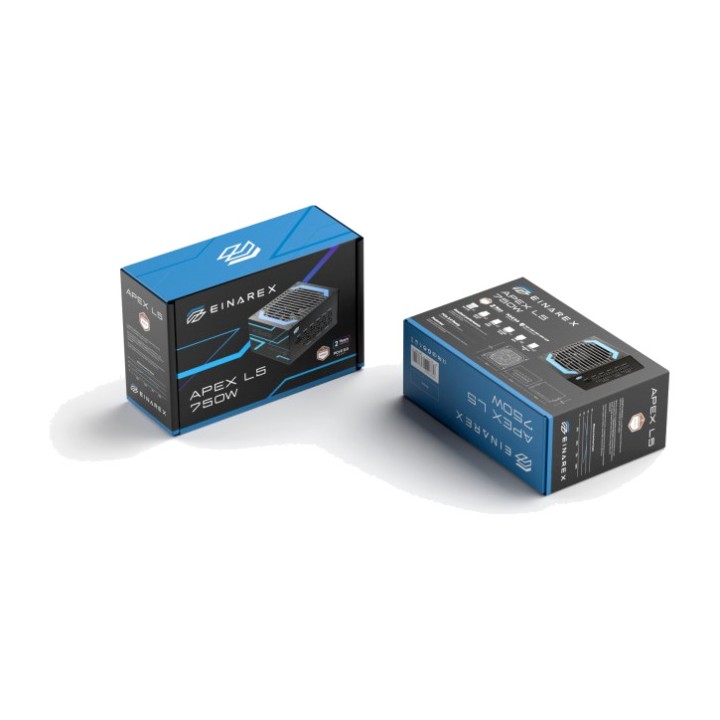

EINAREX Modular ATX power supply for PC APEX-L5 750W DSP0000043316

Features of the Einarex Apex L5 750W 80+ Bronze ATX 3.1 Full Modular Power Supply
The Einarex Apex L5 750W is an ATX power supply designed for desktop computers that need stable power distribution, versatile connectivity and a tidy installation. It features a fully modular design, ATX 3.1 compatibility and Cybenetics Bronze certification, as well as a 12V-2x6 connector for compatible graphics cards. A suitable solution for building or upgrading gaming PCs and high-performance systems.
750W power and compatibility ATX 3.1
With a total power output of 750W, the Einarex Apex L5 can power various computer components through its dedicated connections. Its compatibility with the ATX 3.1 standard and the inclusion of a 12V-2x6 connector make it easy to integrate into configurations with modern graphics cards that use this connection.

Total power: 750W.
Format: Intel ATX 12V.
STANDARD : ATX 3.1.
GPU connector: 1 x 12V-2x6 (12+4 pins).

Full Modular design for a tidier build
Its fully modular cabling system lets you connect only the cables required for each configuration. This makes it easier to organise the inside of the case, reduces the build-up of unused cables and helps keep the space clear for airflow and maintenance.

Cabling: Full Modular.
Cable installation according to the system’s requirements.
Easier internal cable management.
Dimensions: 140 x 150 x 86 mm.

Cybenetics Bronze certification and active power factor correction
The Einarex Apex L5 has Cybenetics Bronze certification, which attests to its energy efficiency level according to this organisation’s criteria. It also features active PFC to improve the power factor during operation, contributing to more efficient management of electrical energy.

Efficiency certification: Cybenetics Bronze.
Power factor correction: active PFC.
Power input : 100-240V AC.
Input current: 6-10A.
FREQUENCY: 47-63Hz.

Comprehensive connectivity for components and peripherals
This power supply offers a wide range of power connectors for the motherboard, processor, graphics cards and storage drives. It includes 6+2-pin PCI-E connections and a 12+4-pin 12V-2x6 connector, as well as SATA and 4-pin peripheral connections for various internal devices.

Motherboard: 1 x 24-pin ATX Main.
Processor: 2 x 8/4-pin EPS12V.
PCI-E graphics cards: 3 x 8/6-pin.
12V-2x6 connector: 1 x 12+4-pin.
SATA connectors: 6.
Peripheral connectors: 2 x 4-pin.

Electrical protections for greater safety
The Einarex Apex L5 750W incorporates various electrical protection systems designed to prevent damage caused by power supply anomalies. These functions monitor conditions such as overloads, voltage fluctuations, short circuits and overcurrent, providing greater safety for connected components.

OPP: over-power protection.
OVP: overvoltage protection.
UVP: undervoltage protection.
SCP: short-circuit protection.
OCP: overcurrent protection.

Compact form factor and safety certifications
With dimensions of 140 x 150 x 86 mm, this power supply features an ATX form factor for easy installation in compatible cases. It also has CE, RoHS, UKCA, CB and FCC certifications and approvals relating to applicable requirements for safety, electromagnetic compatibility and restrictions on hazardous substances.

Dimensions: 140 x 150 x 86 mm.
Installation form factor: ATX.
Certifications: CE, RoHS, UKCA, CB and FCC.
Volume (m ³): 0.0064
