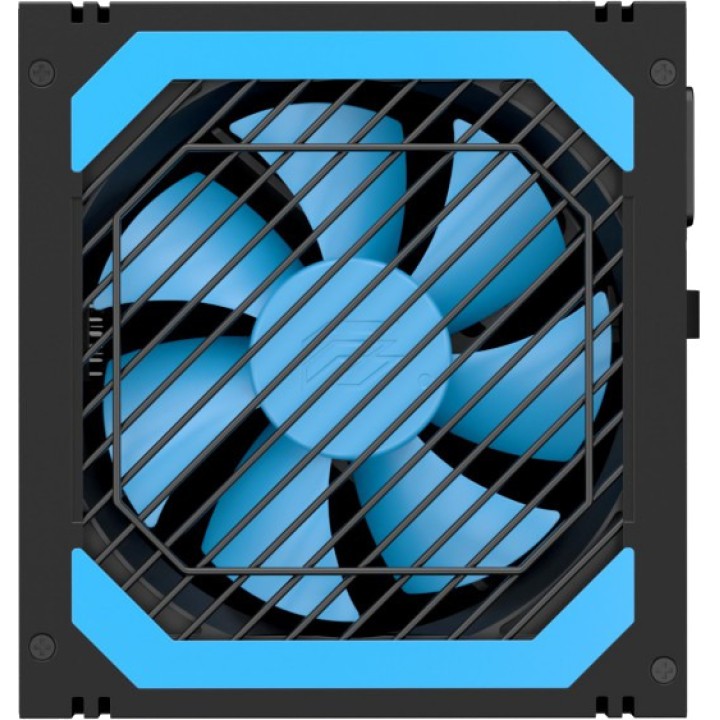

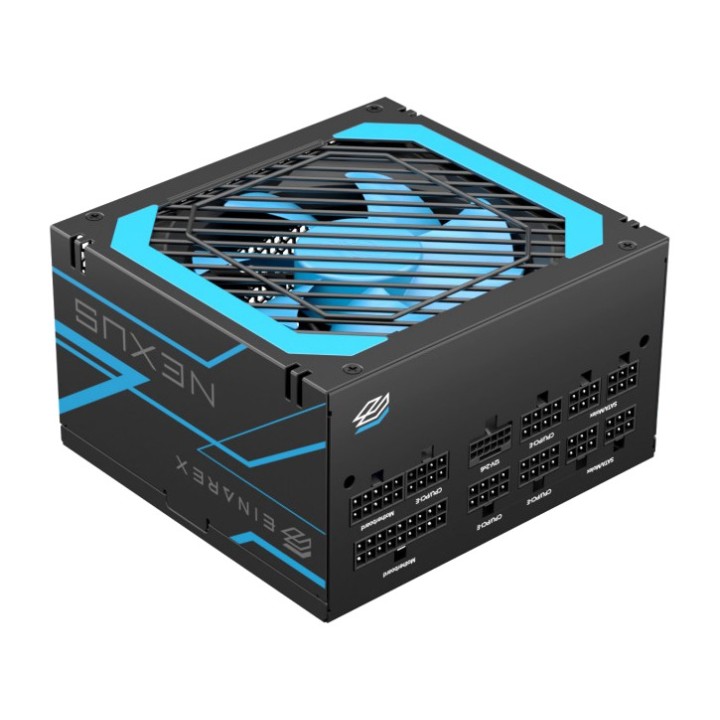

EINAREX ATX power supply for gaming PCs NEXUS-L1 850W DSP0000043315

Features of the Einarex Nexus L1 80+ Gold ATX 3.1 Full Modular 850W ATX Power Supply
The 850W Einarex Nexus L1 is an ATX power supply designed for high-performance computers and gaming configurations that require stable, efficient and versatile power. It features 80 Plus Gold certification, ATX 3.1 compatibility and a fully modular design, making installation and cable management easier. It also has a 12V-2x6 connector for compatible graphics cards and multiple electrical protection systems.
850W power and Gold efficiency
With a total power output of 850W, this power supply can power demanding configurations with high-power processors and graphics cards, provided their power requirements are compatible. Its Cybenetics Gold certification confirms its energy efficiency level, helping to reduce energy losses during operation.

Total power: 850W.
Efficiency certification: Cybenetics Gold.
80 Plus Gold certification specified for the model.
Power supply form factor: Intel ATX 12V.
Standard compatibility ATX 3.1.

Full Modular Design for an Organised Installation
Its fully modular cabling system lets you connect only the cables required for each configuration. This helps reduce unnecessary cabling inside the case, makes installation easier and keeps the interior tidier, promoting better component organisation.

Full Modular design.
Independent connection of power cables.
Easier internal cable management.
Installation adaptable to the needs of each system.

Comprehensive connectivity for current components

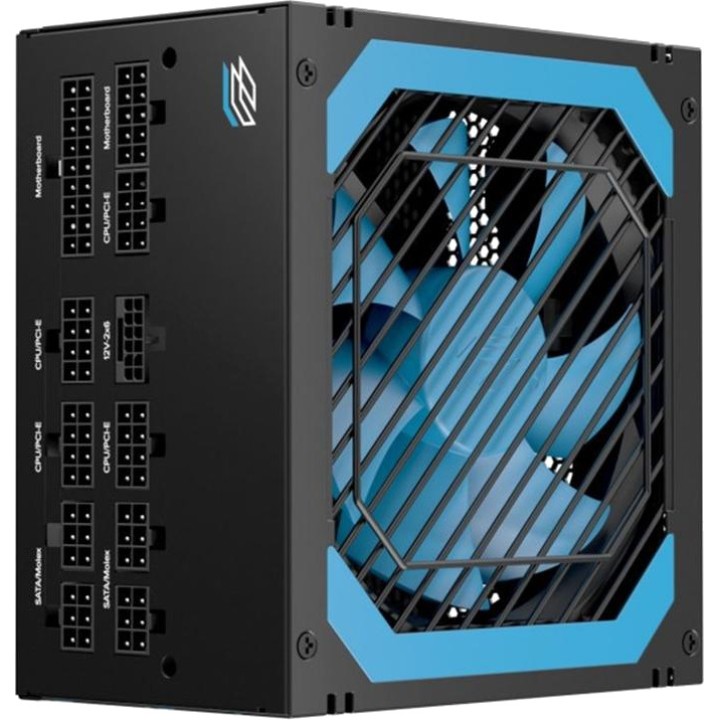

The Einarex Nexus L1 offers a wide range of connections to power motherboards, processors, graphics cards and storage drives. It features a 12+4-pin 12V-2x6 connector designed for graphics cards compatible with this power system, along with traditional PCI Express connections.

1 24-pin ATX main connector.
2 8/4-pin EPS12V connectors for CPU.
4 8/6-pin PCI-E connectors.
1 12+4-pin 12V-2x6 connector.
8 SATA connectors.
3 4-pin peripheral connectors.

Integrated electrical protection systems
To protect computer components from potential electrical anomalies, this power supply incorporates multiple safety mechanisms. Its protections monitor different operating conditions, such as short circuits, voltage fluctuations, overloads and excessive temperatures. It also includes Active Power Factor Correction (Active PFC).

SCP: short-circuit protection.
UVP: undervoltage protection.
OVP: overvoltage protection.
OPP: over-power protection.
OTP: over-temperature protection.
OCP: overcurrent protection.
SIP: protection against transient overvoltages and inrush currents.
Active PFC: active power factor correction.

Compact ATX form factor and universal power input
With dimensions of 140 x 150 x 86 mm, the Einarex Nexus L1 has a compact form factor within the ATX category, making it easy to fit into compatible cases. Its 100 to 240V AC input allows it to be used with different power grids, provided the appropriate power cable is used.

Dimensions: 140 x 150 x 86 mm.
Format: Intel ATX 12V.
AC input: 100-240V.
Input current: 6-12A.
Input frequency: 47-63Hz.

Safety and conformity certifications
The power supply has certifications and conformity markings that attest to compliance with various regulatory requirements for safety, electromagnetic compatibility and restrictions on hazardous substances. These credentials complement its integrated protection systems.

CE.
RoHS.
UKCA.
CB.
FCC.
Cybenetics Gold efficiency certification.
Volume (m ³): 0.0064
