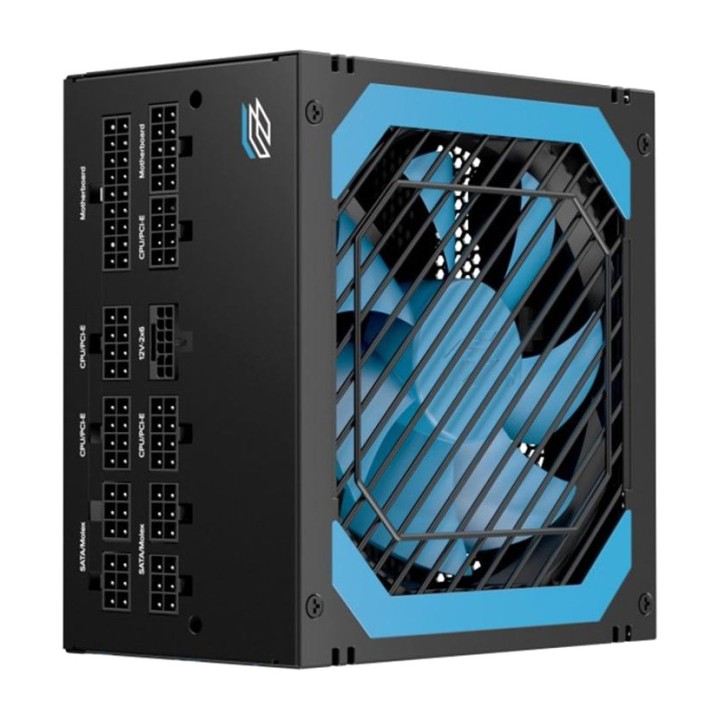

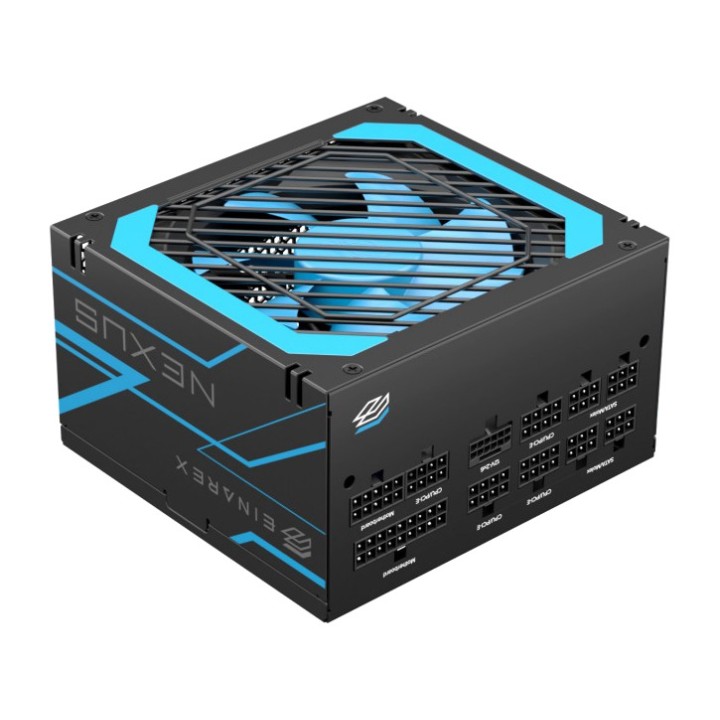

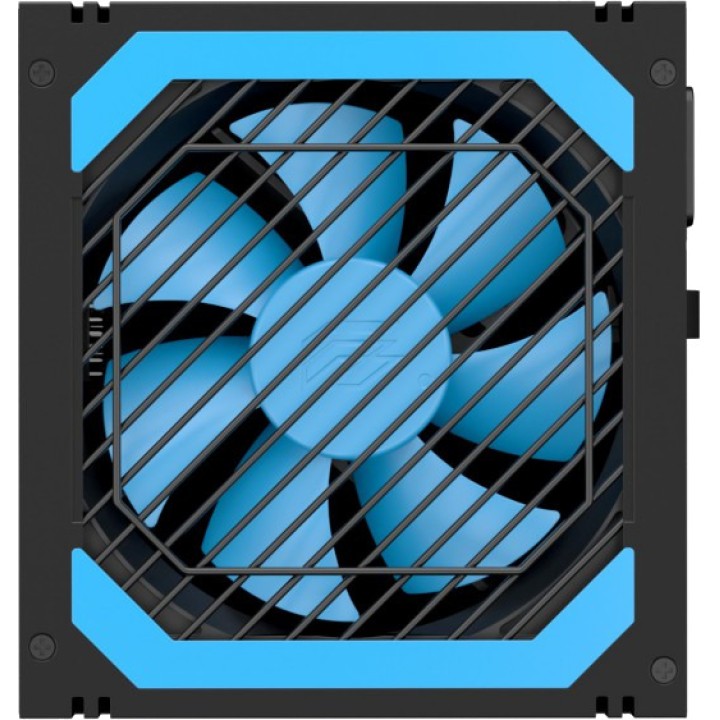

EINAREX ATX power supply for gaming PCs NEXUS-L1 750W DSP0000043314

Features of the Einarex Nexus L1 750W 80+ Gold Full Modular ATX Power Supply
The Einarex Nexus L1 750W is an ATX power supply designed to provide stable and efficient power to desktop computers and gaming configurations. It stands out for its Cybenetics Gold efficiency certification, fully modular cabling system and extensive connectivity options, including a 12V-2x6 connector for compatible graphics cards. It also incorporates multiple electrical protection systems to help safeguard computer components.
750W power and certified Gold efficiency
With a total power output of 750W, this power supply is ready to power configurations with processors and graphics cards from different ranges, provided the computer’s total power consumption remains within its specifications. Its Cybenetics Gold certification attests to a good level of energy efficiency, helping to reduce energy losses during operation.

Total power: 750W.
Efficiency certification: Cybenetics Gold.
Format: Intel ATX 12V.
Power input : 100-240V AC.
Input current: 5A-10A.
Input frequency: 47-63Hz.

Full Modular Design for an Organised Installation
The fully modular cabling system of the Einarex Nexus L1 lets you connect only the cables required for each configuration. This makes installation easier, reduces the build-up of unnecessary cables inside the case and helps keep the interior tidier to promote airflow and simplify future upgrades.

Cabling: Full Modular.
Flexible installation: allows you to use only the connections required.
Internal organisation: makes it easier to arrange the cabling more neatly.
Maintenance: simplifies cable replacement and rearrangement.

Comprehensive connectivity for current components
The 750W Einarex Nexus L1 features a wide range of connectors to power the motherboard, processor, graphics cards and storage drives. It includes four 6+2-pin PCI-E connectors and one 12+4-pin 12V-2x6 connector, expanding connection options for compatible graphics cards. It also has eight SATA connections and three 4-pin peripheral connectors.

Main motherboard connector: 1 x 24-pin ATX.
CPU connectors: 2 x 8/4-pin EPS12V.
PCI-E connectors: 4 x 8/6 pins.
GPU connector: 1 x 12V-2x6 (12+4 pins).
SATA connectors: 8.
Peripheral connectors: 3 x 4 pins.

Electrical protections for greater safety
This power supply incorporates a set of electrical protection systems designed to reduce risks arising from power supply irregularities. It includes protection against short circuits, voltage fluctuations, overloads, high temperatures and overcurrent. It also features active power factor correction (Active PFC) to optimise the use of input power.

SCP: short-circuit protection.
UVP: undervoltage protection.
OVP: overvoltage protection.
OPP: over-power protection.
OTP: over-temperature protection.
OCP: overcurrent protection.
SIP: protection against transient overvoltages and inrush currents.
Active PFC: active power factor correction.

ATX form factor and compact dimensions
Thanks to its Intel ATX 12V form factor and dimensions of 140 x 150 x 86 mm, the Einarex Nexus L1 offers an installation option for computer cases compatible with ATX power supplies. Its 140 mm depth makes it easy to integrate into different configurations, although it is advisable to check the available space in the case, especially for routing the modular cables.

Form factor: Intel ATX 12V.
Dimensions: 140 x 150 x 86 mm.
Compatibility: computer cases with support for ATX power supplies and sufficient space.

Safety and conformity certifications
The Einarex Nexus L1 750W has various certifications and approvals relating to safety, electromagnetic compatibility and compliance with applicable regulations. Its Cybenetics Gold certification complements these credentials and identifies its energy efficiency category.

Energy certification: Cybenetics Gold.
Certifications and compliance: CE, RoHS, UKCA, CB and FCC.
Volume (m ³): 0.0064
