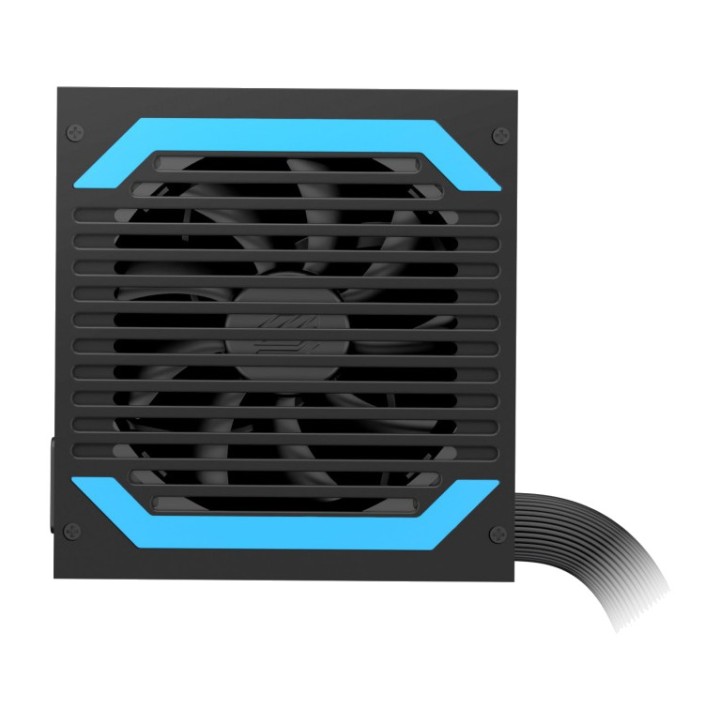

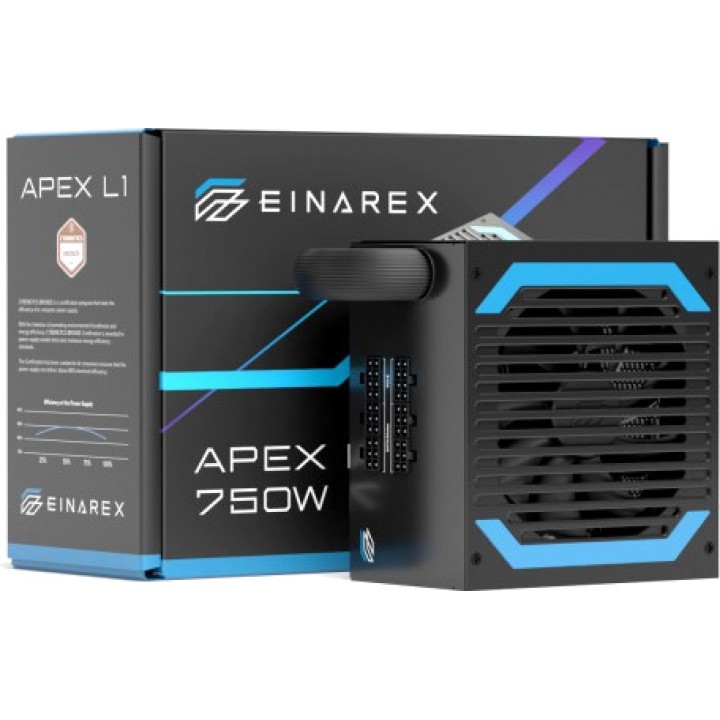

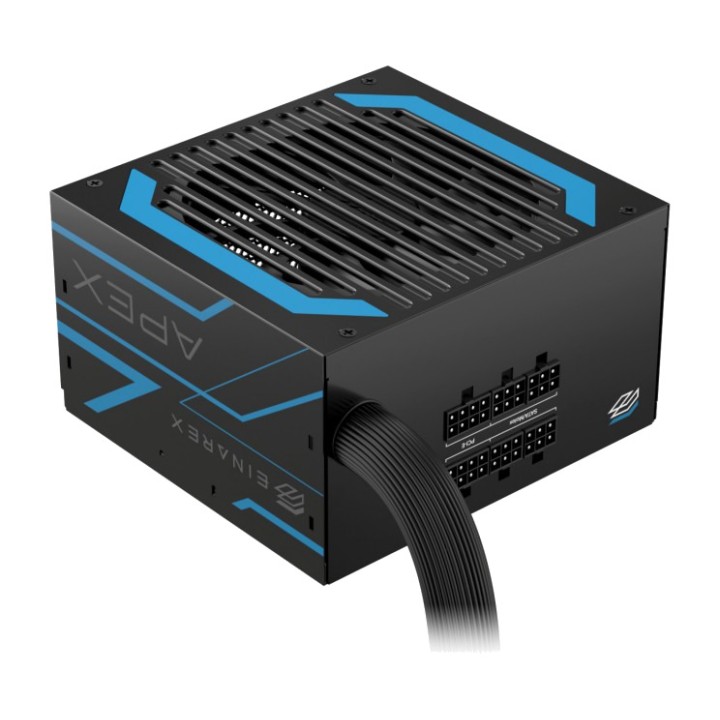

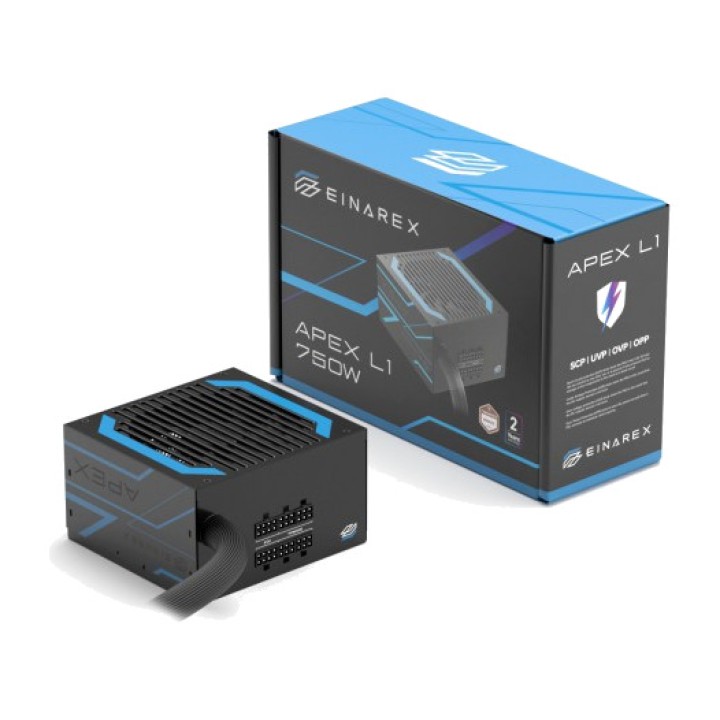

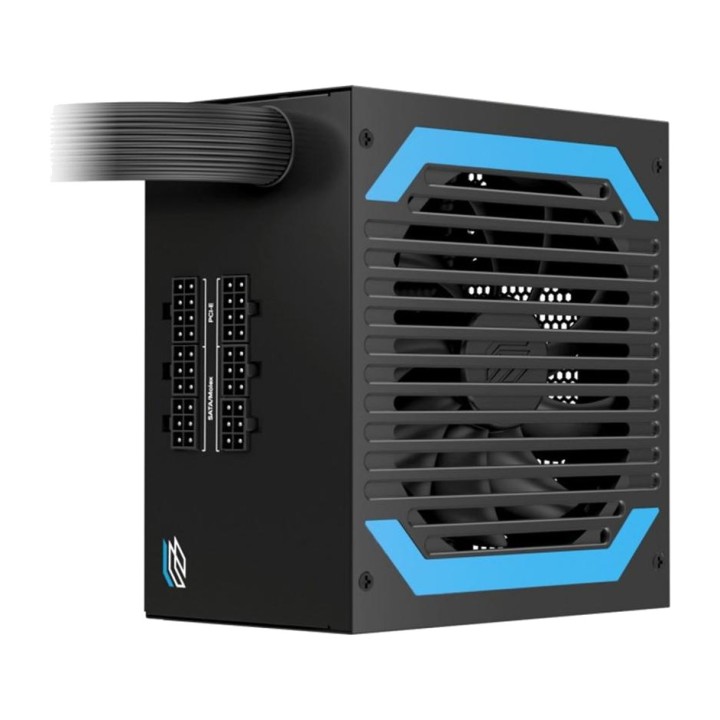

EINAREX Semi-modular ATX PC power supply APEX-L1 750W DSP0000043313

Features of the Einarex Apex L1 80+ Bronze Semi-Modular 750W ATX Power Supply
The Einarex Apex L1 750W is an ATX power supply designed to power desktop computers, including gaming systems and high-performance PCs. It has Cybenetics Bronze certification, a semi-modular design that makes cable management easier, and a comprehensive set of electrical protections to promote safe, stable operation.
750W power and Bronze efficiency
With a total power output of 750W, this power supply can power systems with processors and dedicated graphics cards, provided their power requirements are compatible. Its Cybenetics Bronze certification attests to its energy efficiency, while the active power factor correction system (Active PFC) helps optimise energy use.

Total power: 750W.
Efficiency certification: Cybenetics Bronze.
Format: Intel ATX 12V.
Power factor correction: Active PFC.

Semi-modular design for an organised installation
Its semi-modular cabling system allows connections to be managed more effectively and reduces unnecessary cables inside the case. This makes for a cleaner, more organised build, especially in systems where making the most of the interior space and keeping components neatly arranged are priorities.

Cabling type: semi-modular.
Dimensions: 140 x 150 x 86 mm.
Form factor : ATX 12V.

Connectivity for components and devices
The Einarex Apex L1 has a wide range of connectors to power the motherboard, processor, graphics cards and storage drives. Its three 6+2-pin PCI-E connectors and SATA connections support a variety of PC configurations, subject to checking compatibility with the installed components.

Main motherboard connector: 1 x 24-pin ATX.
CPU connectors: 2 x 8/4-pin EPS12V.
PCI-E connectors: 3 x 8/6-pin.
SATA connectors: 6.
Peripheral connectors: 2 x 4-pin.

Electrical protections for greater safety
This power supply incorporates multiple electrical protection systems designed to prevent issues related to overloads, voltage fluctuations, overcurrents and short circuits. These functions help protect both the power supply and the connected components against abnormal electrical conditions.

OPP: over-power protection.
OCP: overcurrent protection.
OVP: overvoltage protection.
UVP: undervoltage protection.
SCP: short-circuit protection.

Universal power input and safety certifications
Thanks to its 100 to 240V AC input range, the Einarex Apex L1 supports different power supply conditions. It also has various certifications and declarations of conformity relating to safety, electromagnetic compatibility and environmental requirements.

Input voltage : 100-240V AC.
Input current: 6-10A.
FREQUENCY: 47-63Hz.
Certifications and compliance: CE, RoHS, UKCA, CB and FCC.
Energy certification: Cybenetics Bronze.
Volume (m ³): 0.0064
