BE QUIET Modular PC power supply DARK POWER PRO 14 IO 1600W 80 PLUS TITANIUM DSP0000043279

Features of the be quiet! Dark Power Pro Power Supply 14 1600W BP023EU

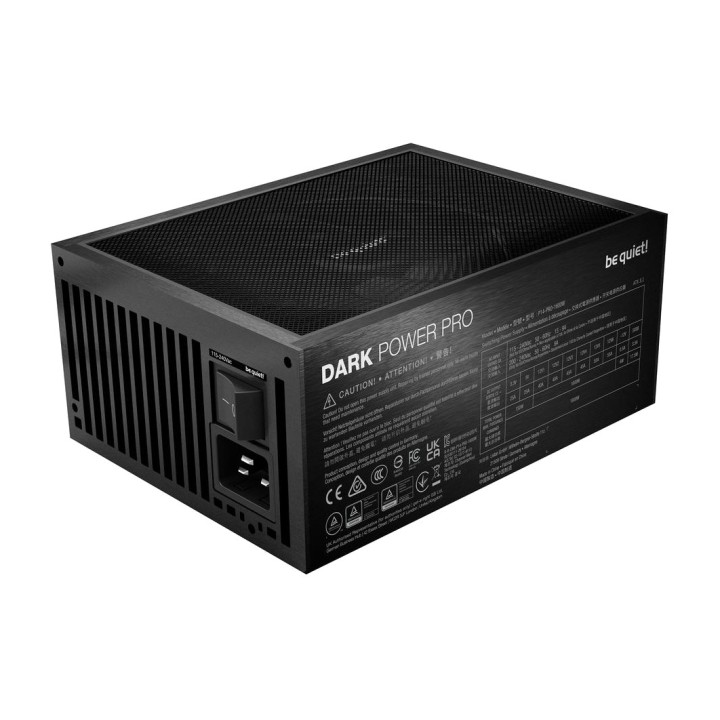

The 1600W be quiet! Dark Power Pro 14 is a high-performance power supply designed for high-end gaming PCs, workstations and configurations with components that consume a lot of power. It stands out for its 80 PLUS Titanium certification, digital control, modular connectivity and compatibility with the ATX 3.1 standard. It also features a 135 mm Silent Wings 4 fan, multiple protection systems and the option to select single-rail or multi-rail operation.
1600W power and Titanium efficiency
With a continuous power output of 1600W and a maximum peak power of 1700W, this power supply provides the capacity required for demanding configurations with high-performance processors and graphics cards. Its 80 PLUS Titanium certification, together with the Cybenetics ETA Titanium rating, attests to its high energy efficiency, helping to reduce energy losses and heat generation.

Continuous power: 1600W.
Peak power: 1700W.
80 PLUS Titanium efficiency certification.
Cybenetics ETA Titanium rating.
Compatible with ATX version 3.1 and EPS 12V version 2.92.

Digital control and advanced topology

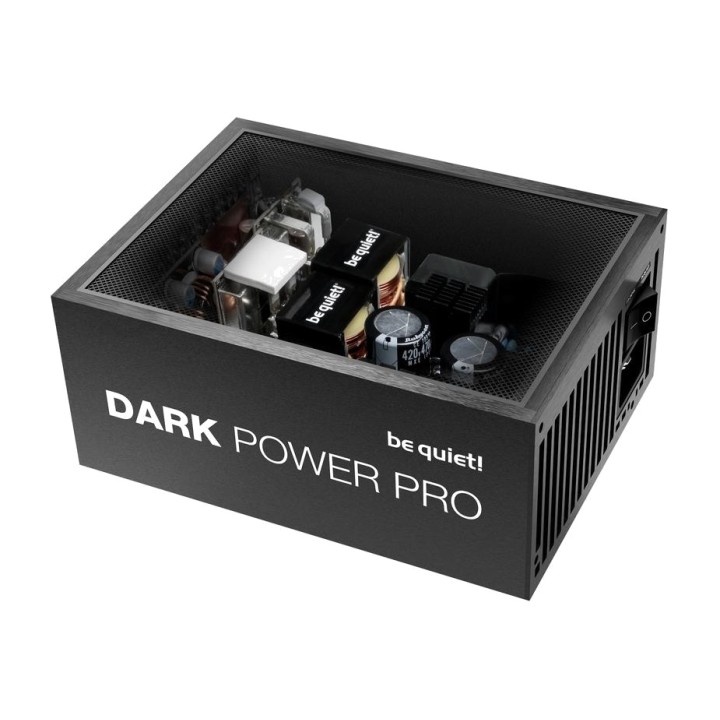

The Dark Power Pro 14 features a Full Bridge + LLC + SR + DC/DC topology, designed to optimise power conversion and provide a stable power supply to computer components. Its digital control enables precise management of the power supply’s operation, a particularly important feature in systems subjected to intensive workloads.

Full Bridge + LLC + SR + DC/DC topology.
Digital control system.
Design focused on efficient and stable power conversion.

Modular connectivity for high-performance systems

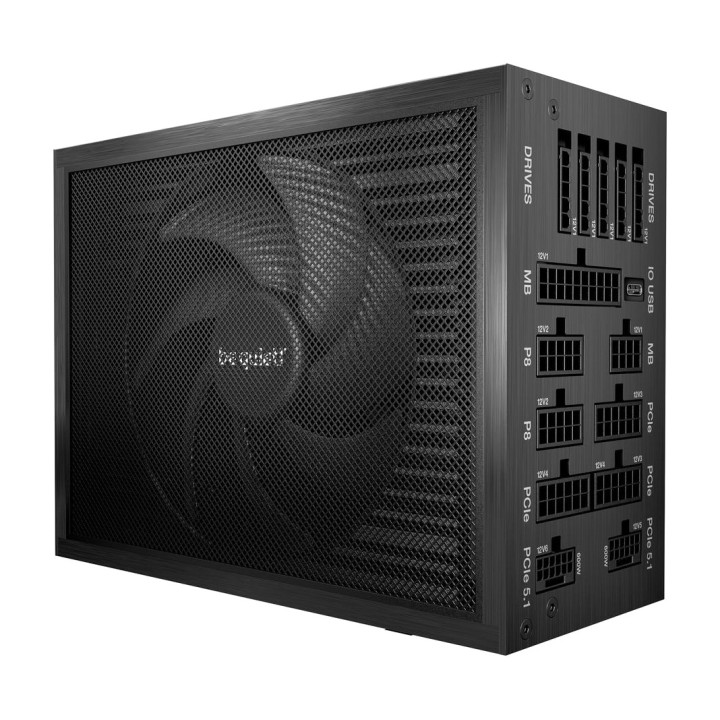

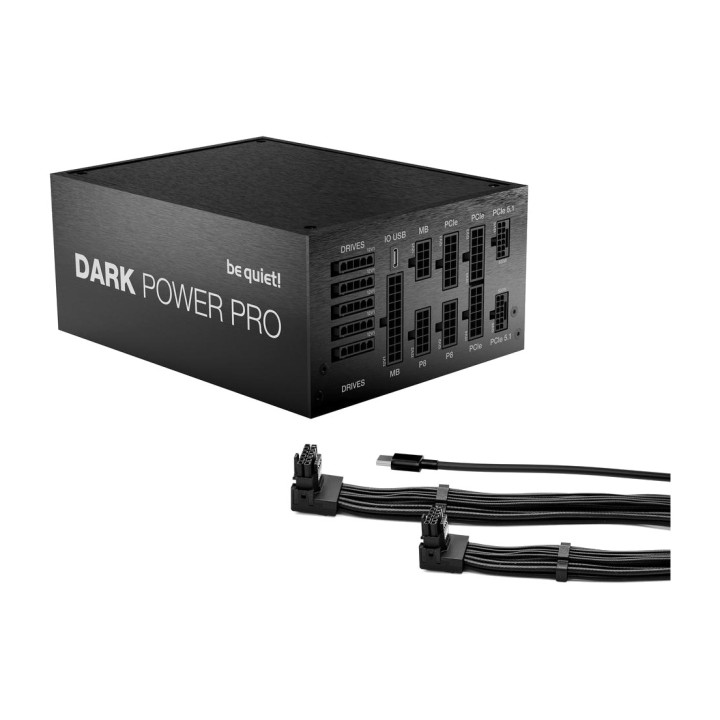

Its fully modular cabling system allows you to install only the cables you need, making it easier to keep the inside of the case tidy and improving space management. It features two 12V-2x6 connectors for compatible graphics cards, as well as PCI Express, SATA and PATA connections, offering flexibility for building advanced configurations with numerous components.

Modular cabling with flat, sleeved cables.
2 12V-2x6 connectors for GPU.
1 ATX 20+4-pin connector for motherboard.
1 P4+4-pin connector for CPU.
1 P8 connector for CPU.
6 PCI-E 6+2-pin connectors for GPU.
16 SATA connectors.
2 PATA connectors.

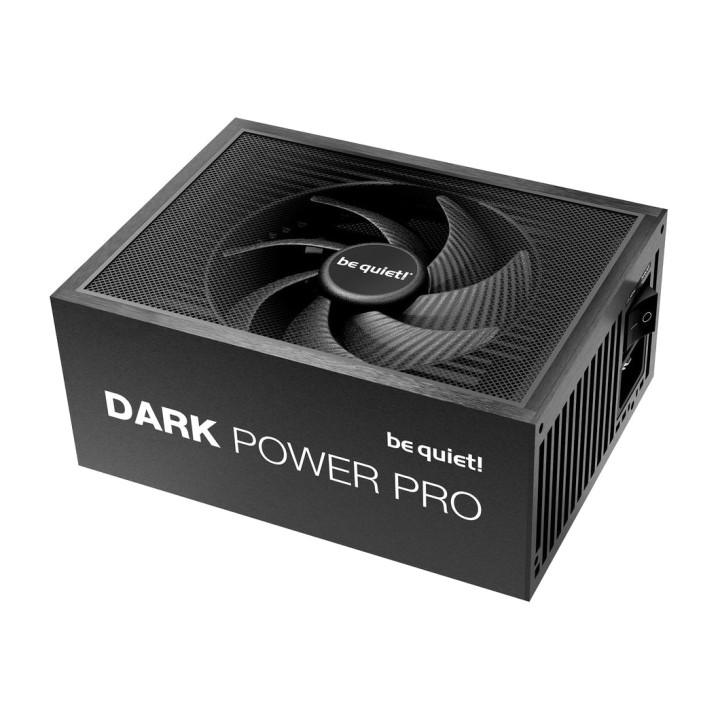

135 mm Silent Wings 4 cooling
Cooling is provided by a be quiet! Silent Wings 4 135 mm fan, equipped with fluid-dynamic bearing (FDB) technology and a 6-pole motor. This combination is designed to provide efficient cooling with carefully controlled acoustics. Its maximum speed of 2600 rpm allows it to meet the power supply's thermal requirements during periods of high energy demand.

135 mm Silent Wings 4 fan.
FDB fluid dynamic bearing.
6-pole motor.
Maximum speed of 2600 rpm.

Electrical protections and rail control
The power supply incorporates a complete set of electrical protection systems to help protect components against operating anomalies. It also allows you to select between single-rail mode and a 6-rail multi-rail configuration using an integrated overclocking key, offering greater flexibility to adapt power distribution to the system's requirements.

OTP: over-temperature protection.
OCP: overcurrent protection.
OPP: over-power protection.
SCP: short-circuit protection.
OVP: overvoltage protection.
UVP: undervoltage protection.
SIP: protection against input spikes and overvoltage.
Single-rail or 6-rail multi-rail operation.
Integrated overclocking key for selecting the operating mode.

Design, dimensions and included accessories
With dimensions of 200 x 150 x 86 mm and a weight of 2.63 kg, the Dark Power Pro 14 features a design suited to integration into high-performance systems. Its length of 200 mm should be taken into account when checking compatibility with the computer case. It includes a comprehensive set of accessories to facilitate installation and cable management.

Dimensions: 200 x 150 x 86 mm.
Weight: 2,63 kg.

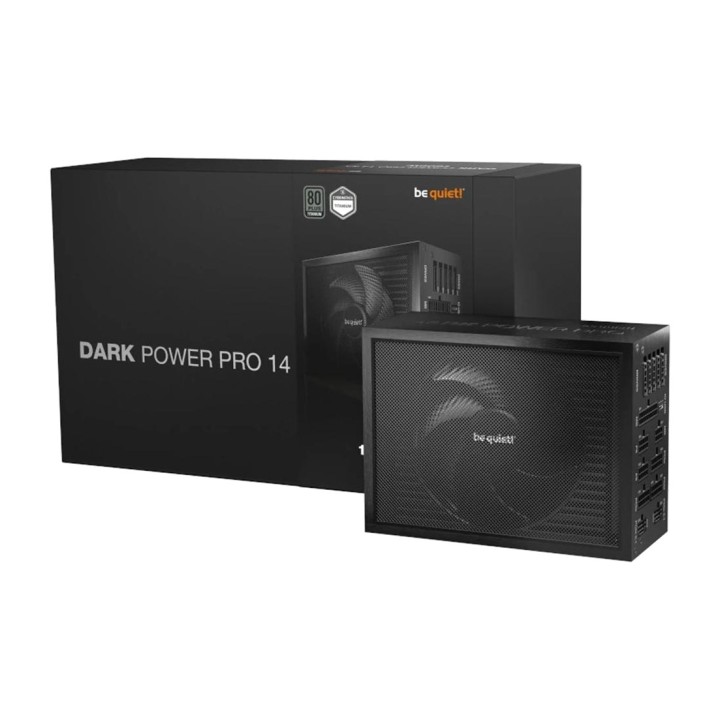

1 be quiet! Dark Power Pro power supply 14.
1 modular cable kit.
1 set of screws and thumb screws.
1 set of cable ties and self-adhesive cable ties.
Volume (m ³): 0.0169
