BE QUIET Modular PC power supply DARK POWER PRO 14 IO 1300W 80 PLUS TITANIUM DSP0000043278

Features of the be quiet! Dark Power Pro Power Supply 14 1300W
The be quiet! Dark Power Pro 14 1300 W is a high-performance power supply designed for high-end gaming PCs, workstations and configurations with power-hungry components. Thanks to its 80 PLUS Titanium certification, modular design and Silent Wings 4 fan, it offers a combination of energy efficiency, quiet cooling and advanced connectivity. It also features 12V-2x6 connectors and a comprehensive set of electrical protections to ensure stable, safe power delivery.
1300 W power and Titanium efficiency
With a continuous power output of 1300 W and a maximum peak power of 1400 W, this power supply is ready to power demanding configurations with high-performance processors and powerful graphics cards. Its 80 PLUS Titanium and Cybenetics ETA Titanium certifications attest to its high energy efficiency, helping to reduce energy losses and heat generation during operation.

Continuous power : 1300 W.
Peak power : 1400 W.
Efficiency certification: 80 PLUS Titanium.
Energy rating: Cybenetics ETA Titanium.
Form factor version: 3.1.

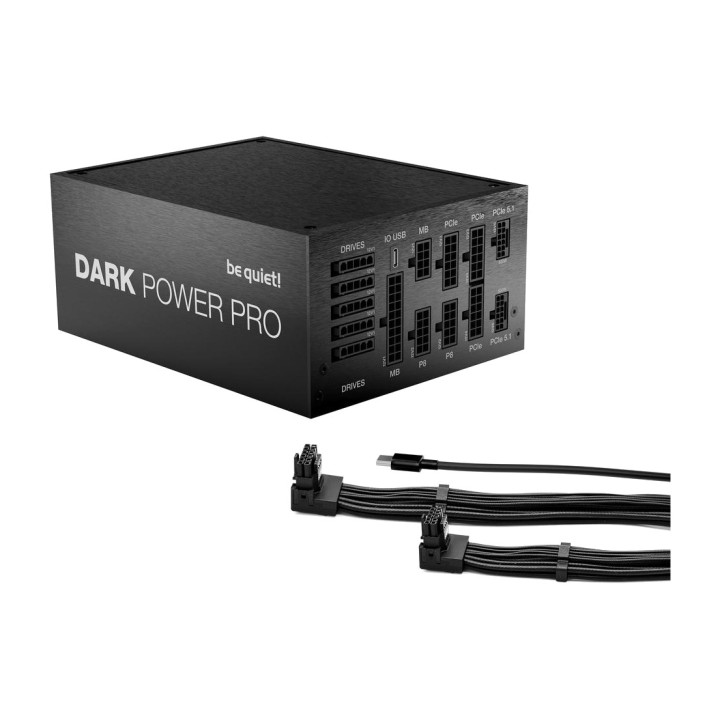

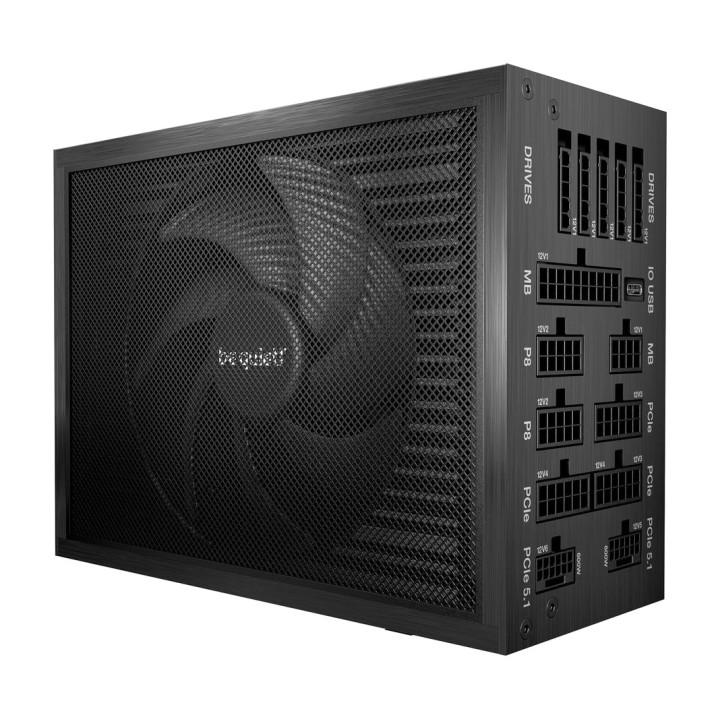

Advanced connectivity and modular cable system
The Dark Power Pro 14 features a modular system of flat, sleeved cables that lets you connect only the cables you need, making installation neater and improving space management inside the case. Its two 12V-2x6 connectors and multiple PCI-E connections can power graphics cards and other power-hungry components, while its numerous SATA connections offer flexibility for installing storage drives and other devices.

Modular cabling system with flat, sleeved cables.
2 connectors 12V-2x6.
1 ATX 20+4-pin connector for motherboard.
1 P4+4 connector for CPU.
1 P8 connector for CPU.
6 PCI-E 6+2-pin connectors for GPU.
16 SATA connectors.
2 PATA connectors.

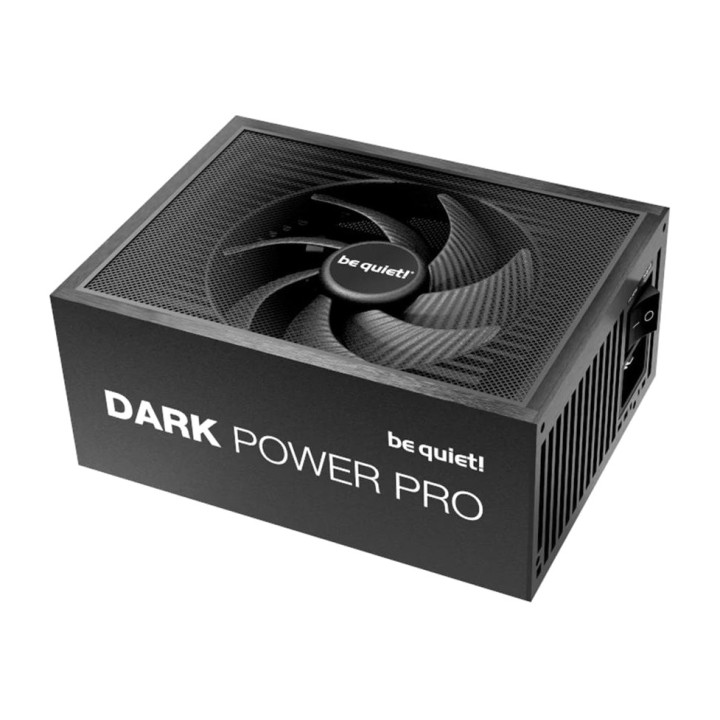

Quiet cooling with Silent Wings 4 fan
To maintain suitable operating temperatures, this power supply features a 135 mm be quiet! Silent Wings 4 fan, designed to provide efficient cooling with optimised acoustic performance. Its fluid-dynamic FDB bearing and 6-pole motor help reduce vibrations and ensure smoother rotation, providing reliable cooling even under intensive workloads.

135 mm Silent Wings 4 fan.
FDB fluid dynamic bearing.
6-pole motor.
Maximum fan speed: 2600 rpm.

Electrical protections and rail control
The be quiet! Dark Power Pro 14 features a comprehensive set of electrical protection systems to protect both the power supply and connected components against various operating faults. It also lets you choose between single-rail mode and 6-rail multi-rail mode, offering flexibility in power distribution. Its integrated overclocking key lets you manage this configuration according to your system's needs.

OTP: over-temperature protection.
OCP: overcurrent protection.
OPP: over-power protection.
SCP: short-circuit protection.
OVP: overvoltage protection.
UVP: undervoltage protection.
SIP: protection against transient surges and inrush currents.
Configurable operation in single-rail or 6-rail multi-rail mode.
Integrated overclocking key.

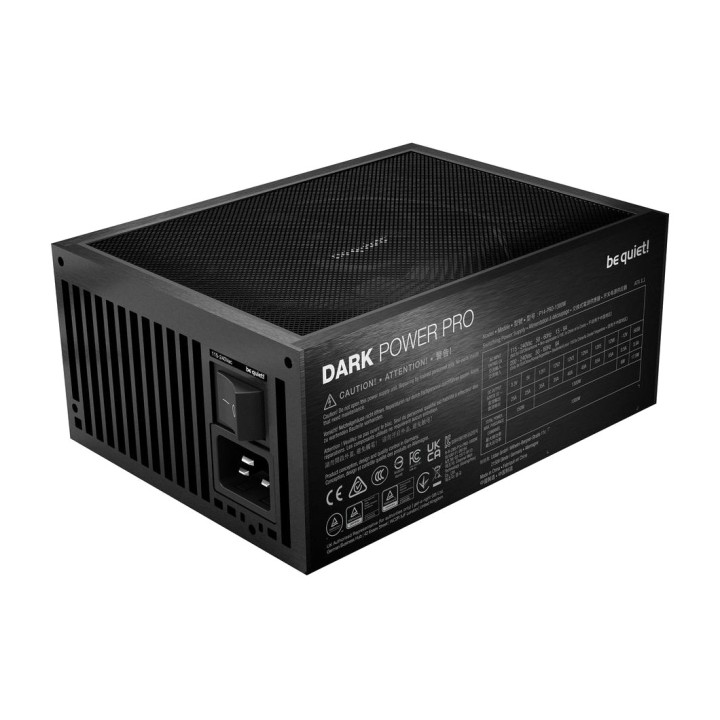

Robust design and dimensions
Its design is intended for high-performance systems that need a powerful power supply with multiple connections. Measuring 200 x 150 x 86 mm and weighing 2,63 kg, it is important to check the available space in the case before installation, especially in configurations with complex cooling systems or cable management.

Dimensions: 200 x 150 x 86 mm.
Weight: 2,63 kg.
MODEL: BP022EU.
Brand: be quiet!

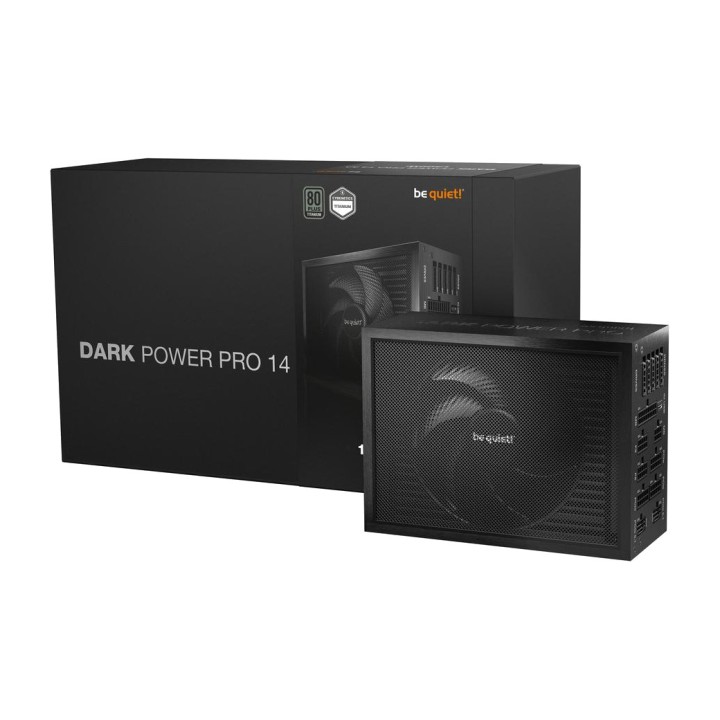

PACKAGE CONTENT
The 1300 W Dark Power Pro 14 includes the accessories needed to install it and organise the system's cabling. Its modular cable kit, together with the supplied screws and cable ties, makes it easy to achieve a neat installation tailored to each configuration.

1 be quiet! Dark Power Pro power supply 14.
1 modular cable kit.
1 set of screws and thumb screws.
1 set of cable ties and self-adhesive cable ties.
