UNYKACH Low-profile PC case with included power supply UK2012 MICRO-ATX SFX-300W DSP0000043274

Features of the UNYKAch UK2012 Micro ATX Desktop Office Case with 300W 80 PLUS Bronze Power Supply
The UNYKAch UK2012 Micro ATX office case is a compact, functional solution for building desktop computers for professional environments, offices and home use. Its black Slim design, with a grille-style front panel, combines a sober look with an optimised space layout. It supports Micro ATX and ITX motherboards, features USB Type C connectivity and includes a 300W SFX power supply with 80 PLUS Bronze certification. It can also be installed horizontally or vertically, adapting to different workspaces.

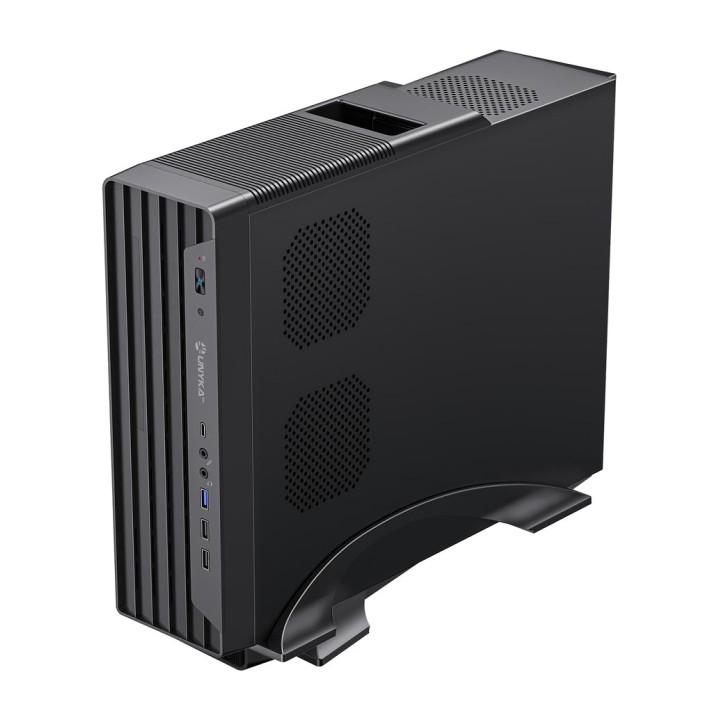

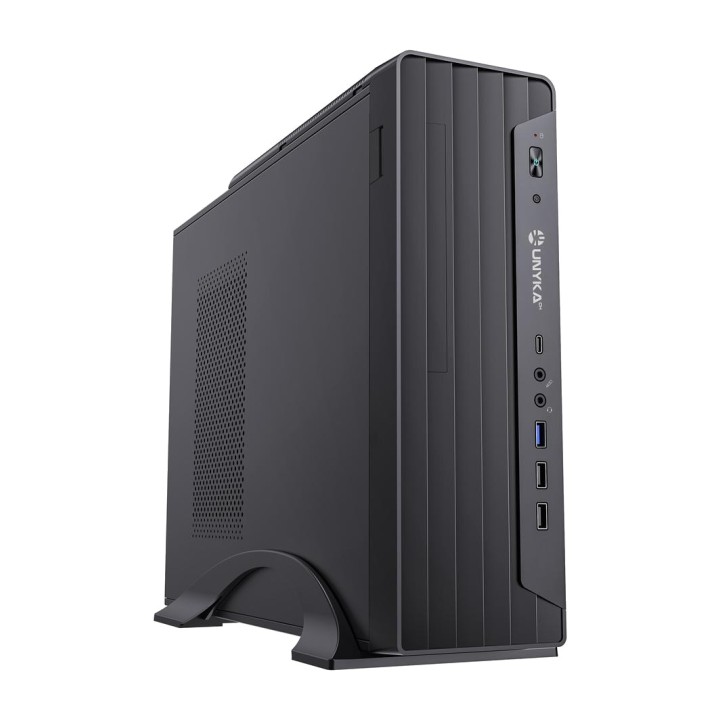

Compact Slim design with vertical or horizontal installation
The UNYKAch UK2012 features a compact chassis with a capacity of just 12,7 litres, ideal for desks with limited space. Thanks to its vertical mounting bracket, it can be positioned horizontally or vertically, making it easy to integrate into different workstations. Its SGCC steel and ABS construction provides a sturdy build, while the grille-style front panel gives it a modern, professional appearance.

Form factor: Slim Micro ATX.
Compatible with Micro ATX and ITX motherboards.
Horizontal or vertical installation using the included bracket.
Dimensions: 405 x 100 x 314 mm (length x width x height).
Internal capacity: 12,7 litres.
Materials: 0,5 mm SGCC steel and ABS.
COLOR: negro.
Weight: 3,45 kg.

300W SFX power supply with 80 PLUS Bronze certification
This case includes a 300W SFX power supply, model 52003, with 80 PLUS Bronze certification, offering energy efficiency of up to 88%. Its design is intended to provide stable power for office computers and general-purpose configurations. It also features a quiet 80 mm fan and electrical protection systems that help safeguard the components.

300W SFX power supply included.
Power supply model: UNYKAch 52003.
Energy certification: 80 PLUS Bronze.
Energy efficiency of up to 88%.
80 mm cooling fan.
Protection against overvoltage, undervoltage, overcurrent and short circuits.

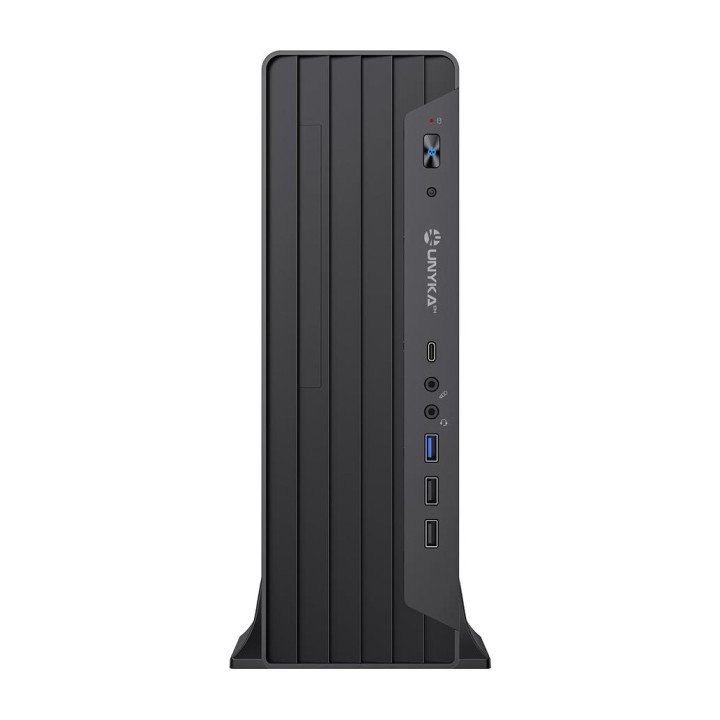

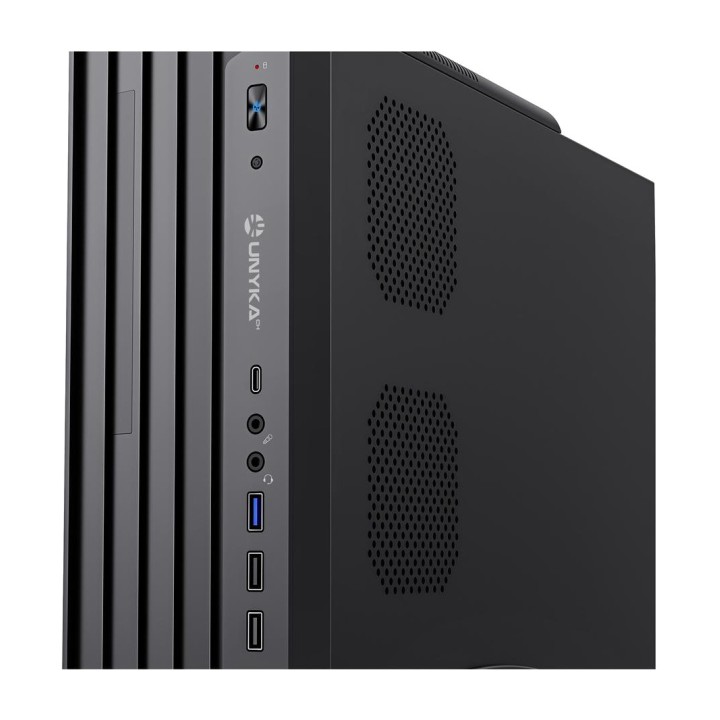

Front USB Type C connectivity and quick-access ports
The front panel of the UK2012 makes it easy to connect peripherals and external devices without having to access the rear of the computer. It features one USB Type C 3.0 Gen 1 port, one USB 3.0 port and two USB 2.0 ports, providing connectivity options for external storage, accessories and other devices. It also includes a combined audio and microphone connection, as well as separate power and reset buttons.

1 x USB Type C 3.0 Gen 1.
1 x USB 3.0.
2 x USB 2.0.
1 x combined audio and microphone connector.
The turn on and turn off button.
Reset button.

Integrated cooling for stable operation
The case includes an 80 mm fan with a 4-pin PWM connection, designed to promote airflow and help dissipate the heat generated by the internal components. Its adjustable operation allows the fan speed to be adapted to cooling requirements, while its noise level of 16 dBA helps maintain a quiet working environment. It also supports CPU coolers up to 80 mm in height.

1 x 80 mm fan included.
4-pin PWM connection.
Rotation speed : 1000-2200 RPM (±10%).
Maximum airflow : 43 CFM.
Maximum static pressure: 1,073 mm H2O.
Noise level: 16 dBA.
Fan design with 7 blades.
Maximum CPU cooler height: 80 mm.
Maximum number of chassis fans: 1 x 80 mm.

Flexible storage with Slim ODD bay
Despite its compact dimensions, the UNYKAch UK2012 offers various options for installing storage drives. It can accommodate up to three SSDs or a combination of two SSDs and one 3.5-inch HDD, making it suitable for systems that need fast data access and storage capacity. It also has a 9.5 mm Slim ODD bay for installing a compatible optical drive.

Up to 3 internal bays for SSDs.
Alternative configuration: 2 SSDs + 1 3.5-inch HDD.
1 x 9.5 mm Slim ODD bay.
Compatible with mixed storage configurations.

Compatibility with low-profile graphics cards and expansion options
The internal design of this case allows compact systems to be configured with different expansion options. It has four low-profile expansion slots and supports compatible graphics cards up to 210 mm long. This layout allows additional components to be installed without sacrificing the Slim form factor, making it suitable for office computers, administrative systems and general-purpose equipment.

4 low-profile expansion slots.
Maximum graphics card length: 210 mm.
Support for low-profile expansion cards.
Support for Micro ATX and ITX motherboards.

Equipment protection and security against tampering
The UK2012 features a chassis tamper detection system that can record possible unauthorised access via the BIOS, provided the motherboard and its configuration support this function. This feature provides an additional monitoring measure for equipment installed in offices and professional environments.

Chassis opening or tampering detection system.
Event logging via compatible BIOS.
Function designed for monitoring professional equipment.

Package contents and other specifications
The UNYKAch UK2012 case is supplied with the components needed to facilitate system assembly, including the 300W SFX power supply, mounting bracket and screws. Its cardboard packaging protects the components during transport, and the product has CE and RoHS certifications.

Product: UK2012 Micro ATX Desktop Office Case with 300W 80 PLUS Bronze power supply.
Brand: UNYKAch.
Manufacturer reference: UK52012BZ.
Ean: 8436617922213.
Contents: Micro ATX case, support base, power supply, screws and power cable.
Packaging dimensions: 454 x 155 x 349 mm.
Weight with packaging: 3,65 kg.
Packaging volume: 0,0294 m³.
Packaging material: cartón.
Packaging colour: marrón.
Certifications: CE and RoHS.
