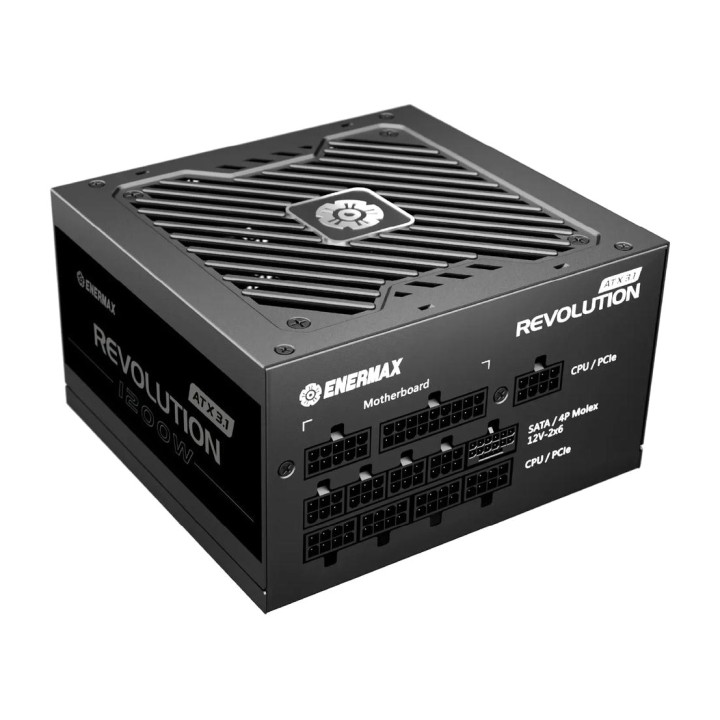

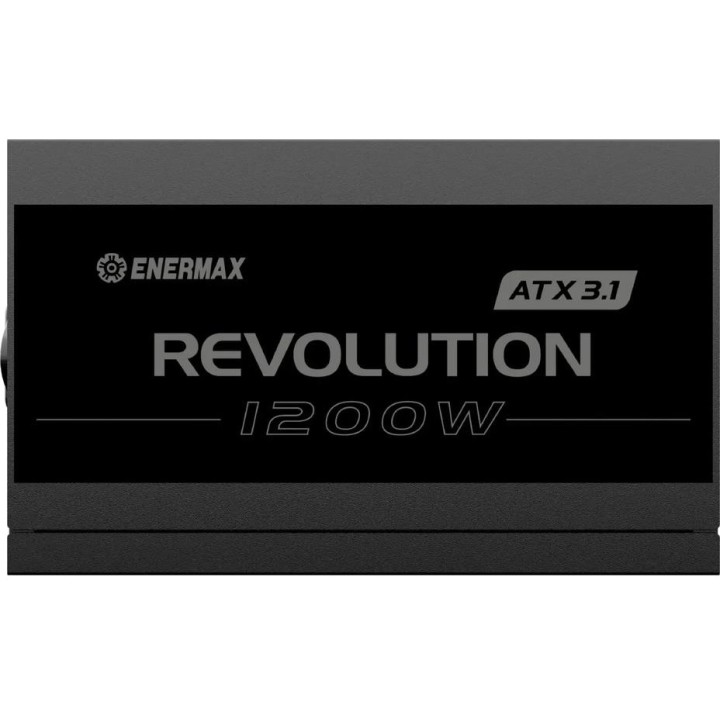

ENERMAX PC power supply REVOLUTION-ATX 3.1 1200W MGS0000031066

Features of the Enermax Revolution ATX 3.1 1200W 80+ Gold Modular Power Supply
The Enermax Revolution ERS1200EWT-V2 is a high-performance power supply designed to meet the needs of demanding PCs, advanced workstations and the latest-generation gaming systems. Thanks to its fully modular design and compatibility with the latest standards, such as Intel ATX 3.1 and PCIe 5.1, this power supply delivers an excellent combination of power, efficiency and future readiness.
1200 W of power for extreme configurations
With an output of up to 1200 W and a +12 V rail capable of delivering 100 A, this power supply is ideal for systems using multiple graphics cards, high-power processors or custom configurations with high energy demands.

Total power : 1200 W
+12 V rail: up to 100 A
Compatibility with advanced hardware: ATX 3.1 and PCIe 5.1

80 PLUS Gold efficiency: more performance with lower power consumption
Its 80 PLUS Gold certification guarantees energy efficiency of up to 90%, resulting in less energy lost as heat and more optimized power consumption. A smart choice for reducing electricity bills in systems that run for many hours a day.

80 PLUS Gold certification (~90% efficiency)
High-quality Japanese capacitors
Less heat generation and greater stability

Fully modular and quiet design
Thanks to its 100% modular design, you only use the cables you actually need, improving airflow and making system assembly easier. It also features a semi-fanless mode that switches off the fan under light loads (<,20 %), enabling quiet and efficient operation.

Semi-fanless mode up to 20% load
120 mm FDB fan (Fluid Dynamic Bearing)
Noise level: approximately 28 dB at full load

Future-ready and built for demanding conditions
This power supply is equipped with technologies that ensure its reliability even under extreme load conditions, such as the ability to withstand power excursions of up to 200%. Its multiple electrical protections ensure safe operation at all times.

Supports power spikes of up to 200 %
Protections: OCP, OVP, UVP, OPP, SCP
3-year warranty (depending on distributor)

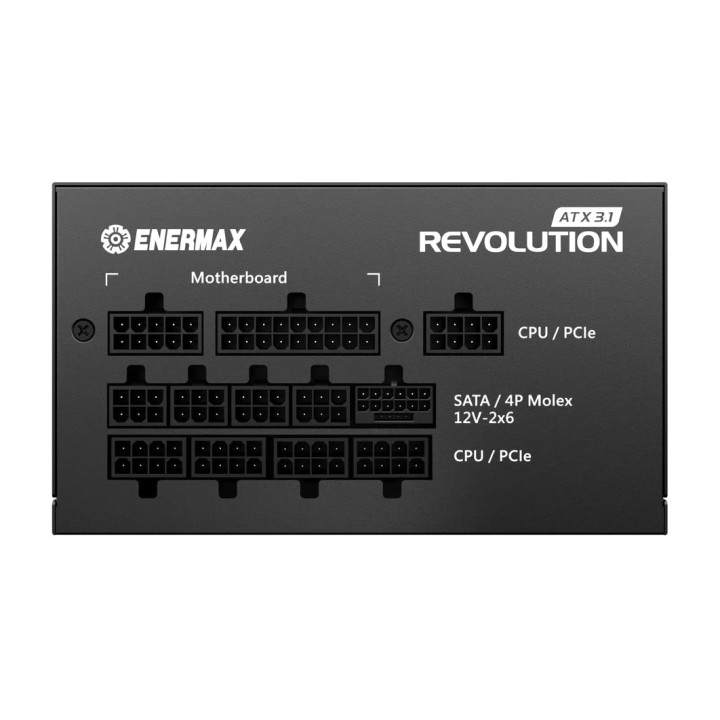

Versatile connectivity for all types of configurations
Includes a wide variety of connectors to meet both current and future needs. The native 12VHPWR connector (2x6 pins) stands out, ideal for the latest graphics cards.

1 24-pin ATX connector
2 EPS/CPU connectors, 4+4 pins
3 PCIe connectors, 6+2 pins
1 native 12VHPWR connector (2x6 pins)
8 SATA connectors
3 Molex connectors, 4 pins

Compact, robust design
Despite its high power, the Enermax Revolution retains a compact form factor that makes it easy to install, even in cases with limited space. Its high-quality components, such as the Japanese capacitors, ensure a long service life and reliable operation.

Dimensions: 150 x 86 x 140 mm
100% Japanese capacitors
Durable and robust design

Other specifications

STRAIN +3,3 V: 20 A
STRAIN +5 V: 20 A
+5 VSB: 3 A
-12 V: 0,3 A
Volume (m ³): 0.0067
