DEEPCOOL Mid-tower PC case CG590U 5F-ATX DSP0000042140

Features of the DeepCool CG590U 5F ATX ARGB Tempered Glass Black Gaming Case
The DeepCool CG590U 5F is a panoramic-design gaming case that combines curved tempered glass, a dual-chamber structure and a spacious interior. Its configuration is designed for building high-performance systems with a refined aesthetic, offering extensive support for cooling and large components. It also comes with five 120 mm ARGB fans as standard, positioned on the side and rear, providing powerful airflow and ARGB lighting right from the first build.
Panoramic design with tempered glass
The CG590U 5F features a panoramic design with curved glass that provides a wide view of the system's interior. Its construction combines ABS, SPCC and tempered glass, while the dual-chamber layout provides interior space suited to advanced gaming configurations.

Panoramic design with curved glass
ABS, SPCC and tempered glass construction
Dual-chamber internal structure
Dimensions: 460 x 285 x 460 mm
Net weight: 8.2 kg
COLOUR: BLACK

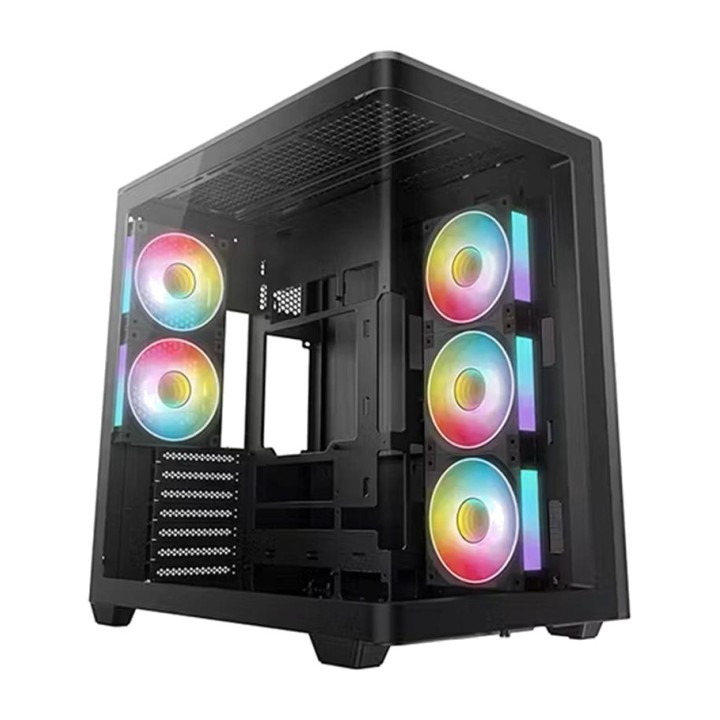

Five pre-installed ARGB fans

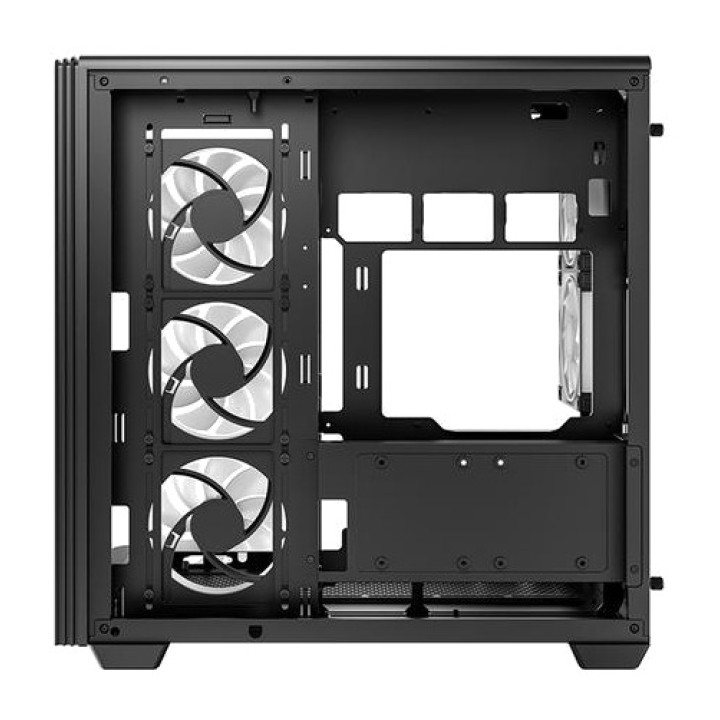

The case is ready to provide cooling and lighting right from the start, thanks to its five pre-installed ARGB fans. It includes three 120 mm fans on the side and two more at the rear, providing active airflow around the components.

Side: 3 pre-installed 120 mm fans
Rear: 2 pre-installed 120 mm fans
Total: 5 pre-installed ARGB fans

Extensive cooling options
For configurations requiring greater thermal capacity, the DeepCool CG590U 5F offers numerous mounting positions for fans and radiators. It supports up to three 120 mm fans in the top, side and bottom areas, and is compatible with radiators up to 360 mm in several locations.

Top: 3 x 120 mm or 2 x 140 mm
Side: 3 x 120 mm
Rear: 2 x 120 mm
Bottom: 3 x 120 mm
Top radiator: 120 / 140 / 240 / 280 / 360 mm
Side radiator: 120 / 240 / 360 mm
Bottom radiator: 120 / 240 / 360 mm
Rear radiator: 120 mm

Space for high-performance components
Its spacious interior accommodates graphics cards up to 410 mm long and CPU coolers up to 160 mm high. It also supports ATX PS2 power supplies up to 210 mm long, providing flexibility for building gaming systems with large-format components.

Maximum GPU length: 410 mm
Maximum CPU cooler height: 160 mm
Compatible power supply : ATX PS2
Maximum power supply length: 210 mm
7 expansion slots

Compatible with ATX, Micro-ATX and ITX motherboards
The CG590U 5F is compatible with various motherboard form factors, including ATX, Micro-ATX and ITX. It also supports ATX and Micro-ATX motherboards with rear connectors, expanding the options for creating builds with a more organized interior.

Compatible with ITX motherboards
Compatible with Micro-ATX motherboards
Compatible with ATX motherboards
Compatible with Micro-ATX motherboards with rear connectors
Compatible with ATX motherboards with rear connectors

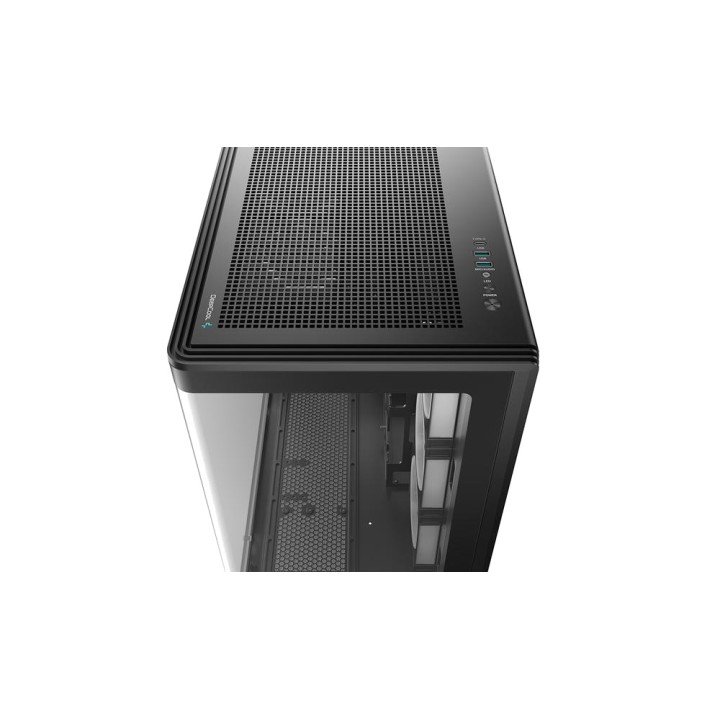

Front USB 3.0 and USB Type-C connectivity
For easy connection of peripherals and external devices, it features an I/O panel with two USB 3.0 ports and one USB Type-C Gen2 port. It also includes a combined audio and microphone connection for convenient access directly from the case.

2 x USB 3.0
1 x USB Gen2 Type-C
1 x Audio/Mic

Storage options
The interior offers several locations for 2.5- and 3.5-inch storage drives, allowing you to adapt the configuration to different drive combinations and capacity requirements.

3.5-inch bays : 1+1
2.5-inch bays : 2+1

Other specifications

Model: DeepCool CG590U 5F
P/N: R-CG590U-BKAGA5-G
Ean: 6933412765639
Volume (m ³): 0.0677
