BE QUIET Modular PC power supply DARK POWER PRO 13 1300W 80 PLUS TITANIUM DSP0000016469

BE QUIET DARK POWER PRO 13 1300W ATX POWER SUPPLY

The be quiet! Dark Power Pro 13 1300W offers 80 PLUS Titanium efficiency, top-class performance and ATX 3.0 compliance for compatibility with the latest-generation GPUs.

80 PLUS Titanium efficiency (up to 94,4 %).
ATX 3.0 power supply fully compatible with PCIe 5.0 GPUs and GPUs with 6+2-pin connectors.
Supports large power fluctuations.
Fully digital control and LLC + full-bridge technology for unmatched signal stability.
Improved and patented frameless Silent Wings fan for virtually inaudible operation under ordinary loads.
The overclocking key switches between 6 12 V rails and one massive 12 V rail.
Aluminium housing and individually sleeved modular cables for a great look.


80 PLUS Titanium certification, the highest efficiency certification available

Dark Power Pro 13 1300W is certified 80 PLUS Titanium and has an energy efficiency rating that saves up to 94,4% . This provides many benefits for your high-end system,
including lower power consumption and cooler, quieter operation overall. Standby power consumption is less than 0,1 watts.


Future-proof your system, meets all specifications ATX 3.0

Dark Power Pro 13 1300W is an ATX 3.0 power supply and comes with native integration of both 12VHPWR connectors for the latest-generation PCIe 5.0 graphics cards, as well as 6 connectors
6+2-pin PCIe for support of current-generation GPUs. This makes the power supply extremely versatile and the perfect choice for high-end systems.


The new power standard for massive transient loads

Dark Power Pro 13 delivers 1300W of continuous power with 6 independent 12V rails. Even if the graphics card demands excessive power for a brief period: Dark Power Pro 13
1300W easily handles power outputs of up to twice its rated power. This ensures reliable operation with the next generation of processors and graphics cards.

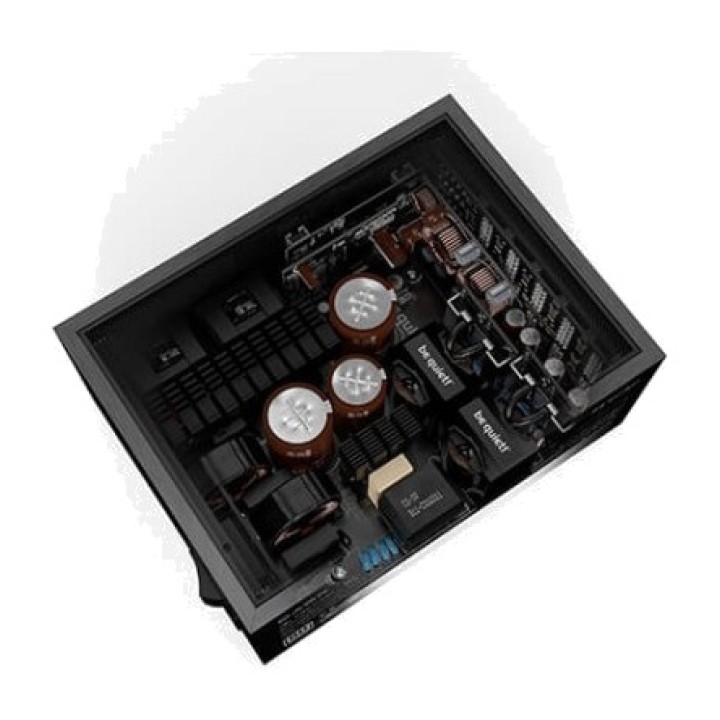

State-of-the-art digital technology, signal stability and efficiency

Experience the most technologically advanced power supply that be quiet! has ever built! The use of advanced digital full-bridge LLC technology results in greater
efficiency, better regulation and lower ripple noise for incomparably stable operation.

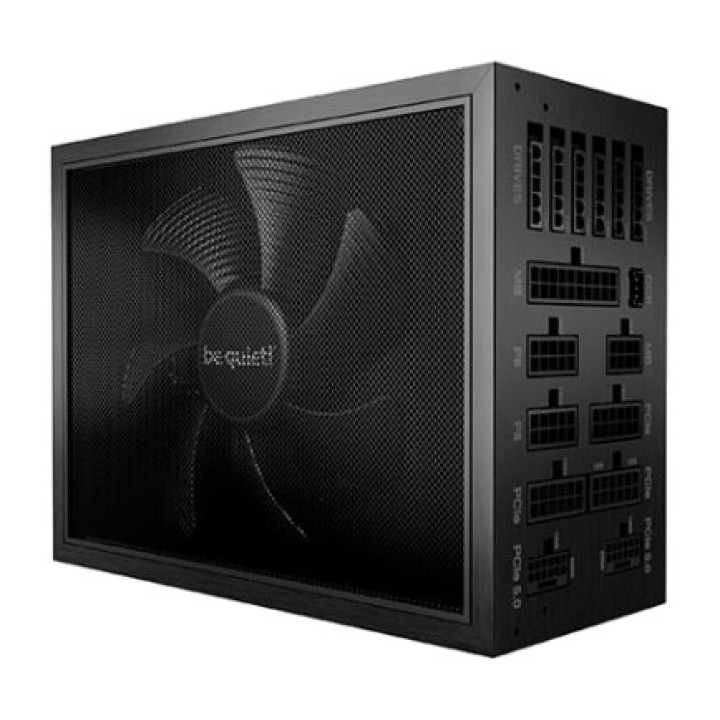

Frameless Silent Wings fan

The improved be quiet! Silent Wings fan mounted on a tripod enables maximum airflow and virtually inaudible operation. This is thanks to its unique blade design, optimised for
airflow, combined with an advanced fluid-dynamic bearing. The 6-pole fan motor reduces vibrations, extends service life and minimises power consumption.


Innovative cooling concept

The split fan inlet of the Dark Power Pro 13 1300W is a specially shaped funnel that increases airflow while reducing unwanted turbulence. The cable-free design of the
interior allows cool air to reach all components without obstruction, ultimately resulting in a longer service life.


Ready for overclocking

The Dark Power Pro 13 1300W is particularly suitable for overclocking with liquid nitrogen or helium, thanks to its state-of-the-art digital regulation. The overclocking key lets you switch
manually between the default 6-rail 12 V mode and the alternative, massive single-rail operation.


105°C Japanese capacitors

Only the best components are used in the Dark Power Pro 13 1300W. That is why this power supply features exclusively high-quality Japanese capacitors. They have a rated temperature
105 C to provide stability, reliability and a long service life.


Maximum convenience and better connectivity

Individually sleeved cables up to 120 cm long and cable combs simplify component installation and reduce annoying clutter. The result is increased airflow and better cooling,
even in the largest PC cases.


Impressive appearance

The Dark Power Pro 13 1300W impresses not only with its internal specifications. An extraordinary aluminium housing and individually sleeved cables emphasise the highest standards of the Dark Power Pro 13
1300W on the outside as well.

general
Brand: BE QUIET
warranty: 36
Part Number: BN331
Categories: POWER SUPPLIES
Reconditioned: No
Replacement - Label: No
Volumetric Weight 6.62 Kg.
Regulatory approvals
80 PLUS certification: 80 PLUS Titanium
Energy Star certified: Yes
Connectivity
Form factor: ATX
Wiring type: Modular
Motherboard power connector: 20+4-pin ATX
PCI Express power connectors (6 + 2 pin) : 6
CPU power connector (4+4-pin) : 1
Number of SATA power connectors: 16
WEIGHT AND DIMENSIONS
Height: 152 mm
Width: 253 mm
Weight: 6.8 kg
Depth: 417 mm
Technical details
COLOUR: BLACK
ATX power connector (20 + 4-pin): Yes
Format: ATX
CPU fan connector: Yes
Version ATX: 3
Power control
Rated power: 1300W
Input current : 16 A
Maximum output current (+12 V1): 35 A
Maximum output current (+12 V2): 35 A
Maximum output current (+3.3V): 25 A
Maximum output current (+5V): 25 A
Maximum output current (-12V): 0.5 A
Efficiency : 94 %
Power factor: 0.99
AC input frequency: 50 - 60 Hz
Power protection functions: Short circuit, Overheating, Overcurrent, Overvoltage, Overvoltage
Maximum power : 1300 W
Cooling
Fan diameter: 135 mm
Fan location: Side
Number of fans : 1
Environmental conditions
Operating temperature range : 0 - 50 C
Package contents
User manual: Yes
Volume (m ³): 0.0158
