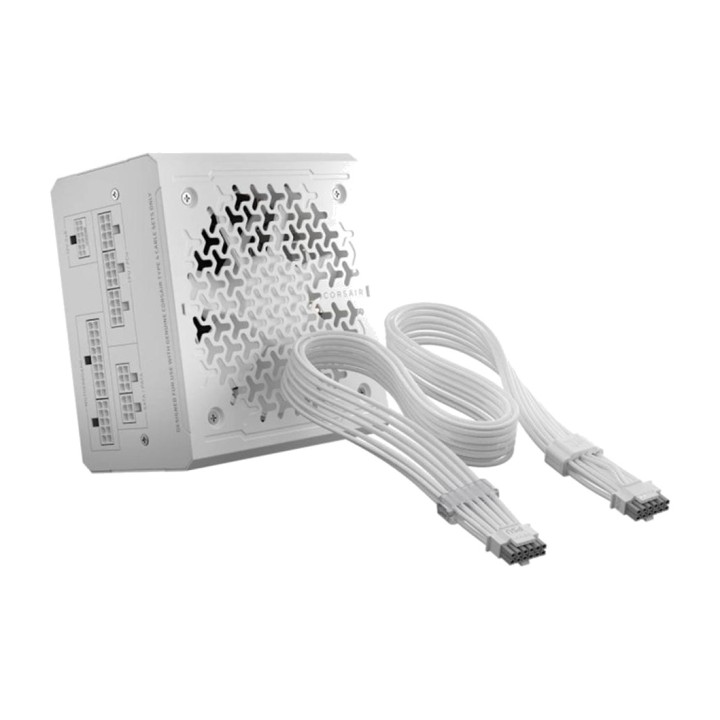

CORSAIR Modular PC power supply RM850E 3RD GEN 850W DSP0000042455VAR

Features of the Corsair RM850e 850W 80 PLUS Platinum Power Supply
The Corsair RM Series RM850e is an 850 W ATX power supply designed for PC systems that require high, stable and efficient power delivery. Compatible with the ATX 3.1 standard and equipped with fully modular cabling, it allows you to use only the cables needed for a cleaner build and easier internal cable management.
850 W power and 80 PLUS Platinum certification
With a total output of 850 W and 80 PLUS Platinum certification, the Corsair RM850e is ready to power high-performance PC configurations. Its +12 V rail delivers up to 850 W and a maximum current of 70.8 A, while its stated efficiency reaches 91%.

Total power : 850 W
Certification: 80 PLUS Platinum
Efficiency : 91 %
Combined power +12 V: 850 W
Maximum output current +12 V: 70,8 A
Combined power +3,3 V: 150 W
Combined power +5 V: 150 W
Combined power +5 VSB: 15 W
Maximum output current +3,3 V: 20 A
Maximum output current +5 V: 20 A
Maximum output current +5 VSB: 3 A

Compatible with ATX 3.1 and graphics card connections
Compatibility with the ATX 3.1 specification allows this power supply to be integrated into current configurations. It includes one 12+4-pin PCI Express connector, as well as two 6+2-pin PCI Express connectors, offering various options for powering compatible graphics cards.

ATX version: 3.1
12+4-pin PCI Express connectors : 1
12+4-pin PCI Express cable length: 650 mm
6+2-pin PCI Express connectors : 2
4+4-pin CPU power connector: yes
CPU power cable length: 75 cm

Fully modular cabling
Its fully modular cabling system lets you connect only the cables required by each configuration. This makes component installation easier and helps keep the inside of the case tidier.

Cable type: Fully modular
Motherboard power: 24-pin ATX
Motherboard power cable length: 61 cm
Number of power cables SATA: 4
Number of power connectors SATA: 2
SATA power cable length: 750 mm
Power connectors PATA: 2

Active cooling with a 120 mm fan
The Corsair RM850e uses an active cooling system with a 120 mm fan, which keeps the power supply operating within suitable conditions while the computer is in use.

Cooling type: active
Number of fans : 1
Fan diameter: 12 cm

ATX form factor and white design
Its ATX form factor and dimensions of 150 x 140 x 86 mm make it easy to fit into compatible cases. The white finish allows it to match configurations aiming for a uniform look in this color.

Form factor: ATX
WHITE COLOR
Width: 150 mm
Depth: 140 mm
HEIGHT: 86MM
Weight: 2.93 kg

Electrical input and controls
The power supply supports an input range of 100 to 240 V and a frequency of 47 to 63 Hz, making it compatible with different power grids. It also features an integrated on/off switch.

Input voltage AC: 100 - 240 V
AC input frequency: 47–63 Hz
Input current : 10 - 5 A
Integrated on/off switch: yes
Recommended use: PC
Volume (m ³): 0.0064
