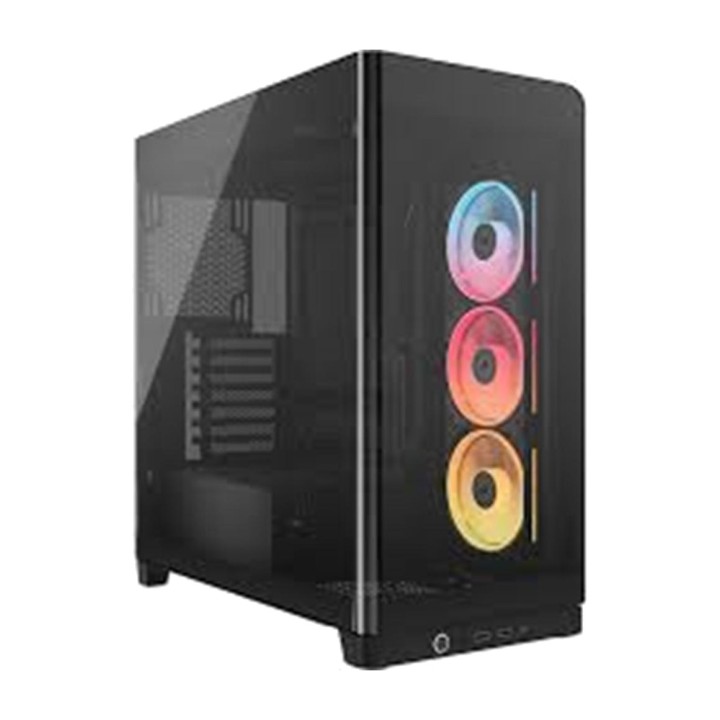

CORSAIR Mid-tower PC case with tempered glass FRAME 4500X LX-R-RGB DSP0000038990

Features of the FRAME 4500X LX-R RGB iCUE LINK Mid-Tower PC Case
The FRAME 4500X LX-R RGB iCUE LINK is a mid-tower case designed for enthusiasts seeking the perfect balance of panoramic design, high thermal performance and advanced system management. Thanks to its curved glass panels and compatibility with large-format hardware, it is ideal for gaming builds or demanding workstations that require space, ventilation and premium aesthetics.
Panoramic design with curved glass
Its spectacular curved, one-piece tempered glass front and side panel offers an immersive view of the inside of the system, showcasing RGB lighting and components to their full potential. This design not only enhances the aesthetics but also creates a sense of visual continuity and clean lines.

Curved tempered glass front and side panel
Panoramic design with no visible frames
Elegant black finish

Advanced cooling and high airflow
Optimized for demanding configurations, this case supports the installation of multiple fans and large radiators, including support for dual 360 mm radiators. It also features the InfiniRail system, which makes it easy to install and adjust fans.

Supports radiators up to 360 mm (top and side)
3 included 120 mm iCUE LINK LX-R RGB fans (reverse rotor)
Compatible with fans in multiple positions

Smart control with iCUE LINK
Includes the iCUE LINK System Hub, which enables complete digital management of connected devices, making it easy to control lighting, fan speed and performance from a single interface.

iCUE LINK hub included
Centralized fan and RGB control
Integration with the iCUE ecosystem

Wide compatibility and interior space
Designed for advanced configurations, it offers compatibility with large-format motherboards and enough space for high-performance components, including extra-long graphics cards and advanced cooling systems.

Compatible with Mini-ITX, Micro-ATX, ATX and E-ATX
Supports GPUs up to 460 mm
Maximum CPU cooler height: 185 mm

Optimized assembly and functional details
It incorporates features designed to simplify assembly and improve system durability, such as a GPU support arm and compatibility with reverse-connector motherboards, as well as optimized cable management space.

GPU anti-sag support arm included
Supports vertical GPU mounting (riser not included)
37 mm of cable management space

Connectivity and storage
The chassis features a modern front panel with high-speed connections and sufficient storage options for most current configurations, while ensuring ease of use and accessibility.

1x USB 3.2 Gen 2x2 Type-C
2x USB 3.2 Gen 1 Type-A
1x 3.5" bay and 2x bays for 2.5"

Other specifications

Dimensions: 478 x 499 x 246 mm
Weight: 14.36 kg
Materials: steel, tempered glass, plastic
Compatible power supply: ATX (up to 250 mm)
Expansion slots: 7 horizontal / 3 vertical
Dust filters included
Tempered glass left side panel
Steel right side panel
Volume (m ³): 0.0677
Volume (m ³): 0.1085
