GIGABYTE Modular PC power supply UD850GM PG5 V2 80 PLUS GOLD-ATX 3.1 DSP0000038093

Gigabyte Power Supply Features GP-UD850GM PG5 V2
The Gigabyte GP-UD850GM PG5 V2 is an 850W ATX power supply designed for gaming systems and high-performance configurations that require stability, efficiency and compatibility with the latest standards. Compatible with Intel ATX 12V v3.1 and featuring a 12+4-pin PCIe connector, it is ready for next-generation graphics cards, providing safe and efficient power at all times.
850W power with 80 PLUS Gold certification
With a rated power of 850W, this power supply delivers stable power even under demanding loads. Its 80 PLUS Gold certification guarantees 90% efficiency at typical load, reducing power consumption and heat generation for greater savings and durability.

Total power: 850W
80 PLUS Gold certification
Efficiency: 90% at typical load
Input voltage: 100-240 Vac (full range)
Input frequency: 50-60 Hz

Full compatibility with next-generation hardware

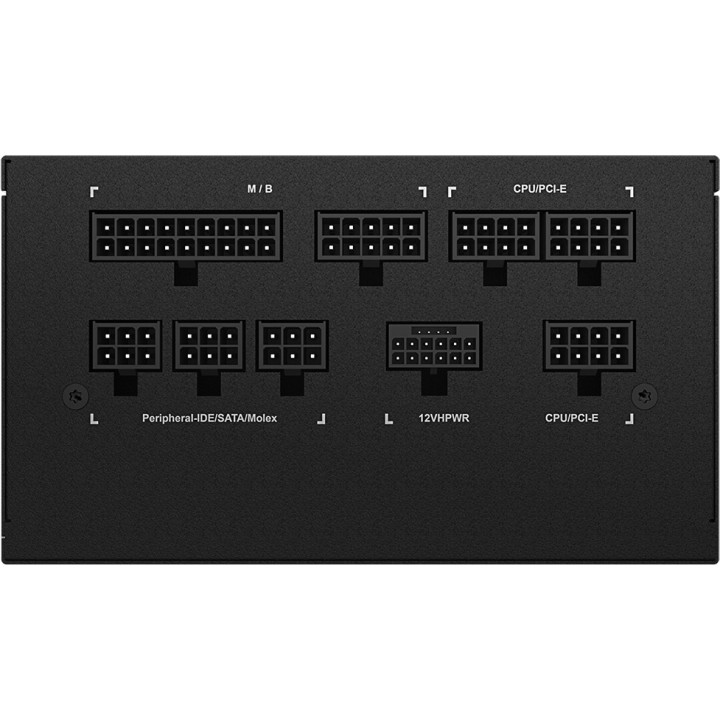

Thanks to its design based on the Intel ATX 12V v3.1 standard and the inclusion of a 12+4-pin PCIe connector, this power supply is ready for modern, high-power GPUs. It also offers a wide range of connectors for advanced configurations.

1 x ATX/MB 20+4-pin (610 mm)
2 x CPU/EPS 4+4-pin (650 mm + 200 mm)
4 x PCIe 6+2-pin (600 mm + 150 mm)
1 x PCIe 12+4-pin (700 mm)
8 x SATA (600 mm + 150 mm + 150 mm + 150 mm)
3 x 4-pin peripheral + 1 x 4-pin floppy

Efficient cooling and quiet operation

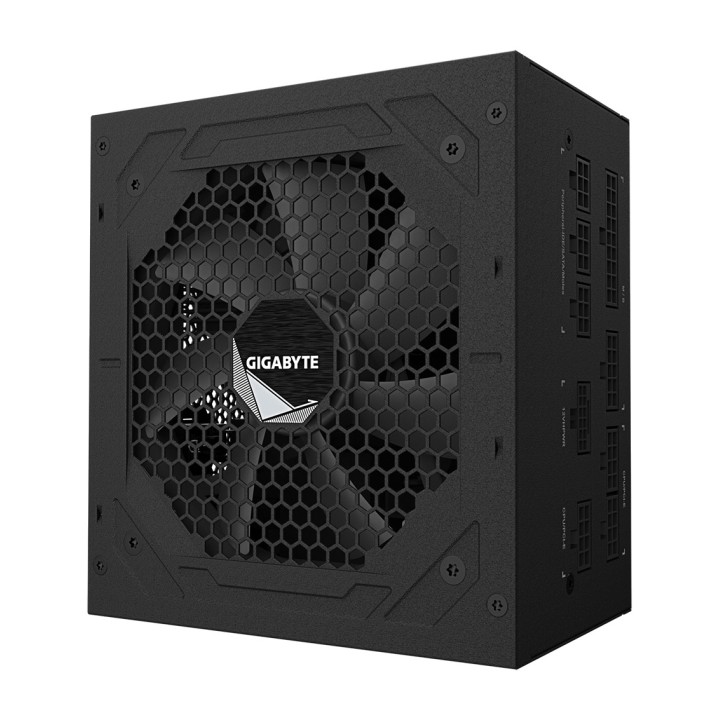

It features a 120 mm fan with Hydraulic Bearing (HYB), designed to provide an optimal balance between cooling and low noise levels. This system helps maintain stable temperatures, even during prolonged sessions of intensive use.

120 mm HYB fan
Optimised design for efficient heat dissipation
Stable operation under high load

Advanced protection and long service life
The GP-UD850GM PG5 V2 features multiple electronic protection systems that safeguard both the power supply and the rest of the system components. With an MTBF of over 100,000 hours, it is designed to deliver long-term reliability.

Protections: OVP / OPP / SCP / UVP / OCP / OTP
MTBF: >, 100,000 hours
Power good signal: 100-150 ms
Hold-up time: >,16 ms

Compact design and black cabling
Measuring 150 x 140 x 86 mm, this power supply fits easily into most ATX cases. Its fully black embossed cabling gives it a clean, professional look, ideal for builds with a transparent side panel.

Dimensions: 150 x 140 x 86 mm
Cable type: embossed, all black
Form factor: Intel ATX 12V v 3.1
Input current : 15 - 6.5 A
Volume (m ³): 0.0066
