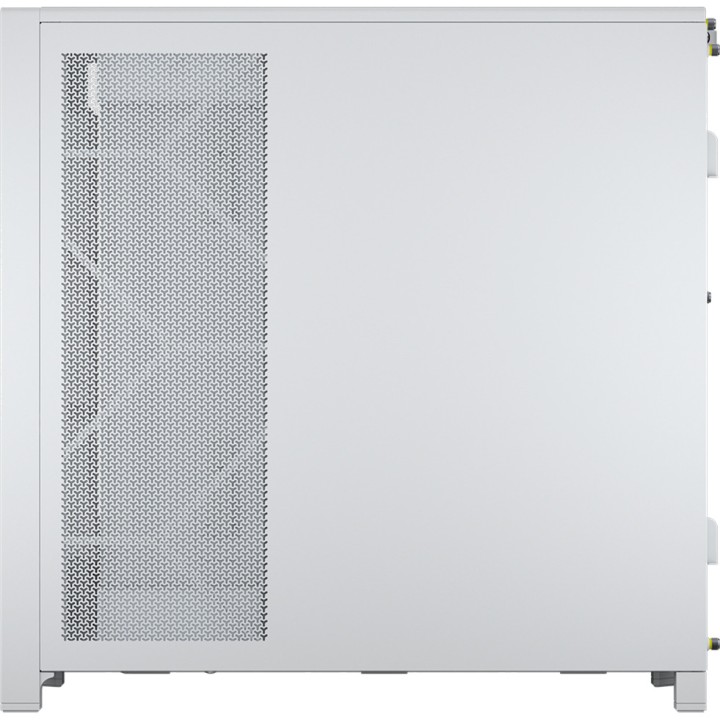

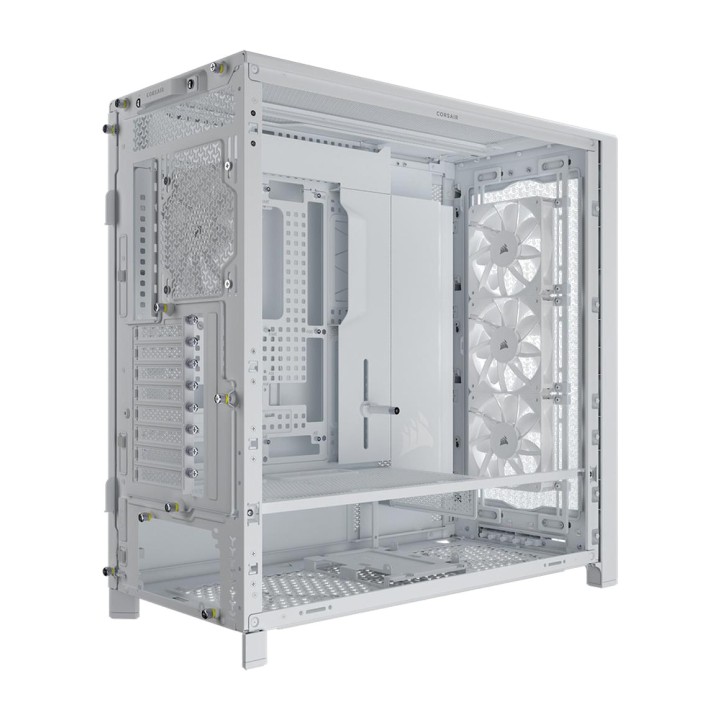

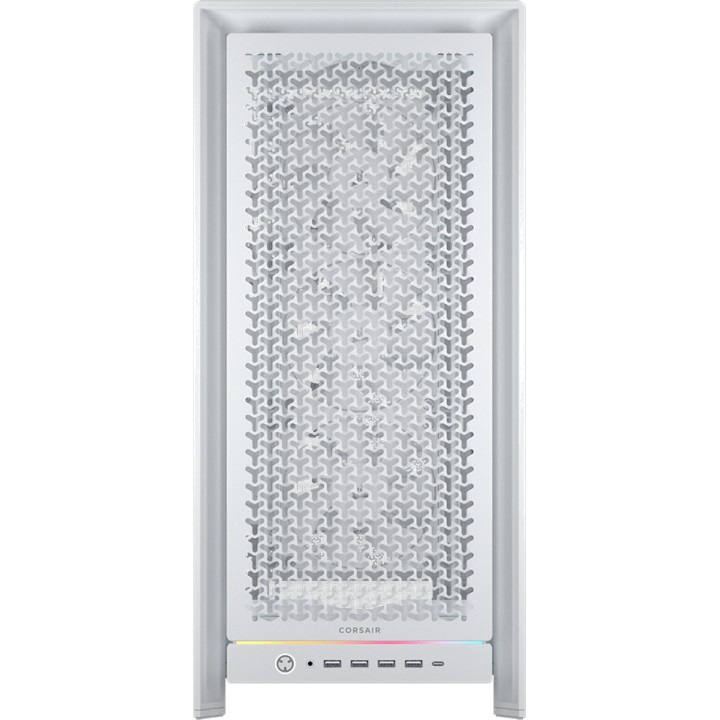

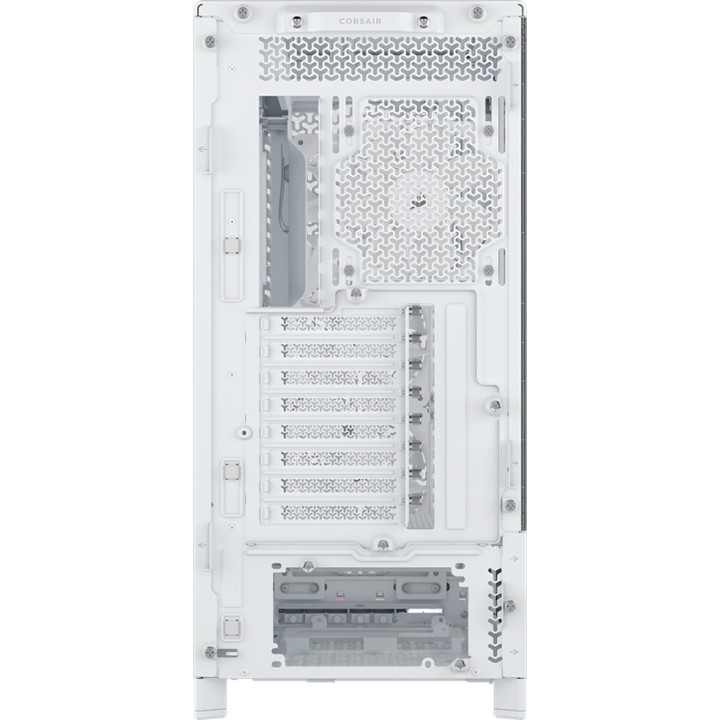

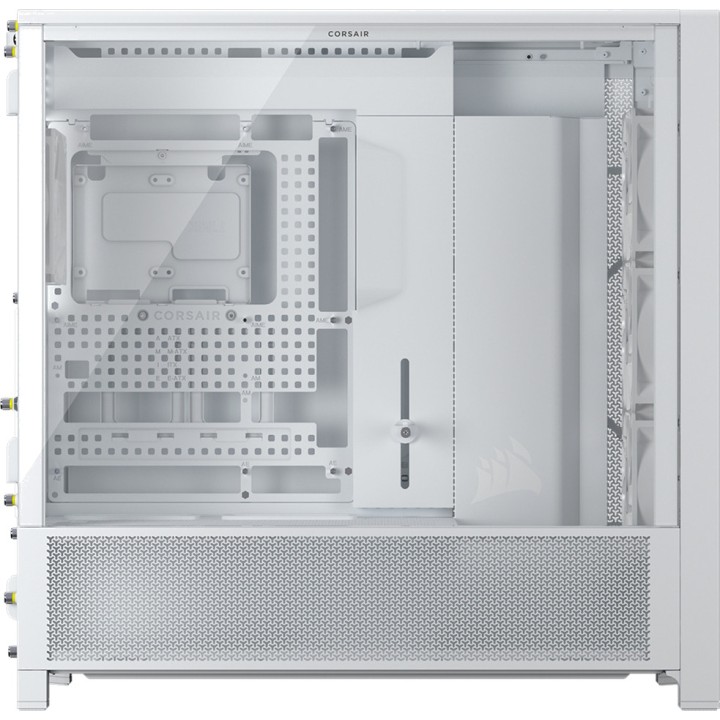

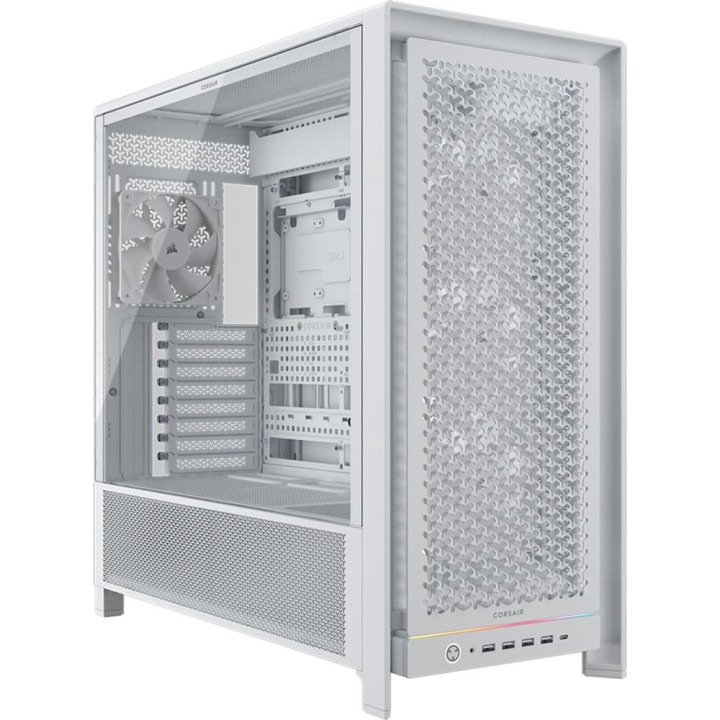

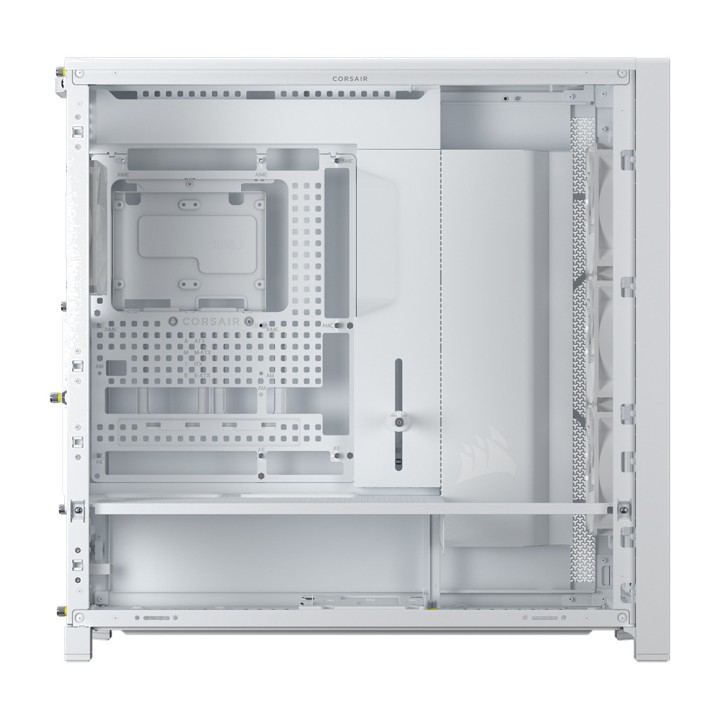

CORSAIR Mid-tower PC case with tempered glass FRAME 5000D RS DSP0000035036VAR

Features of the Frame 5000D RS White Chassis
The Frame 5000D RS is a high-performance mid-tower chassis designed for demanding users seeking a build with excellent airflow, expandability and optimised cable management. Its minimalist white design, together with its tempered glass side panel, makes it an ideal choice for modern, powerful setups, both for gaming and advanced workstations.
Design focused on airflow and compatibility
Made from high-quality materials such as steel, plastic and tempered glass, this chassis features front panels with a 3D-Y Airflow grille that allows superior air intake to keep components cool. In addition, its spacious interior is compatible with motherboards up to E-ATX and supports graphics cards up to 450 mm long.

Compatible with Mini-ITX, Micro-ATX, ATX and E-ATX motherboards (305 mm x 277 mm)
Supports graphics cards up to 450 mm
Tempered glass side panel to showcase the internal configuration

Extensive customisable cooling
The Frame 5000D RS stands out for its expanded support for cooling systems. It allows the installation of up to 13 fans and multiple radiators in different positions, making custom liquid-cooling configurations easy to set up.

Supports radiators up to 420 mm at the top and 360 mm at the front
Supports 120 mm and 140 mm fans, and up to 2x 200 mm fans at the front
Integrated dust filters to keep components clean

Modern connectivity and features
On its front panel, this chassis offers comprehensive connectivity, including one USB-C 3.2 Gen 2 port and four USB 3.2 Gen 1 ports, providing quick access to peripherals and external storage. In addition, its RapidRoute system provides 42 mm of cable management space, ensuring a clean and efficient build.

1x USB 3.2 Gen 2 Type-C + 4x USB 3.2 Gen 1 Type-A
Internal connections: HD Audio, USB 3.2 Gen1 and Gen2 Type -E, F_PANEL, 5V ARGB
Compatible with motherboards with reverse connectors

Customisable expansion and storage
Offers multiple storage options and expansion possibilities, ideal for ambitious projects or for those who need a large number of drives and expansion cards. It also supports vertical GPU mounting (with an optional riser card) to showcase the graphics card in premium builds.

2 internal 3.5" bays and 6 of 2.5"
8 horizontal or 3 vertical PCI slots
Compatible power supply: ATX

Other specifications

Dimensions: 542 mm (height) x 556 mm (length) x 250 mm (width)
Weight: 15.48 kg
Left side: tempered glass | right side: steel
Included fans: RS Series
Volume (m ³): 0.0677
