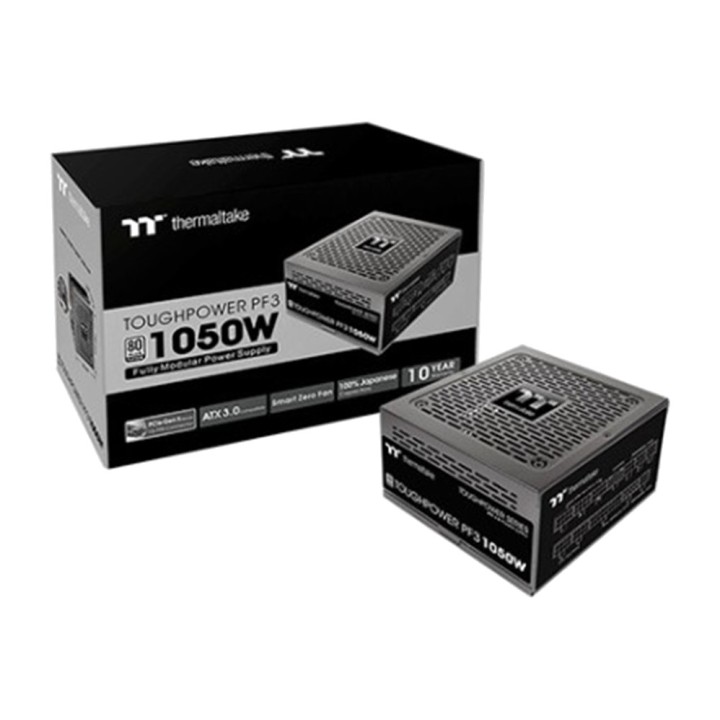

THERMALTAKE Modular PC power supply TOUGHPOWER-PF3 PLATINUM 1050W DSP0000018768

Thermaltake Toughpower 1050W ATX power supply PF3

Fully modular power supply with 80 PLUS Platinum certification and a 120 mm high static pressure fan.
Toughpower PF1 1050W - TT Premium Edition

With superior power, the Toughpower PF1 1050W/1200W Platinum - TT Premium Edition offers 80 PLUS Platinum efficiency and superior cooling performance thanks to a 120 mm high static pressure fan that can operate at a maximum speed of up to
120 mm static high pressure that can operate at a maximum speed of up to 2500 RPM.

The second-generation hydraulic bearing, exceptional fan blades and anti-vibration fan mounting system also help deliver excellent cooling performance
excellent.
With compact dimensions of 140 mm (D) x 86 mm (H) x 150 mm (W), the PF1 offers ample space for cable management.


Compact Design with 140mm Depth

The Toughower PF1 Plainum series is designed to be compact, measuring 140mm (D) x 86mm (H) x 150mm (L), providing ample space for cable management.


120 mm high static pressure fan

The Toughpower PF1 1050W/1200W Platinum features a High Static Pressure Fan with a maximum fan speed of up to 2500 RPM, ensuring superb cooling performance
superb.

The 2nd Generation Hydraulic Bearing features a new shaft design with internal grooves, and an Exceptional Blade Design to ensure the fan blades are highly resistant
to tensile stress, while the Anti-Vibration Mounting System provides protection and quiet operation.

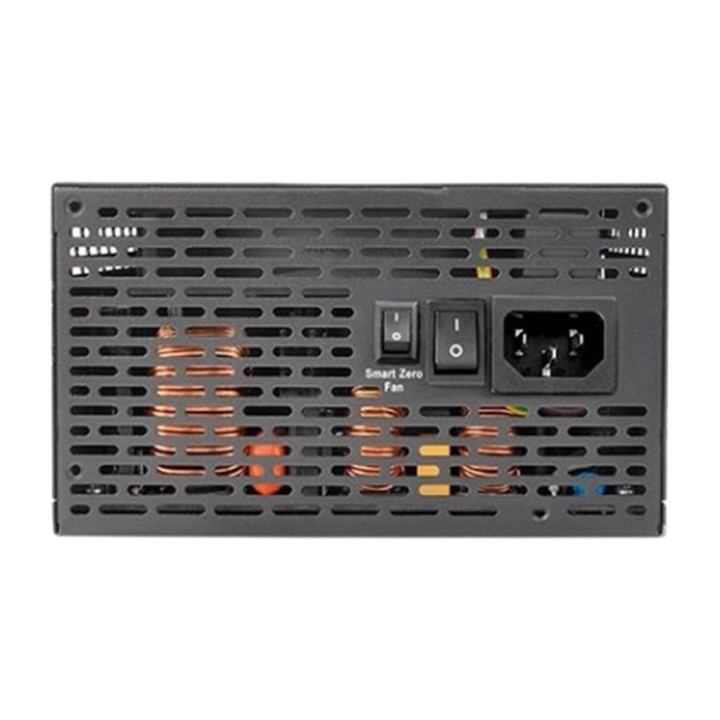

Smart Zero Fan

Designed with our Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply, minimizing fan noise.


30mV low ripple noise

All ripple is below 30 mV on +12V, +5V or +3.3V from 0% to 100% load to ensure stable operation and keep your critical performance components running
more reliably for longer.


Extremely tight voltage regulation 2

Voltage regulation is tighter than Intel’s 5% standard for the main rails and 10% for -12V, set at no more than 2% for the main rails to meet the highest
performance.

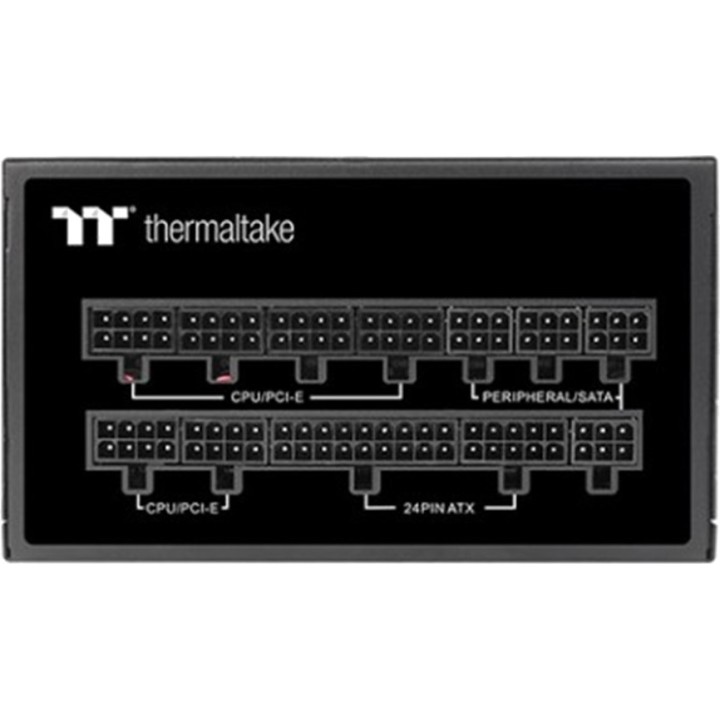

Fully modular low-profile flat cable

Offers users a selection of cables while supplying power to the system at an advantageous voltage. The low-profile black flat cable makes cable management easier, reduces clutter and increases
airflow inside the chassis.


Premium Japanese capacitors from 105C/221F

They provide excellent durability and maximum stability while remaining reliable.


High-amperage single +12 V rail

The powerful single +12 V rail ensures a stable and reliable power supply to other PC components.


80 PLUS Platinum certified and ready for Intel states C6/C7

The Toughpower PF1 Platinum series saves energy thanks to its high energy efficiency of up to 92% and is 80 PLUS Platinum certified. The series has been optimised to work with
all generations of Intel processors to achieve maximum energy savings.

general
Brand: THERMALTAKE
warranty: 36
Part Number: PS-TPD-1050FNFAPE-3
Categories: POWER SUPPLIES
Reconditioned: No
Replacement - Label: No
Volumetric Weight 1.5 Kg.
Regulatory approvals
80 PLUS certification: 80 PLUS Platinum
Connectivity
Form factor: ATX
Wiring type: Modular
PCIe power connector: (PCIe) 6+2-pin
PCI Express power connectors (6 + 2 pin) : 8
WEIGHT AND DIMENSIONS
HEIGHT: 86MM
Width: 150 cm
Depth: 140 mm
Technical details
COLOUR: DARK GRAY
Integrated on/off switch: Yes
Format: ATX
CPU fan connector: Yes
Power control
Rated power: 1050W
Input current : 16 - 8 A
Maximum output current (+12V): 87.5 A
Maximum output current (+3.3V): 20 A
Maximum output current (+5V): 20 A
Maximum output current (+5Vsb) : 2.5 A
Maximum output current (-12V): 0.3 A
AC input frequency: 50 - 60 Hz
Maximum power : 1050 W
Combined power (+12 V): 1050 W
Combined power (+5 V): 100 W
Combined power (+5 VSB): 12.5 W
Combined power (-12V): 3.6 W
Combined power (+3.3 V): 100 W
Input voltage AC: 100 - 240V
Cooling
Fan diameter: 120 mm
Number of fans : 1
Environmental conditions
Storage temperature range : -40 - 55 C
Operating temperature range : 5 - 45 C
Package contents

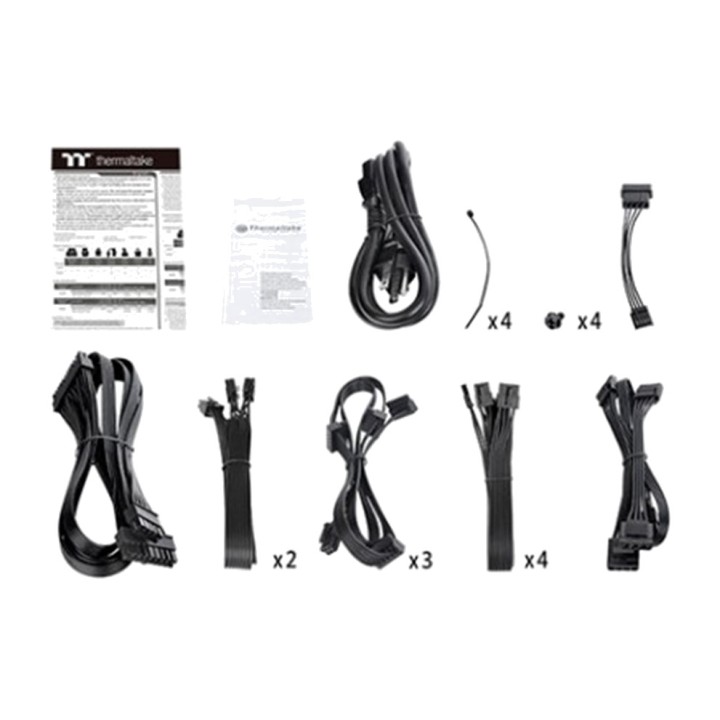

Included material: AC power, Screws
User manual: Yes
Volume (m ³): 0.0018
