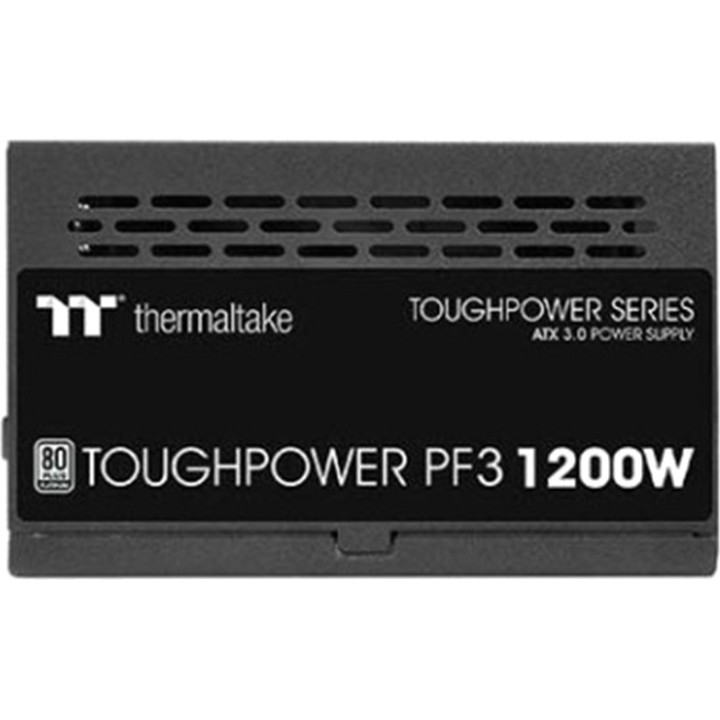

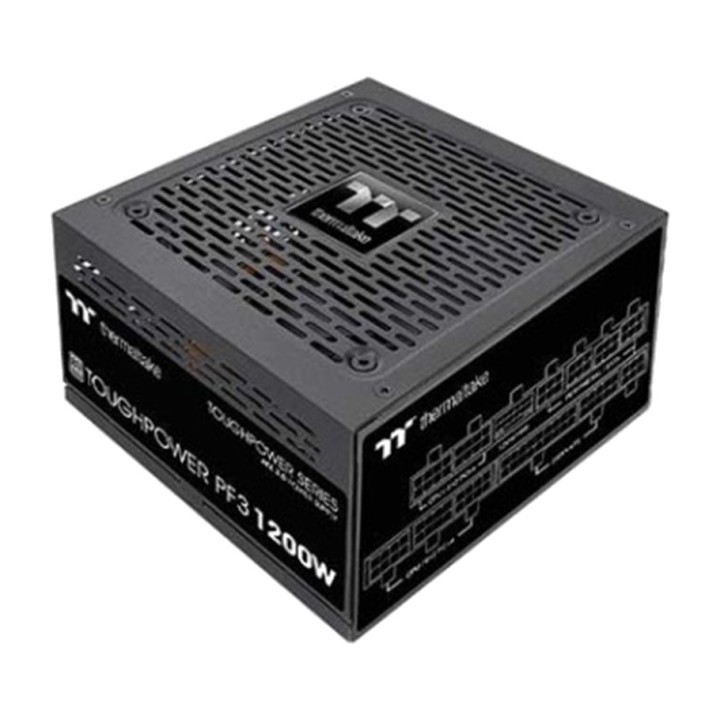

THERMALTAKE Modular PC power supply TOUGHPOWER-PF3 PLATINUM 1200W DSP0000018767

The Toughpower PF3 series is 80 PLUS Platinum certified and fully compliant with Intel's ATX 3.0 specifications. Designed with a native PCIe Gen 5 connector, it can power
next-generation technology with a new cable 12VHPWR.


Power next-generation hardware

To fully support next-generation hardware, the Toughpower PF3 Platinum series (750 W/850 W/1050 W/1200 W) is designed to meet ATX 3.0 standards, including a
PCIe Gen 5.0 12VHPWR connector. The PF3 Platinum series offers 80 PLUS Platinum efficiency, as well as the highest stability, durability and reliability.


Fully compatible with Intel standards ATX 3.0

The Toughpower PF3 Platinum series is fully compatible with Intel ATX 3.0 specifications, supporting up to 200% power excursion, achieving 70% low-load efficiency and
meets the required power supply timing standards.


PCIe Gen ready 5.0

The Toughpower PF3 series comes with a 16-pin connector to deliver powerful, stable performance, allowing the power supply to run next-generation GPUs natively.
The PF3 1200W native 16-pin PCIe connector (12VHPWR) can deliver up to 600W to PCIe graphics cards 5.0.


Made to meet the requirements of the latest graphics cards

As graphics card power consumption increases, so does their power demand. The PF3 Platinum series is designed to support NVIDIA and AMD graphics cards, and is
ready to power graphics cards with their different connection types.


80 PLUS Platinum certification

80 Plus Platinum certification means that Toughpower PF3 converts power efficiently, resulting in less energy loss and heat buildup inside the power supply.
supply.


Compact design with a depth of 140 mm

The Toughower PF3 Plantinum series is designed to be compact, measuring 140 mm (D) x 86 mm (H) x 150 mm (W), providing ample space for cable management.


Be smart, stay quiet

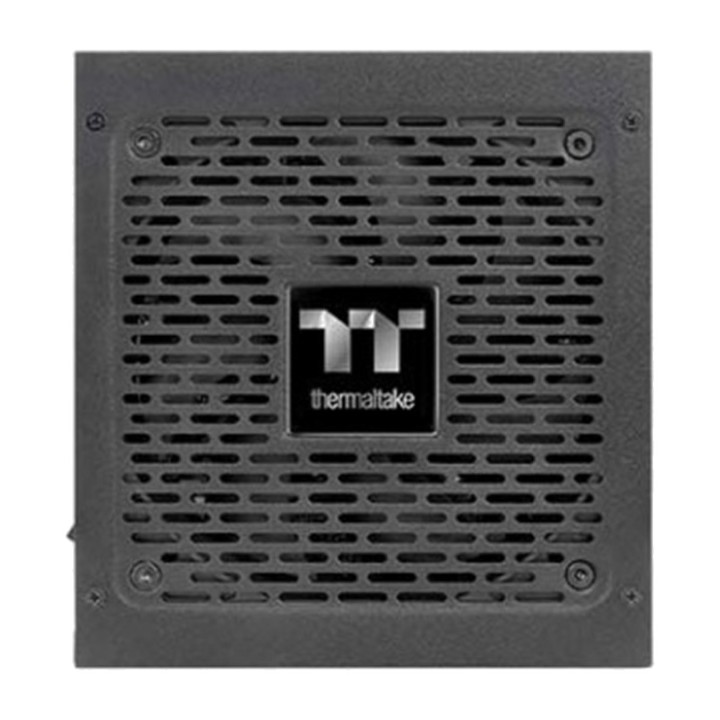

Features a 120 mm fluid dynamic bearing fan to create the perfect balance between silence and superior cooling. In addition, Smart Zero Fan will adjust the fan speed and
minimize unwanted noise.


More stable than ever

High-quality 100% Japanese 105 C/221 F electrolytic capacitors provide great durability and offer maximum stability while remaining reliable.


High-amperage single +12 V rail and high-end technologies

The powerful single +12 V rail can provide the power you need for the best compatibility. The use of LLC circuit design and DC-to-DC conversion provides very
stable operation and improved voltage regulation.


Fully modular low-profile cables

Offers users a choice of cables while supplying the system with power at an advantageous voltage. The low-profile black cables make cable management easier, reduce clutter and increase airflow
inside the chassis.

general
Brand: THERMALTAKE
warranty: 36
Part Number: PS-TPD-1200FNFAPE-3
Categories: POWER SUPPLIES
Reconditioned: No
Replacement - Label: No
Volumetric Weight 1.5 Kg.
Regulatory approvals
80 PLUS certification: 80 PLUS Platinum

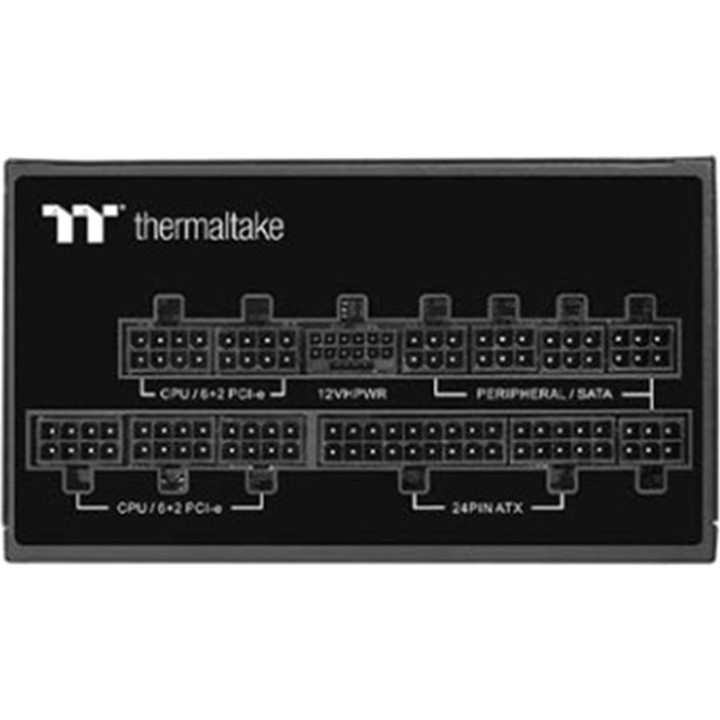

Connectivity
Form factor: ATX
Wiring type: Modular
Motherboard power connector: 20+4-pin ATX
PCIe power connector: (PCIe 5.0) 12+4-pin, (PCIe) 6+2-pin
Peripheral power connectors (4-pin) (Mole x): 8
PCI Express power connectors (6 + 2 pin) : 11
CPU power connector (4+4-pin) : 2
Number of SATA power connectors: 12
WEIGHT AND DIMENSIONS
HEIGHT: 86MM
Width: 150 mm
Depth: 140 mm
Technical details
COLOUR: BLACK
ATX power connector (20 + 4-pin): Yes
Integrated on/off switch: Yes
Version ATX: 3
Power control
Rated power : 1200 W
Power factor correction type (PFC): Active
Input current : 15 A
Maximum output current (+12V): 100 A
Maximum output current (+3.3V): 20 A
Maximum output current (+5V): 20 A
Maximum output current (+5Vsb) : 3 A
Maximum output current (-12V): 0.3 A
AC input frequency: 50 - 60 Hz
Maximum power : 1200 W
Combined power (+12 V): 1200 W
Combined power (+5 V): 100 W
Combined power (+5 VSB): 15 W
Combined power (-12V): 3.6 W
Combined power (+3.3 V): 100 W
Input voltage AC: 100 - 240 V
Cooling
Fan diameter: 120 mm
Fan location: Top
Number of fans : 1
Lighting/Alarms
Lighting: No
Environmental conditions
Storage temperature range : -40 - 70 C
Operating temperature range : 0 - 40 C
Endurance
Mean time between failures: 100000 h
Volume (m ³): 0.0099
