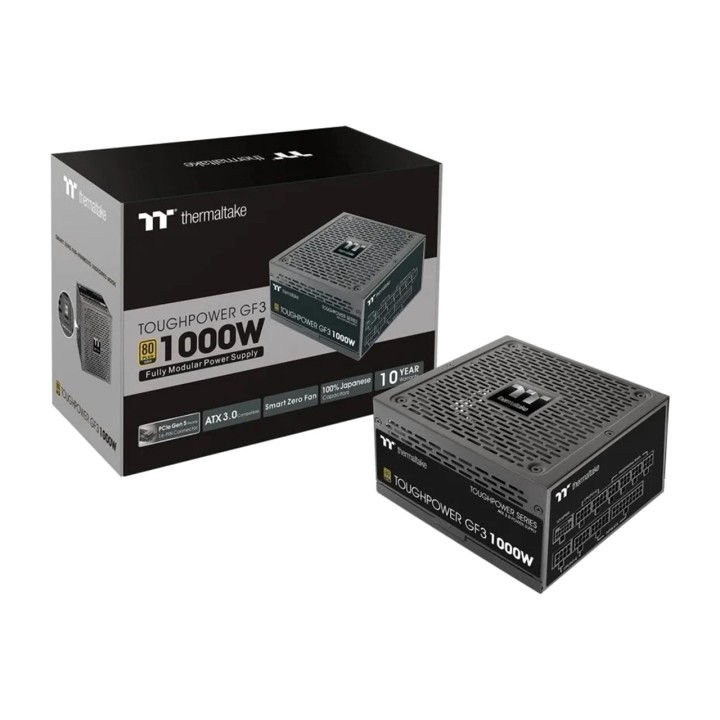

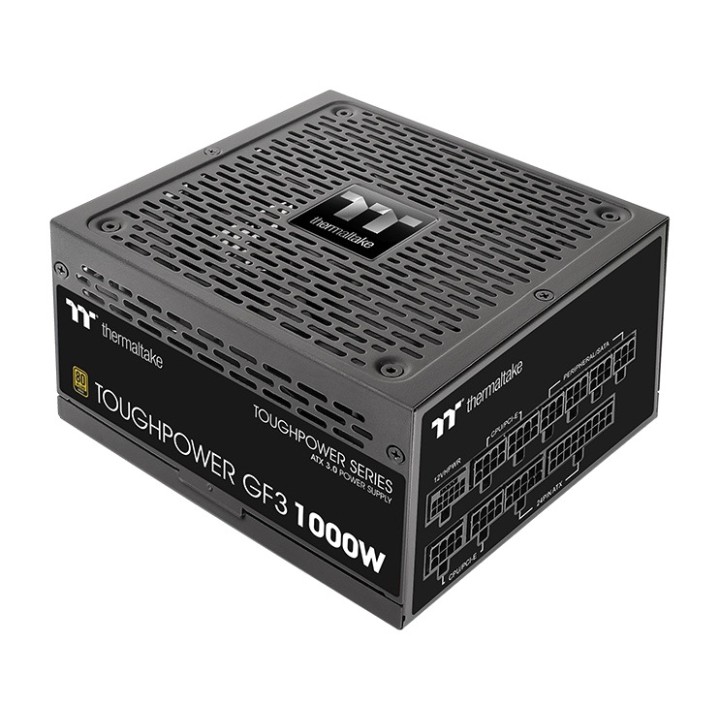

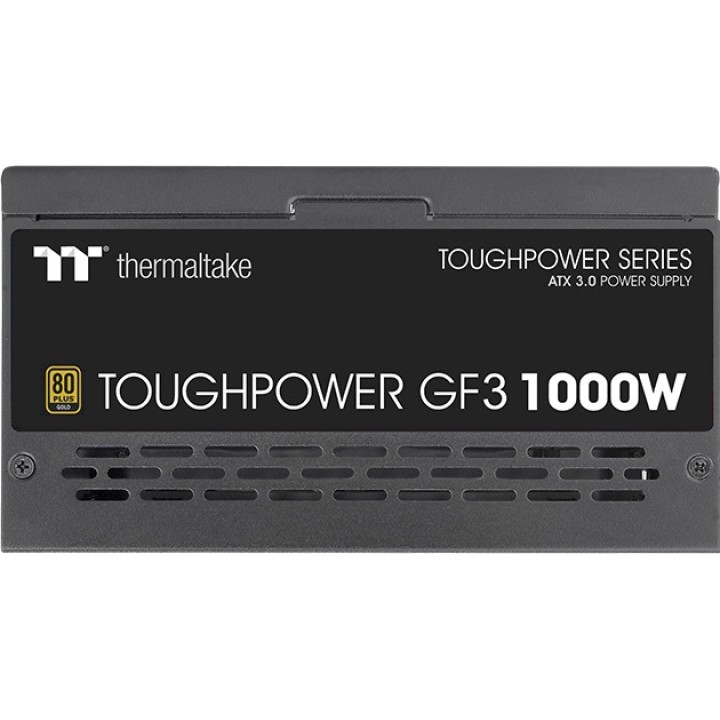

THERMALTAKE Modular PC power supply TOUGHPOWER-GF3 GOLD 1000W DSP0000017345

Designed with a native 12+4-pin PCIe connector, the Toughpower GF3 series is compatible with Intel's ATX 3.0 specification and is designed for the latest-generation PCIe 5.0 graphics cards.

Ready for PCIe Gen 5.0! Designed with a native 12+4-pin PCIe modular connector, the Toughpower GF3 series is designed for next-generation PCIe 5.0 graphics cards and is compatible
with Intel ATX 3.0 specifications. The fully modular Toughpower GF3 series is available in 1650 W, 1350 W, 1200 W, 1000 W, 850 W and 750 W and is designed to deliver 80 PLUS Gold efficiency.

Aiming to provide the best performance, the Toughpower GF3 1000W includes all critical features, such as a low ripple noise design of <,30 mV, voltage regulation
extremely tight <,2%, hold-up time>, 17 milliseconds and comes with high-quality 100% Japanese capacitors. and other premium components to help deliver continuous and stable power.
Characteristic:

Fully compliant with Intel PSDG ATX 3.0 specifications: The Toughpower GF3 series is fully compliant with Intel ATX 3.0 specifications, supporting up to 200% power excursion
energy, achieves 70% low-load efficiency and meets the required power supply timing standards. The GF3 series can support GPU power excursions of up to 3x and
a total power excursion of 2x.
Made to meet the latest graphics cards’ requirements: As graphics card power consumption increases, so does their power demand. The GF3 series is designed to support
NVIDIA and AMD graphics cards, ready to power the graphics card according to its different connection types.
PCIe Gen 5.0 Ready: Toughpower GF3 1000W Gold comes with a 16-pin connector to deliver powerful, stable performance, allowing the power supply to run the latest-generation GPUs naturally.
generation GPUs naturally.

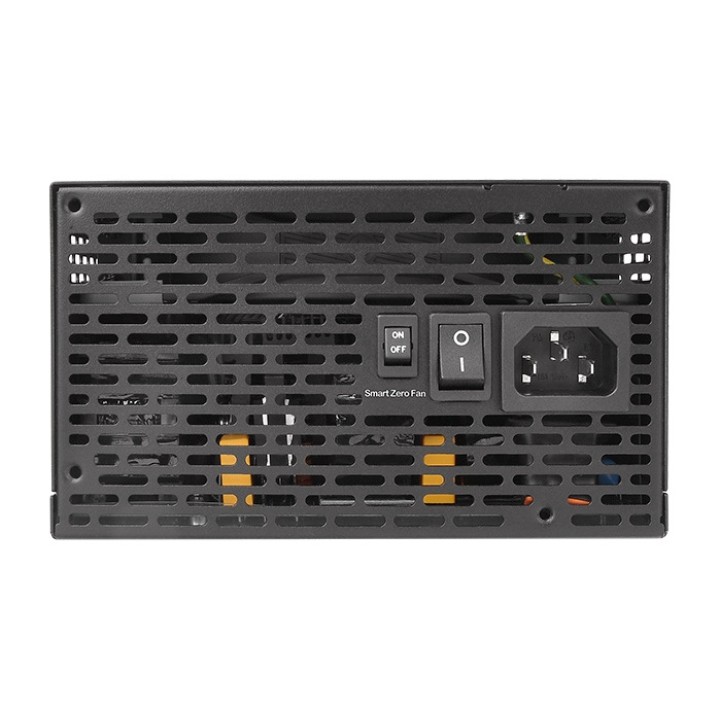

Ultra-Quiet Smart Zero Fan: Designed with our Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply’s capacity, minimizing fan noise.
?30mV Low Ripple Noise Design: High-end build quality with low ripple noise. All ripple levels are below 30 mV on +12 V, +5 V or +3.3 V from 0% to 100% load to
ensure stable operation and keep performance-critical components running reliably for longer.
Extremely Tight Voltage Regulation ?2%: Voltage regulation, tighter than Intel’s standard of +5%, -7% for the main rails and 10% for -12 V, is set at no more than 2
% for the main rails, providing consistent clean power through exceptional voltage stability.

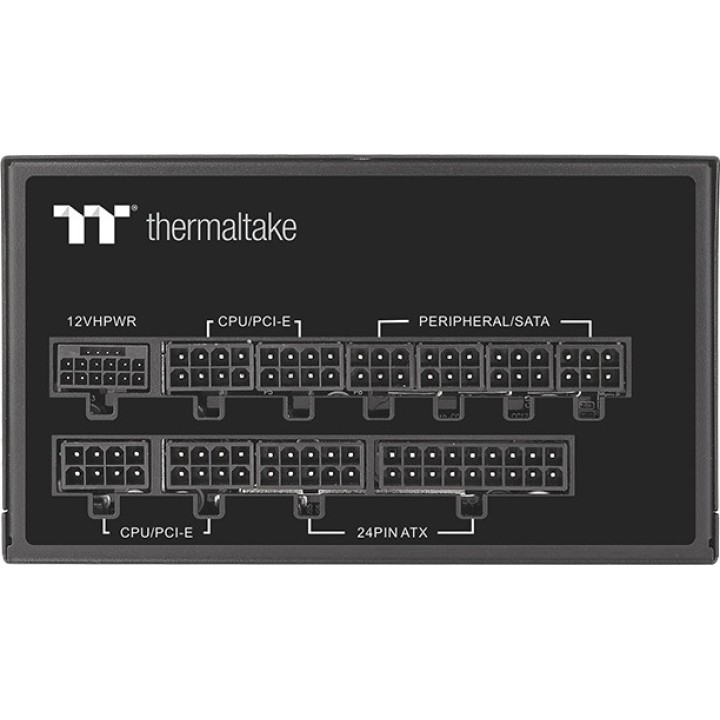

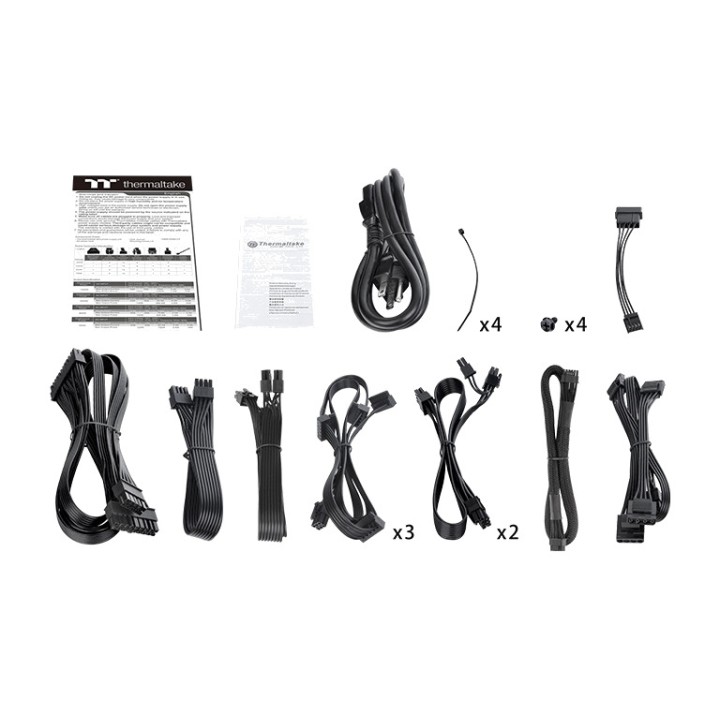

Fully Modular Low-Profile Flat Cable: Offers users cable selection while powering the system at an advantageous voltage. The low-profile black flat cable makes cable management
cables, reduces clutter and increases airflow inside the chassis.
100% high-quality Japanese capacitors rated at 105 C/221 F: Providing excellent durability as well as the highest stability, while remaining reliable.
High-amperage single +12 V rail and high-end technologies: The powerful single +12 V rail can correctly provide the power you need for the best compatibility. The use of an
LLC and DC-to-DC circuit design provides very stable operation and improved voltage regulation.

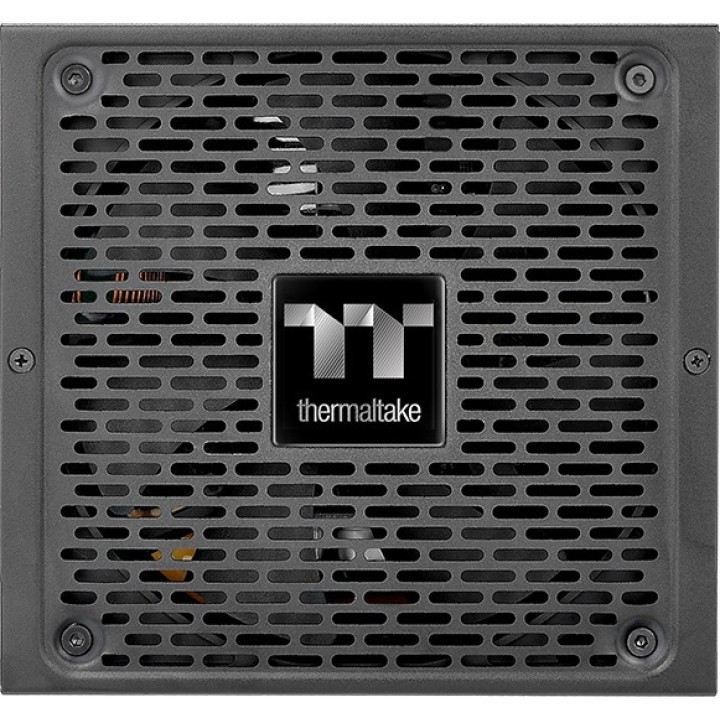

135 mm Fluid Dynamic Bearing Fan: Features a 135 mm fluid dynamic bearing fan to ensure superior cooling performance.
80 PLUS Gold Certified and Intel C6/C7 States Ready: The Tough power GF3 series saves energy thanks to its high energy efficiency of up to 90% and is 80 PLUS Gold certified. The series
has been optimized to work with all generations of Intel processors for maximum energy savings.

Specifications:

Max. Output Capacity 1000W
COLOR BLACK
Dimensions (W/H/D) 150 mm (width) x 86 mm (height) x 160 mm (depth)
Weight 1.72 kg
PFC (power factor correction) Active PFC
Power Good Signal 100-150 ms
Hold-up time >, 17ms at 100% full load
Input current 13.0A / 6.5A
Input Frequency Range 50/60Hz
Input voltage 100V 240V~
Operating Temperature 0C to + 40C
Operating humidity 20% to 90%, non-condensing
Storage temperature -20C to + 70C
Storage humidity 5% to 95%, non-condensing
COOLING SYSTEM 13.5 cm fluid-bearing fan
Efficiency Meets 80 PLUSGold with a 115 Vac input.
MTBF 100,000 hours minimum
Safety approval CE/UKCA/cTUVus/TV/FCC/IC/BSMI/EAC/CB/CCC
PCI-E connector
PCIe 6+2-pin x 4
PCIe 12+4-pin x 1
Protection OCP, OVP, UVP, OPP, SCP, OTP
Volume (m ³): 0.0118
