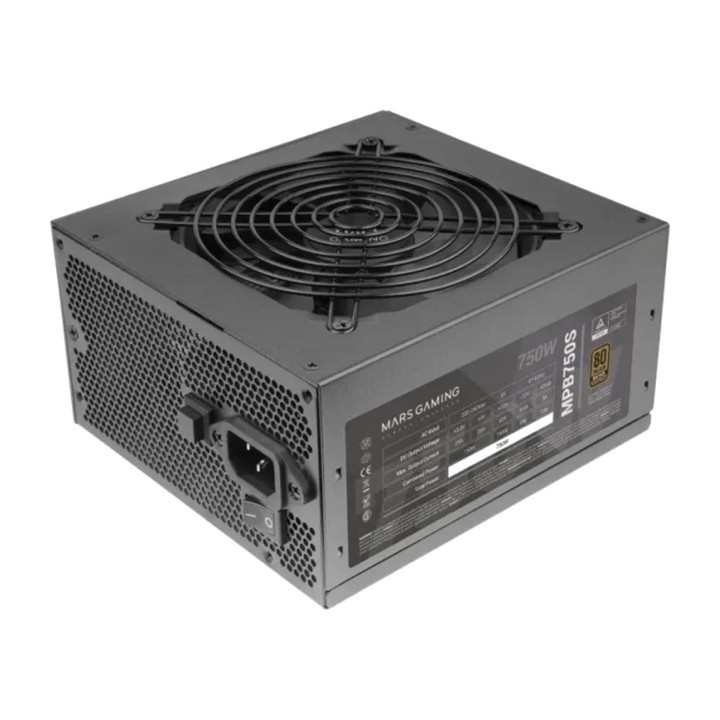

MARS GAMING PC power supply with ARGB lighting MPB750S 750W 80PLUS-BRONZE DSP0000029263

The 750W MPB750S ATX power supply with ARGB lighting combines power, efficiency, reliability and style. Featuring advanced technologies such as DC-DC and SMD, and a single +12V rail, it delivers efficiency of up to 99% with Active PFC technology. Its 80PLUS BRONZE certification guarantees efficiency above 90%, reducing energy consumption and operating costs. It includes OVP, UVP, OCP, OPP and SCP protections, and is backed by a 6-year warranty and TÜV Rheinland certification. Its ultra-quiet fan with AI-RPM technology and synchronisable ARGB lighting add functionality and style, while the flat, extra-long cables ensure a tidy installation and optimal thermal performance.

Guaranteed Protection and Reliability
Enjoy complete peace of mind with a 6-year warranty backing the quality and reliability of the MPB750S power supply. Manufactured using the latest high-precision SMD technology and equipped with multiple safety protections, including OVP (overvoltage protection), UVP (undervoltage protection), OCP (overcurrent protection), OPP (overpower protection) and SCP (short-circuit protection), your system will always be safe. Quality certified by the renowned German quality and safety testing laboratory TÜV Rheinland.

Unmatched Power and Efficiency. 80PLUS BRONZE Certification
The 750W MPB750S ARGB ATX power supply, equipped with advanced technologies such as DC-DC, SMD and a single +12V rail, delivers exceptional efficiency of up to 99% with Active PFC technology. This ensures more efficient and stable power delivery, improving power quality and reducing grid distortion. In addition, its 80PLUS BRONZE 230V certification guarantees efficiency above 90%, significantly reducing energy consumption and operating costs, while also being environmentally friendly. This high efficiency helps keep your system cooler and quieter, optimising both performance and sustainability.

ADVANCED TECHNOLOGIES: DC-DC AND SMD
Experience superior energy efficiency with our DC-DC technology, which optimises stability and performance by enabling the power supply to support the most demanding graphics cards with a powerful 12V rail. This system is ideal for high-performance platforms, thanks to the inclusion of SMD technology, which not only improves operational stability but also extends the power supply’s lifespan. It also reduces energy consumption by 20%, making a significant contribution to sustainability while providing precise voltage regulation to protect the most sensitive components under varying load conditions.

AI-RPM Technology. Absolute Silence

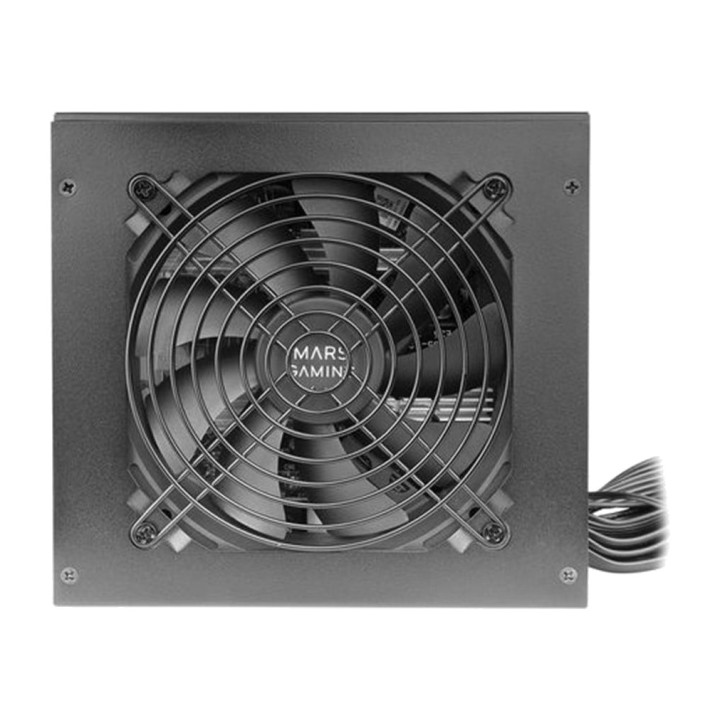

The MPB750S power supply, equipped with an ultra-quiet 120mm fan and AI-RPM technology with a control IC, intelligently adjusts the fan speed according to the system’s thermal requirements. This advanced thermal control system ensures quiet operation and optimal cooling, keeping your PC cool and free from annoying noise.

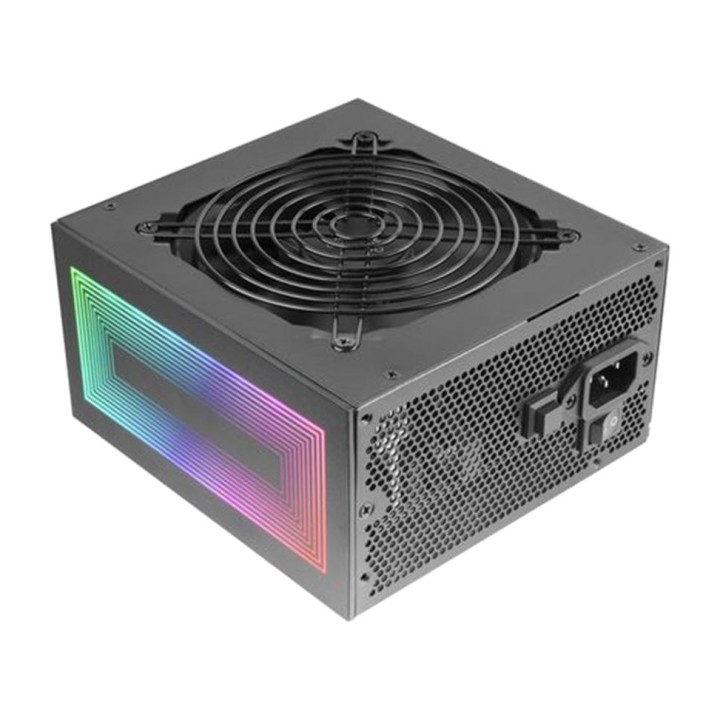

Synchronised ARGB Lighting
Add a touch of style to your system with the power supply’s preset ARGB lighting effects, using the rear button (no need to connect the ARGB cable), or control the lighting via motherboards or controllers. Customise your PC’s lighting and synchronise the lighting of your power supply with that of your other components to create a unique and attractive atmosphere.

Optimised cable design
The premium, extra-long, flat black cables make for a clean, tidy installation, improve airflow inside the chassis and ensure impeccable cable management. This not only enhances the aesthetics of your system but also its thermal performance.

Mars Gaming ARGB power supply MPB750S. Total power: 750 W, AC input voltage: 220 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-modular. Use with: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC power



Power control


Total power
750 W

AC input voltage
220 - 240 V

AC input frequency
47 - 63 Hz

Input current
5 A

Power factor correction (PFC) type
Active

Number of rails of 12 V
1

Combined power (3,3 V)
130 W

Combined power (+12 V)
744 W

Combined power (+5 V)
130 W

Combined power (-12V)
6 W

Combined power (+5 VSB)
15 W

Maximum output current (+3.3V)
25 A

Maximum output current (+12V)
62 A

Maximum output current (-12V)
0,5 A

Maximum output current (+5Vsb)
3 A

Efficiency
90%

Power protection features
Overcurrent, Overvoltage, Overvoltage, Short circuit, Undervoltage

Ports and Interfaces


Motherboard power supply
24-pin ATX

Number of SATA power connectors
5

Peripheral power connectors (4-pin) (Molex)
3

PCI Express power connectors (6 + 2 pin)
2

CPU power connector (4+4-pin)
YES

Cabling type
Non-modular

Performance


Use with
PC

Power supply unit (PSU) form factor
ATX

CERTIFICATION 80 PLUS
80 PLUS Bronze

Noise level
10 dB

CERTIFICATION
ATX12V

Country of origin
China

Design


Product color
BLACK

Cooling type
Active

Fan diameter
12 cm

Number of fans
1 fan(s)

lighting
YES

Integrated on/off switch
YES

WEIGHT AND DIMENSIONS


WIDTH
150 mm

DEPTH
142 mm

HEIGHT
85 mm

WEIGHT
1,51 kg

Packaging


Package width
206 mm

Package depth
136 mm

Package height
258 mm

Technical details


Certificates of conformity
CE, United States Federal Communications Commission (FCC), RoHS, TÜV mark
Volume (m ³): 0.0076
