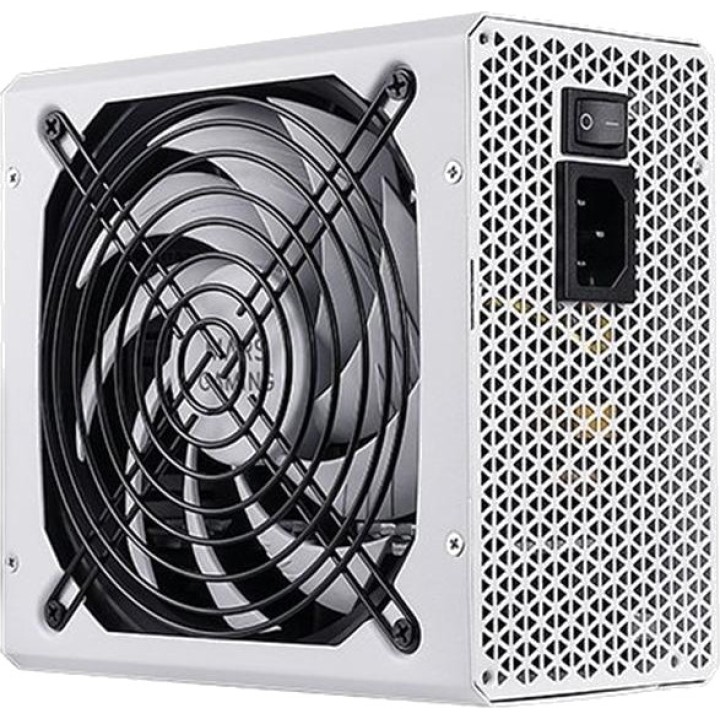

MARS GAMING Silent PC power supply with 140 mm fan MPB650 650W 80PLUS-BRONZE DSP0000029262

Power supply MPB650

6-year warranty thanks to the latest high-precision SMD manufacturing technology, double-layer fibreglass PCB and highly reliable Grade-A components. Maximum silence with the new AI-RPM technology and 140 mm XL fan. 99% DIGITAL APFC efficiency, 90% electrical efficiency, extra-long black flat cables and included protection and safety systems.

6-YEAR WARRANTY. TOTAL RELIABILITY AND SAFETY

Thanks to the latest high-precision SMD manufacturing technology, the use of top-quality, highly reliable Grade-A components and an intelligent cooling system, the MPB650 offers an extended 6-year operating warranty. Its ultra-stable SMD construction on a double-layer fibreglass PCB ensures outstanding performance and reliability under all circumstances. In addition, the MPB650 integrates the most advanced and comprehensive electronic safety systems, including: OVP (overvoltage protection), UVP (undervoltage protection), OCP (overcurrent protection), OPP (overpower protection), SCP EXTENDED (complete protection against internal and external short circuits). Developed in Europe and manufactured to the strictest European standards. Quality certified by the prestigious TÜV Rheinland laboratories

Professional efficiency

With 99% efficiency in the DIGITAL APFC system and 90% electrical efficiency, you’ll achieve a perfect balance between efficiency and consumption. In addition, its +12 V single-rail technology lets you install the most demanding hardware

SILENCIO ABSOLUTO. AI-RPM Y 140MM FDB

Equipped with the latest AI-RPM fan control technology, ideal for ensuring silent operation, the MPB650 features state-of-the-art intelligent thermal control based on advanced algorithms and multi-level control systems to keep the fan running at minimum speed. In addition, the MPB650 features an industrial-grade 140 mm XL fan with a fluid dynamic bearing and oversized motor to maximise its stability. All the technology available to ensure minimum noise and maximum efficiency and durability.

POWER GUARANTEED

Up to 650 W of power, with the best safety features and an optimised energy-saving factor: the MPB650 is 80 PLUS Bronze 230V EU certified to guarantee over 90% efficiency and quality in the power supply’s operation, and features an active PFC system.

Optimised cable design

The MPB650 cables are flat, black and extra-long: a combination of features that makes installation easier than ever and fully versatile for any build in any type of case. Build the ultimate PC with a large tower and enjoy your gaming to the fullest.

High-protection EPE packaging

To ensure that the MPB650 power supply arrives in perfect condition, it is fully protected by special packaging with a complete shock-absorption system.

Mars Gaming MPB650. Total power: 650 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: White, Cooling type: Active, Fan diameter: 14 cm. Width: 150 mm, Depth: 160 mm, Height: 85 mm



Power control


Total power
650 W

AC input voltage
200 - 240 V

AC input frequency
47 - 63 Hz

Input current
5 A

Power factor correction (PFC) type
Active

Number of rails of 12 V
1

Combined power (3,3 V)
100 W

Combined power (+12 V)
600 W

Combined power (+5 V)
100 W

Combined power (-12V)
3,6 W

Combined power (+5 VSB)
12,5 W

Maximum output current (+3.3V)
18 A

Maximum output current (+12V)
50 A

Maximum output current (+5V)
18 A

Maximum output current (-12V)
0,3 A

Maximum output current (+5Vsb)
2,5 A

Efficiency
90%

Power protection features
Overcurrent, Overvoltage, Overvoltage, Short circuit, Undervoltage

Ports and Interfaces


Motherboard power supply
24-pin ATX

Number of SATA power connectors
5

Peripheral power connectors (4-pin) (Molex)
3

EPS power connector (4+4 pins)
YES

PCI Express power connectors (6 + 2 pin)
2

Cabling type
Non-modular

Performance


Use with
PC

Power supply unit (PSU) form factor
ATX

CERTIFICATION 80 PLUS
80 PLUS Bronze

Noise level
12 dB

Bearing technology
FDB

Design


Product color
WHITE

Cooling type
Active

Fan diameter
14 cm

Number of fans
1 fan(s)

Fan location
Upper

Integrated on/off switch
YES

WEIGHT AND DIMENSIONS


WIDTH
150 mm

DEPTH
160 mm

HEIGHT
85 mm

WEIGHT
1,55 kg

Technical details


Certificates of conformity
CE, RoHS

Sustainability compliance
YES
Volume (m ³): 0.0064
