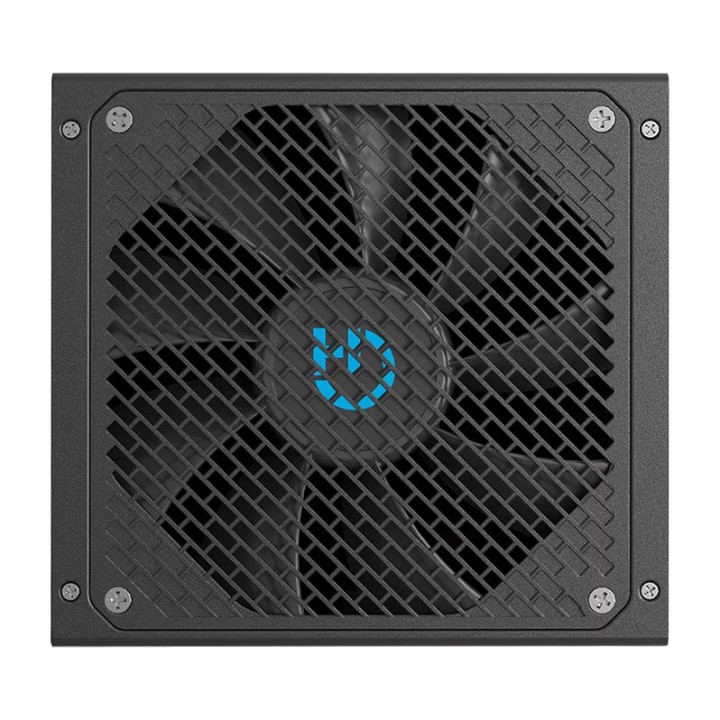

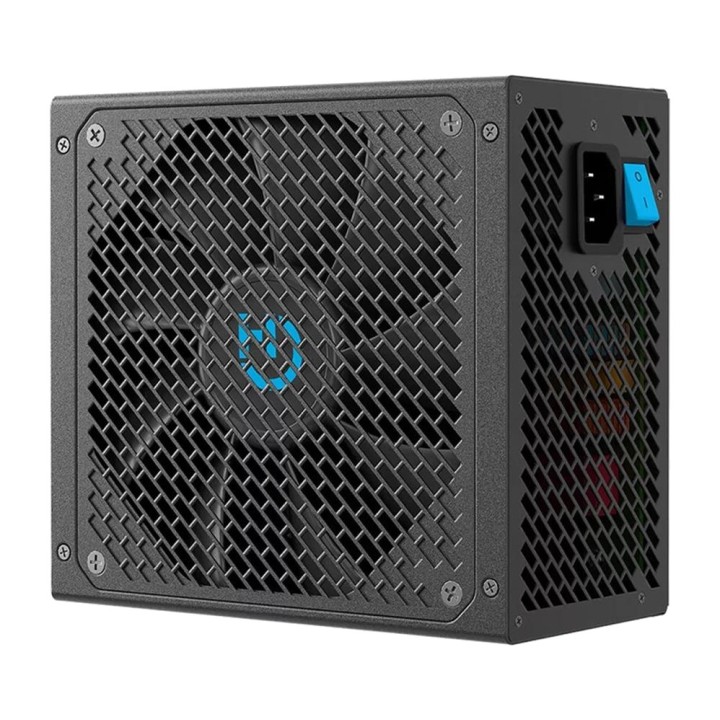

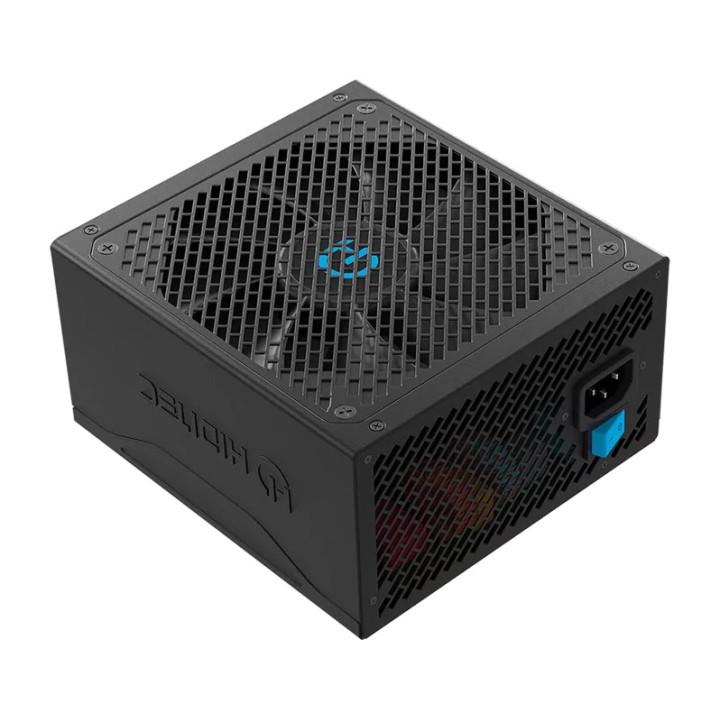

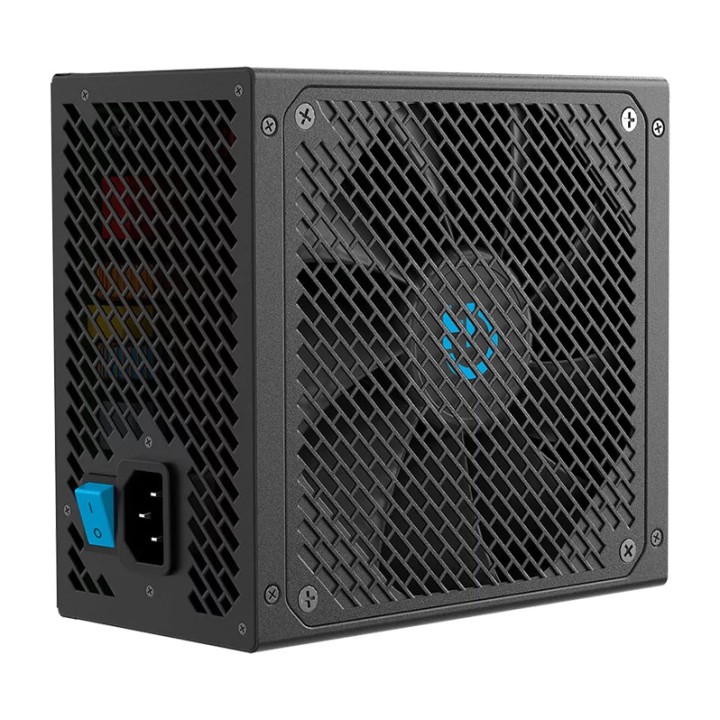

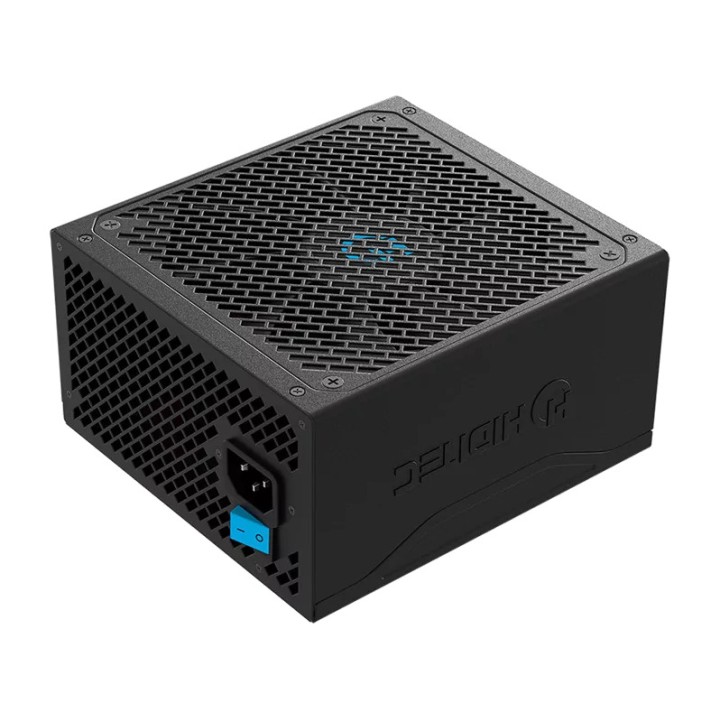

HIDITEC ATX power supply for PC with Japanese capacitors and DC/DC conversion BZ650-V2 650W 80PLUS-BRONZE DSP0000041716

Features of the Hiditec PSU BZ650 v2 80PLUS Bronze
The Hiditec PSU BZ650 v2 is a 650 W ATX power supply designed to provide stable and efficient power to desktop computers. Its 80Plus Bronze certification, active PFC system and Japanese capacitors designed to operate at high temperatures make it a suitable choice for home, professional and gaming setups.
Stable power with 80Plus Bronze certification
This power supply delivers a total output of 650 W and is 80Plus Bronze certified, confirming efficient operation and helping to reduce energy losses. It also features active PFC of 0.9 or higher to optimise energy use and maintain a stable power supply.

POWER : 650 W
Certification: 80Plus Bronze
Form factor: ATX
Active PFC : = 0,9
Input voltage : 230 V CA / 5 A

Components designed for prolonged use
The Hiditec PSU BZ650 v2 uses Japanese capacitors certified to operate at 105 °C, providing greater resistance to high temperatures. Its mean time between failures of 100,000 hours reflects a design focused on delivering reliability during continuous use.

Japanese capacitors 105 °C
MTBF: 100,000 hours
Design focused on stable power delivery

140 mm fan with FDB bearing
Cooling is provided by a 140 mm fan equipped with a fluid dynamic bearing (FDB). This system promotes smooth operation and helps maintain a suitable temperature inside the power supply.

Fan: 140 x 140 x 25 mm
Fluid dynamic bearing (FDB)
Cooling adapted to the ATX form factor

Connectivity for different configurations
Its set of connectors can power motherboards, processors, graphics cards, SATA drives and other internal devices. It includes two 4+4-pin EPS connectors and four 6+2-pin PCIe connectors, making it easy to integrate into systems with different power requirements.

1 x 20+4-pin ATX connector, with 600 mm cable
2 x 4+4-pin +12 V EPS connectors, with 700 mm cable
4 x 6+2-pin PCIe connectors
5 x SATA connectors
2 x IDE connectors
1 x FDD connector

CircuitShield protection system
CircuitShield technology integrates various safety mechanisms to protect the power supply and connected components against electrical faults. It includes protection against overcurrent, overvoltage, short circuit, overload, undervoltage and overtemperature.

OCP: overcurrent protection
OVP: overvoltage protection
SCP: short-circuit protection
OPP: overload protection
UVP: undervoltage protection
OTP: overtemperature protection

DC outputs
The power supply distributes power through different DC rails, with the +12 V output providing 54.2 A to supply power to the system's main components.

Output +3,3 V: 20 A
Output +5 V: 20 A
Output +12 V: 54,2 A
Output -12 V: 0,3 A
+5 Vsb output : 2,5 A

Dimensions and model
With dimensions of 150 x 86 x 160 mm, this power supply has a form factor compatible with cases designed for ATX power supplies.

Brand: Hiditec
MODEL: PSU010054
Dimensions: 150 x 86 x 160 mm
Volume (m ³): 0.0021
