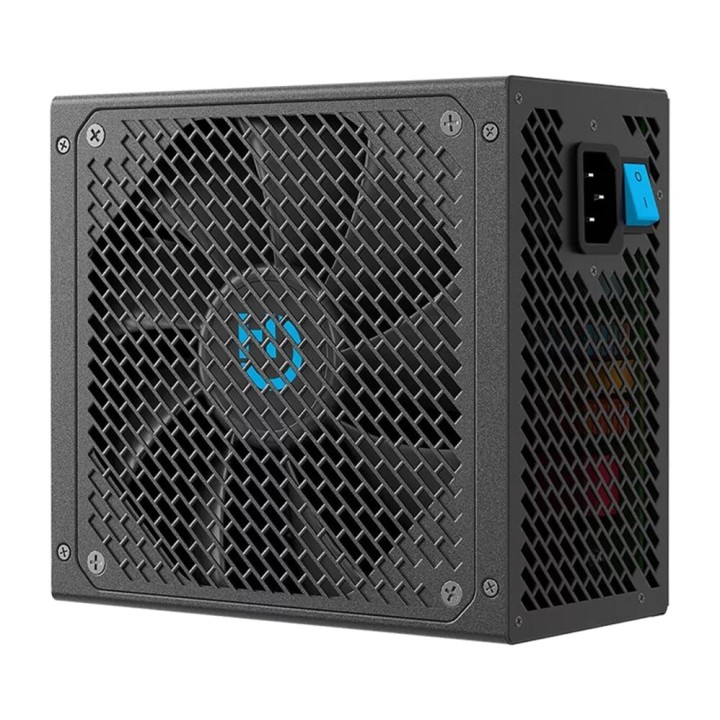

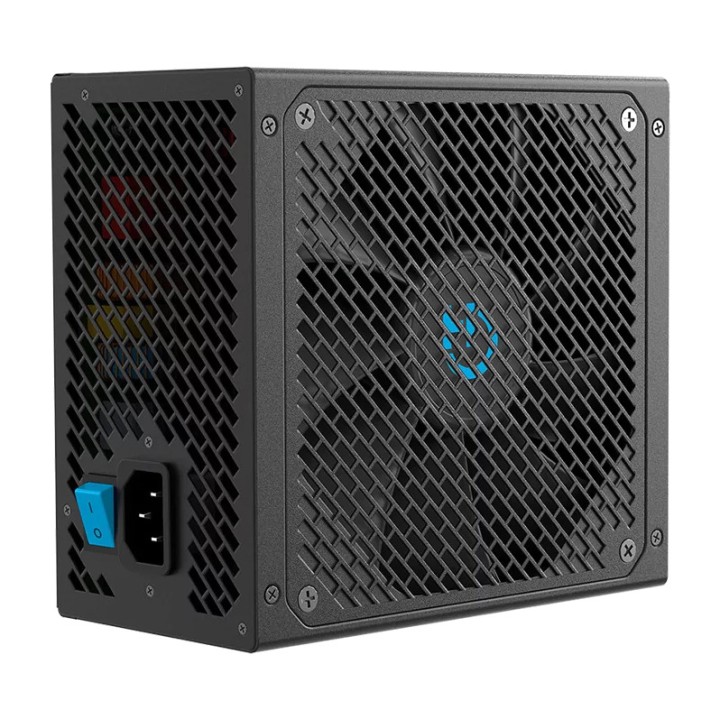

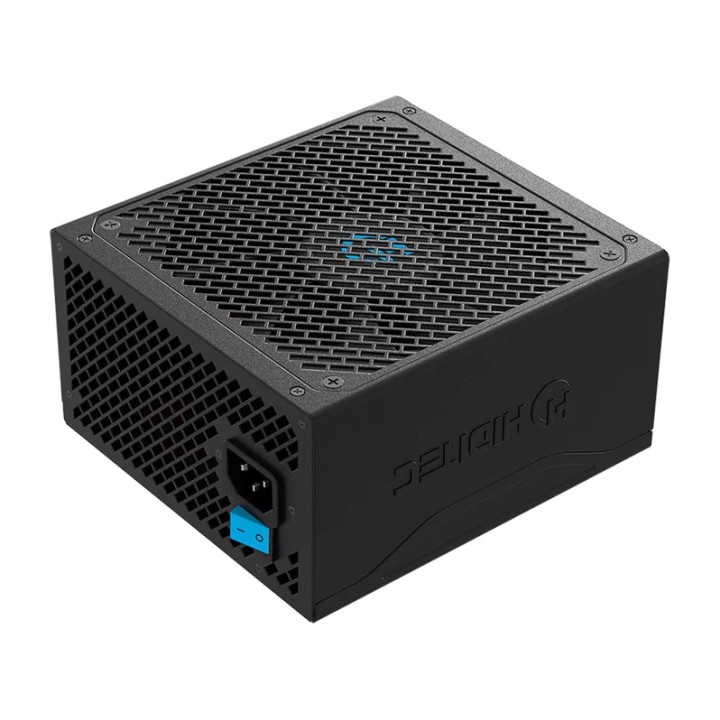

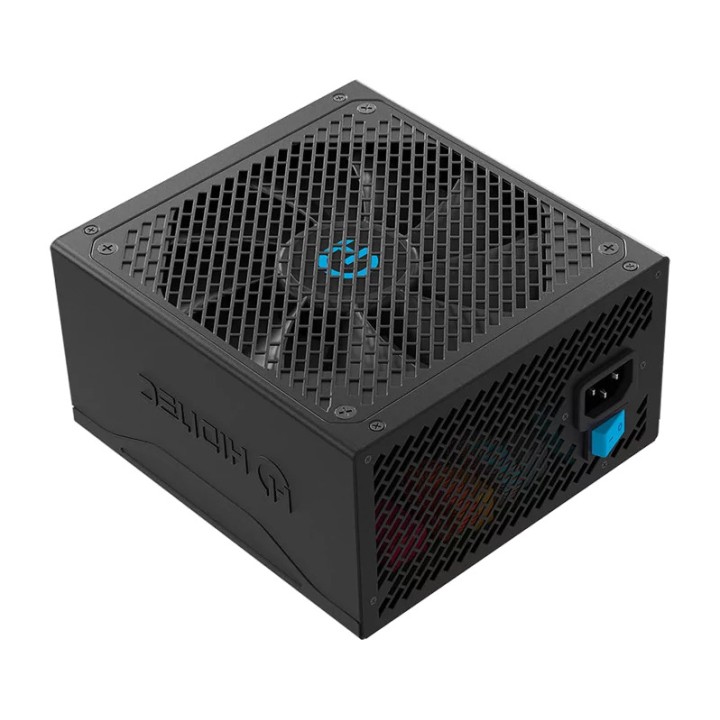

HIDITEC ATX power supply for PC with Japanese capacitors and DC/DC conversion BZ550-V2 550W 80PLUS-BRONZE DSP0000041715

Features of the Hiditec BZ550 v 2 80PLUS BRONZE 550 W
The Hiditec BZ550 v2 80PLUS BRONZE is a 550 W ATX power supply designed for high-performance systems that require stable, efficient and reliable power. It features 80 PLUS Bronze certification, DC/DC conversion technology, 105°C Japanese capacitors and a comprehensive protection system to ensure safe operation and a long service life.
80 PLUS Bronze-certified efficiency
Thanks to its 80 PLUS Bronze certification, this power supply achieves efficiency of up to 87%, reducing energy consumption, heat generation and the load on the cooling system. This helps improve system stability and extend the service life of its components.

Total power of 550 W.
80 PLUS Bronze certification.
Efficiency of up to 87%.
Active PFC with a power factor greater than 0,9.

High-quality components for greater durability
The BZ v2 series features 105°C Japanese electrolytic capacitors, designed to provide high reliability and minimise voltage ripple. In addition, SMT manufacturing technology and the DC/DC converter ensure stable power delivery, even under demanding loads.

Japanese capacitors 105°C.
DC/DC conversion technology.
Manufactured using SMT technology.
Estimated service life of over 100,000 hours.

Quiet and efficient cooling

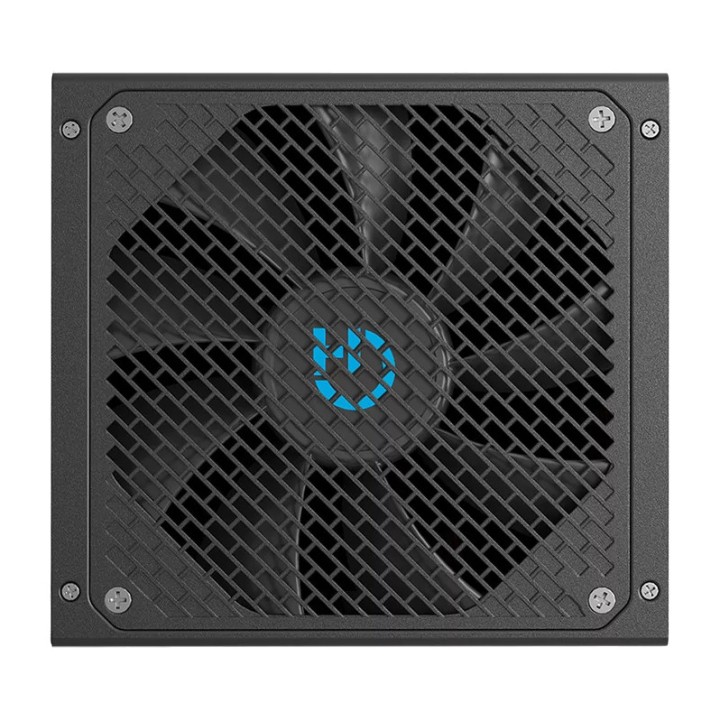

Its 140 mm fan with an FDB (Fluid Dynamic Bearing) bearing and temperature-controlled operation automatically adjusts its speed according to the system load, providing efficient cooling with very low noise levels.

140 mm fan.
FDB fluid dynamic bearing.
Automatic speed control.
Low-noise active cooling.

Connectivity ready for demanding systems
The Hiditec BZ550 v2 features a wide range of connectors and extra-long cables with flexible individual sleeving, making it easy to achieve a tidy installation and ensuring compatibility with a wide variety of configurations.

ATX 20+4-pin connector.
2 EPS 4+4-pin connectors for CPU.
4 PCI Express 6+2-pin connectors.
5 SATA connectors.
2 PATA connectors.
1 floppy drive connector.
60 cm ATX cable.

Comprehensive protection and certified quality
To protect all computer components, it features a comprehensive safety circuit with multiple protection systems against electrical faults. Its quality is also certified by TÜV Rheinland, and it comes with a 7-year warranty.

OCP, OVP, SCP, OPP, UVP and OTP protection.
TÜV Rheinland certification.
7-year warranty.
CE, FCC, RoHS and CB certified.

Other specifications

ATX form factor.
Input voltage : 230 V.
Input current : 5 A.
Rail +12 V: 45 A.
Rail +3,3 V: 20 A.
Rail +5 V: 20 A.
Rail -12 V: 0,3 A.
Rail +5VSB: 2,5 A.
Integrated power switch.
COLOR: Negro.
Dimensions: 150 x 160 x 86 mm.
Compatible with PC.
Volume (m ³): 0.0021
