HIDITEC Power supply for gaming PCs compatible with ATX 3.1 BZ-PRO 650W 80PLUS-BRONZE DSP0000039300

Features of the Hiditec BZ Pro 650W 80+ Bronze PSU ATX 3.1
The Hiditec BZ Pro 650W is a power supply designed to provide stability, efficiency and compatibility with current systems. Thanks to its 80 Plus Bronze certification and ATX 3.1 standard design, it is an ideal choice for gaming or professional setups that require reliable power and good power consumption management.
Energy efficiency and balanced power
With a power output of 650W, this power supply delivers stable performance for upper mid-range systems. Its 80 Plus Bronze certification ensures optimized power consumption and lower energy loss, resulting in less heat generation and greater overall system efficiency.

Total power: 650W
80 Plus Bronze certification
Active PFC with power factor > , 0.9

Compatible with current hardware
The inclusion of the 12V-2x6 connector ensures compatibility with next-generation graphics cards, while its comprehensive set of connections can power demanding configurations without limitations.

1 x 12V-2x6 (650 mm)
3 x PCIe 6+2-pin
2 x EPS 4+4-pin for CPU

Quiet, long-lasting cooling

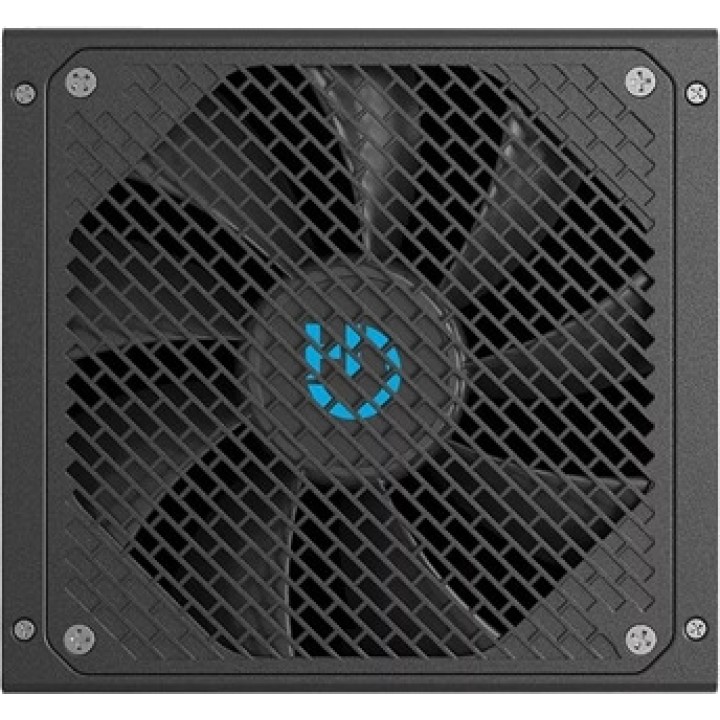

Equipped with a 140 mm fan with a fluid dynamic bearing (FDB), this power supply delivers quiet, efficient operation, even under load. Its design is also optimised for a long service life.

140 mm FDB fan
Quiet operation
MTBF over 100,000 hours

Quality components and maximum protection
The BZ Pro 650W features high-quality Japanese capacitors (105°C) and a comprehensive CircuitShield protection system, ensuring the safety of all system components against any electrical fault.

Protections: OCP, OVP, SCP, OPP, UVP, OTP
Japanese capacitors 105°C
Certifications: CE, FCC, RoHs, TÜV Rheinland

Comprehensive connectivity for all types of configurations
Its wide range of connections makes installation easy in different configurations, from basic systems to more complete setups with multiple storage drives.

1 x ATX 20+4-pin (600 mm)
4 x SATA + 2 x IDE + 1 x FDD
Cables with optimised lengths for neat installation

Other specifications

Format: ATX 12V v 3.1
Input voltage: 100 - 240Vac (10 - 5A)
Output +3.3V: 20A
Output +5V: 20A
Output +12V: 70A
Output -12V: 0.3A
Output +5VSB: 2.5A
Volume (m ³): 0.0074
