UNYKACH ATX 80 Plus Gold power supply for PC ATILIUS-3.1 850W DSP0000038103

Features of the UNYKA ATILIUS 3.1 Black Gold 850W ATX Power Supply
The UNYKA ATILIUS 3.1 850W Black Gold is a power supply designed for demanding systems that require real power, stability and certified efficiency. Compatible with the ATX 3.1 and PCIe 5.1 standards, it is ready for the latest graphics cards and high-performance gaming or professional configurations. Its 80 PLUS Gold and Cybenetics Gold certifications guarantee an optimized, efficient and quiet power supply.
Real 850W power with a single rail of +12V
This power supply delivers 850W of real, stable power, ensuring that the most demanding components receive constant energy without fluctuations. Its single +12V rail provides high current capacity to maximize system stability.

Total power : 850 W
Combined power +12V: 849,5 W
Maximum current +12V: 70,8 A
Number of rails of 12V: 1

80 PLUS Gold and Cybenetics Gold certification
The dual 80 PLUS Gold and Cybenetics Gold certification validates its high level of energy efficiency and acoustic performance. This means lower power consumption, less heat generation and quieter operation, even under heavy loads.

80 PLUS Gold certification
Cybenetics Gold certification
Active PFC
Noise level: 37,05 dB

Compatible with ATX 3.1 and PCIe 5.1
Designed for today and the future, the ATILIUS 3.1 is fully compatible with the ATX 3.1 standard and features a PCI Express 5.1 connector, allowing it to power next-generation graphics cards with complete safety.

ATX version: 3.1
1x PCI Express 5.1
2x PCIe (6+2 pins)
4+4-pin CPU connector

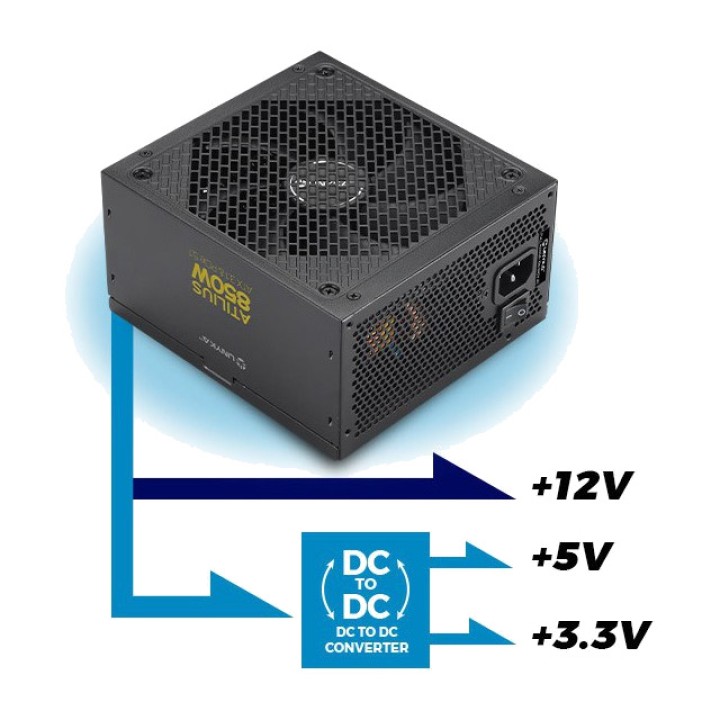

Advanced DC-DC architecture and LLC topology
Its internal design with DC-DC conversion enables more precise voltage regulation on the secondary rails (+3.3V and +5V), while the resonant LLC topology optimises energy conversion by reducing losses and heat. The result is a more efficient, stable and durable power supply.

Combined power +3.3V: 100 W
Combined power +5V: 100 W
Combined power -12V: 3,6 W
Combined power +5VSB: 15 W

Active cooling and quiet operation
Equipped with a 120 mm fan with a hydraulic bearing, it provides efficient cooling with low noise levels. Its speed control optimises the balance between temperature and quiet operation.

Fan diameter: 12 cm
speed : 1600 - 2000 RPM
Bearing technology: Hydraulic
Cooling type: active

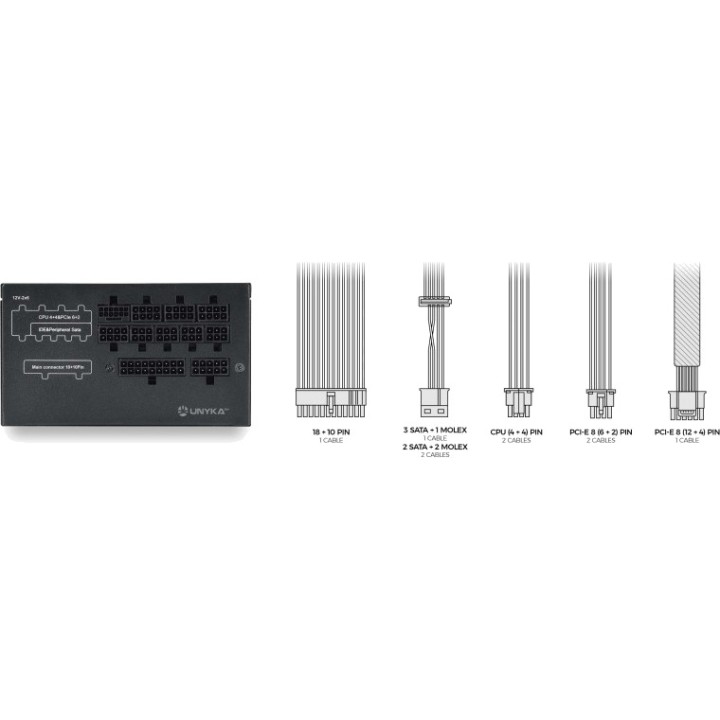

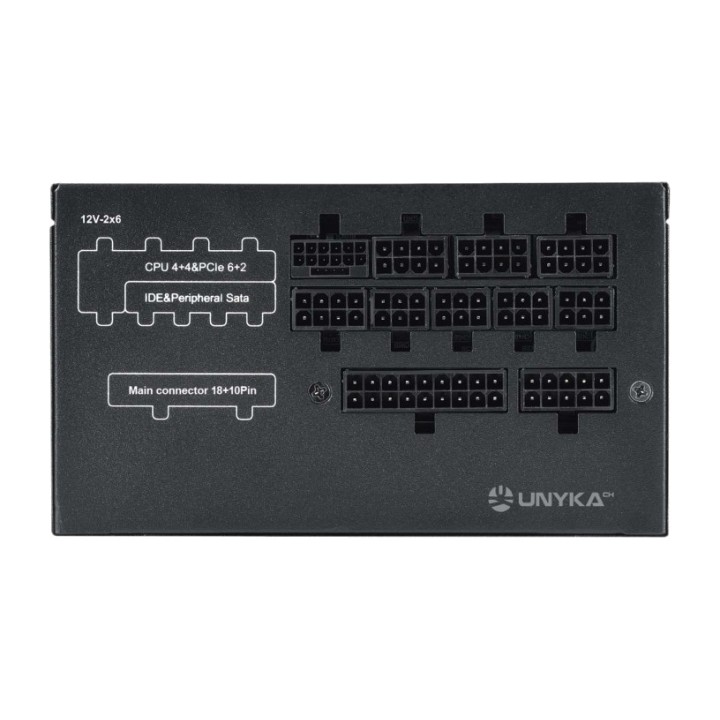

Comprehensive connectivity for advanced configurations
It features a wide range of connectors to suit gaming or professional configurations with multiple drives and components.

7 SATA connectors
5 Molex connectors (4-pin)
PCIe cable length: 55 cm
CPU cable length: 70 cm

Comprehensive protection and safety
It integrates multiple electrical protection systems that safeguard both the power supply and the rest of the system components against electrical incidents.

Overvoltage and surge protection
Undervoltage protection
Short-circuit protection
Overload protection

Compact ATX design and physical specifications
With a standard ATX form factor and a black finish, it fits easily into most cases on the market.

Dimensions: 150 x 150 x 85 mm
Weight: 2,04 kg
Input voltage : 100 - 240 V
Input frequency: 50/60 Hz

Other specifications

Form factor: ATX
Integrated on/off switch
Input current : 10-5 A
Certifications: RoHS, CE
Country of origin: China
Package dimensions: 205 x 305 x 130 mm
Package weight: 2,4 kg
Volume (m ³): 0.0064
