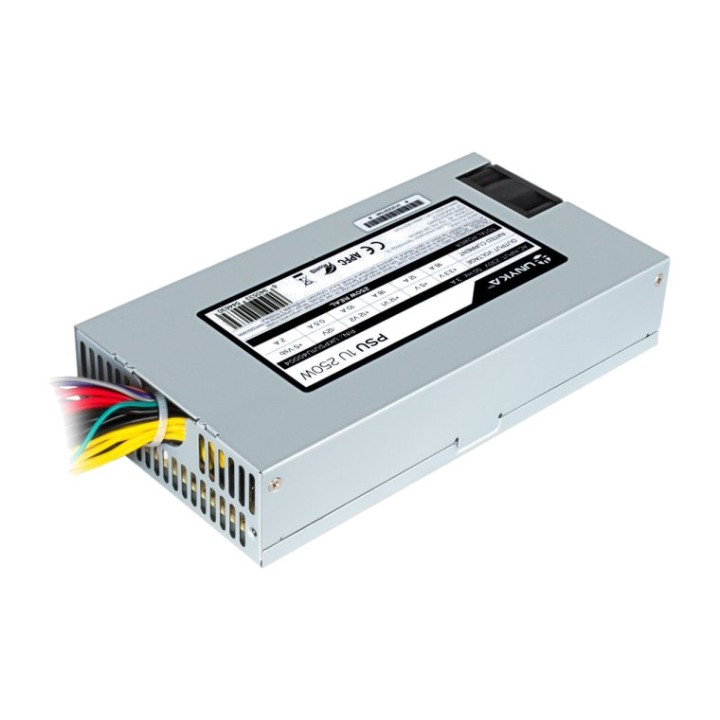

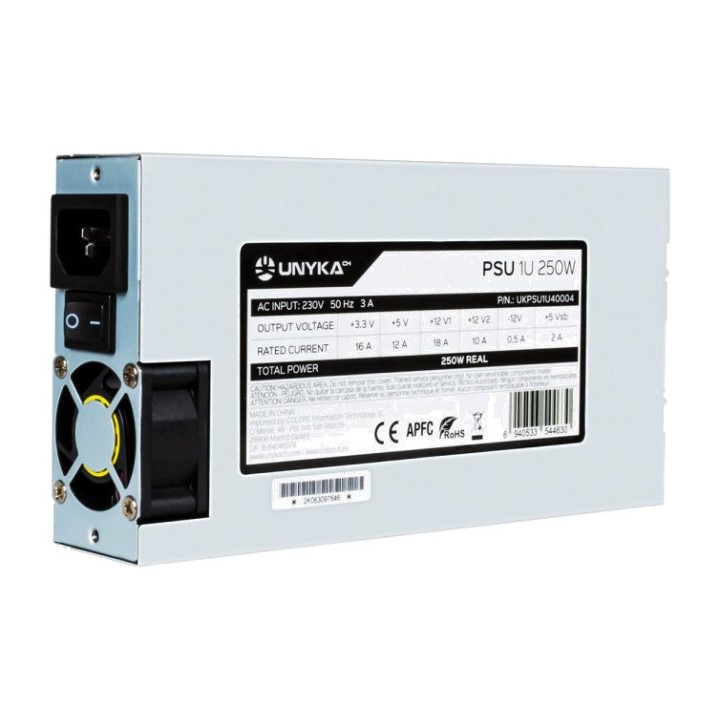

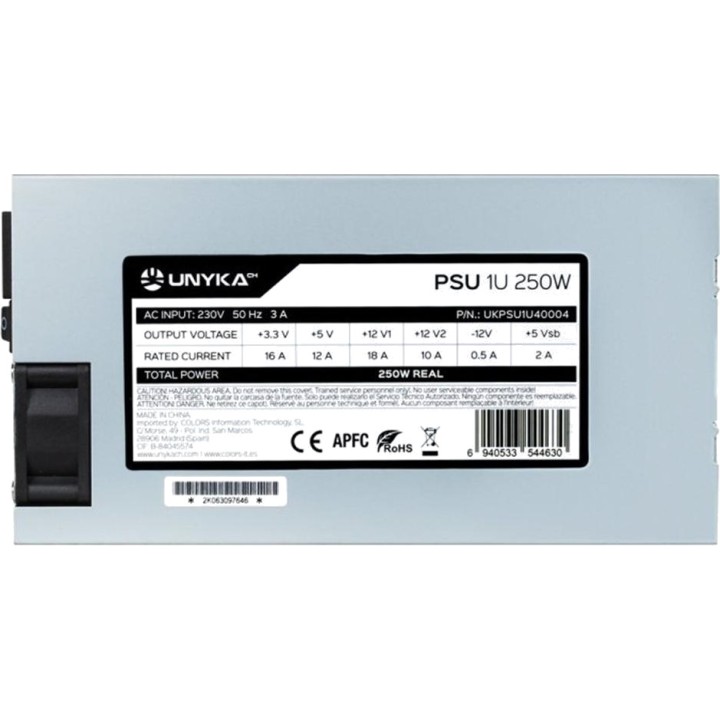

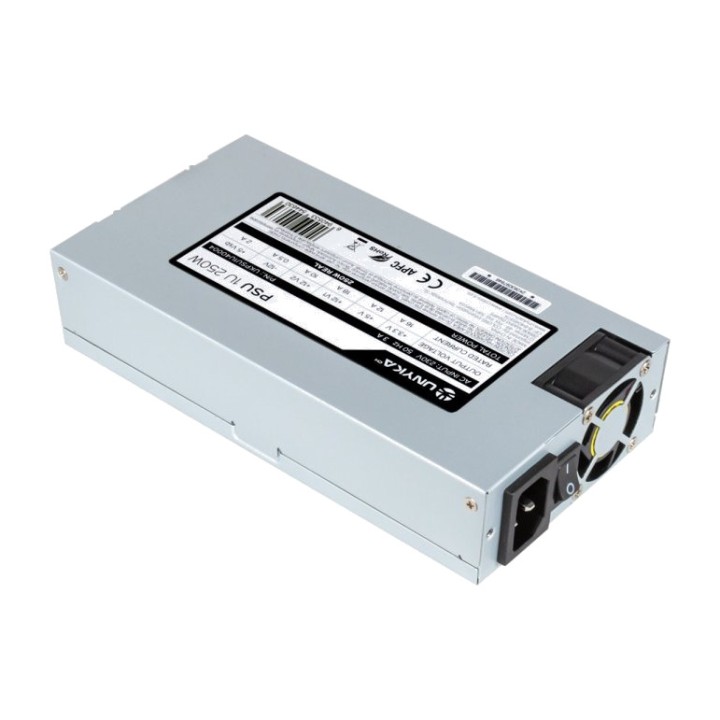

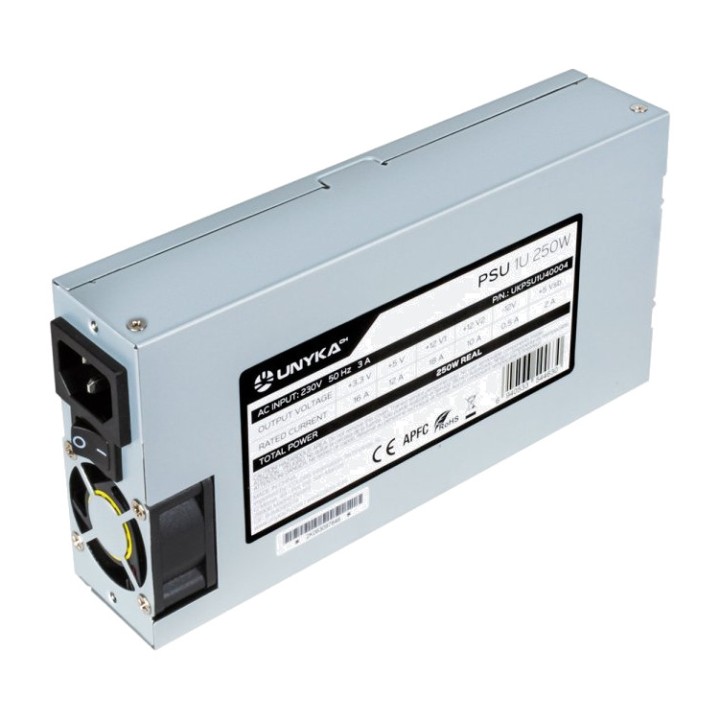

UNYKACH Flex ATX power supply for server 1U 250W APFC 195X100X40MM DSP0000035141

UNYKAch Power Supply Features FLEX 1U 250W APFC
The UNYKAch FLEX 1U 250W power supply is specifically designed for server environments and network equipment requiring a compact form factor and high performance. Its Flex ATX 1U design makes it ideal for 19" racks where space is limited. With active PFC, efficient cooling and integrated electrical protections, it ensures stability and reliability during continuous operation.
Compact design for small spaces
Thanks to its Flex ATX (1U) format, this power supply is perfect for rack-mounted servers and high-density systems. Its dimensions are optimised to make installation easier in professional configurations.

Width: 100 mm
Depth: 195 mm
HEIGHT: 40MM
Weight: 990g

Stable power with active power factor correction (APFC)
It delivers 250W of output power with an active power factor correction (PFC) system, improving energy efficiency and reducing heat generation. It is ideal for maintaining the continuous performance of critical systems.

Input voltage : 100 - 230 V
Frequency: 50 - 60 Hz
Current in +12V1: 18 A / +12V2: 10 A
PFC: Active

Efficient, quiet cooling
Equipped with a 40 mm rear fan operating between 0 and 1000 RPM, it ensures consistent cooling without excessive noise. This helps maintain a safe operating temperature for all components.

Fan diameter: 4 cm
Location: Rear
speed : 0 - 1000 RPM

Complete electrical protection
It includes an integrated electrical protection system that ensures system safety in the event of overloads or faults. Designed for safe operation even under demanding conditions.

Overcurrent protection
Overvoltage and undervoltage protection
Short-circuit protection

Comprehensive connectivity for server systems
It offers a wide range of connectors to ensure compatibility with motherboards, drives and other internal devices. All cables are non-modular and have suitable lengths for compact systems.

ATX 20+4-pin connector (motherboard)
2 x Molex (peripherals) / Lengths: 710 mm and 560 mm
3 x SATA / Lengths: 400, 560 and 700 mm
EPS 4+4-pin connector
Floppy connector / Length: 890 mm

Robust construction and certifications
Made from high-quality materials and subjected to strict production controls. Complies with international standards, ensuring reliability in professional installations.

Certifications: CE, RoHS
Product colour: Silver
ATX version: 2.3
Recommended use: Server

Other specifications

Maximum current +3.3V: 16 A
Maximum current -12V: 0.5 A
Maximum +5Vsb current : 2 A
Volume (m ³): 0.0013
