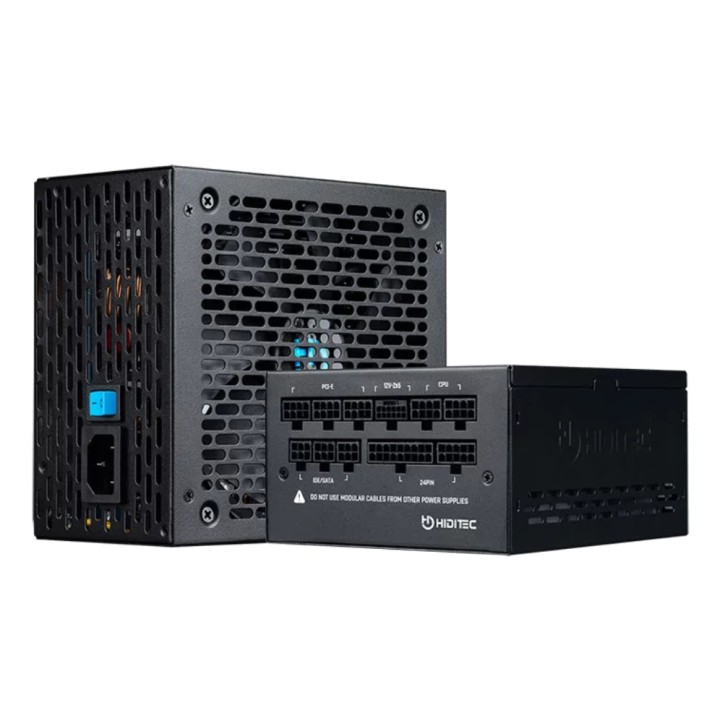

HIDITEC Fully modular PC power supply with connector 12VHPWR GDX850-V3 850W 80PLUS-GOLD ATX-3.1 PCIE-5.1 DSP0000034512

Features of the Hiditec GDX850 V3 Full Modular 80 PLUS Gold Power Supply
The **Hiditec GDX850 V3** is a high-performance power supply designed to meet the demands of powerful systems, from **advanced gaming PCs** to **professional workstations**. With **850 W of actual power**, **ATX 3.1** technology, **PCIe 5.1** connectivity and a **fully modular** cabling system, this power supply ensures efficiency, stability and much cleaner, customised cable management.
Stable power with certified efficiency
Thanks to its **80 PLUS Gold** certification, the GDX850 V3 ensures efficient, sustainable power delivery, reducing residual heat and optimising consumption. It provides a combined output of **849,6 W on the +12V rail**, ideal for supporting **high-end graphics cards** and demanding processors.

Total power : 850 W
Certification: 80 PLUS Gold
Active power factor correction (PFC)
Rail current +12V: 70,8 A

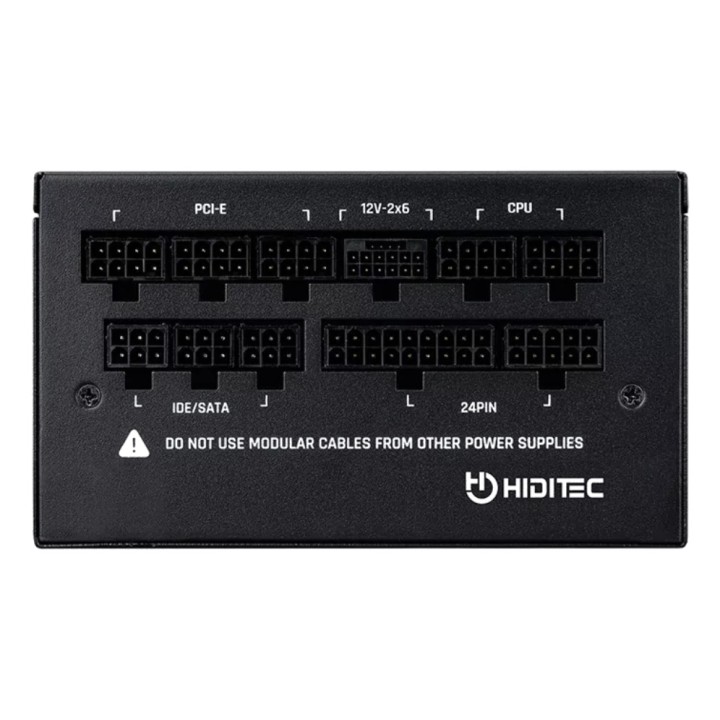

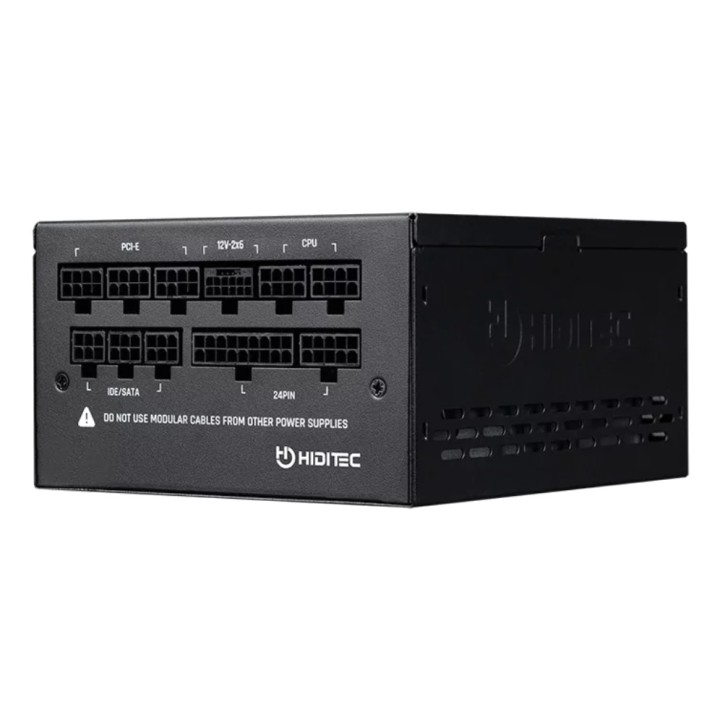

Full modular design and advanced connectivity
The fully modular design of the GDX850 V3 lets you **connect only the cables you need**, improving internal airflow and making installation neater. It supports the **PCIe 5.1** standard, making it compatible with the latest graphics cards on the market.

Cable type: Fully modular
PCIe connectors (6+2-pin) : 6
SATA connectors: 9 (3 cables)
2 EPS connectors (4+4-pin)
Includes a floppy drive and Molex connector x (3)

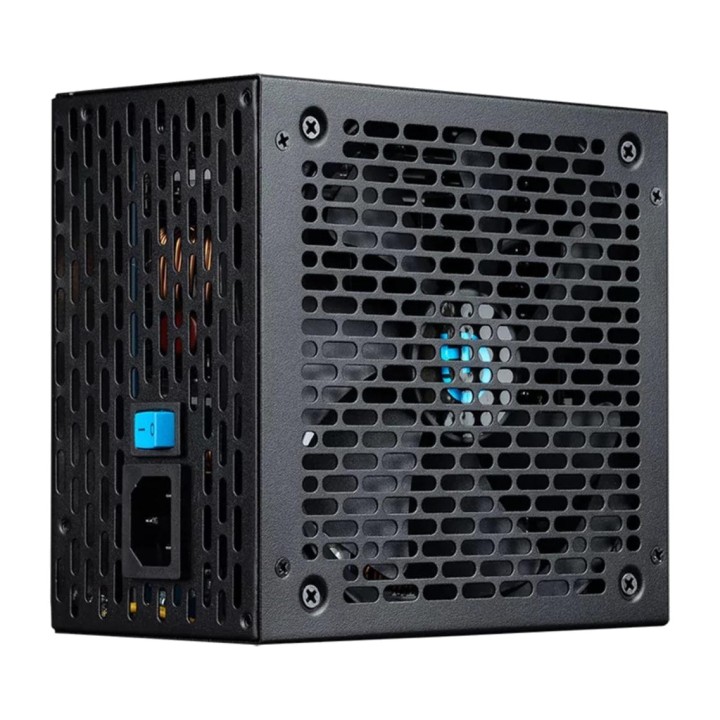

Quiet, long-lasting cooling
Its active cooling system with a **14 cm fan** and **FDB (Fluid Dynamic Bearing)** bearing technology delivers **quiet, efficient operation**, ideal for keeping temperatures under control even under heavy loads.

140 mm top-mounted fan
FDB technology: longer service life and low noise
Integrated on/off switch

Safety, reliability and regulatory compliance
Equipped with multiple protection systems (OCP, OVP, SCP, OTP, UVP), the GDX850 V3 is ready to protect all components against any electrical incident. It also complies with the main European and international certifications.

Protections: overcurrent, overvoltage, short circuit, overheating and more
Certifications: CE, FCC, RoHS
Mean time between failures (MTBF): 100,000 h

Compact and versatile design
Despite its power, it retains a **standard ATX form factor**, with dimensions suitable for most towers. Its black finish and long cables allow for versatile installation, even in large cases.

Dimensions: 150 x 86 x 160 mm
Weight: 2.2kg
Compatible with systems from 100 to 240 V

Other specifications

Input voltage AC: 100 - 240 V
Input frequency: 50/60 Hz
SATA cable length: 550/680/810/940 mm
PCIe cable length: 68 cm | EPS: 65 cm | Motherboard: 60 cm
Packaging type: Box
Volume (m ³): 0.0098
