HIDITEC Fully modular PC power supply with connector 12VHPWR GDX750-V2 750W 80PLUS-GOLD ATX-3.0 PCIE-5.0 DSP0000023777

Highlights

750 W 100 - 240 V
Motherboard power supply: 20+4-pin ATX
ATX PC 80 PLUS Gold
Active 14 cm
BLACK

The GDX v2 series has been redesigned to suit high-performance configurations equipped with the latest generations of graphics cards. ATX 3.0 version with PCIe 5.0 connection, making it
extremely versatile and ideal for high-end configurations. It comes with a 12VHPWR cable as standard to power Nvidia GeForce RTX 40 series graphics cards, without
the need to use any 6+2-pin adapter, ensuring a completely safe power supply.

ATX 3.0 PCIe 5.0 80Plus Gold Fully Modular
The GDX v2 series has been redesigned to suit high-performance configurations equipped with the latest generations of graphics cards. ATX 3.0 version with PCIe 5.0 connection, making it
making it extremely versatile and ideal for high-end configurations.

It comes with a 12VHPWR cable as standard to power Nvidia GeForce RTX 40 series graphics cards, without the need to use any 6+2-pin adapter, ensuring a completely
secure.

It has 80PLUS GOLD certification and top-quality components designed for high-performance systems. The temperature-controlled 140mm fan with FDB fluid dynamic bearings
drastically reduces operating noise and significantly extends its service life.

12VHPWR connector with 650mm modular cable
It comes with a 12VHPWR cable as standard to power Nvidia GeForce RTX 40 series graphics cards, without the need to use any 6+2-pin adapter, ensuring a completely
safe power supply and reducing the risk of connection issues during installation in the PC.

It delivers up to 600W of power and is made from high-quality materials to ensure maximum performance and safety during use.

80Plus Gold certified with Japanese electrolytic capacitors
The GDX v2 series features high-end Japanese electrolytic capacitors, components that provide true power with stable voltage and long-term reliability, making it one of the
best power supplies for systems with high-performance graphics cards.

GDX v2 power supplies are 80PLUS GOLD certified, guaranteeing efficiency above 90%, lower power consumption and longer service life for all components.

Heat emissions will be reduced through more efficient operation, allowing the fan to run at a lower speed and consequently reducing the noise produced by the power supply
virtually imperceptible.

Includes full protection with OVP / UVP / OPP / SCP / SIP.

DC-to-DC technology
The GDX v2 series features DC-to-DC technology to deliver clean, stable, noise-free power and is built with high-performance capacitors for maximum reliability and durability
under the most demanding conditions.

DC-to-DC (Direct Current/Direct Current) technology is much more efficient and safer, as the voltage is not converted unless necessary. A DC/DC conversion is much more
efficient than AC/DC, with fewer losses and less heat generated.

The GDX v2 series offers a service life of over 100,000 operating hours.

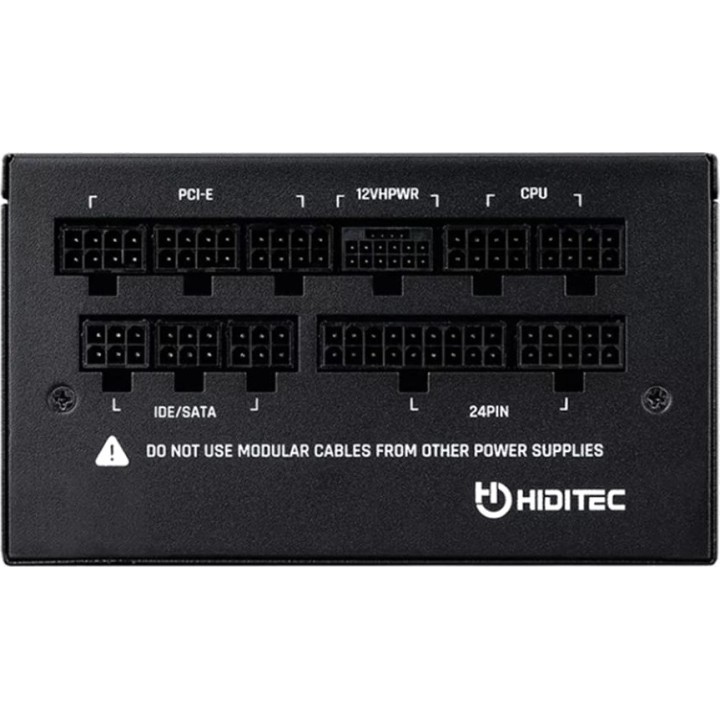

Fully modular with extra-long flat cables
The GDX v2 series is fully modular, so you can connect only the cables you need to the power supply, making it easier to assemble your system.

High-quality, 100% flat, extra-long cables that adapt better to the installation of any system, allow for a neater installation and take up less space, while also
offering excellent safety and durability.

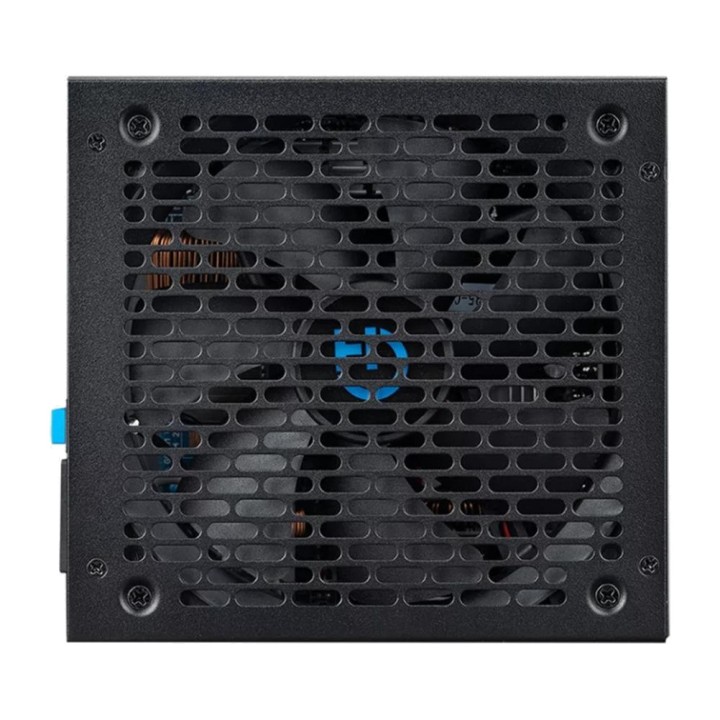

Ultra-quiet 140mm fan with FDB fluid dynamic bearings and temperature control
The temperature-controlled, ultra-quiet 140mm fan with FDB fluid dynamic bearings drastically reduces operating noise and significantly extends its service life.

It adapts its operation to the different needs of the system and will only run at full power when required.

The 140mm fan delivers greater airflow at lower speeds, making its noise virtually imperceptible while also achieving greater
efficiency and durability of all components.

Dual EPS12V & six 6+2 PCIe
The GDX v2 series has two EPS12V rails and six 6+2 PCIe rails for high-performance graphics cards.

Power control
Maximum output current (+12V)
62 A
Maximum output current (-12V)
0,5 A
Maximum output current (+3.3V)
20 A
Maximum output current (+5V)
20 A
Maximum output current (+5Vsb)
3 A
AC input voltage
100 - 240 V
Power protection features
Overload, overvoltage, short-circuit, surge & inrush protection (SIP), undervoltage
Total power
750 W
WEIGHT AND DIMENSIONS
HEIGHT
160 mm
WIDTH
150 mm
WEIGHT
2,2 kg
DEPTH
86 mm
Ports and Interfaces
PCI Express power connectors (6 + 2 pin)
6
Peripheral power connectors (4-pin) (Molex)
3
EPS power connector (4+4 pins)
YES
Motherboard power supply
20+4-pin ATX
PCI Express connector
YES
Cabling type
Fully modular

Performance
CERTIFICATION 80 PLUS
80 PLUS Gold
ATX version
3.0
Power supply unit (PSU) form factor
ATX
Bearing technology
FDB
Mean time between failures
100000 h
Use with
PC
Design
Product color
BLACK
Fan diameter
14 cm
Integrated on/off switch
YES
Number of fans
1 fan(s)
Cooling type
Active
Technical details
Sustainability certificates
CE, United States Federal Communications Commission (FCC), RoHS
Compliance certificates
CE, United States Federal Communications Commission (FCC), RoHS
Sustainability compliance
YES
Volume (m ³): 0.0109
