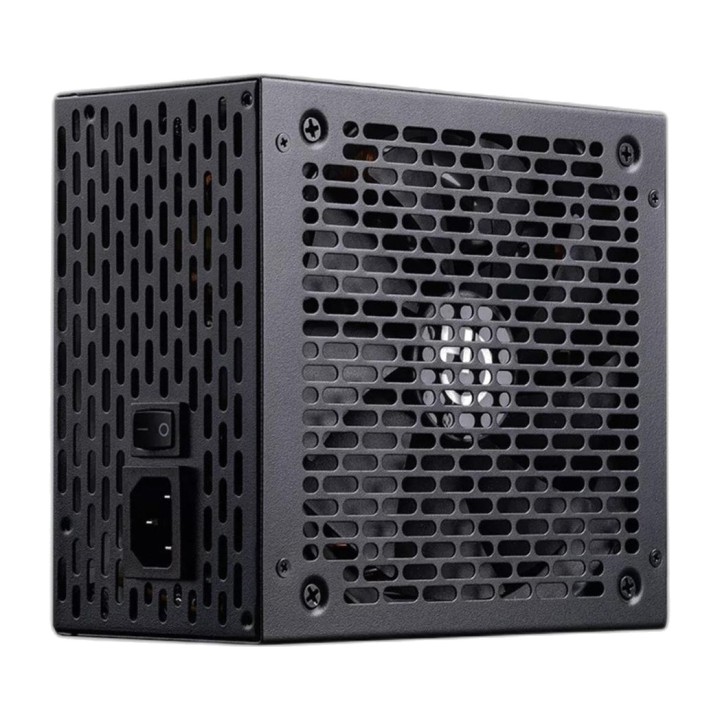

HIDITEC Fully modular ATX power supply for PC with flat cables BZX750-V2 750W 80PLUS-BRONZE DSP0000023771

Highlights

750 W
Motherboard power supply: 20+4-pin ATX
ATX PC 80 PLUS Bronze
Active 14 cm
BLACK

Full Modular 80Plus Bronze
The BZX V2 series, with 80Plus Bronze certification, is a fully modular power supply with extra-long flat cables and top-quality components, designed to deliver power with a
stable efficiency of over 85% at maximum load.

80Plus Bronze Certified
The BZX V2 power supplies are 80Plus Bronze certified, guaranteeing efficiency above 85%, as well as lower power consumption and greater durability for all components.
Heat emissions will be reduced thanks to more efficient operation, allowing the fan to run at a lower speed and consequently making the noise produced by the power supply
virtually imperceptible.
Includes full protection with OVP / UVP / OPP / SCP / SIP.

High-performance capacitors
The BZX V2 series is built with high-performance capacitors to deliver maximum reliability and durability under the most demanding conditions.
The BZX V2 range offers a service life of over 100,000 operating hours.
Compatible with the Intel® Haswell processor range, which sets new standards in terms of energy efficiency by reducing CPU power consumption to just 0.05A,
so the PSU must maintain a stable voltage at low power.

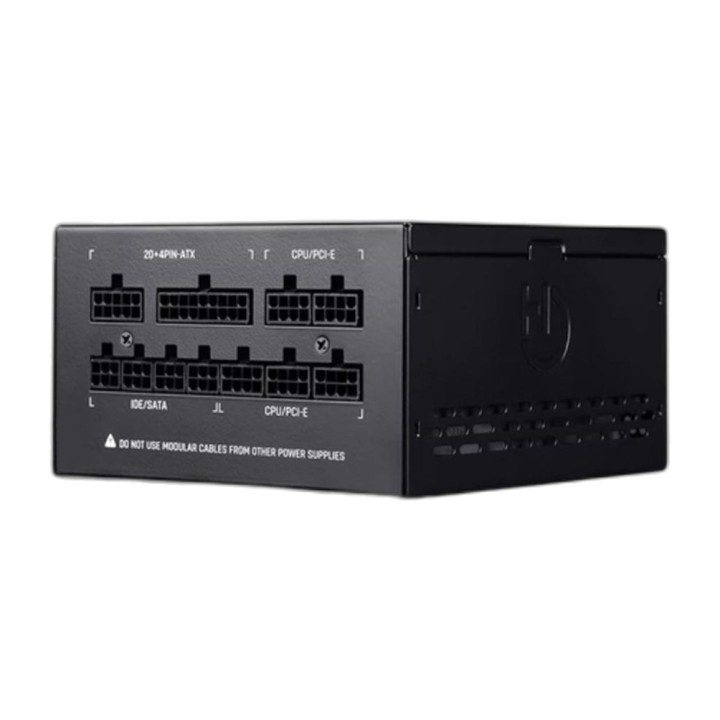

Fully modular with extra-long flat cables
The BZX V2 series is fully modular, so you can connect only the cables you need to the power supply, making it more convenient to assemble your system.
It features extra-long flat cables, allowing it to fit better when installing any system, making cable management neater and taking up less space.

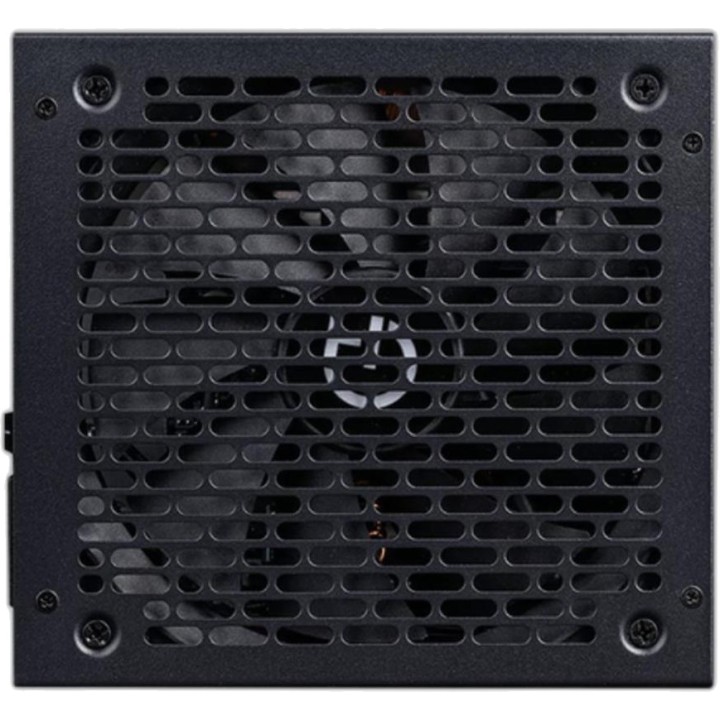

Ultra-quiet 140mm fan
The BZX V2 series features an ultra-quiet 140mm fan that allows greater airflow inside.
The 140mm fan delivers greater airflow at lower speeds, making its noise virtually imperceptible while also achieving greater
efficiency and durability of all components.

Ultra-quiet 140mm fan with FDB fluid dynamic bearings and temperature control

The temperature-controlled, ultra-quiet 140mm fan with FDB fluid dynamic bearings drastically reduces operating noise and significantly extends its service life.

It adapts its operation to the different needs of the system and will only run at full power when required.

The 140mm fan delivers greater airflow at lower speeds, making its noise virtually imperceptible while also achieving greater
efficiency and durability of all components.

Power control
Maximum output current (+12V)
62 A
Maximum output current (-12V)
0,5 A
Maximum output current (+3.3V)
20 A
Maximum output current (+5V)
20 A
Maximum output current (+5Vsb)
3 A
Power factor correction (PFC) type
Active
Power protection features
Overcurrent, overvoltage, short circuit, undervoltage
Total power
750 W
WEIGHT AND DIMENSIONS
HEIGHT
140 mm
WIDTH
140 mm
WEIGHT
2,2 kg
DEPTH
25 mm
Ports and Interfaces
PCI Express power connectors (6 + 2 pin)
4
Peripheral power connectors (4-pin) (Molex)
2
EPS power connector (4+4 pins)
YES
PCI Express power connectors (6 pin)
2
Motherboard power supply
20+4-pin ATX
Number of SATA power connectors
5
Cabling type
Fully modular

Performance
CERTIFICATION 80 PLUS
80 PLUS Bronze
Power supply unit (PSU) form factor
ATX
Supported motherboard form factors
ATX
Mean time between failures
10000 h
Use with
PC
Design
Product color
BLACK
Fan diameter
14 cm
Number of fans
1 fan(s)
Built-in display
NOT
Cooling type
Active
Technical details
Sustainability certificates
RoHS
Compliance certificates
RoHS
Sustainability compliance
YES
Volume (m ³): 0.0106
