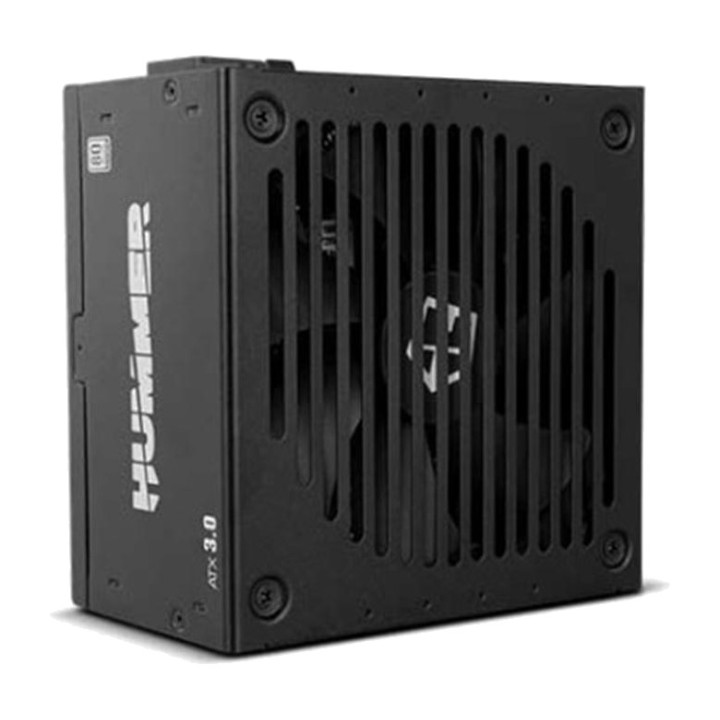

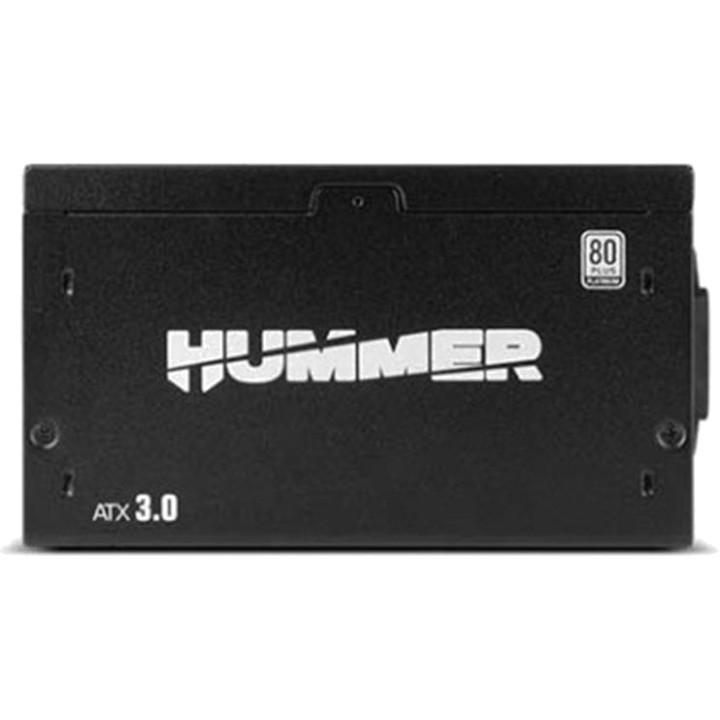

NOX ATX modular PC power supply HUMMER-P 1000W 80-PLUS-PLATINUM DSP0000022293

HUMMER P 1000W

Nox Hummer P 1000W Platinum Edition is a power supply designed for high-performance systems equipped with the latest generations of graphics cards. With
80 Plus Platinum certification, this fully modular power supply features an ultra-quiet 140 mm fan with a speed controller.


80 PLUS Platinum certification

The Nox Hummer P 1000W Platinum Edition power supply is designed for high-power graphics cards. It features high-end Taiwanese electrolytic capacitors,
high-quality components that provide true power with stable voltage and long-term reliability. This results in lower resistance to current flow and therefore less
reduction in system heat. Built with premium materials, Nox Hummer P 1000W Platinum is 80 Plus Platinum certified, guaranteeing a minimum efficiency of 90%, with a maximum of
94% at 50 percent load, helping to reduce energy consumption and thereby save money.


READY FOR THE FUTURE

Nox Hummer P 1000W is an ATX 3.0 power supply compatible with the latest-generation PCIe Gen 5 platform. This makes this power supply extremely versatile and the
ideal choice for high-end configurations.

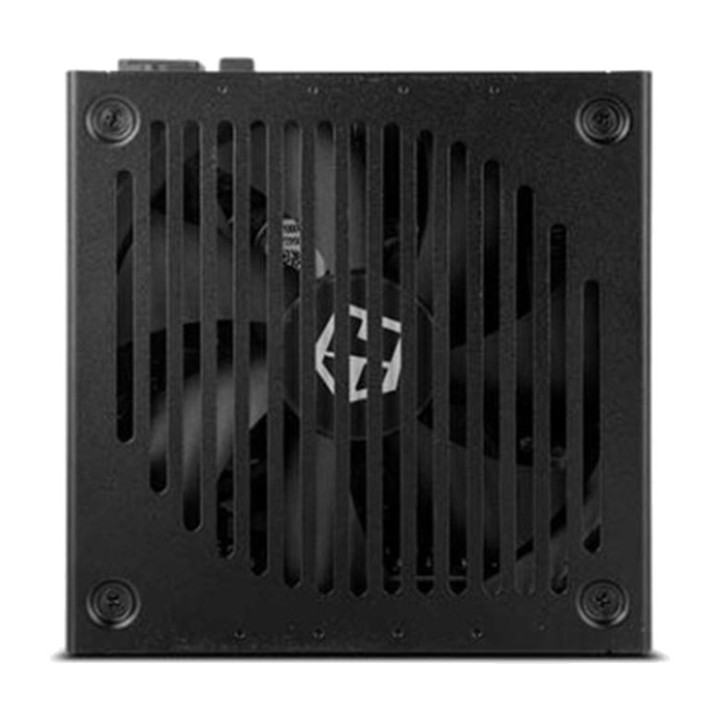

ULTRA-QUIET POWER

This fully modular 1000-watt power supply offers excellent voltage control and ultra-quiet operation. Nox Hummer P 1000W includes a powerful, low-noise 140 mm fan that efficiently reduces heat, ensuring excellent performance. The fan integrated into this power supply features a speed controller, so you can
sound level, which efficiently reduces heat, ensuring excellent performance. The fan integrated into this power supply features a speed controller, so you can
optimally regulate the temperature best suited to your equipment.

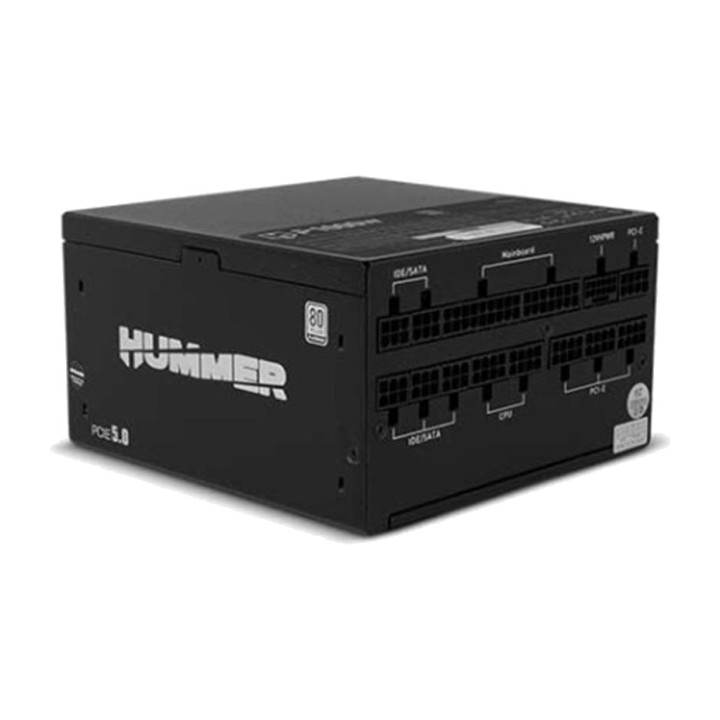

FULLY MODULAR

Nox Hummer P 1000W Platinum Edition has been designed for quick, clean builds in high-performance systems. Its cabling is fully modular, making assembly easier and providing a
proper management of the inside of the chassis, keeping the system at the right temperature and promoting airflow. It is also a PC power supply with OVP, SCP, OPP and UVP protections
that ensure safe operation under different circumstances.

general
Brand: NOX
warranty: 36
Part Number: NXHUMMERP1000W
Categories: POWER SUPPLIES
Reconditioned: No
Replacement - Label: No
Volumetric Weight 3.02 Kg.
Regulatory approvals
80 PLUS certification: 80 PLUS Platinum
Connectivity
Form factor: ATX
Wiring type: Modular
Motherboard power connector: 20+4-pin ATX
PCIe power connector: (PCIe 5.0) 12+4-pin, (PCIe) 6+2-pin
Peripheral power connectors (4-pin) (Mole x): 1
PCI Express power connectors (6 + 2 pin) : 3
CPU power connector (4+4-pin) : 2
Number of power connectors SATA: 2
WEIGHT AND DIMENSIONS
Height: 87mm
Width: 150 mm
Weight: 2.25 kg
Depth: 161 mm
Technical details
COLOUR: BLACK
ATX power connector (20 + 4-pin): Yes

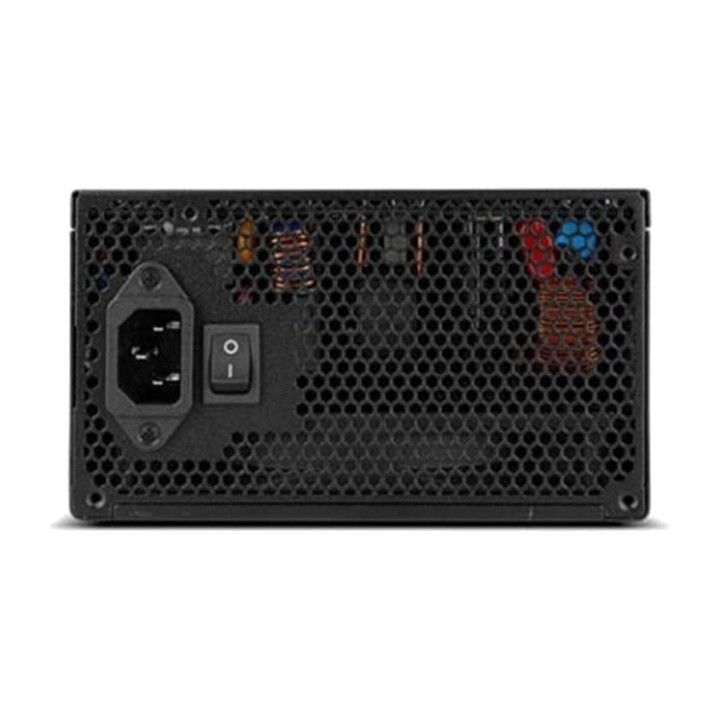

Integrated on/off switch: Yes
Version ATX: 3
Power control
Rated power : 1000 W
Power factor correction type (PFC): Active
Input current : 8 - 15 A
Maximum output current (+12V): 83.3A
Maximum output current (+3.3V): 20 A
Maximum output current (+5V): 20 A
Maximum output current (+5Vsb) : 3A
Maximum output current (-12V): 0.4 A
AC input frequency: 50 - 60 Hz
Power protection functions: Undervoltage, Short circuit, Overload, Overvoltage
Maximum power : 1000 W
Combined power (+12 V): 999.6W
Combined power (+5 V): 100 W
Combined power (+5 VSB): 15 W
Combined power (-12V): 4.8 W
Combined power (+3.3 V): 100 W
Input voltage AC: 100 - 240 V
Cooling
Fan diameter: 140 mm
Fan location: Top
Number of fans : 1
Volume (m ³): 0.0086
