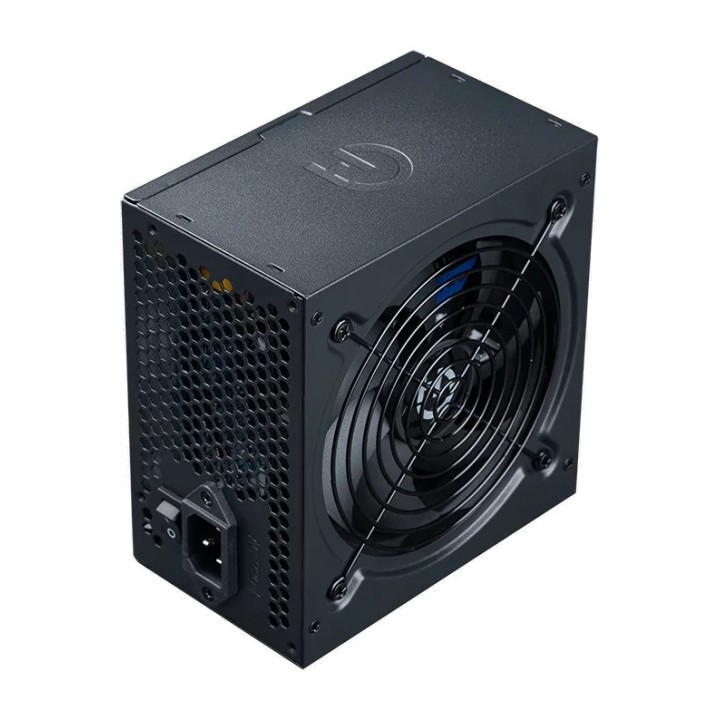

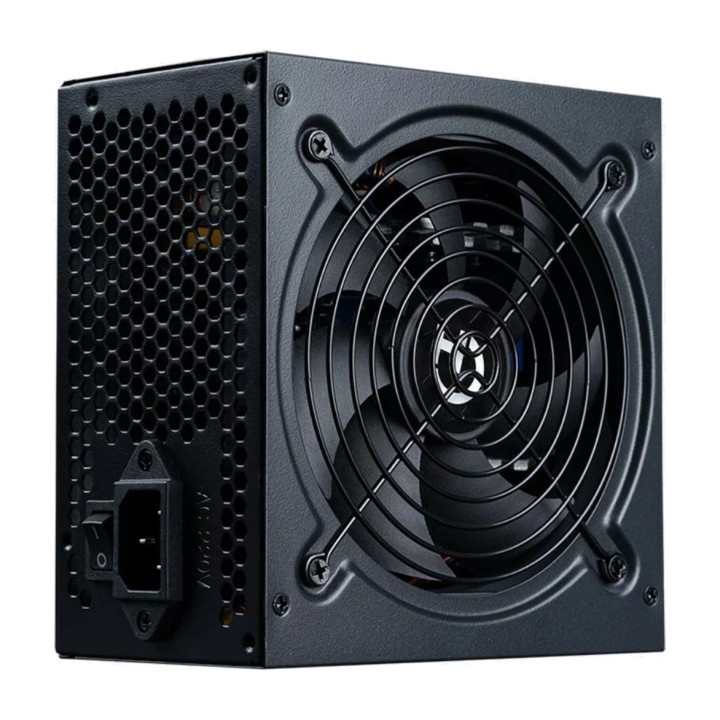

HIDITEC ATX gaming PC power supply with flat cables RL550 550W 80PLUS-BRONZE DSP0000016361

The RL series is 80PLUS BRONZE certified and features top-quality components designed to deliver stable, high-quality power to high-performance systems. It features a fan with
120mm ultra-quiet fan to provide greater airflow inside.

High-performance power
The RL series is 80PLUS BRONZE certified and features top-quality components designed to deliver stable, high-quality power to high-performance systems.
It features a quiet 120mm fan to provide greater airflow inside.

80Plus Bronze Certified

RL power supplies are 80PLUS BRONZE certified, guaranteeing efficiency above 85%, as well as lower power consumption and greater durability of all components.
Heat emissions will be reduced thanks to more efficient operation, allowing the fan to run at a lower speed and consequently making the noise produced by the power supply
virtually imperceptible.
Includes full protection with OVP / UVP / OPP / SCP / SIP.

High-performance capacitors

The RL series is manufactured with high-performance capacitors to offer maximum reliability and durability under the most demanding conditions.
The RL range offers a service life of over 100,000 operating hours.
Compatible with the Intel Haswell processor range, which sets new standards in energy efficiency by reducing CPU power consumption to just 0.05A,
so the PSU must maintain a stable voltage at low power.

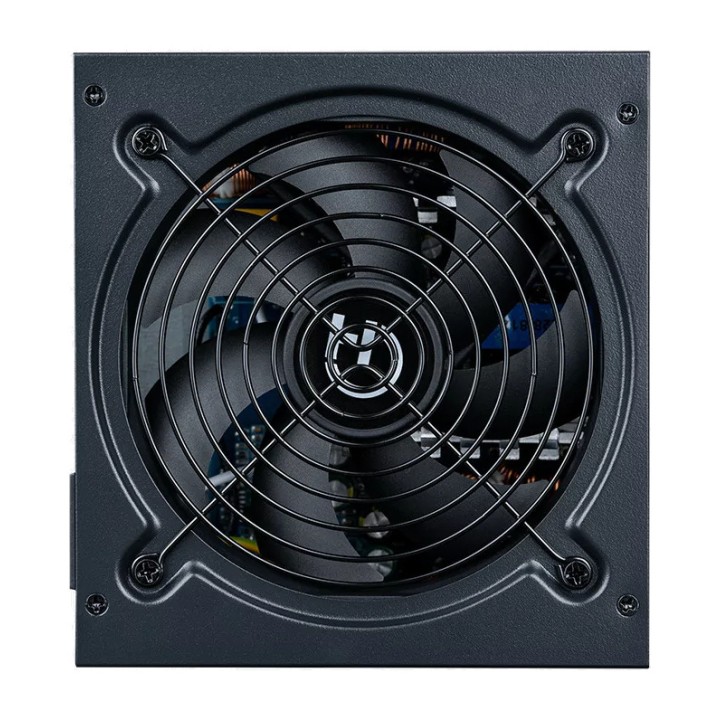

Quiet 120mm fan

The RL series features a quiet 120mm fan that allows greater airflow inside.
The 120mm fan provides greater airflow while running at lower speeds, making the fan noise virtually imperceptible while also achieving greater
efficiency and durability of all components.

Extra-long flat cables

Extra-long flat cables, allowing for better adaptation when installing any equipment, a tidier installation and less space taken up, as well as offering excellent
safety and durability.
With a new exterior design and a fully black lacquered finish, the RL power supplies have a more robust appearance.

Power control
Maximum output current (+12V)
45 A
Maximum output current (-12V)
0,5 A
Maximum output current (+3.3V)
20 A
Maximum output current (+5V)
20 A
Maximum output current (+5Vsb)
3 A
AC input voltage
230 V
Power protection features
Overcurrent, overvoltage, short circuit, undervoltage
Total power
550 W
WEIGHT AND DIMENSIONS
HEIGHT
140 mm
WIDTH
150 mm
WEIGHT
1,75 kg
DEPTH
85 mm
Ports and Interfaces
PCI Express power connectors (6 + 2 pin)
2
Peripheral power connectors (4-pin) (Molex)
3
EPS power connector (4+4 pins)
YES
Motherboard power supply
20+4-pin ATX
Number of SATA power connectors
8

Packaging
Packaging type
Box
Performance
CERTIFICATION 80 PLUS
80 PLUS Bronze
Power supply unit (PSU) form factor
ATX
Mean time between failures
100000 h
Use with
PC
Design
Product color
BLACK
Fan diameter
12 cm
lighting
NOT
Integrated on/off switch
YES
Number of fans
1 fan(s)
Cooling type
Active
Fan location
Upper
Volume (m ³): 0.0035
