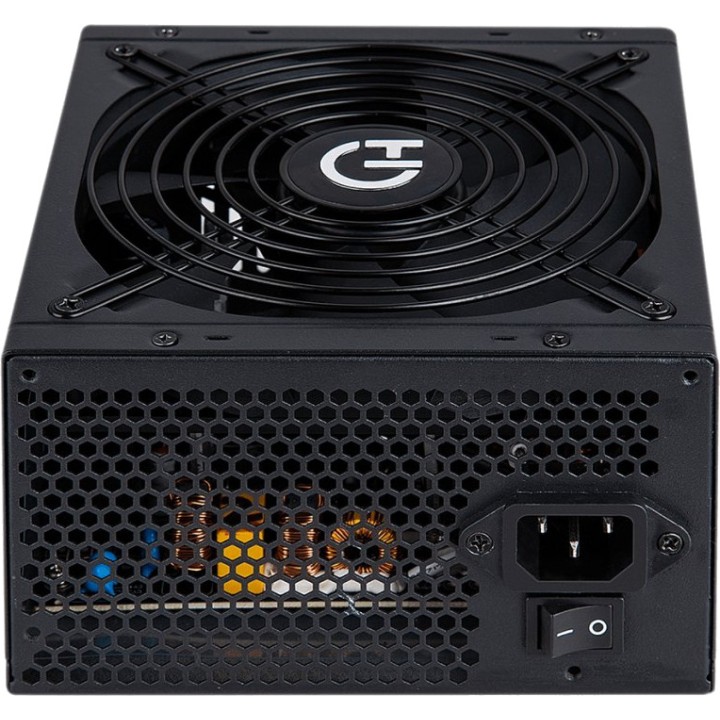

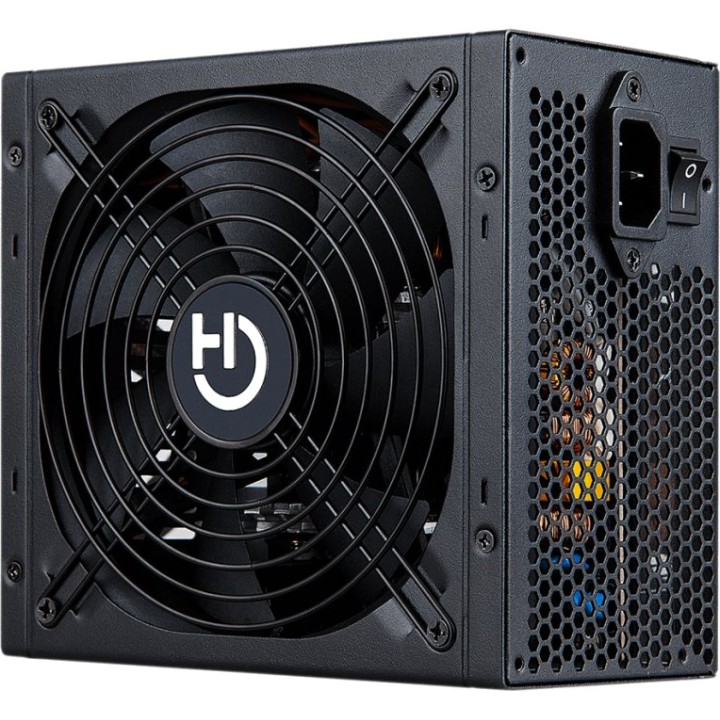

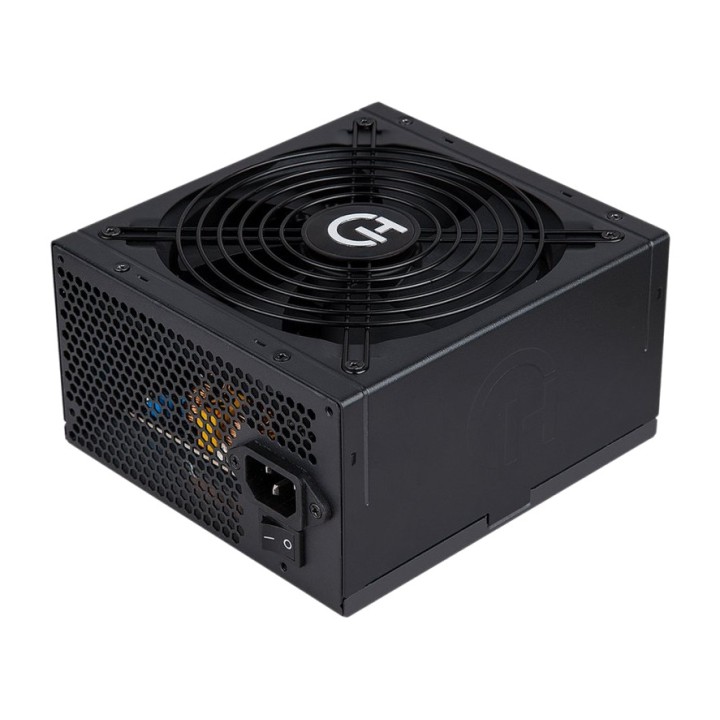

HIDITEC ATX PC power supply with DC converter BZ850 850W 80PLUS-BRONZE DSP0000007020

Hiditec BZ850 features a DC converter to provide clean, stable and quiet power. It also has 80 PLUS BRONZE certification and high-quality components designed to supply
stable, high-quality power to high-performance systems.

BZ power supplies are 80PLUS BRONZE certified, guaranteeing efficiency above 85% at any load and achieving lower power consumption and greater durability for all components.
components.

Heat emissions are reduced thanks to more efficient operation, allowing the fan to run at a lower speed and making the noise produced by the power supply virtually
imperceptible.

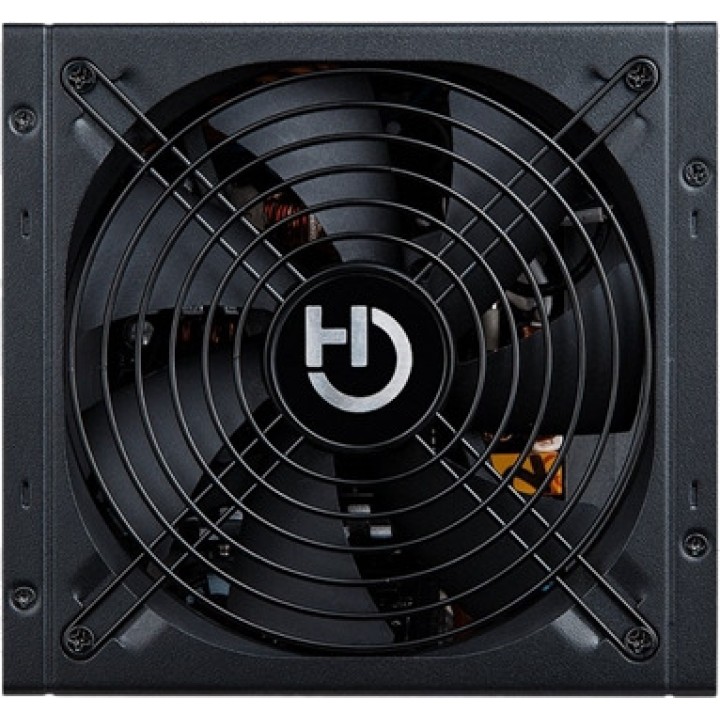

It incorporates comprehensive OVP / UVP / OPP / SCP / SIP protection. The BZ series features an ultra-quiet 140 mm fan that provides greater airflow inside.

The 140 mm fan delivers greater airflow at lower speeds, making its noise virtually imperceptible while also improving the efficiency and
durability of all components.
Hiditec specifications BZ850:

Power control
Total power : 850 W
Input voltage AC: 230 V
AC input frequency: 50/60 Hz
Power factor correction type (PFC): Active
Maximum output current (+3.3V): 20 A
Maximum output current (+12V): 70 A
Maximum output current (+5V): 20 A
Maximum output current (-12V): 0,3 A
Maximum output current (+5Vsb) : 2,5 A
Efficiency: 85%
Power protection functions: Overvoltage, Overload, Underpower

Ports and Interfaces
Motherboard power supply: 20+4-pin ATX
Motherboard power cable length: 60 cm
Number of power connectors SATA: 5
SATA power cable length: 600 mm
Peripheral power connectors (4-pin) (Mole x): 2
Peripheral power cable (Molex) length: 600 mm
PCI Express power connectors (6 pin) : 2
PCI Express power connectors (6 + 2 pin) : 2
Floppy power connector : 1
Floppy drive connector: Yes
Floppy drive cable length: 55 cm

Performance
80 PLUS certification: 80 PLUS Bronze
Use with: PC
Power supply form factor (PSU): ATX
ATX version: 2.4
Silent mode: Yes
Mean time between failures: 100000 h
Certification: CE, RoHs

Design
Product colour: Black
Cooling type: active
Fan diameter: 14 cm
Number of fans: 1 fan(s)

WEIGHT AND DIMENSIONS
Width: 150 mm
Depth: 160 mm
HEIGHT: 86MM
Weight: 1.75kg
Volume (m ³): 0.0097
