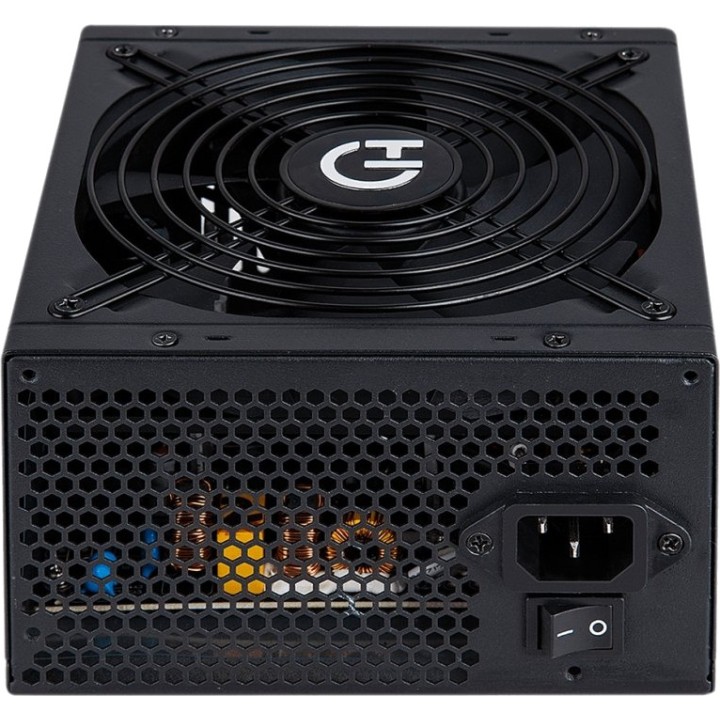

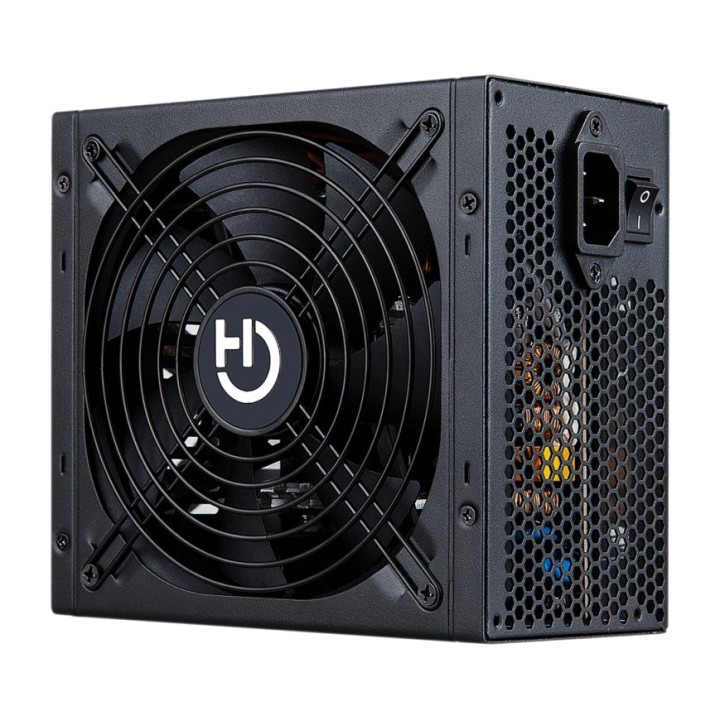

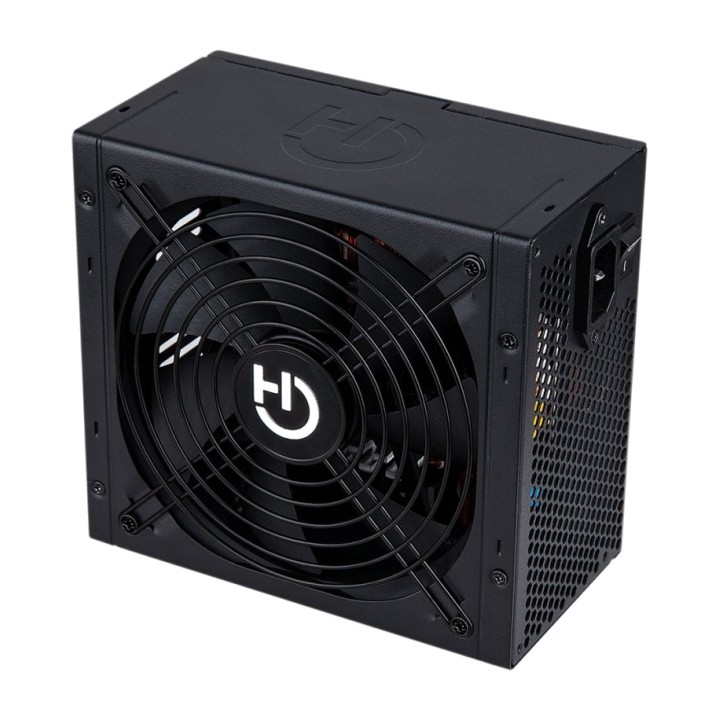

HIDITEC ATX gaming power supply with 140 mm silent fan BZ-650 650W 80PLUS-BRONZE DSP0000007005

Hiditec GAMING BZ-650W 80Plus Bronze Power Supply Specifications
High-performance power
The BZ series is 80PLUS BRONZE certified and features top-quality components
designed to deliver stable, high-quality power to high-performance systems
performance.
Features an ultra-quiet 140mm fan to provide greater airflow
inside.

80Plus Bronze Certified
BZ power supplies are 80PLUS BRONZE certified, which
guarantees efficiency above 85% at any load and achieves lower
power consumption and greater durability of all components.
Heat emissions are reduced through more efficient operation,
allowing the fan to run at a lower speed and consequently reducing the noise
produced by the power supply will be virtually imperceptible.
Includes full protection with OVP / UVP / OPP / SCP / SIP.

High-performance capacitors
The BZ series is built with high-performance capacitors to offer the
highest reliability and durability under the most demanding conditions.
The BZ range offers superior durability of over 80,000 hours of operation.
Compatible with the Intel Haswell processor range, which sets
new standards in energy efficiency by reducing CPU power consumption to
just 0.05A, requiring the PSU to maintain a stable voltage at low power.
stable at low power.

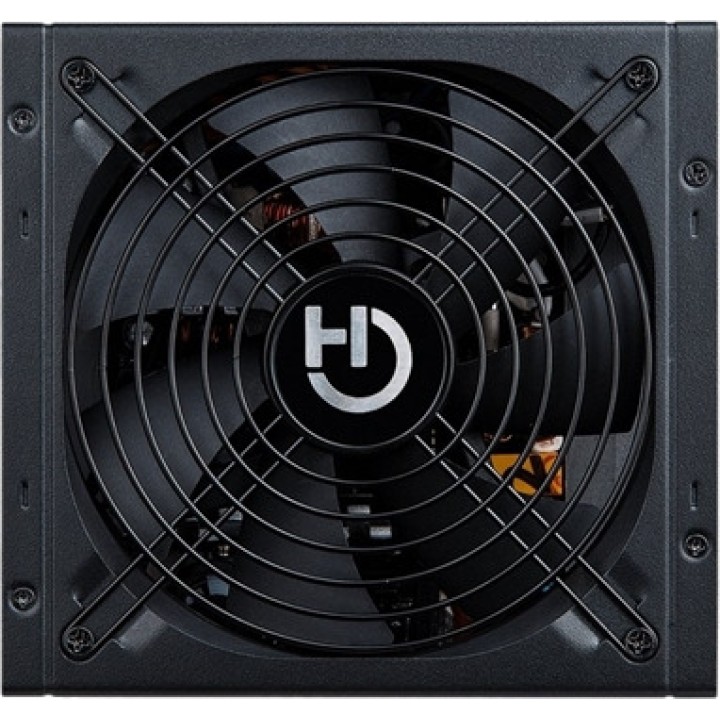

Ultra-quiet 140mm fan
The BZ series features an ultra-quiet 140mm fan that allows for
greater airflow inside.
The 140mm fan provides greater airflow while running at a lower
revolutions, so in addition to making the noise of the
fan practically imperceptible, we will achieve greater efficiency and durability of all
components.

Gaming Design
With a new exterior design and finished entirely in black, the BZ power supplies
feature a more robust finish.
Their braided cables, up to 900 mm long, allow for a
neat installation in any chassis and provide excellent safety and
durability thanks to their protective mesh.

High-performance power
The BZ series is 80PLUS BRONZE certified and features top-quality components
designed to deliver stable, high-quality power to high-performance systems
performance.
Features an ultra-quiet 140mm fan to provide greater airflow
inside.

80Plus Bronze Certified
BZ power supplies are 80PLUS BRONZE certified, which
guarantees efficiency above 85% at any load and achieves lower
power consumption and greater durability of all components.
Heat emissions are reduced through more efficient operation,
allowing the fan to run at a lower speed and consequently reducing the noise
produced by the power supply will be virtually imperceptible.
Includes full protection with OVP / UVP / OPP / SCP / SIP.

High-performance capacitors
The BZ series is built with high-performance capacitors to offer the
highest reliability and durability under the most demanding conditions.
The BZ range offers superior durability of over 80,000 hours of operation.
Compatible with the Intel Haswell processor range, which sets
new standards in energy efficiency by reducing CPU power consumption to
just 0.05A, requiring the PSU to maintain a stable voltage at low power.
stable at low power.

Ultra-quiet 140mm fan
The BZ series features an ultra-quiet 140mm fan that allows for
greater airflow inside.
The 140mm fan provides greater airflow while running at a lower
revolutions, so in addition to making the noise of the
fan practically imperceptible, we will achieve greater efficiency and durability of all
components.

Gaming Design
With a new exterior design and finished entirely in black, the BZ power supplies
feature a more robust finish.
Their braided cables, up to 900 mm long, allow for a
neat installation in any chassis and provide excellent safety and
durability thanks to their protective mesh.

Brand Hiditec
MODEL PSU010010
Type - ATX 12V v2.4 with Active PFC
POWER - 650W
connectors
- 1 x 20/24pin MB - 500mm
- 5 x SATA - 600mm / 750mm / 900mm
- 2 x MOLEX - 600mm / 750mm / 900mm
- 2 x 12V 8pin CPU - 570mm
- 4 x 6+2pin PCIe - 500mm
- 1 x FDD - 1000mm
Other Features - Cooling: Ultra-quiet 140mm fan
- Durability: >, 100,000 hours
- Protections: Overloads, voltage surges and drops.
- Includes comprehensive protection features with OVP / UVP / OPP / SCP / SIP.
- Dimensions: 150mm x 85mm x 160mm
- Weight: 1750grs
Input power
- 230Vac - Frequency 50/60 Hz
Output power
- +3.3V : 20A
- +5V : 22A
- +12V : 40A
- -12V : 0.5A
- +5VSB : 2.5A
EXTRAS
- 80 Plus Bronze certified
- Active PFC
- Safety braided cable
CERTIFICATES
- 80 Plus Bronze
- CE
- RoHs
Volume (m ³): 0.0097
