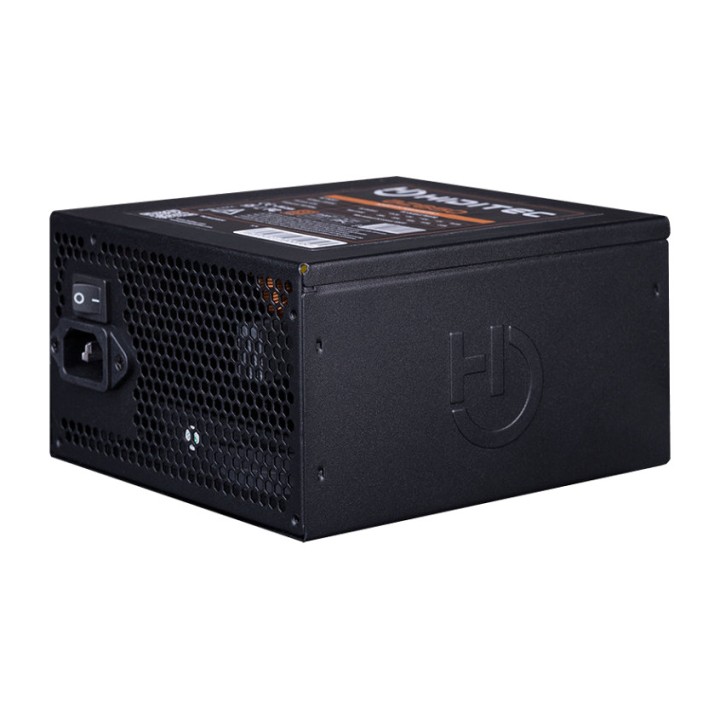

HIDITEC ATX gaming power supply with 140 mm silent fan BZ550 550W 80PLUS-BRONZE DSP0000004189

DESCRIPTION

High-performance power The BZ series is 80PLUS BRONZE certified and
high-quality components designed to deliver stable, high-quality power to
high-performance systems. It features an ultra-quiet 140mm fan
to provide greater airflow inside. 80Plus Bronze Certified
BZ power supplies are 80PLUS BRONZE certified, which
guarantees efficiency above 85% at any load and achieves lower
power consumption and greater durability for all components. Heat emissions will be
reduced thanks to more efficient operation, allowing the
fan to run at a lower speed and consequently, the noise produced by the power supply will be
virtually imperceptible. It features comprehensive OVP / UVP /
OPP / SCP / SIP. High-performance capacitors The BZ series is manufactured with
high-performance capacitors to provide maximum reliability and durability under
the most demanding conditions. The BZ range offers a lifespan of over
80,000 operating hours. Compatible with the Intel Haswell processor range,
which sets new standards in terms of energy efficiency
by reducing CPU power consumption to just 0.05A, making it
necessary for the PSU to maintain a stable voltage at low power. 140mm fan

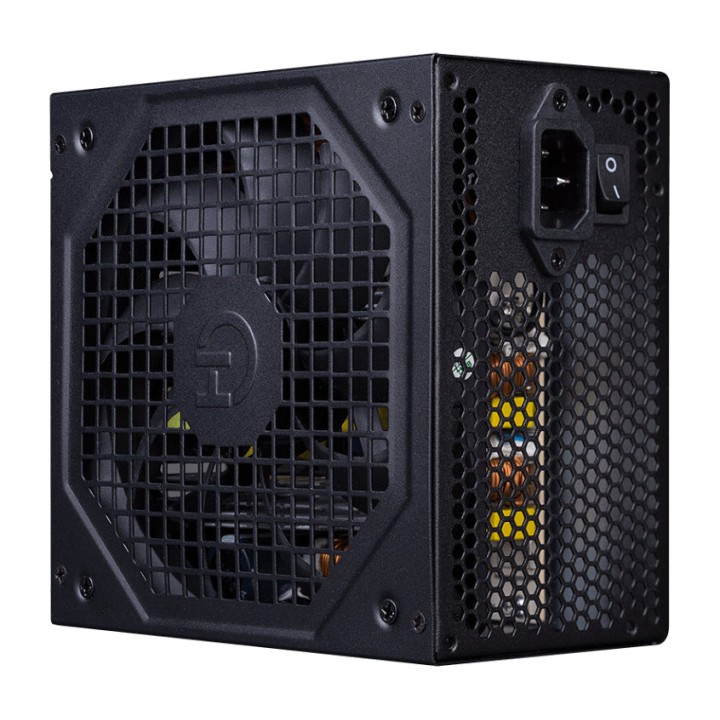

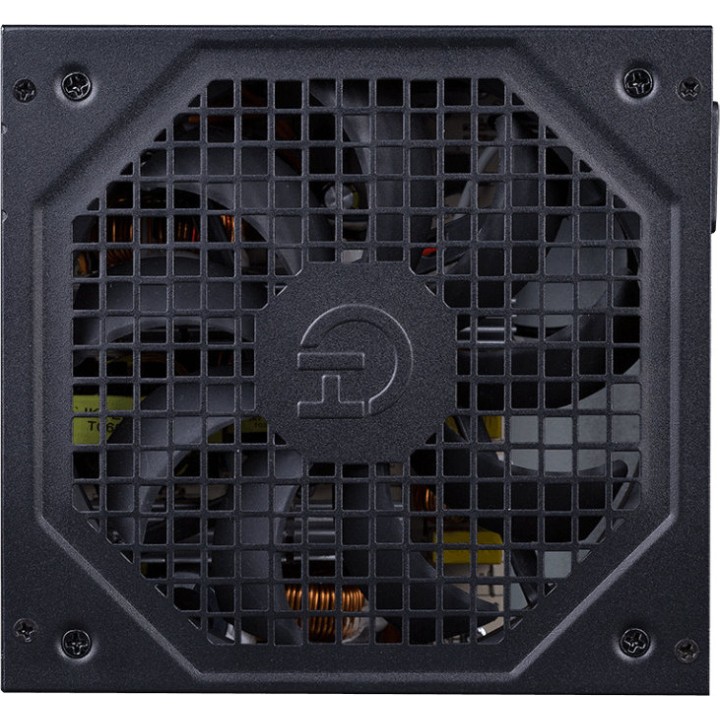

ultra-quiet The BZ series features an ultra-quiet 140mm fan
that allows greater airflow inside. The 140mm fan provides
greater airflow while running at lower speeds, so in addition to
making fan noise virtually imperceptible, we achieve greater
efficiency and durability for all components. Gaming Design With a new
exterior design and finished entirely in black, the BZ power supplies
feature a more robust finish. Their cables, up to 900mm long,
are braided, allowing for neat installation in any chassis and providing
excellent safety and durability thanks to the protective mesh covering them.
Technical specifications

Power control
Maximum output current (+12V)
45 A
Maximum output current (-12V)
6 A
Maximum output current (+3.3V)
20 A
Maximum output current (+5V)
20 A
Maximum output current (+5Vsb)
15 A
AC input voltage
230 V
AC input frequency
50 - 60 Hz
Power factor correction (PFC) type
Active
Efficiency
85%
Power protection features
Overvoltage, overload, low power
Total power
550 W
WEIGHT AND DIMENSIONS
HEIGHT
85 mm
WIDTH
150 mm
WEIGHT
1,75 kg
DEPTH
160 mm
Ports and Interfaces
PCI Express power connectors (6 + 2 pin)
2
Peripheral power connectors (4-pin) (Molex)
3
CPU power connector (8-pin)
1
Motherboard power supply
20+4-pin ATX
CPU power cable length
57 cm
Floppy drive connector
YES
Motherboard power cable length
50 cm
SATA power cable length
600,750,900 mm
Peripheral (Molex) power cable length
600,750,900 mm
Floppy drive cable length
100 cm
Number of SATA power connectors
6
Packaging
Packaging type
Box

Performance
CERTIFICATION 80 PLUS
80 PLUS Bronze
ATX version
2.4
CERTIFICATION
EC
Power supply unit (PSU) form factor
ATX
Silent mode
YES
Mean time between failures
80000 h
Use with
PC
Design
Product color
BLACK
Fan diameter
14 cm
Number of fans
1 fan(s)
Cooling type
Active
Technical details
Sustainability certificates
RoHS
Volume (m ³): 0.0086
