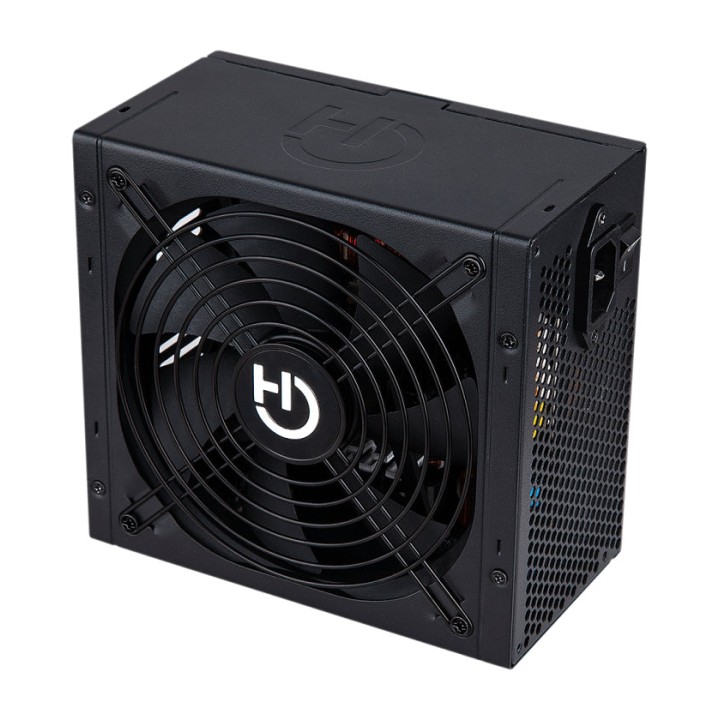

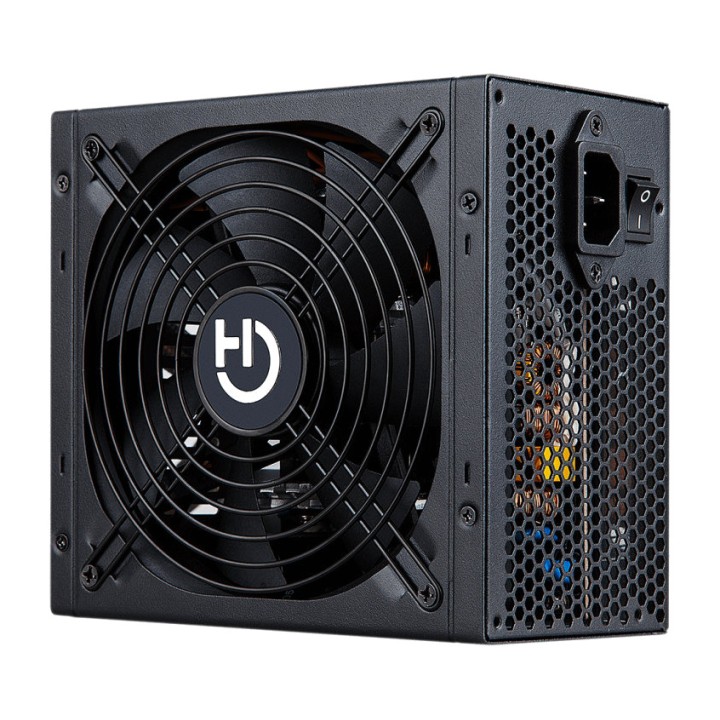

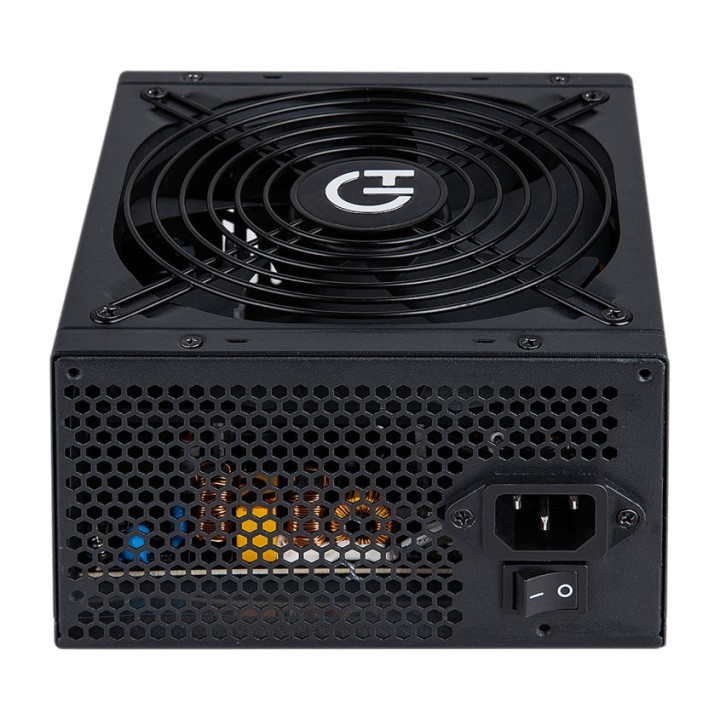

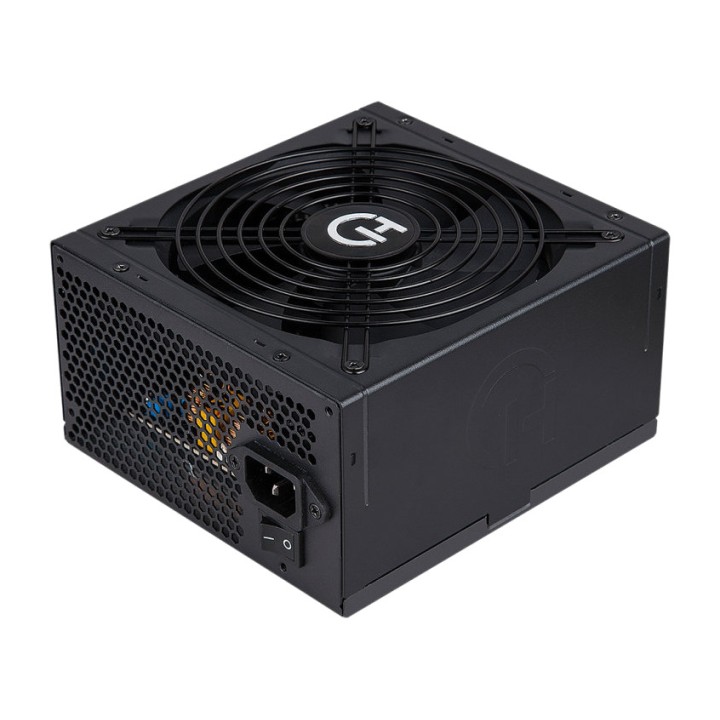

HIDITEC ATX gaming power supply with 140 mm silent fan BZ750 750W 80PLUS-BRONZE DSP0000004185
Price:
€75.81
Tax included
DeliveryUpdating delivery estimate…Order within the next — to receive it approximately Updating delivery estimate…
Updating delivery estimate…
Cuándo es más probable que llegue
Calculado con 0 entregas recientes
Fechas estimadas para España peninsular; se ajustarán con tu código postal y forma de entrega.
The date corresponds to the item with the longest delivery time
IVA intracomunitario
La exención intracomunitaria puede aplicarse a una entrega a otro Estado miembro si el NIF-IVA es válido y el destino cumple los requisitos. La comprobación por sí sola no determina el tratamiento fiscal.
Cómo se comprueba el IVA¿Eres profesional del sector?
Puedes solicitar una cuenta profesional e indicar los datos de tu actividad. La solicitud queda pendiente de revisión; puedes consultar su estado en tu cuenta.
Más información sobre cuentas profesionalesCanarias, Ceuta y Melilla sin IVA español
El tratamiento depende del destino de entrega y de la coherencia de la dirección. Pueden corresponder IGIC, IPSI, aranceles u otros cargos locales.
Más información sobre destinos e impuestosDESCRIPTION
High-performance power
The BZ series is 80PLUS BRONZE certified and features top-quality components
designed to deliver stable, high-quality power to high-performance systems
performance.
It features an ultra-quiet 140mm fan to provide greater airflow inside
it.
80Plus Bronze Certified
BZ power supplies are 80PLUS BRONZE certified, which
guarantees efficiency above 85% at any load and achieves lower
power consumption and greater durability of all components.
Heat emissions are reduced through more efficient operation,
allowing the fan to run at a lower speed and consequently reducing the noise
produced by the power supply will be virtually imperceptible.
Includes full protection with OVP / UVP / OPP / SCP / SIP.
High-performance capacitors
The BZ series is built with high-performance capacitors to offer the
highest reliability and durability under the most demanding conditions.
The BZ range offers a service life of over 100,000 operating hours.
Compatible with the Intel Haswell processor range, which sets
new standards in energy efficiency by reducing CPU power consumption to
just 0.05A, requiring the PSU to maintain a stable voltage at low power.
stable at low power.

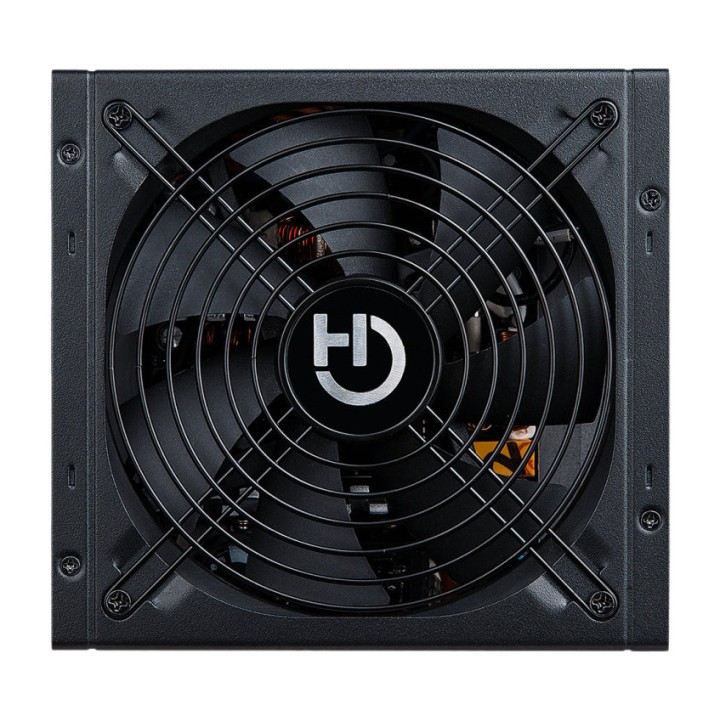

Ultra-quiet 140mm fan
The BZ series features an ultra-quiet 140mm fan that allows for
greater airflow inside.
The 140mm fan provides greater airflow while running at a lower
revolutions, so in addition to making the noise of the
fan practically imperceptible, we will achieve greater efficiency and durability of all
components.
Gaming Design
With a new exterior design and finished entirely in black, the BZ power supplies
feature a more robust finish.
Their braided cables, up to 900 mm long, allow for a
neat installation in any chassis and provide excellent safety and
durability thanks to their protective mesh.
Technical specifications
Power control
Maximum output current (+12V)
62 A
Maximum output current (-12V)
0,5 A
Maximum output current (+3.3V)
25 A
Maximum output current (+5V)
25 A
Maximum output current (+5Vsb)
3 A
AC input voltage
230 V
AC input frequency
50/60 Hz
Power factor correction (PFC) type
Active
Efficiency
85%
Power protection features
Overvoltage, overload, low power
Total power
750 W
WEIGHT AND DIMENSIONS
HEIGHT
85 mm
WIDTH
150 mm
WEIGHT
1,95 kg
DEPTH
160 mm
Ports and Interfaces
PCI Express power connectors (6 + 2 pin)
4 [ 2 * 600 mm + 150 mm ]
Peripheral power connectors (4-pin) (Molex)
3
CPU power connector (8-pin)
1
Motherboard power supply
20+4-pin ATX
CPU power cable length
57 cm
Floppy drive connector
YES
Motherboard power cable length
50 cm
SATA power cable length
600,750,900 mm
Peripheral (Molex) power cable length
600,750,900 mm
Floppy drive cable length
100 cm
Number of SATA power connectors
6
Packaging
Packaging type
Box
Performance
CERTIFICATION 80 PLUS
80 PLUS Bronze
ATX version
2.4
CERTIFICATION
EC
Power supply unit (PSU) form factor
ATX
Silent mode
YES
Mean time between failures
100000 h
Use with
PC
Design
Product color
BLACK
Fan diameter
14 cm
Number of fans
1 fan(s)
Cooling type
Active
Technical details
Sustainability certificates
RoHS
Volume (m ³): 0.0086
