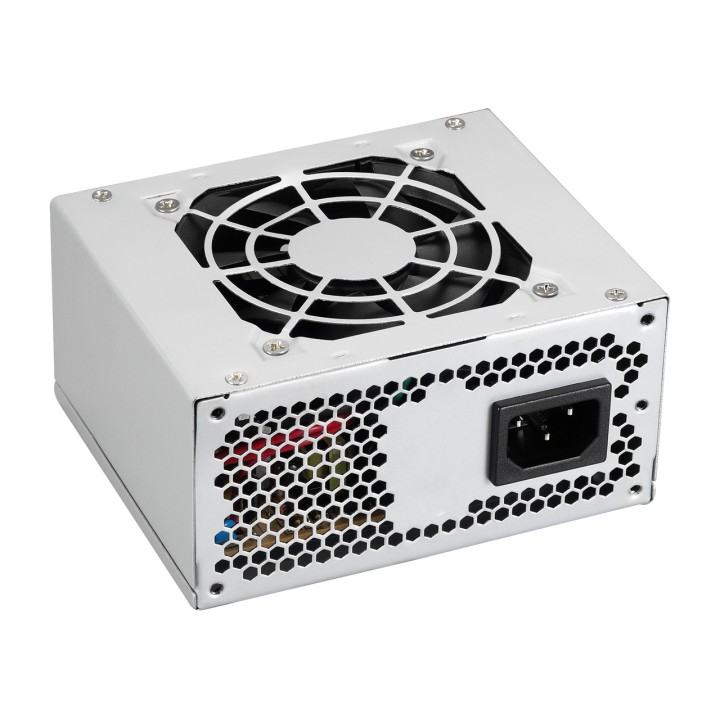

PHOENIX Quiet SFX power supply for compact PCs 300W 125X100X63MM PHFASFX500

Power Supply Features SFX 300W
The 300W SFX power supply is designed for small-form-factor computer systems that need a compact, efficient and functional solution. Thanks to its SFX form factor and compact dimensions, it can be installed in compatible cases where internal space is limited. It is suitable for low-power configurations, office equipment, compact computers or systems requiring a replacement power supply compatible with this form factor. It also features a temperature-controlled fan and electrical protections for safer, more stable operation.
Compact SFX form factor
Its SFX design allows it to fit into small cases, making the most of the space available inside the system. Measuring 125 x 100 x 63,30 mm, it is particularly useful for compact computers where a conventional ATX power supply is unsuitable.

Format: SFX
Dimensions: 125 x 100 x 63,30 mm
Designed for compatible small-form-factor cases

300W power for low-power configurations
With a power output of 300W, this power supply offers a balanced solution for compact computer systems and configurations that do not require high power consumption. It is suitable for systems intended for basic tasks, office use, browsing, everyday management or replacement equipment.

Total power: 300W
Recommended for compact systems
Suitable for low-power configurations

Temperature-controlled fan for efficient operation
The power supply features a temperature-controlled fan that adjusts its operation according to the temperature. This helps maintain adequate system cooling, promoting quieter and more efficient operation during everyday use.

Integrated temperature-controlled fan
Operation designed to reduce noise
Cooling adapted to operating temperature

Integrated electrical protections
To improve the safety of connected components, this power supply features OCP, OVP and SCP protections. These functions help protect the equipment against situations such as overcurrent, overvoltage or short circuit.

OCP overcurrent protection
OVP overvoltage protection
SCP short-circuit protection

Connectivity for essential components
The power supply includes the connectors needed to power the main components of a compact computer. It features a 20+4-pin ATX main connector, a CPU connector, SATA, FDD and MOLEX-HDD connectors, offering compatibility with different drives and configurations.

1 x ATX 20+4-pin
1 x 4-pin 12V CPU
1 x FDD
3 x SATA
1 x MOLEX-HDD

RECOMMENDED USE
This power supply is a practical solution for those who need a compact 300W SFX power supply for small-form-factor systems. Its combination of compact size, temperature-controlled ventilation and built-in protections makes it a suitable choice for basic systems and efficient configurations.

Small-form-factor computers
Office computers or basic home-use systems
Systems with cases compatible with the SFX form factor
Replacement power supplies for compatible systems

Regulatory notice
This power supply was manufactured to serve as a replacement for units installed in computer equipment manufactured before 1 July 2014. This notice is included in compliance with European Commission Regulation No. 617/2013 of 26 June 2013.
Volume (m ³): 0.0023
