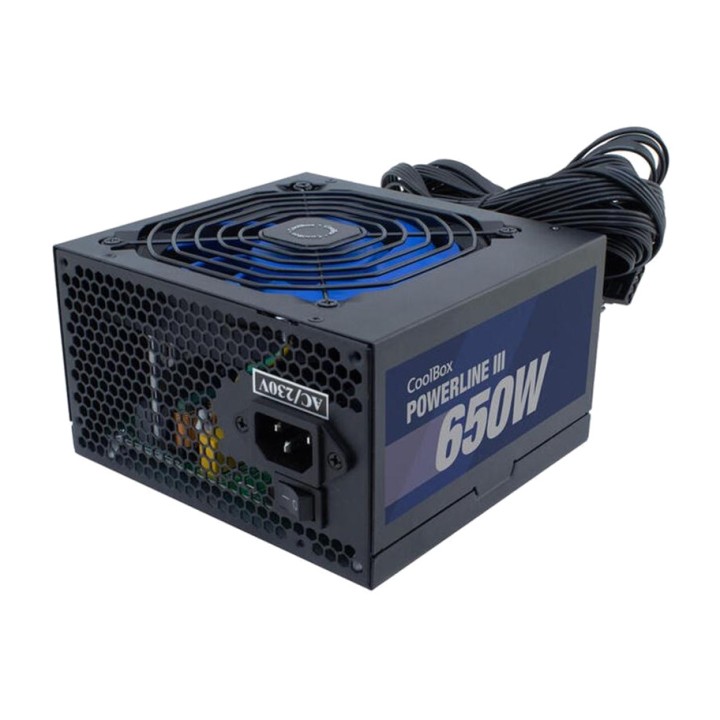

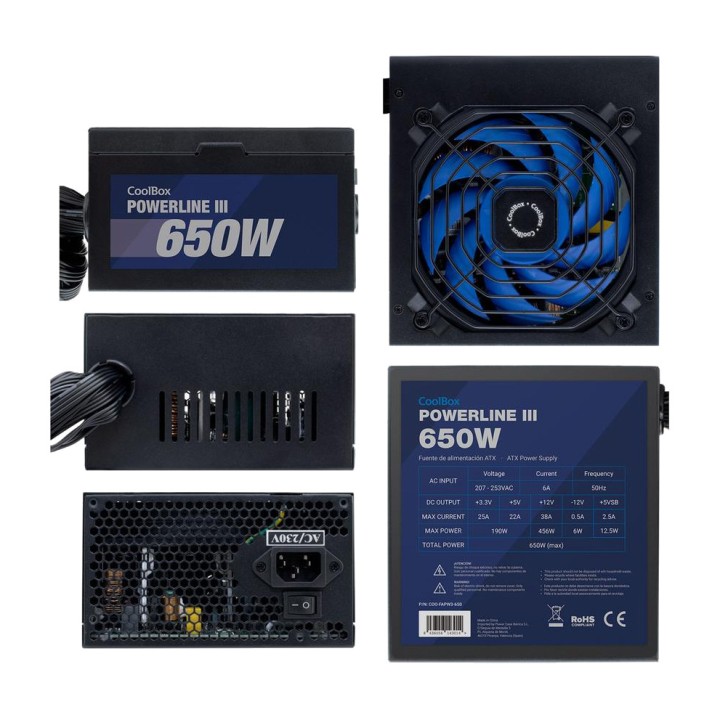

COOLBOX ATX gaming power supply for PC POWERLINE-III 650W 85% MGS0000024776
DeliveryUpdating delivery estimate…Order within the next — to receive it approximately Updating delivery estimate…
Updating delivery estimate…
Cuándo es más probable que llegue
Calculado con 0 entregas recientes
Fechas estimadas para España peninsular; se ajustarán con tu código postal y forma de entrega.
The date corresponds to the item with the longest delivery time
IVA intracomunitario
La exención intracomunitaria puede aplicarse a una entrega a otro Estado miembro si el NIF-IVA es válido y el destino cumple los requisitos. La comprobación por sí sola no determina el tratamiento fiscal.
Cómo se comprueba el IVA¿Eres profesional del sector?
Puedes solicitar una cuenta profesional e indicar los datos de tu actividad. La solicitud queda pendiente de revisión; puedes consultar su estado en tu cuenta.
Más información sobre cuentas profesionalesCanarias, Ceuta y Melilla sin IVA español
El tratamiento depende del destino de entrega y de la coherencia de la dirección. Pueden corresponder IGIC, IPSI, aranceles u otros cargos locales.
Más información sobre destinos e impuestosMaximum power: 650W
Single 12V rail for better power delivery
DC-DC conversion technology for maximum efficiency and stability
Maximum electrical efficiency of 85%

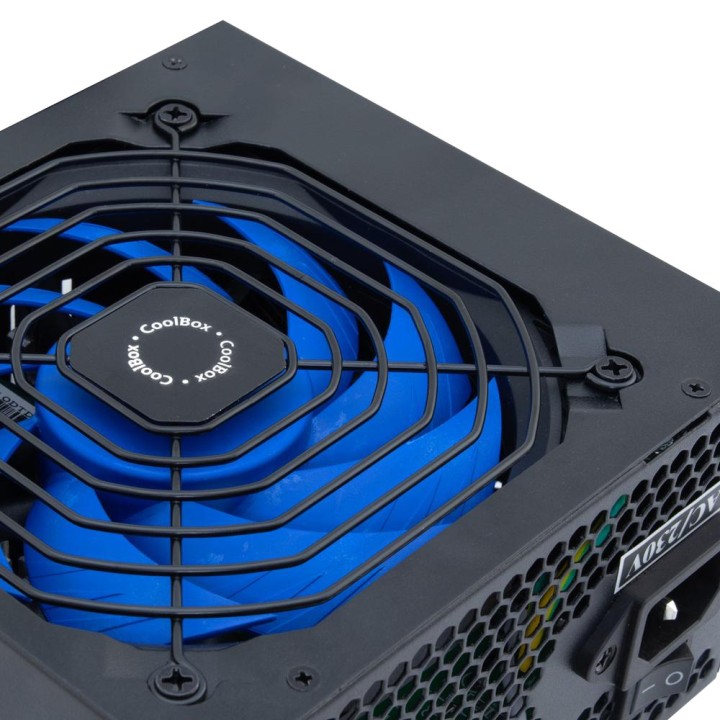

Thermally controlled 120mm low-speed fan for quiet operation
High level of protection (UVP, OVP, OPP, SCP)
Long flat cabling

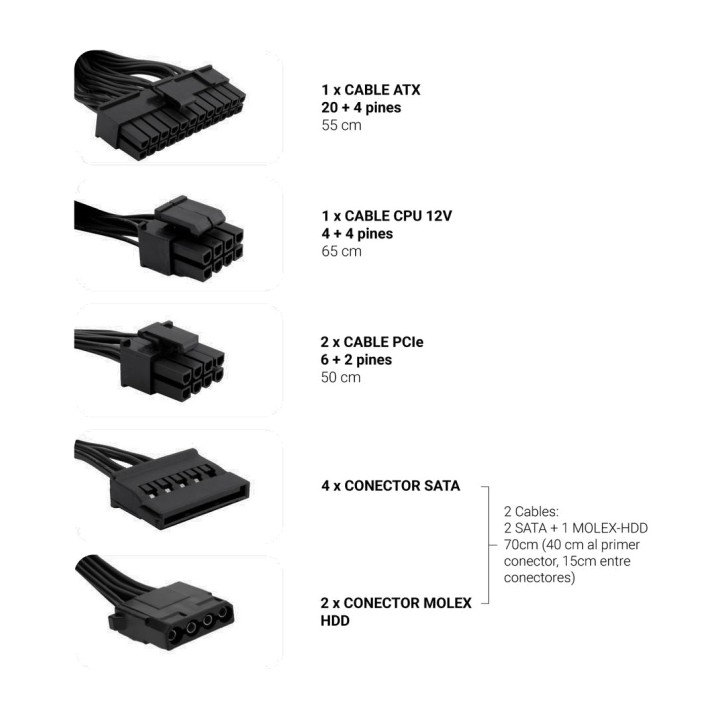

4 SATA power connectors, 2 Molex-HDD and 2 PCI-e 6+2-pin
Power control
Total power 650 W
Input voltage AC 207 - 253 V
AC input frequency 50/60 Hz
Input current 6 A
Power factor 0,9
Active power factor correction (PFC)
Combined power (3,3 V) 190 W
Combined power (+12 V) 456 W
Combined power (+5 V) 190 W
Combined power (-12V) 6 W
Combined power (+5 VSB) 12,5 W
Maximum output current (+3.3V) 25 A
Maximum output current (+12V) 38 A
Maximum output current (+5V) 22 A
Maximum output current (-12V) 0,5 A
Maximum output current (+5Vsb) 2,5 A
Hold-up time 16 ms
Efficiency 85%
Power Good signal delay range 100 - 500 ms
Power protection functions: overcurrent, overvoltage, short circuit, undervoltage
Ports and Interfaces
Motherboard power supply 20+4-pin ATX
Number of power connectors SATA 4
Peripheral power connectors (4-pin) (Mole x) 2
PCI Express power connectors (6 + 2 pin) 2
CPU power connector (4 + 4 pins) 1
ATX power connector (20 + 4 pin) Yes
Performance
Use with PC
Power supply unit (PSU) form factor ATX
Mean time between failures 60000 h
Design
Product colour Black
Active cooling type
Fan diameter 12 cm
Number of fans 1 fan(s)
Fan speed 690 - 1760 RPM
Fan location Top
Integrated on/off switch Yes
Environmental conditions
Operating temperature range 0 - 50 C
Relative humidity range for operation 20 - 90%
WEIGHT AND DIMENSIONS
Width 150 mm
Depth 140 mm
Height 86 mm
Weight 1.23 kg
Volume (m ³): 0.0060
- Brand
- COOLBOX
- Reference
- MGS0000024776
- EAN-13
- 8436556143014
- Weight
- 1,5 kg
