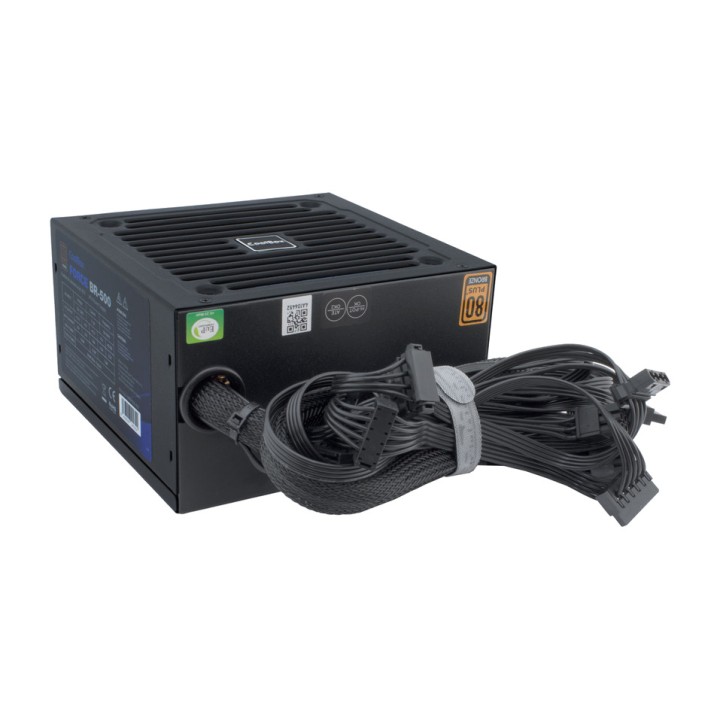

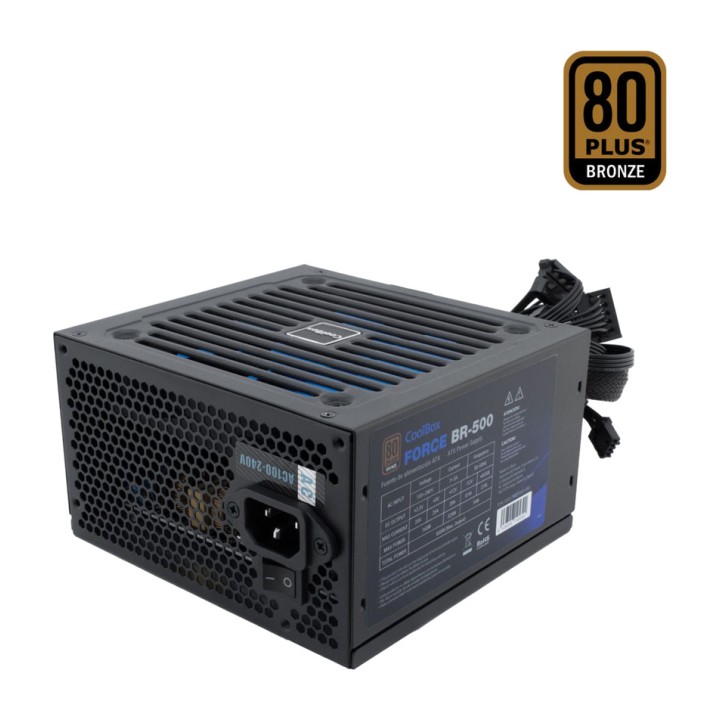

COOLBOX ATX power supply with sleeved cables FORCE-BR500 500W 80 PLUS BRONZE MGS0000007118
DeliveryUpdating delivery estimate…Order within the next — to receive it approximately Updating delivery estimate…
Updating delivery estimate…
Cuándo es más probable que llegue
Calculado con 0 entregas recientes
Fechas estimadas para España peninsular; se ajustarán con tu código postal y forma de entrega.
The date corresponds to the item with the longest delivery time
IVA intracomunitario
La exención intracomunitaria puede aplicarse a una entrega a otro Estado miembro si el NIF-IVA es válido y el destino cumple los requisitos. La comprobación por sí sola no determina el tratamiento fiscal.
Cómo se comprueba el IVA¿Eres profesional del sector?
Puedes solicitar una cuenta profesional e indicar los datos de tu actividad. La solicitud queda pendiente de revisión; puedes consultar su estado en tu cuenta.
Más información sobre cuentas profesionalesCanarias, Ceuta y Melilla sin IVA español
El tratamiento depende del destino de entrega y de la coherencia de la dirección. Pueden corresponder IGIC, IPSI, aranceles u otros cargos locales.
Más información sobre destinos e impuestosCharacteristic
Maximum power: 500W
80 Plus Bronze certification
Elegant black chassis
Compliant with Intel ATX12V v specification 2.31
High efficiency (85%)
High level of protection (OVP. UVP, OPP, SCP, SIP)
Full Range power input (100-240V.)
Design with dual +12V rails providing great compatibility and operating stability
Quiet 120mm fan with thermally regulated speed control circuit, blue
500mm-long braided cables for use in large cases, regardless of the position of the power supply in the case

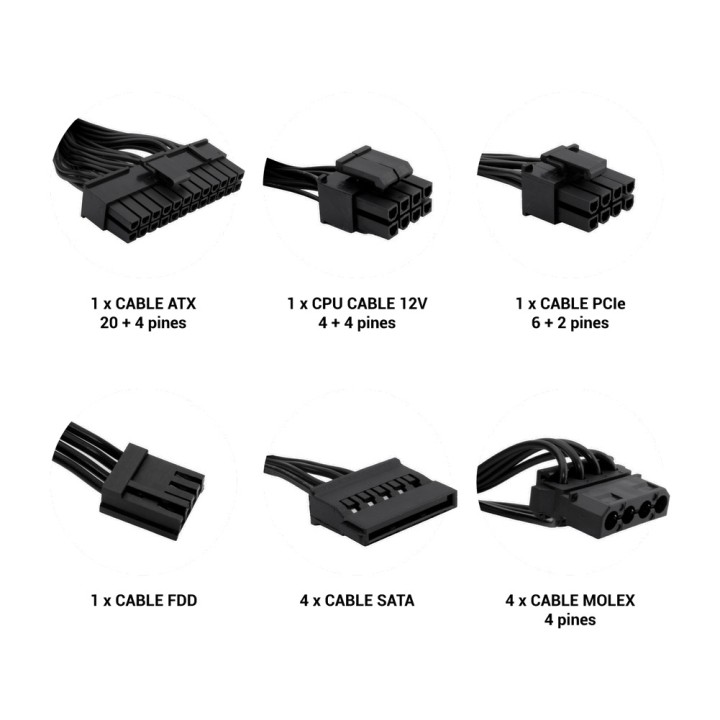

4 SATA power connectors and 1 6+2-pin PCI-e connector
Power cable included
PFC: Active (> ,0.99)
CoolBox Force specifications BR-500
Ports and Interfaces
Motherboard power supply: 20+4-pin ATX
Peripheral power connectors (4-pin) (Mole x): 4
Number of power connectors SATA: 4
PCI Express power connectors (6 + 2 pin) : 1
CPU power connector (4 + 4 pins): Yes
Floppy power connector : 1
Floppy drive connector: Yes
PCI Express connector: Yes
Power control
Total power : 500 W
Input voltage AC: 100 - 240 V
AC input frequency: 50 - 60 Hz
Maximum input current (@110V): 7 A
Maximum input current (@220V): 3,5 A
Power factor correction type (PFC): Active
Combined power (3,3 V): 60 W
Combined power (+12 V): 432 W
Combined power (+5 V): 60 W
Combined power (-12V): 16 W
Combined power (+5 VSB): 16 W
Maximum output current (+3.3V): 6 A
Maximum output current (+12V): 36 A
Maximum output current (+5V): 8 A
Maximum output current (-12V): 0,5 A
Maximum output current (+5Vsb) : 2 A
Efficiency: 85%
Power protection functions: Overcurrent, overvoltage, short circuit, undervoltage
Design
Product colour: Black
Cooling type: active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
Integrated on/off switch: Yes
Performance
Use with: PC/servidor
Power supply form factor (PSU): ATX
80 PLUS certification: 80 PLUS Bronze
ATX version: 2.31
RoHS compliant: Yes
Certification: CE, WEEE
Volume (m ³): 0.0065
- Brand
- COOLBOX
- Reference
- MGS0000007118
- EAN-13
- 8436556145322
- Weight
- 2 kg
