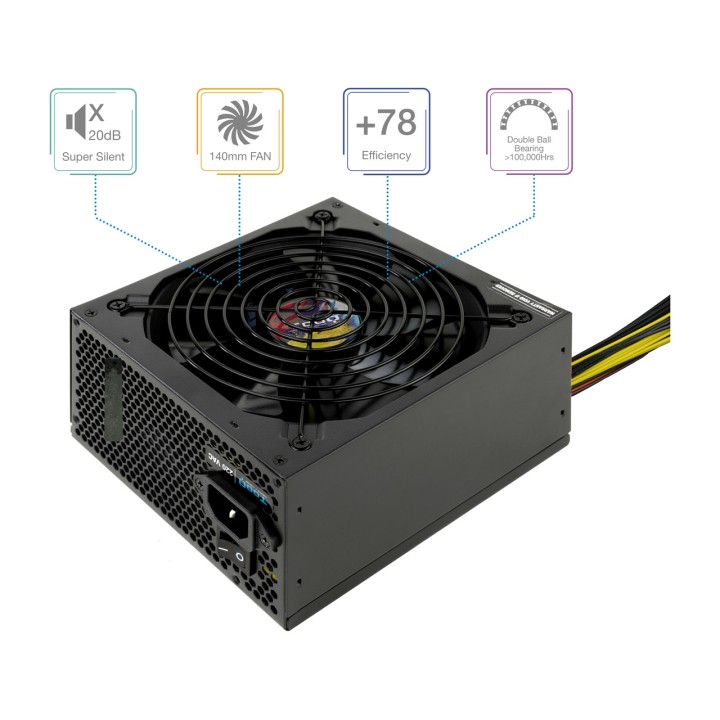

TOOQ ATX power supply with active PFC TQAPOLO-650SP 650W DSP0000009542
DeliveryUpdating delivery estimate…Order within the next — to receive it approximately Updating delivery estimate…
Updating delivery estimate…
Cuándo es más probable que llegue
Calculado con 0 entregas recientes
Fechas estimadas para España peninsular; se ajustarán con tu código postal y forma de entrega.
The date corresponds to the item with the longest delivery time
IVA intracomunitario
La exención intracomunitaria puede aplicarse a una entrega a otro Estado miembro si el NIF-IVA es válido y el destino cumple los requisitos. La comprobación por sí sola no determina el tratamiento fiscal.
Cómo se comprueba el IVA¿Eres profesional del sector?
Puedes solicitar una cuenta profesional e indicar los datos de tu actividad. La solicitud queda pendiente de revisión; puedes consultar su estado en tu cuenta.
Más información sobre cuentas profesionalesCanarias, Ceuta y Melilla sin IVA español
El tratamiento depende del destino de entrega y de la coherencia de la dirección. Pueden corresponder IGIC, IPSI, aranceles u otros cargos locales.
Más información sobre destinos e impuestosSpecifications:
Power control
Total power : 650 W
Input voltage AC: 220 V
AC input frequency: 50/60 Hz
Input current : 2.5 - 5 A
Power factor correction type (PFC): Active
Maximum output current (+3.3V): 30 A
Maximum output current (+12 V1): 18 A
Maximum output current (+12 V2): 18 A
Maximum output current (+5V): 30 A
Maximum output current (-12V): 0,5 A
Maximum output current (+5Vsb) : 3 A
Power protection functions: Overcurrent, overvoltage, overvoltage, overheating, short circuit, undervoltage

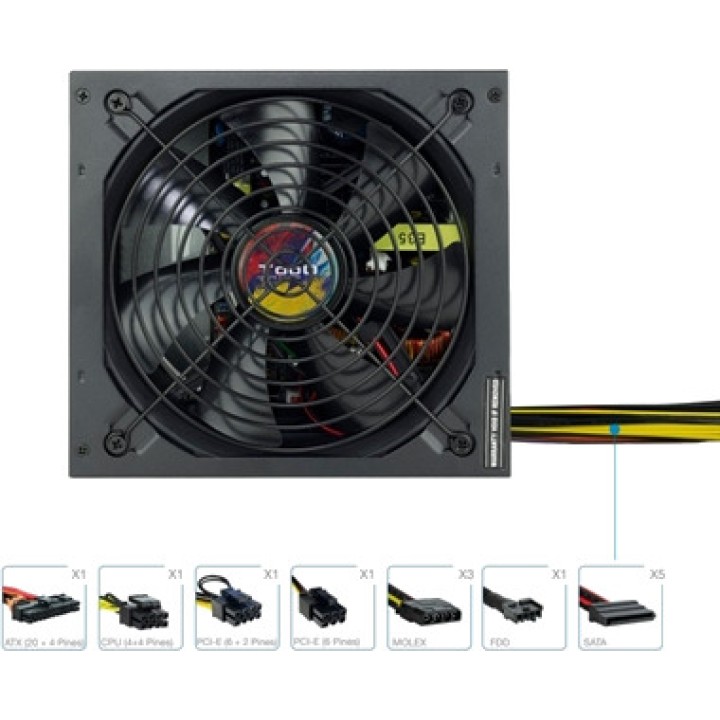

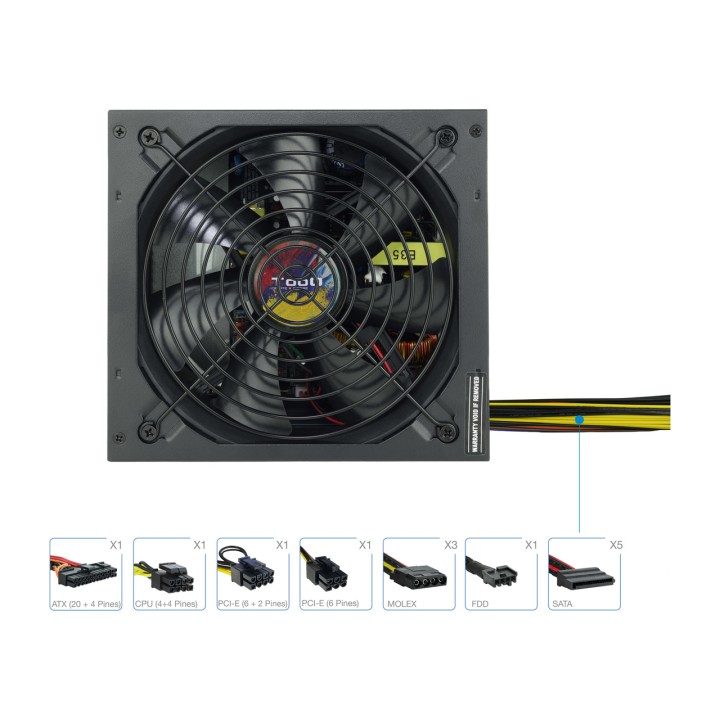

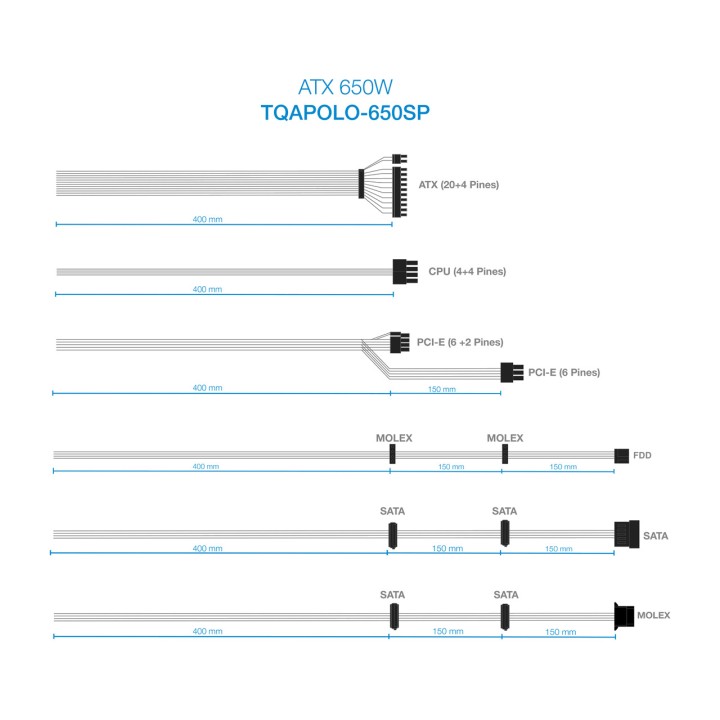

Ports and Interfaces
Motherboard power supply: 20+4-pin ATX
Motherboard power cable length: 40 cm
Number of power connectors SATA: 5
SATA power cable length: 400,550,700 mm
Peripheral power connectors (4-pin) (Mole x): 3
Peripheral power cable (Molex) length: 700 mm
PCI Express power connectors (6 pin) : 1
PCI Express power connectors (6 + 2 pin) : 1
PCI Express power cable length: 55 cm
CPU P4 connector (4-pin) : 1
CPU power connector (4 + 4 pins): Yes
CPU power cable length: 40 cm
ATX power connector (20 + 4-pin): Yes
Floppy power connector : 1
Floppy drive connector: Yes
Floppy drive cable length: 70 cm
PCI Express connector: Yes
Performance
80 PLUS certification: No
Supported motherboard form factor: ATX
Use with: PC
Power supply form factor (PSU): ATX
ATX version: 2.3
Mean time between failures: 10000 h
Design
Product colour: Black
Cooling type: active
Fan diameter: 14 cm
Number of fans: 1 fan(s)
Fan location: Top
Integrated on/off switch: Yes
Environmental conditions
Operating temperature range : 0 - 40 C

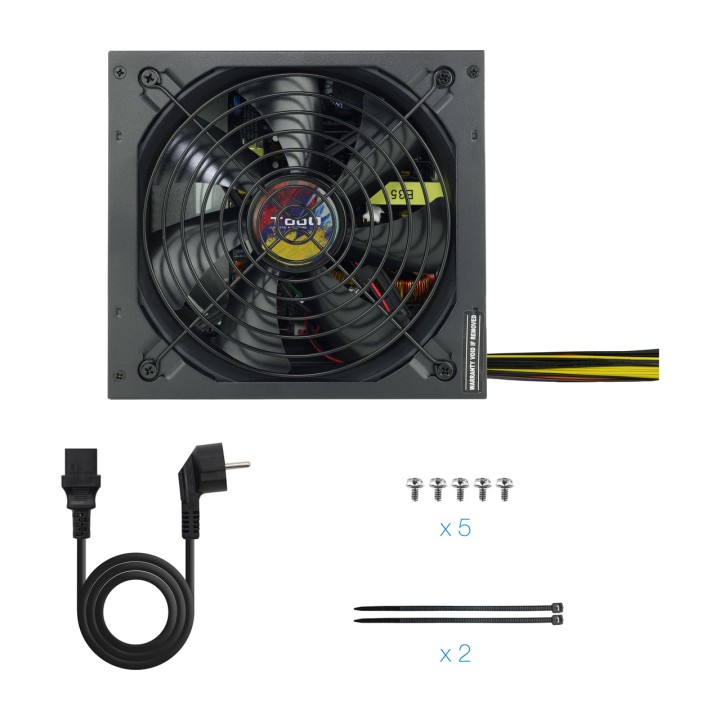

Package contents
Cables included: AC power cable

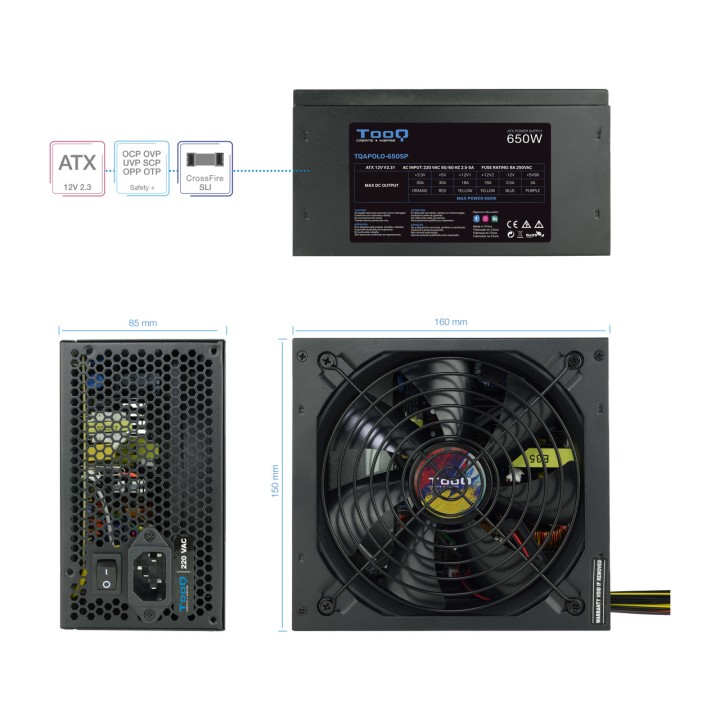

WEIGHT AND DIMENSIONS
Width: 150 mm
Depth: 160 mm
HEIGHT: 85MM
Packaging
Package width: 256 mm
Package depth: 172 mm
Package height: 102 mm
Packaging type: Box
Technical details
Sustainability certificates: CE, RoHS
OTHER FEATURES
Screws included: Yes
Number of screws : 5
User manual: Yes
Volume (m ³): 0.0046
- Brand
- TOOQ
- Reference
- DSP0000009542
- EAN-13
- 8433281010291
- Weight
- 2 kg
