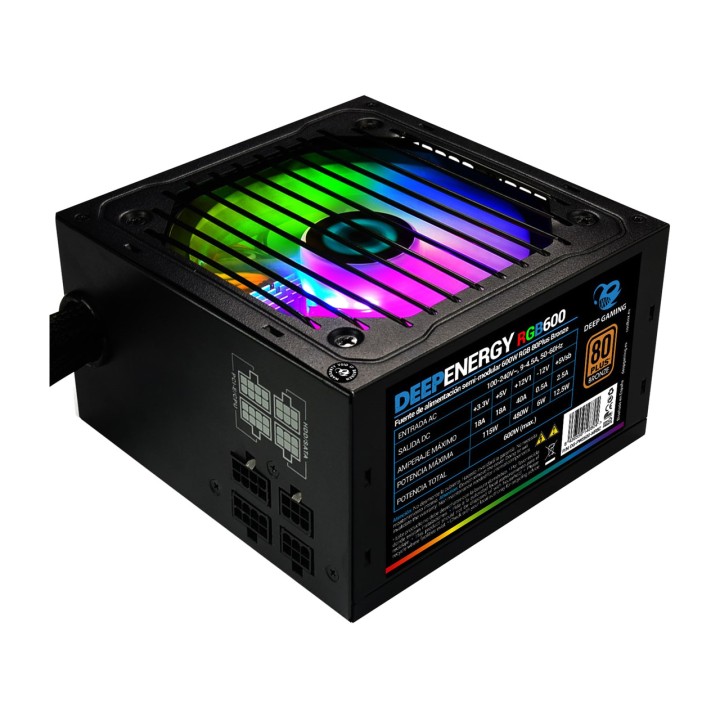

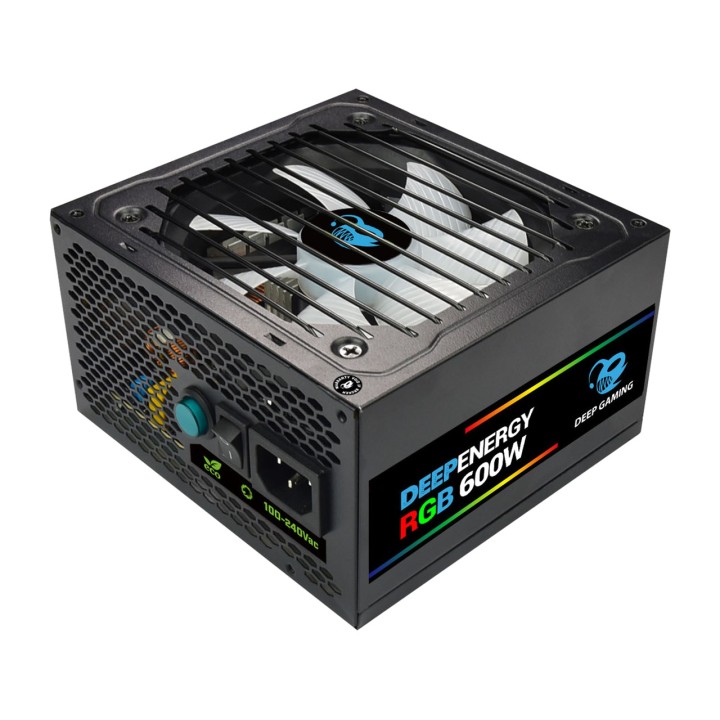

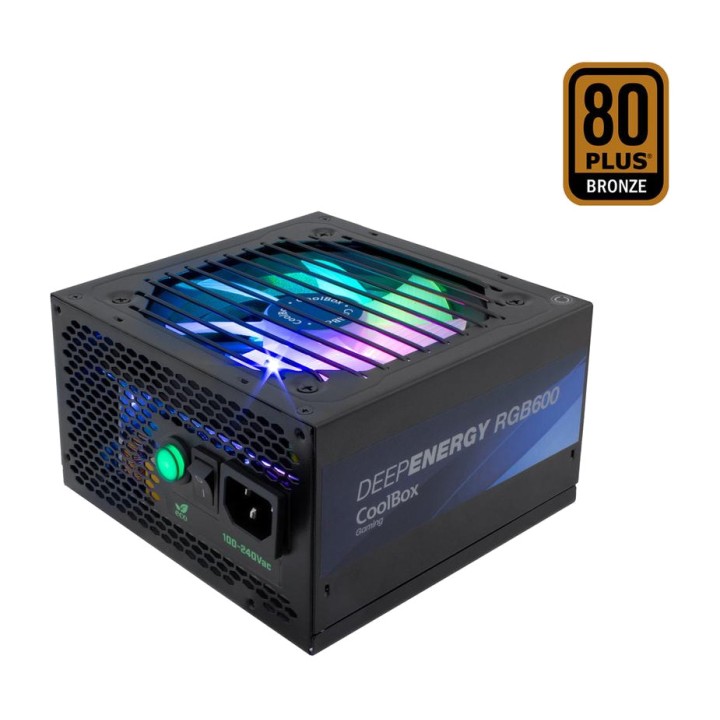

COOLBOX Semi-modular gaming power supply with RGB lighting DEEPENERGY-RGB600 600W 80 PLUS BRONZE DG-PWS600-MRBZ

With a spectacular design and power to match your demanding gaming setup, the new CoolBox DeepEnergy power supply will provide all the energy you need, accompanied by spectacular
light and colour effects. A complete semi-modular RGB power supply with 80 Plus Bronze certification and 600W of power.

Thanks to its 80 Plus Bronze certification, it guarantees a minimum energy efficiency of 81% and a maximum of 85% when power demand is at its highest. This makes it possible to achieve
an optimal level of energy while respecting the environment.

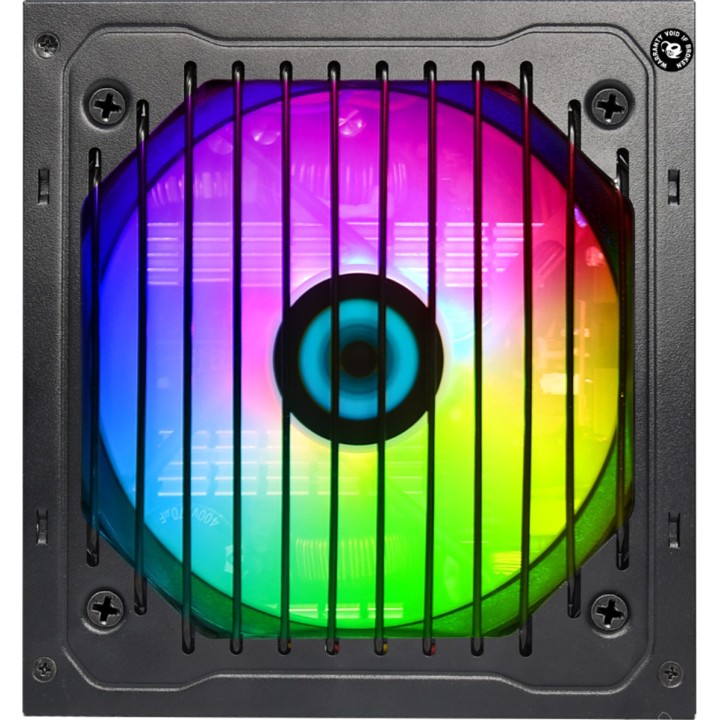

Deep Energy features a 120mm RGB fan with different effects and colours to create your personalised setup down to the smallest detail. It also has a silent mode,
fanless, which reduces noise thanks to intelligent speed control that adjusts to your computer’s needs. The active PFC technology it incorporates corrects voltage peaks, providing the continuous current required by the components and ensuring high energy efficiency.
voltage, providing the continuous current required by the components and ensuring high energy efficiency.
Characteristic:

Maximum power: 600W
80 Plus Bronze certification Complies with Intel ATX12V specification v 2.31
High level of protection
Full Range power input (110-240V)
120mm ECO silent fan with thermoregulated speed control circuit
Hydraulic bearing system for maximum durability
ECO button (selects FANLESS or SILENT mode)
Eye-catching RGB lighting
Cable length designed for use in large chassis
Independent of the power supply’s position in the chassis
5 SATA power connectors, 3 Molex and 1 6+2-pin PCI-e
Power cable included

CoolBox DeepEnergy specifications:

Power control
Total power : 600 W
Input voltage AC: 100 - 240 V
AC input frequency: 50/60 Hz
Input current : 4.5 - 9 A
Power factor correction type (PFC): Active
Combined power (3,3 V): 115 W
Combined power (+5 V): 115 W
Combined power (-12V): 6 W
Combined power (+5 VSB): 12,5 W
Maximum output current (+3.3V): 18 A
Maximum output current (+12 V1): 40 A
Maximum output current (+5V): 18 A
Maximum output current (-12V): 0,5 A
Maximum output current (+5Vsb) : 2,5 A
Efficiency: 81%
Power Good signal delay time: 100 - 500 ms
Power protection features: Overcurrent, overvoltage, overvoltage, overheating, overload, short circuit, undervoltage

Ports and Interfaces
Motherboard power supply: 20+4-pin ATX
Motherboard power cable length: 50 cm
Number of power connectors SATA: 5
Peripheral power connectors (4-pin) (Mole x): 3
PCI Express power connectors (6 + 2 pin) : 1
CPU power connector (4 + 4 pins): Yes
CPU power cable length: 60 cm

Performance
80 PLUS certification: 80 PLUS Bronze
Use with: PC
Power supply form factor (PSU): ATX
ATX version: 2.31
Noise level: 32 dB
Mean time between failures: 100000 h

Design
Product colour: Black
Cooling type: active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Lighting: Yes
Integrated on/off switch: Yes

Environmental conditions
Operating temperature range : 0 - 50 C

WEIGHT AND DIMENSIONS
Width: 140mm
Depth: 86 mm
HEIGHT: 150MM
Weight: 1.7kg

Packaging
Cables included: AC power cable

OTHER FEATURES
Lighting color: Multi
Volume (m ³): 0.0061
