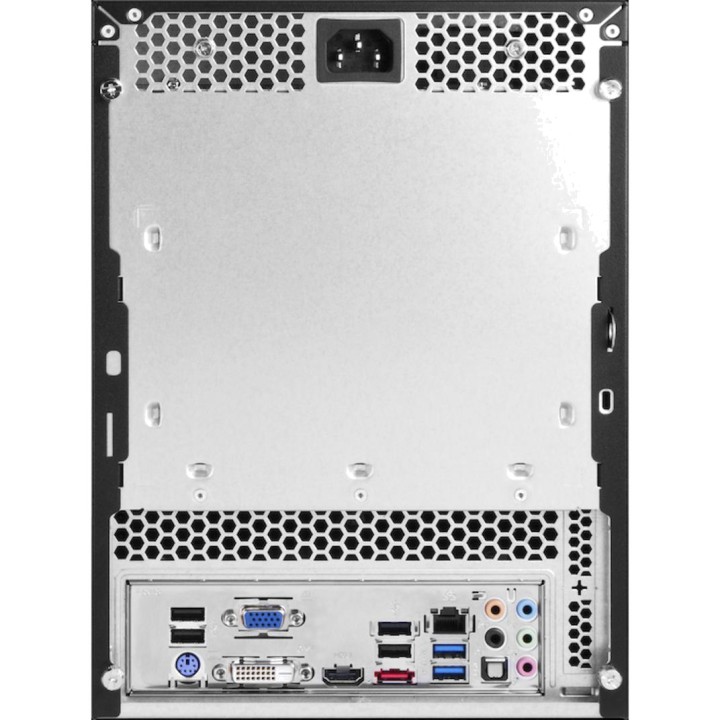

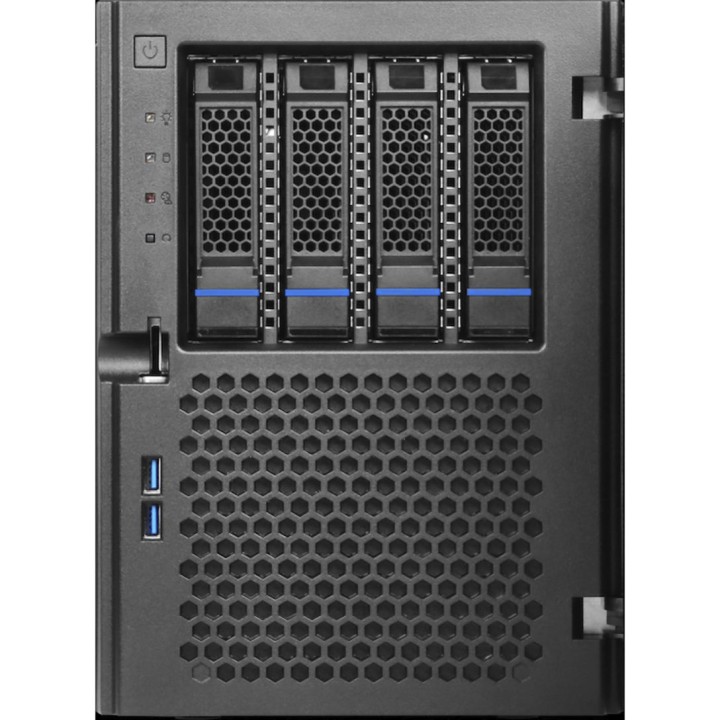

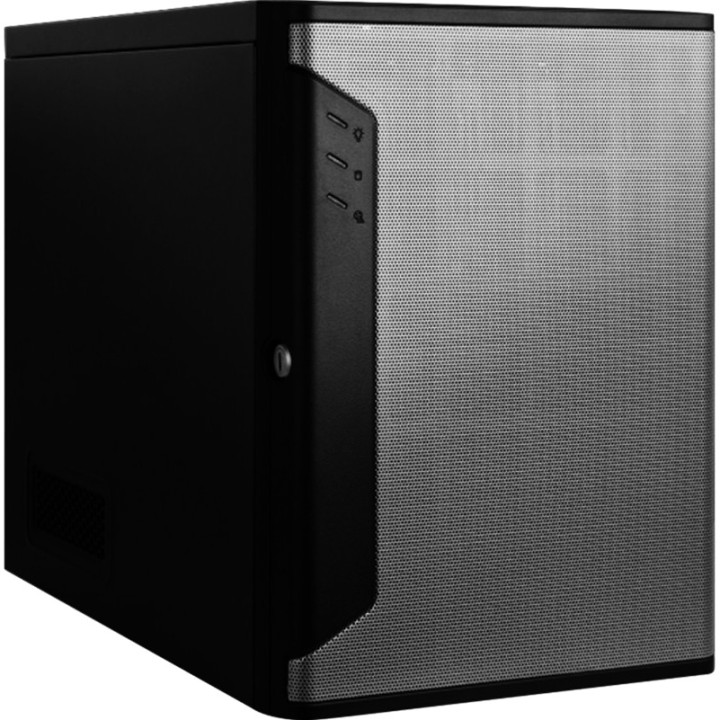

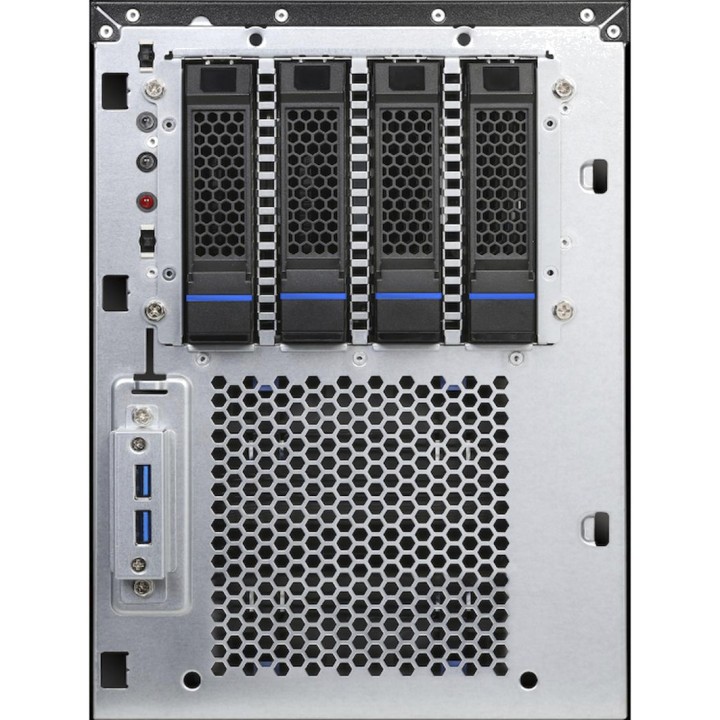

CHENBRO Compact tower server chassis SR301 PLUS MINI-ITX 4X 3,5" HOT SWAP 100189484

The Chenbro SR301 Plus is a compact tower server chassis that offers a professional solution for small and medium-sized businesses. Designed specifically for office environments, it features a balanced thermal and power design that enables continuous, reliable operation. The well-designed cooling concept makes maximum use of ventilation openings on both the front panel and the hard drive trays. In addition, the 120 mm power supply fan is effectively integrated into heat dissipation. Intelligent fan control technology ensures an optimal balance between cooling performance and low noise. For flexible storage solutions, four tool-free 3.5" hard drive trays are available for quick installation. An integrated 4-port, 12 Gbit/s Mini-SAS HD backplane enables high-performance data connectivity. In addition, two internal 2.5" drive bays are provided for SSDs or system drives. Maintenance is particularly user-friendly: both side panels are secured with four knurled screws, and the fan assembly and air duct can also be installed without tools. A PCIe 3.0 slot opening allows additional expansion cards to be installed. For added security, the case features a padlock eyelet, a Kensington slot, support for an intrusion switch, and a lockable front panel to prevent unauthorized access. The Chenbro SR301 Plus combines a compact design, efficient cooling, high expandability, and comprehensive security features, making it ideal for reliable server solutions in professional use.
Tower Cases
Form factor: Server tower
Base plate form factor: Mini-ITX
Mesh-Front: yes
Internal dimensions - Power supply form factor: ATX
Device bays - 3.5" external: 4 unit(s)
Slits - Low profile: 1 unit(s)
Front connectors : 2x UN USB 2.0
Rear frame plate connection: no
Volume: 17 l
Dimensions: Width: 20 cm x Height: 27 cm x Depth/length: 31 cm
Weight: 5.2 kg
