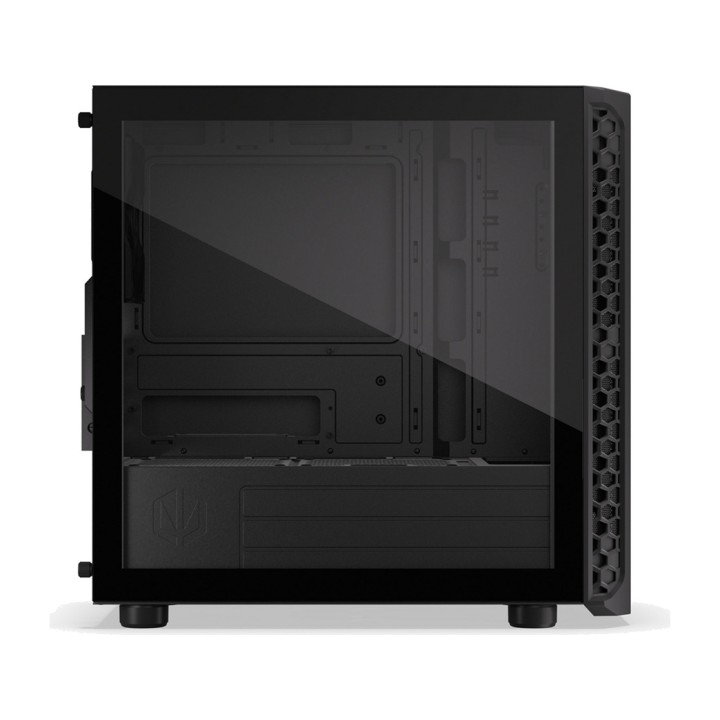

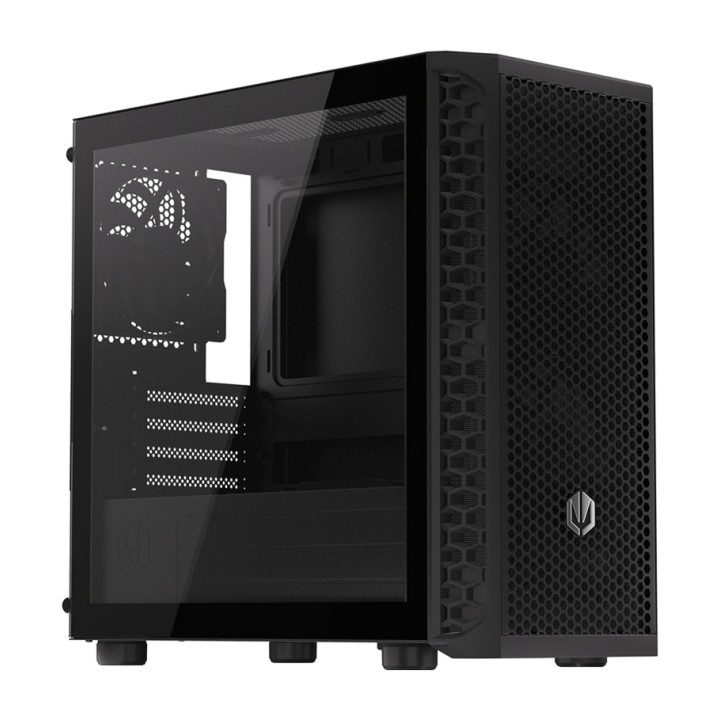

ENDORFY MicroATX PC case with tempered glass SIGNUM-M30 AIR 100188837

The ENDORFY Signum M30 Air is a compact microATX case with versatile configuration options. Its airy design with a mesh front panel, three pre-installed Stratus 120 PWM fans and dust filters helps maintain stable temperatures. The tempered glass side panel and fast USB-C port underscore the case’s modern character. The Signum M30 Air is designed for efficient component cooling. The mesh front panel is supported by two pre-installed fans, ensuring unrestricted airflow inside. Hot air is expelled by the rear fan and through the perforated top of the case, maintaining stable temperatures during operation. The case offers space for up to seven 120 mm fans. Two magnetic dust filters and the mesh front panel, which also acts as a dust filter, can be removed without tools and cleaned easily. The Signum M30 Air comes with three factory-installed Stratus 120 PWM fans connected to a pre-installed PWM splitter. This means a single 4-pin PWM connector is enough to control the fans via the motherboard. Developed together with Synergy Cooling, the fans combine high performance with quiet operation. The high-quality FDB bearing ensures a long service life, while PWM control allows precise speed adjustment, including fan-stop mode. The tempered glass side panel gives the case a modern look and skillfully showcases the installed components. The space behind the motherboard tray, along with sensibly positioned cable grommets and tie-down points, makes it easy to keep cables neatly managed. Good cable routing not only improves the interior’s appearance but also promotes better airflow. The slim dual-chamber design is intended for microATX motherboards and is also compatible with the smaller Mini-ITX and FlexATX formats. The Signum M30 Air offers space for modern components, including long graphics cards up to 345 mm in length, powerful cooling solutions such as air coolers up to 159 mm tall, and 240 mm radiators. In addition, several storage drives can be installed: two 2.5" drives and two 3.5" drives. Four expansion slots with screw-fastened slot covers make it easy to configure the system individually. The top of the case features a functional I/O panel for quick access to frequently used ports. There are two USB-A 3.2 Gen 1 ports, two 3.5 mm audio jacks for headphones or speakers and a microphone, and an especially fast USB-C 3.2 Gen 2×2 port with speeds of up to 20 Gbit/s. This lets you conveniently connect modern devices and accessories without needing an adapter.
Tower Cases
Format: Mini tower
Form factor of the motherboard: µATX
Window kit: yes
Mesh-Front: yes
Internal dimensions - Maximum card length: max. 345 mm
Device bays - 3.5" external: 2 unit(s)
Slits - Full size: 4 unit(s)
Front connectors: 2x Audio, 2x USB-A 3.2 Gen 1 (5 Gbps), 1x USB-C 3.2 Gen 2x2 (20 Gbps)
Water cooling possible: yes
Rear frame plate connection: no
VOLUME: 32 l
Dimensions: Width: 20,5 cm x Height: 38,7 cm x Depth/length: 40,1 cm
Weight: 4.5kg
