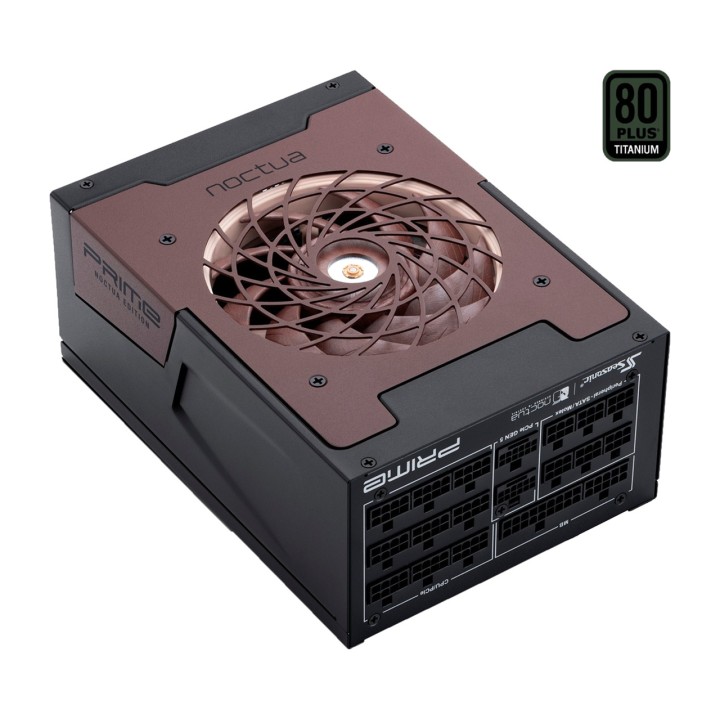

SEASONIC Modular PC power supply PRIME TX-1600-NOCTUA EDITION 1600W-ATX 3.1 100098867

Seasonic is known as one of the leading manufacturers of premium PC power supplies. The PRIME TX series is the company’s award-winning flagship, with 80 PLUS® Titanium certification, and features a state-of-the-art electronic design, premium components, maximum performance and exceptional efficiency. The Noctua Edition of the top-of-the-range TX-1600 takes this excellent platform and combines it with the iconic, innovative NF-A12x25 fan, as well as a custom, highly optimised fan grille, making it another ~8-10dB(A) quieter than the already quiet standard model. Thanks to its semi-passive fan control, the TX-1600 Noctua Edition power supply operates completely passively at typical ambient temperatures (≤25 °C) up to a load of approximately 50%, and only gradually increases fan speed as the load or temperature rises. This makes it a fantastic choice not only for high-end, power-hungry builds, but also for quiet systems requiring less than 1600 W, where the power supply operates mainly with the fan off or almost inaudible. Even at 100% load, the Noctua Edition operates quietly at ambient temperatures of up to 25 °C, producing only ~24 dB(A) compared with ~34 dB(A) for the standard model. [This massive reduction in noise output is reflected in an improvement in the Cybenetics Lambda rating for average sound pressure level from A to A++.] Complete with ATX 3.1 and PCIe 5.1 support, as well as fully modular Noctua-designed cables, the Seasonic PRIME TX-1600 Noctua Edition is the best choice for the most demanding PC enthusiasts who need uncompromising quality, best-in-class performance and exceptional quietness.
Type: PC Power Supply
Power - Total : 1600 W
Standard installation : ATX12V 3.1
Format: ATX
Wires - + 3.3 V: 25 A
Power factor correction: Passive power factor correction
Connections: 1x 24-pin ATX12V 2.x, 3x 4 + 4-pin 12V, 1x 4-pin 5.25", 6x 6 + 2-pin graphics, 2x 12+4 Pin (12VHPWR), 4x 15-pin SATA
Cable - Cable management: yes
Cooling - Number of fans: 1x 120 mm Fan
Noise level: 28.8 dB/A at 100% load
Protective functions: Overcurrent protection (OCP), Overvoltage protection (OVP), Undervoltage protection (UVP), Overload protection (OLP/OPP), Short circuit protection (SCP), Overtemperature protection (OTP)
Dimensions: Width: 150 mm x Height: 86 mm x Depth/length: 210 mm
