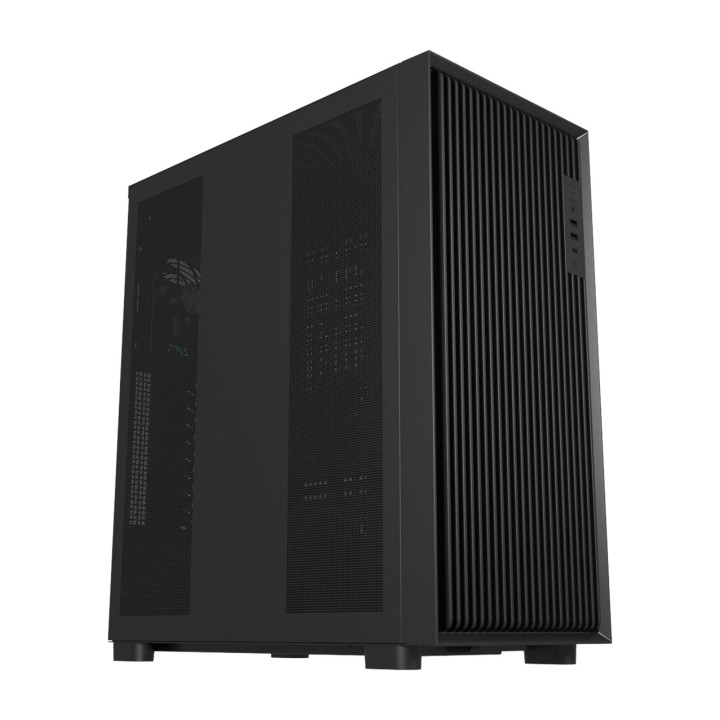

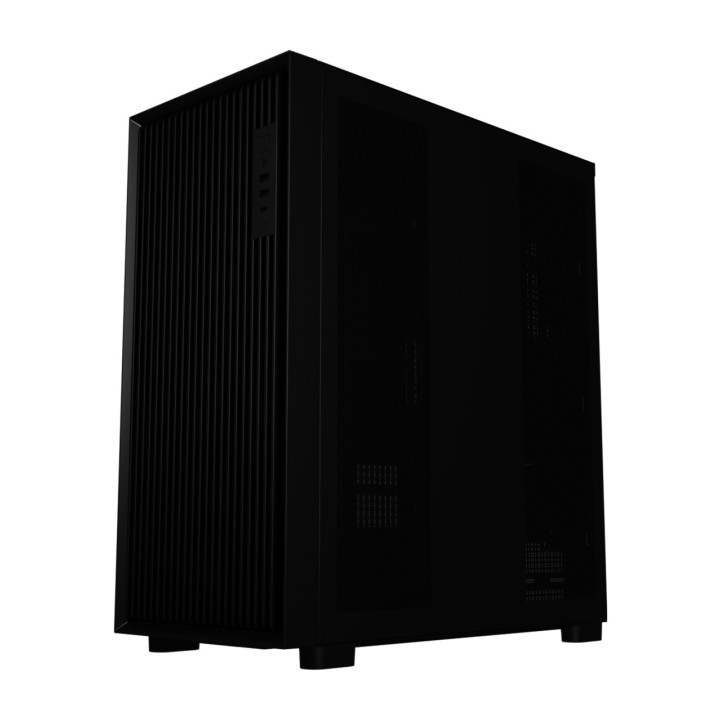

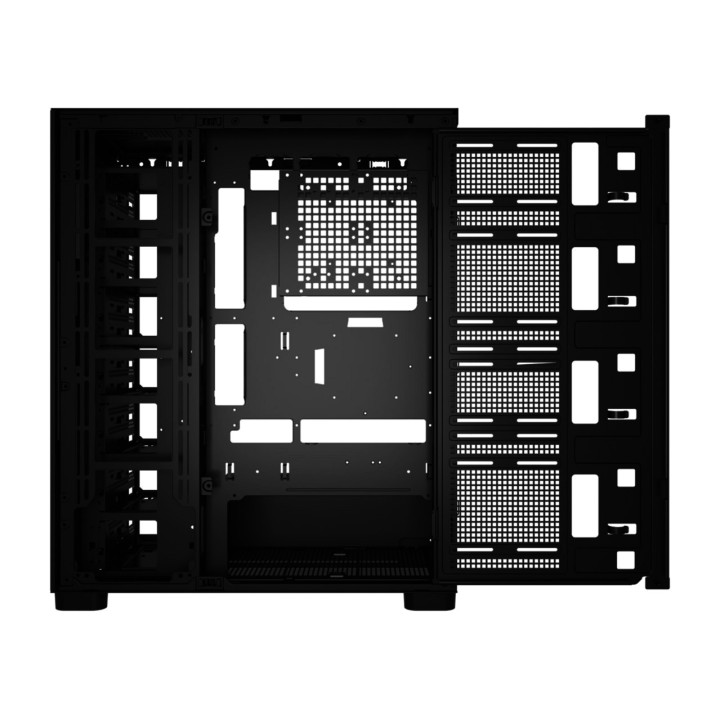

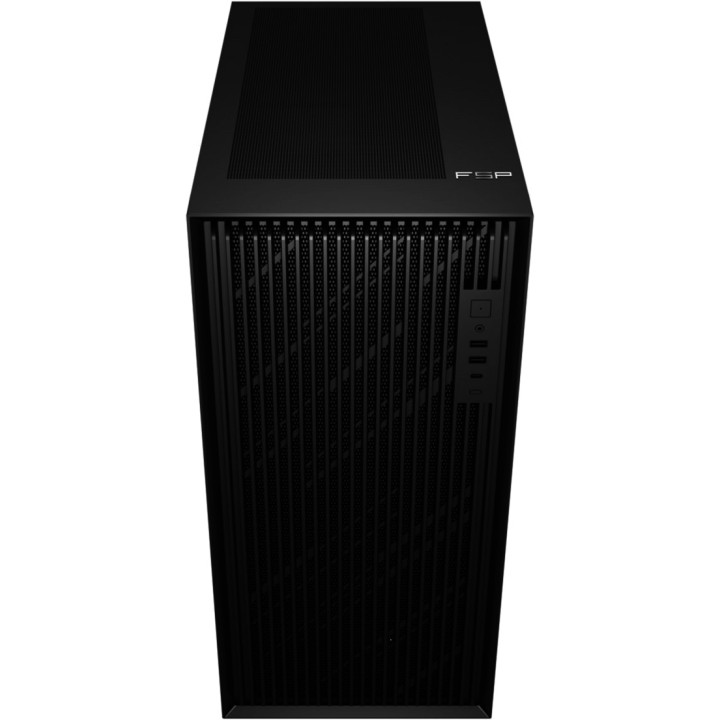

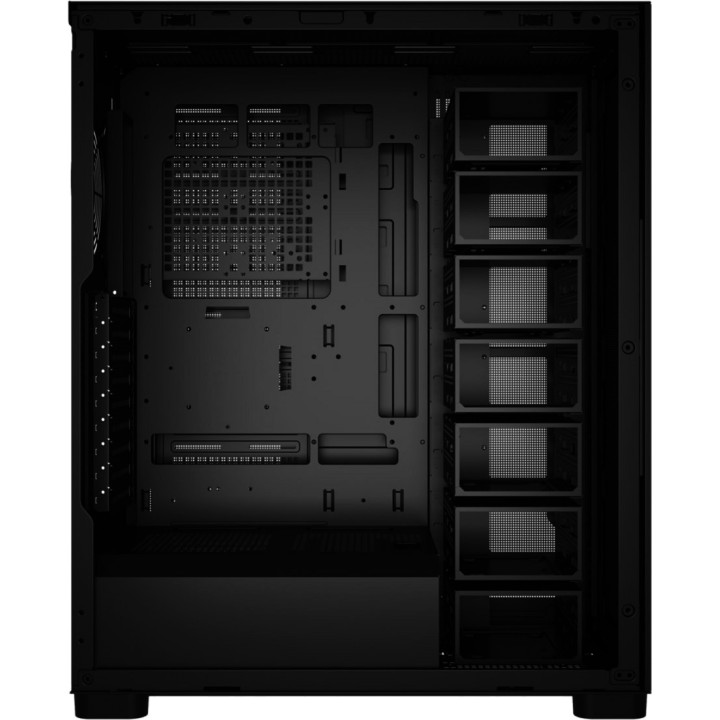

FSP Tower server case with 18 bays U660-E-ATX 100217019

The FSP U660 is a high-performance chassis for servers and workstations designed for professional systems with high memory and performance requirements. It has been specially developed for users who want to combine ample storage capacity, powerful hardware and flexible configuration options in a single enclosure. With space for up to 18 3.5-inch hard drives and additional mounting options for 2.5-inch SSDs, the U660 is ideal for storage servers, backup systems, high-performance workstations and data-intensive applications. The generously sized enclosure supports EEB, E-ATX, ATX, Micro-ATX and Mini-ITX motherboards, offering a high degree of flexibility when selecting components. Up to 420 mm of space is available for high-performance graphics cards, while CPU coolers can reach a maximum height of 180 mm. With nine expansion slots and the option to mount a graphics card vertically, the system can be individually adapted to different requirements. The FSP U660 also offers extensive cooling options. In addition to numerous positions for case fans, the case supports radiators up to 360 mm in size. This makes it suitable for high-performance processors and systems operating under sustained heavy loads. The well-designed interior facilitates efficient airflow and makes it easier to install high-performance hardware. The U660 combines its high storage capacity with a robust construction made of 0.8 mm-thick SPCC steel. Measuring 450 × 258 × 568 mm and weighing around 11.6 kg, the case offers enough space for extensive hardware configurations, yet remains comparatively compact for a case of this configuration. For modern peripherals, there are two USB 3.0 ports and one USB Type-C port on the front. The U660 combines its high storage capacity with a robust construction made of 0.8 mm-thick SPCC steel. Measuring 450 × 258 × 568 mm and weighing around 11.6 kg, the case offers enough space for extensive hardware configurations, yet remains comparatively compact for a case of this configuration. For modern peripherals, there are two USB 3.0 ports and one USB Type-C port on the front. Whether used as a high-performance storage server, backup system, multimedia workstation or platform for demanding AI and rendering applications, the FSP U660 provides a versatile foundation for professional systems.
Type: Large tower case
Form factor: Server tower
Motherboard form factor: E ATX, SSI CEB, SSI EEB
Internal dimensions - Maximum card length: 420 mm max
Device bays - 3.5" external: 18 unit(s)
Slots - Full size: 9 unit(s)
Front connectors: 2x USB-A 3.2 Gen 1 (5 Gbps), 1x USB-C 3.2 Gen 2 (10 Gbps)
Rear frame plate connection: no
Volume: 66 l
Dimensions: Width: 25.8 cm x Height: 56.8 cm x Depth/length: 45 cm
Weight: 11.6 kg
