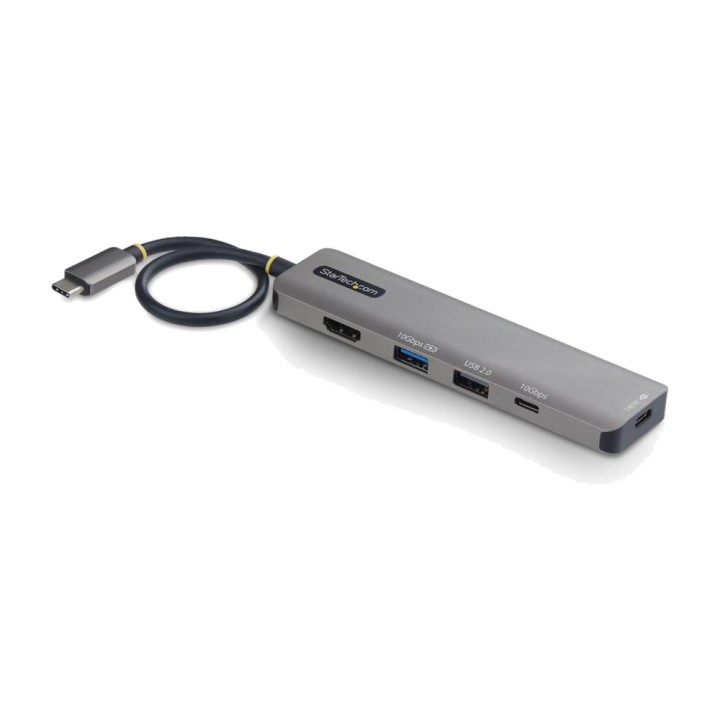

STARTECH.COM 5-in-1 USB-C multiport adapter for laptop 164B-USBC-MULTIPORT 4K-60HZ 10GBPS PD-140W DSP0000042335

Features of the Mini Dock USB-C to HDMI 4K 60Hz with 140W PD and 10Gbps USB
The USB-C multiport adapter turns a single USB-C port on your laptop into a complete workstation with 4K HDMI output at 60 Hz, USB-A and USB-C connections of up to 10Gbps, and USB-C Power Delivery. Its compact design and plug-and-play operation make it a particularly practical solution for professionals, shared workstations, hybrid teams and users who need to expand connectivity on MacBook, Dell, ThinkPad, HP and other compatible laptops.
HDMI 4K at 60 Hz for working with an external display
Thanks to its HDMI 2.0 connection, the adapter lets you connect an external display with a maximum digital resolution of 4K at 60 Hz. It is a suitable option for extending your desktop, working with high-resolution content or using an additional monitor from a laptop compatible with DisplayPort Alt Mode.

Video output: HDMI
Maximum digital resolution: 4K 60Hz
STANDARD HDMI 2.0
4K support: yes
Number of supported displays : 1
Audio via HDMI: Yes

USB-A and USB-C ports with speeds of up to 10Gbps
The hub features USB 3.2 Gen 2 data connections of up to 10Gbps, allowing you to connect external drives, memory devices, peripherals and other modern USB devices. It also includes an additional USB-A 2.0 port for essential accessories such as keyboards, mice or wireless receivers.

1 USB-A port at 10Gbps and up to 7,5W
1 USB-A port at 480Mbps and up to 2,5W
1 USB-C port at 10Gbps and up to 4,5W
USB 3.2 Gen 2 10Gbps interface
Maximum data transfer speed: 10Gbps
UASP support: Yes

Power Delivery up to 140W
The adapter lets you use a compatible USB-C charger to provide USB Power Delivery with passthrough of up to 140W, making it easy to power the device while the dock remains connected. According to the device specifications, the maximum charging power available to the laptop is 125W, as some of the power may be used by the adapter itself.

USB Power Delivery: up to 140W
Maximum laptop charging power: 125W
USB Power Delivery specification Rev. 3.2
Adapter power consumption: 15W
Power source: bus-powered and host USB-C adapter
Indicated output voltage : 5 DC
USB-C port dedicated to Power Delivery

Optimised charging via USB Battery Charging 1.2
One of the USB-A ports supports BC 1.2, allowing data transfer to be combined with optimised charging for compatible devices. This feature is useful for keeping smartphones and other USB peripherals powered while using the adapter.

Compatibility with BC 1.2
Compatible charging output: BC 1.2 of 1,5A
Number of Battery Charging ports 1.2: 1
Fast charging port: yes

Plug-and-play installation without drivers
The Mini Dock is designed for easy use in professional and home environments. Its plug-and-play operation requires no additional drivers or software, reducing deployment complexity in businesses and making it easy to use with different compatible devices.

No drivers or additional software required
10Gbps USB-C host connector and 4,5W
Bus type: USB-C
Compatible with IT deployments and hybrid work equipment
Parade chipset PS188

Compact design for mobility
Its structure combines aluminium and plastic in a Space Gray finish, with compact dimensions that make it easy to carry alongside a laptop. Weighing just 78 grams and featuring an integrated 203,2 mm USB-C cable, it is suitable for both a fixed workstation and frequent travel.

Color: Space Gray
Material: Aluminium and plastic
LENGTH: 127MM
Width: 34mm
HEIGHT: 11MM
Weight: 78g
Cable length: 203,2 mm

Compatibility and operating requirements
To use all video and power features, the host device’s USB-C port must support USB Power Delivery and DisplayPort Alt Mode. Not all USB-C ports offer these capabilities, so it is important to check the computer’s specifications before using the adapter.

Requires a host device with an available USB-C port
For full functionality, USB-C must support USB Power Delivery and DisplayPort Alt Mode
If the host does not support USB Power Delivery, the PD port will not supply power to the equipment
A compatible display is required to achieve 4K resolution 4K
The laptop’s USB-C power adapter can optionally be used
USB 3.2 Gen 2 at 10Gbps is also known as USB 3.1 Gen 2 at 10Gbps

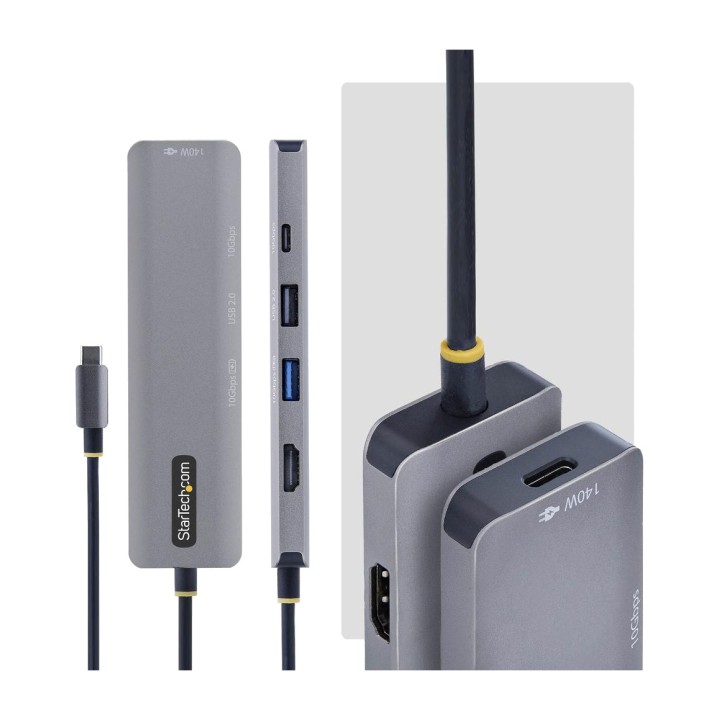

Available connectors
The adapter combines video, data and power connections in a single device, reducing the need to use several dongles or separate adapters.

1 10Gbps USB-C host connector and 4,5W
1 HDMI
1 10Gbps USB-A and 7,5W
1 480Mbps USB-A and 2,5W
1 10Gbps USB-C and 4,5W
1 dedicated USB-C port for Power Delivery

Environmental conditions and construction
The device is designed to operate in different working environments, with an operating range of 0°C to 40°C and an allowable relative humidity of between 10% and 85%.

Operating temperature: 0°C to 40°C
Storage temperature: -10°C to 70°C
Relative humidity: 10% to 85%

Package contents and other specifications
The package includes the multiport adapter and product documentation. The device also comes with a stated 3-year warranty and is identified by product reference 164B-USBC-MULTIPORT.

Product ID: 164B-USBC-MULTIPORT
UPC: 065030901017
Warranty: 3 years
Includes 1 multiport adapter
Includes 1 product documentation
Package width: 142 mm
Package depth: 170 mm
Package height: 30 mm
Shipping weight: 106 g

USB-C power considerations
The power ultimately received by the laptop may vary depending on the charger used, the adapter’s own power consumption and the computer’s specific charging requirements. Some computers require a certain power level to correctly recognize the power source, so it is advisable to use a USB-C charger suited to the device’s needs.

The power available to the host may be lower than the charger’s rated power due to the adapter’s power consumption
Charging compatibility depends on the host device’s USB Power Delivery specifications
It is recommended to check the power requirements specified by the laptop manufacturer
