ACT CONNECTIVITY USB-IF-certified USB-C cable compatible with Thunderbolt 5 AC7452 USB4 80GBPS 240W 1,5 M MGS0000034022

ACT CONNECTIVITY USB4 CABLE 80 GBPS THUNDERBOLT 5, 240 W, USB TYPE-C, USB-IF CERTIFIED, 1.5 M.
DESCRIPTION

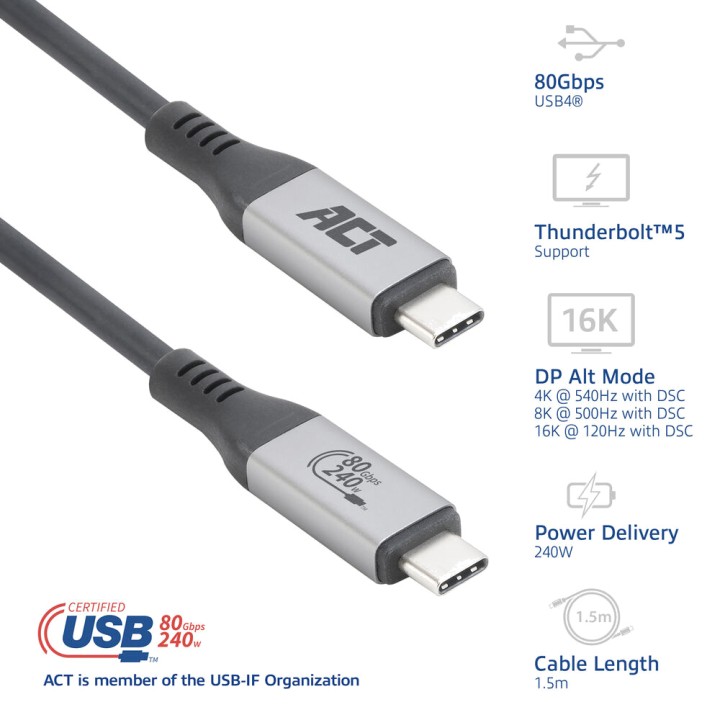

USB4® | Thunderbolt™5 | 80 Gbps | 240 W | 4K max. 540 Hz | 8K max. 500 Hz | 16K max. 120 Hz

USB4® cable 80 Gbps with official USB-IF certification for connecting and charging USB-C devices
Thunderbolt compatible ™5

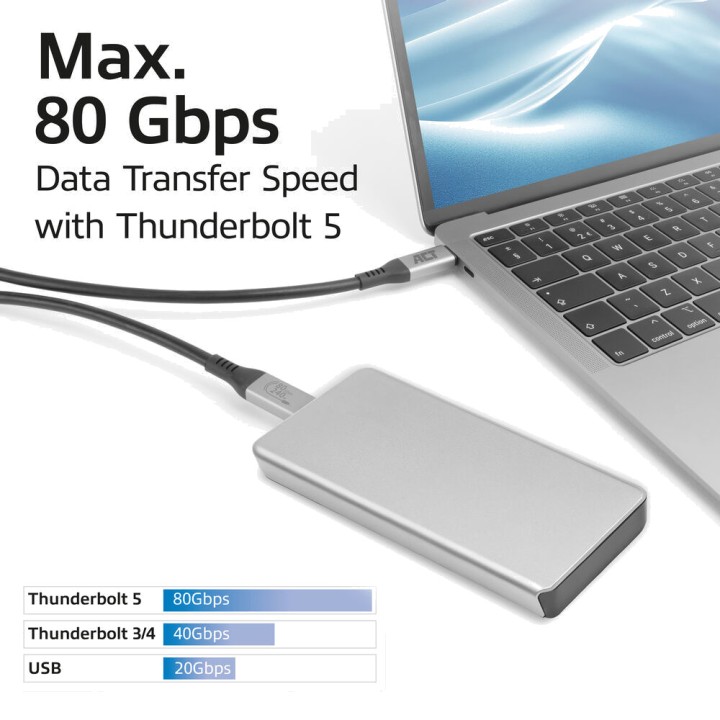

Data transfer speed up to 80 Gbps, Asymmetric data: 120 Gbps + 40 Gbps
Power Delivery: Extended Power Range (EPR) up to 48 V at 5 A (240 W)
Compatible with DisplayPort Alternate Mode 2.1 with a maximum video resolution of up to 16K at 120 Hz
Connectors: USB Type C male - USB Type C male
Cable length: 1,5 meters
Backward compatible with Thunderbolt™3/4, USB 3.2, USB 3.1, USB 3.0 and USB 2.0

The AC7452 is an official USB Type-C cable with USB-IF certification that supports USB4 80 Gbps and Thunderbolt 5. The AC7452 can achieve data transfer speeds of up to 80 Gbps and handle up to 240 W of power thanks to Extended Power Range (EPR). It supports a maximum resolution of one 16K monitor or two 8K monitors in daisy-chain mode. It is backward compatible with Thunderbolt 4, Thunderbolt 3, USB 3.2, USB 3.1, USB 3.0 and USB 2.0.

Fast data, high power and video with ONE cable USB4
The AC7452 features a smart e-marker chip. This chip communicates with connected devices (e.g. laptop or charger) to negotiate which functions the cable supports. The AC7452 can handle data, power and video.

USB4 Version 2.0 at 80 Gbps and Thunderbolt 5 compatibility
The AC7452 USB-C cable features USB4 technology with Thunderbolt 5. It supports a maximum data transfer speed of up to 80 Gbps and also asymmetric transfer: 120 Gbps + 40 Gbps. This results in a higher download speed and a lower upload speed, useful in situations with high download demand.

Power Delivery: Extended Power Range of 240 W
EPR adds additional Power Delivery profiles (28 V, 36 V and 48 V) to the USB4 cable. The AC7452 includes the 48 V profile, which allows up to 240 W of power to be transferred. Cables with SPR (Standard Power Range) can only supply 60 W.

DisplayPort Alternate Mode protocol
The USB4 Version 2.0 cable supports the DisplayPort Alternate Mode (DP Alt Mode) 2.1 protocol for sending video over USB-C. The AC7452 offers a maximum resolution of one 16K monitor at 120 Hz or two 8K monitors at 120 Hz in MST configuration.

Official USB-IF certification
The AC7452 is officially certified by USB-IF. The cable has been tested to the organisation's highest standards, and the official USB-IF logo is displayed on the connector. ACT is a member of USB Implementers Forum, Inc.
specs

Product category
Cables / USB
CABLE LENGTH
    1,5 m
USB Type-C
Yes
Connector type
USB
Connector A
USB-C male (x1)
Connector B
USB-C male (x1)
Shielding type
Braided
Conductor material
Tinned copper
Cable gauge
    24, 28, 34 AWG
Outer jacket
TPE
Shaft outer diameter
    5,5 mm
Cable color
Black
Maximum Power Delivery power
    240 W
Supported Power Delivery profiles
12.0V up to 5.0A, 15.0V up to 5.0A, 20.0V up to 5.0A, 28.0V up to 5.0A, 36.0V up to 5.0A, 48.0V up to 5.0A, 5.0V up to 5.0A, 9.0V up to 5,0A
DP Alt Mode version
DP2.1
Supported USB-C protocols
USB data, DisplayPort Alternate Mode, Power Delivery (EPR AVS), Thunderbolt™ 3, Thunderbolt ™ 4
Thunderbolt compatibility
Thunderbolt™ 3, Thunderbolt™ 4, Thunderbolt ™ 5
Maximum resolution at @ 30Hz
    15360 x 8640
Maximum resolution at @ 60Hz
    15360 x 8640
Maximum resolution at @ 120Hz
    15360 x 8640
USB version
USB4 v2.0 Superspeed 80 Gbit/s
speed
80 Gbps
Retail packaging
No
Active
No
Warranty (years)
    5
EAN code
    8716065587654
Volume (m ³): 0.0015
