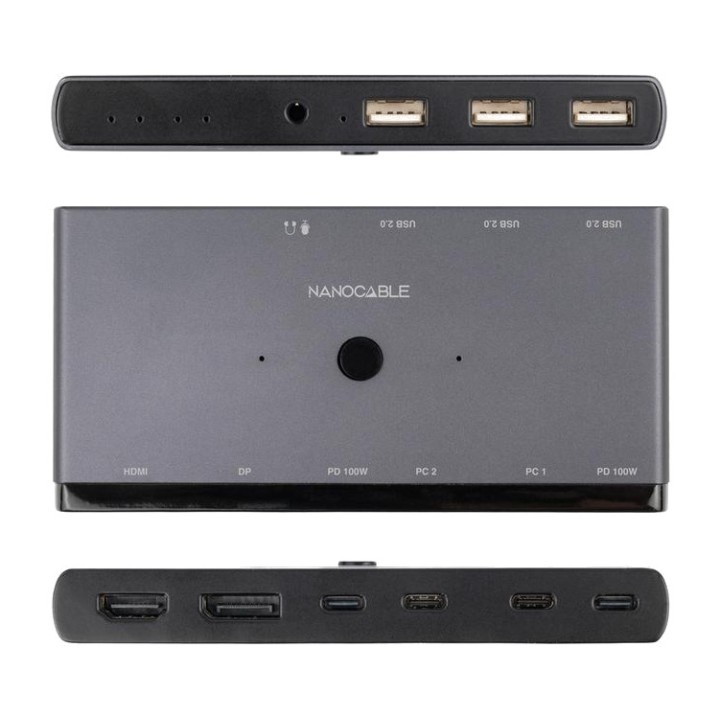

NANOCABLE KVM switch for two computers with HDMI, DisplayPort and audio USB-C-3XUSB-A 2XUSB-C PD MGS0000036639

Features of the Nanocable KVM Switch 2xUSB-C to 3xUSB-A + 2xUSB-C PD + HDMI + DisplayPort + Audio
The Nanocable KVM switch lets you control two computers using a single keyboard, mouse, monitor and audio system. Thanks to its USB-C, USB-A, HDMI and DisplayPort connections, it offers a practical solution for workstations with multiple computers, making it easy to switch between them using a PC selection button, with no need to install software or drivers.

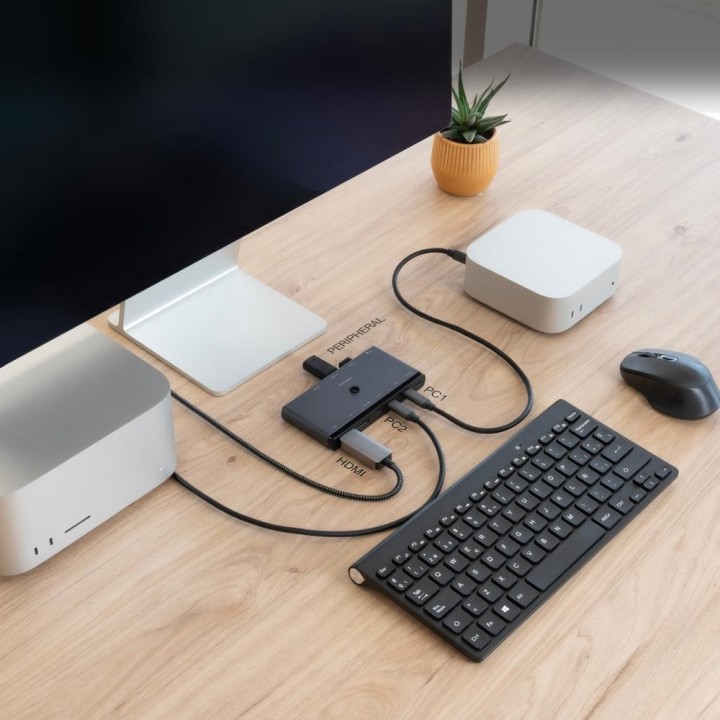

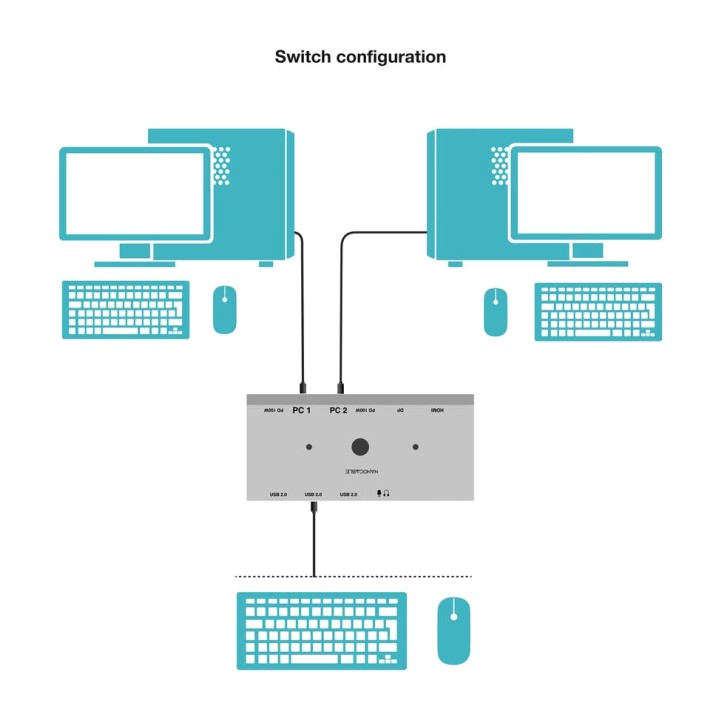

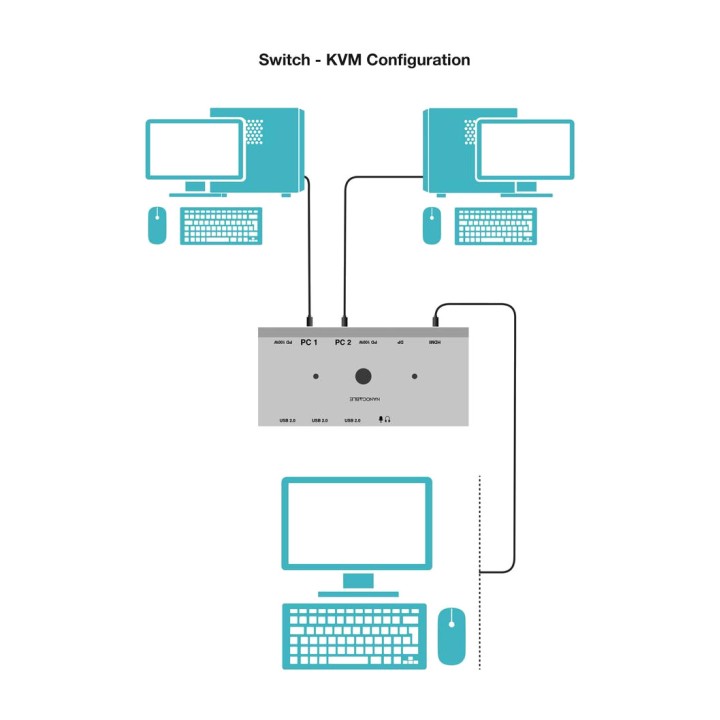

Control two computers from a single workstation
This KVM features 2 USB-C inputs for connecting two compatible computers and sharing the peripherals connected to the switch between them. The active computer is selected directly using a button, simplifying work with multiple systems from the same desk.

2 USB-C inputs
PC selection via button
LED indicators to check the connection status

USB connectivity for keyboard, mouse and peripherals
It has 3 USB-A 2.0 ports for connecting a keyboard, mouse or other compatible peripherals. These ports offer transfer speeds of up to 480 Mbps, allowing you to centralise the accessories used by both computers.

3 ports USB-A 2.0
Transfer speed of up to 480 Mbps
Shared use of peripherals between the two connected computers

USB-C Power Delivery charging up to 100 W
The switch features 2 USB-C ports with Power Delivery of up to 100 W, designed to power and charge the connected laptops. This feature helps reduce the number of connections needed on the desk when used with compatible devices.

2 USB-C PD ports
Charging power of up to 100 W
Designed to charge connected laptops

HDMI or DisplayPort video output up to 8K at 60 Hz
For display connection, the KVM offers an HDMI output and a DisplayPort output, both supporting resolutions of up to 8K at 60 Hz. This allows high-resolution monitors to be used with the connected computers, provided the devices and the rest of the setup are compatible.

1 HDMI output with resolution up to 8K@60Hz
1 DisplayPort output with resolution up to 8K@60Hz
The HDMI and DisplayPort ports cannot be used simultaneously

Audio support for microphone and headphones
The device also supports audio for a microphone and headphones, making it easy to use audio accessories from the same workstation and avoiding the need to manually switch connections between the two computers.

Microphone support
Headphone support
Audio shared between the connected computers

Plug and Play Installation
It is fully Plug and Play, so no additional software or drivers need to be installed. Simply make the necessary connections and select the computer you want to use.

No software required
No drivers required
Connect and use immediately

USB-C and Thunderbolt compatibility
The KVM works with devices equipped with USB-C or Thunderbolt that support DisplayPort Alt Mode. It can also be used with different operating systems, making it easy to integrate into work environments with equipment from different platforms.

Compatible with USB-C devices
Thunderbolt compatible with DP Alt Mode support
Compatible with Windows, MacOS, Android and Linux distributions

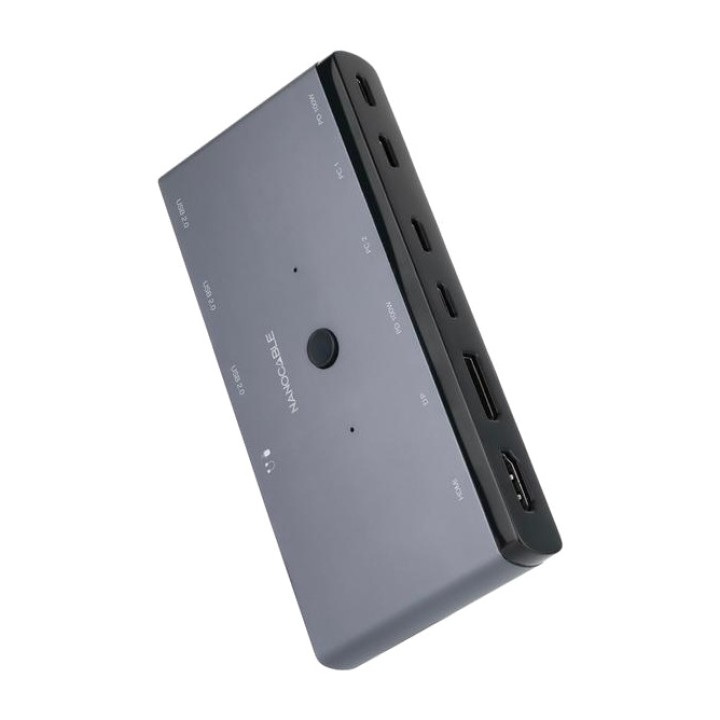

Compact aluminium design
Its housing is made of grey aluminium, combining durability with compact dimensions that make it easy to place on a desk or alongside other computer equipment.

Material: Aluminum
Gray
Dimensions: 130 x 63 x 15 mm

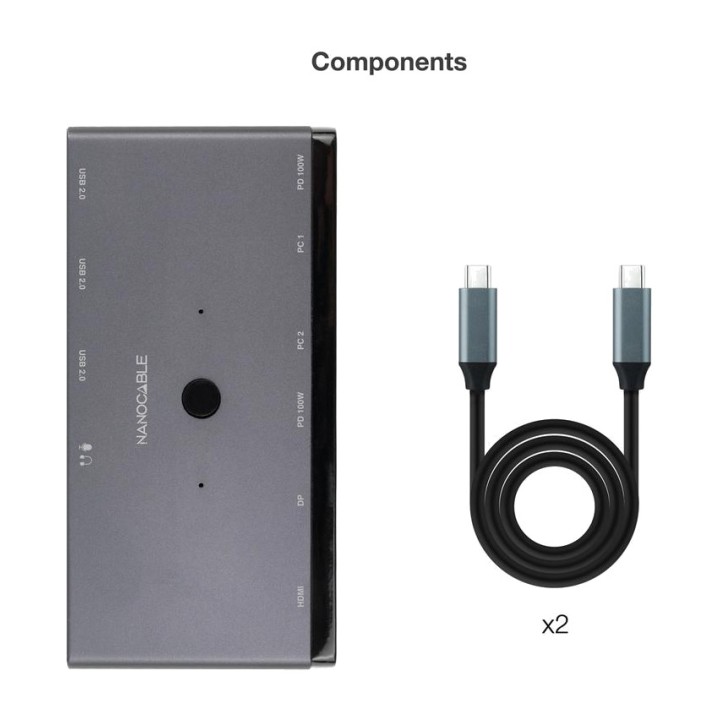

Cables and contents included
The package includes the items required to connect the two computers via USB-C, including two 50 cm USB-C male-to-male cables.

1 x KVM switch
2 x 50 cm USB-C male-to-male cable
1 x user manual

Other specifications
The device complies with the regulations specified by the manufacturer and has undergone 100% functional testing before being marketed.

Standards: CE, RoHS
Function test: 100% tested
Packaging type: retail box
Approximate weight: 0.117 kg
Approximate packaging dimensions, height/width/length: 187 x 113 x 32 mm
Volume (m ³): 0.0008
