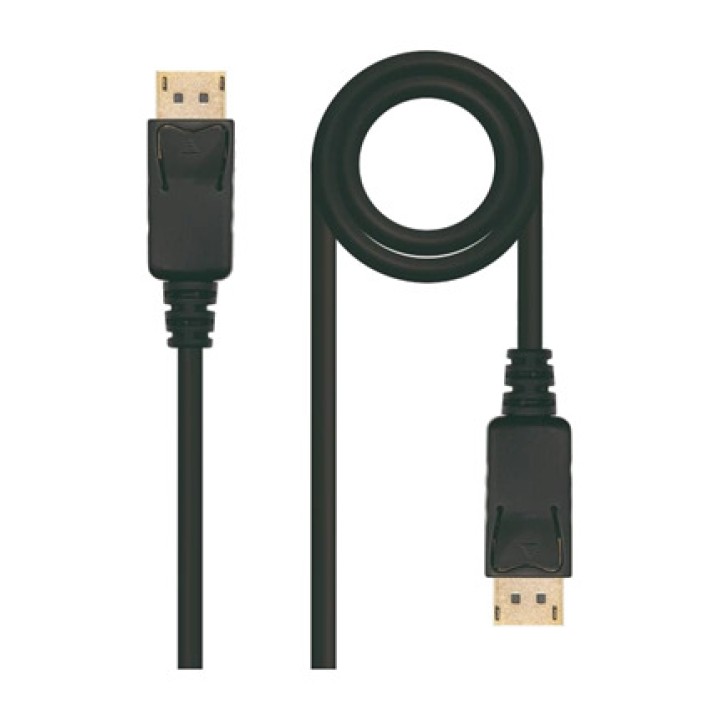

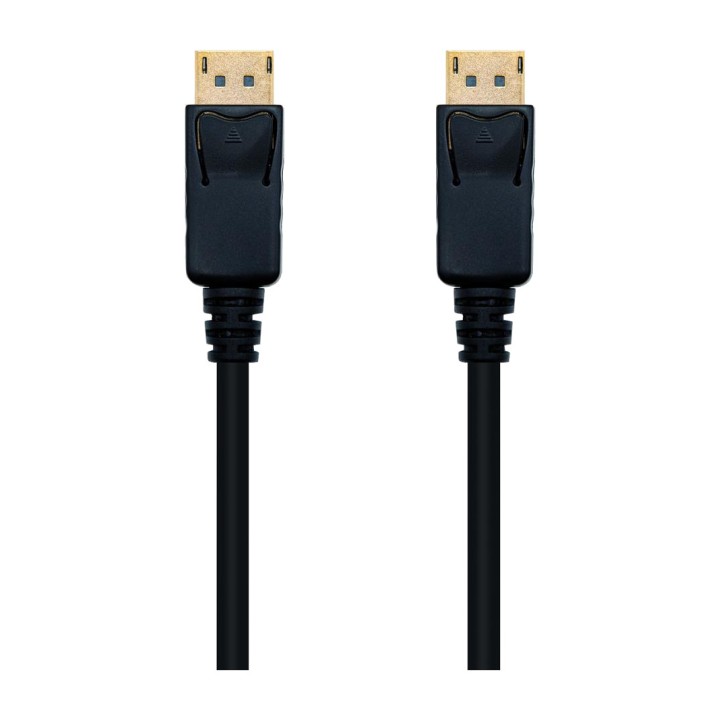

NANOCABLE DisplayPort cable with gold-plated connectors and multiple shielding OFC 10 M DSP0000043004

Features of the Nanocable DP-M/DP-M 10 m DisplayPort Cable
The 10-metre Nanocable DP-M/DP-M DisplayPort cable is designed to transmit high-quality digital video and audio signals between DisplayPort-compatible devices. It features male connectors at both ends, 99.99% OFC copper conductors and a multi-layer shielding system that helps reduce interference during transmission.
DisplayPort compatible 1.2
This cable is compatible with the DisplayPort 1.2 specification and earlier versions, offering bandwidth of up to 21.6 Gbps. Each channel can reach a maximum transfer rate of 5.4 Gbits/s, allowing it to handle high-resolution content and 3D signals.

Version: DisplayPort 1.2
Backward compatible with earlier DisplayPort versions
Total bandwidth: up to 21.6 Gbps
Maximum speed per channel: 5.4 Gbits/s
Connections: 2 x DisplayPort male

High resolution and content compatibility 3D
Thanks to the available bandwidth, the cable supports resolutions of up to 3840 x 2400 at 60 Hz. It also supports 3D content at resolutions of up to 2560 x 1600 at 120 Hz, providing a suitable connection for monitors and other devices compatible with these specifications.

Maximum resolution: 3840 x 2400 at 60 Hz
3D resolution: up to 2560 x 1600 at 120 Hz
Compatible with content transmission 3D

Support for multi-monitor configurations
DisplayPort 1.2 compatibility enables multi-monitor connection features via Daisy Chain, making it possible to connect several displays through a single connector when the devices used also support this technology.

Ability to connect up to 4 monitors with a resolution of 1920 x 1200
Ability to connect up to 2 monitors with a resolution of 2560 x 1600
Support for Daisy Chain multi-monitor connection

OFC copper conductors and reinforced shielding
The cable is made with OFC copper conductors with a purity of 99.99%, designed to maintain stable signal transmission. It also features shielding made up of 128 braided strands and an aluminium foil to reduce potential external interference.

Copper conductor OFC 99,99%
Shielding with 128 braided strands
Additional aluminium foil
Design intended to reduce interference during transmission

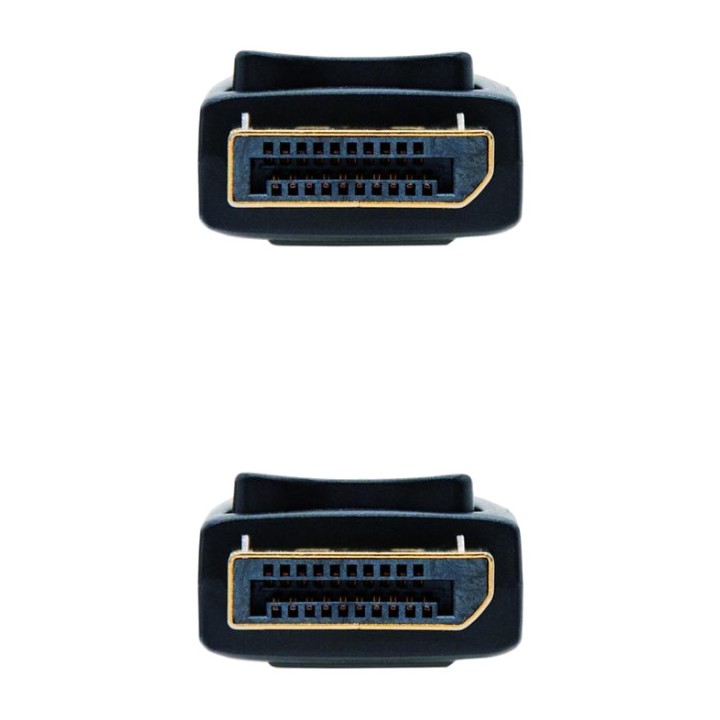

High-quality connectors
Its DisplayPort connectors feature gold-plated shielded pins, providing a reliable connection between devices and complementing the cable’s internal construction to maintain transmission quality over its 10-metre length.

2 DisplayPort male connectors
Gold-plated shielded pins
Cable length: 10 meters
COLOUR: BLACK

High-definition audio transmission
In addition to the video signal, the cable supports high-definition audio formats, including Dolby MAT and DTS HD. DisplayPort also enables audio and video synchronisation, supports multiple audio channels and maintains synchronisation between different devices via Global Time Code.

Compatible with Dolby MAT
Compatible with DTS HD
Support for BD high-definition audio formats
Audio and video synchronization
Multi-channel audio compatibility
Device synchronization using Global Time Code

Content protection and regulatory compliance
The cable supports DisplayPort Content Protection (DPCP) with 128-bit AES encryption, providing compatibility with the content protection mechanisms built into DisplayPort. It also complies with RoHS regulations and has been functionally tested.

DPCP protection
128-bit AES encryption
Regulation: RoHS
Operation: 100% tested

PACKAGE CONTENT
The package includes a 10-metre Nanocable DisplayPort cable with male connectors at both ends, ready to use with compatible equipment.

1 x 10 m DisplayPort male to DisplayPort male cable
Volume (m ³): 0.0015
