NANOCABLE USB-C docking station with dual HDMI, DisplayPort, Gigabit network and SD card reader 3.1 3XUSB-A PD 4K DSP0000043003

Features of the Doking Nanocable USB-C 3.1
The Doking Nanocable USB-C 3.1 is a comprehensive docking station designed to expand the capabilities of laptops, tablets, smartphones and other USB-C-compatible devices. It integrates high-speed USB connections, 4K video outputs, Gigabit Ethernet, card readers, audio and Power Delivery up to 100 W, all in a compact design made from aluminium alloy and ABS.

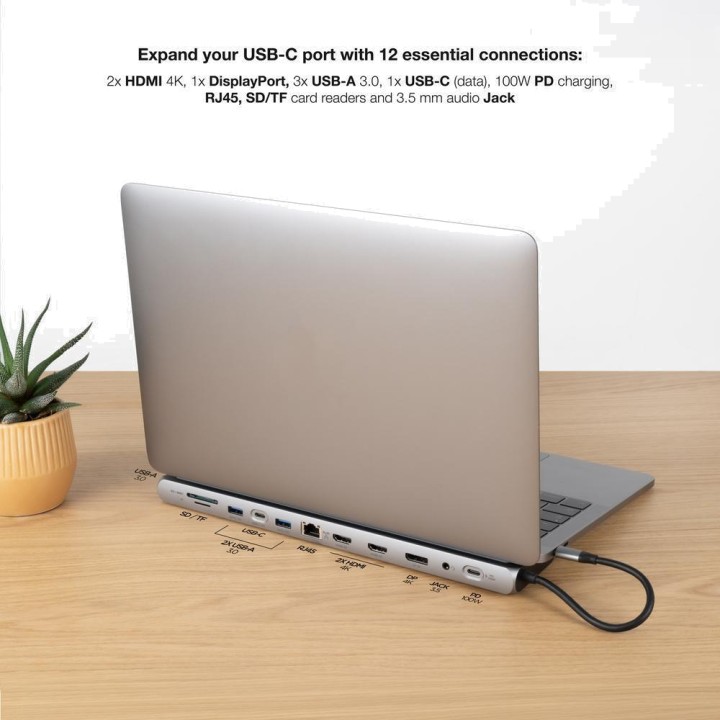

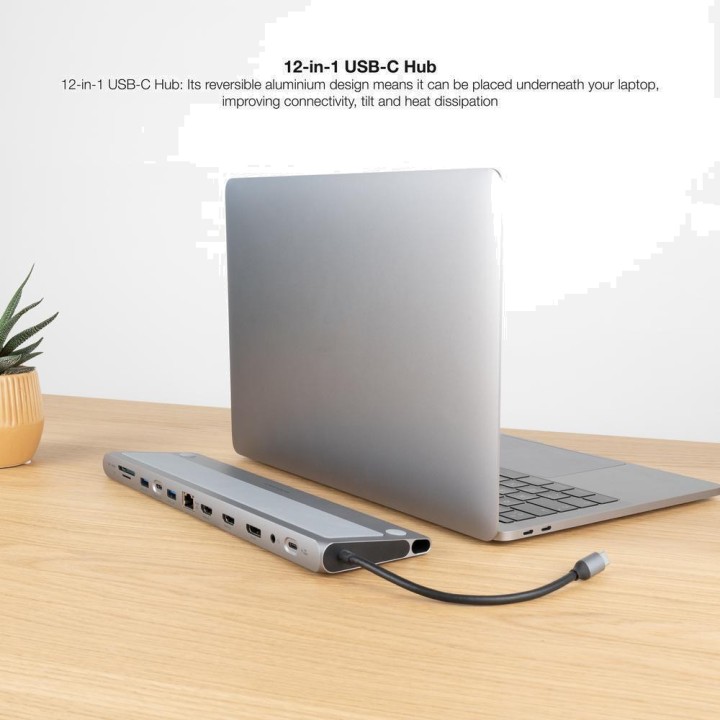

Reversible design for integration with the laptop
Its reversible design lets you place the hub under the laptop on whichever side is most convenient, depending on the desk layout and the device’s ports. It also features an 18 cm USB-C cable with an integrated slot for storage, making it easy to carry and keeping your setup tidy.

Reversible design for placement under the laptop
Integrated 18 cm cable
Slot for storing the cable
Gray
Material: aluminium alloy and ABS

USB connectivity up to 5 Gbps

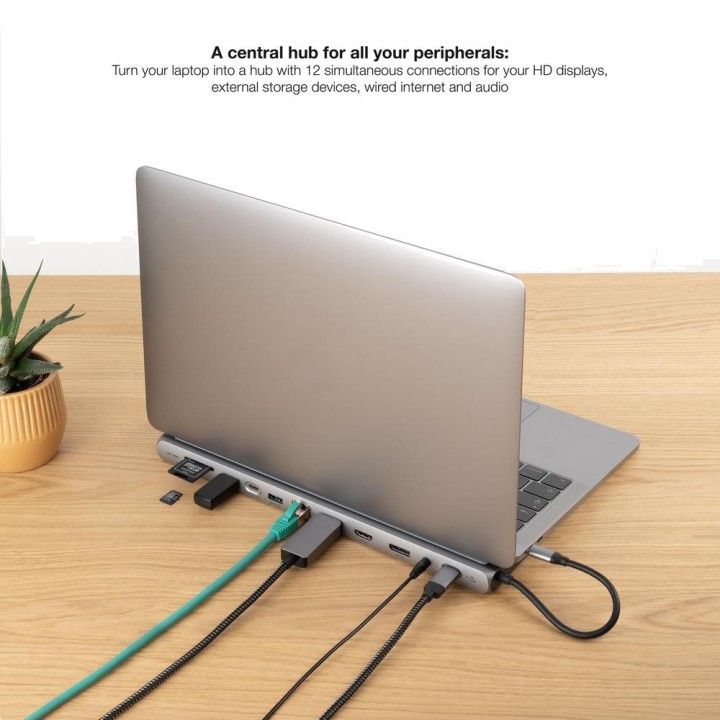

The hub connects to the device via a USB-C 3.1 male connector and has several ports for peripherals and storage drives. Its three USB-A 3.0 ports and USB-C 3.0 data port offer transfer speeds of up to 5 Gbps, allowing you to connect hard drives, USB flash drives, keyboards, mice and other accessories.

1 x USB-C 3.1 male connector for connection to the host device
3 x USB-A 3.0 with transfer speeds of up to 5 Gbps
1 x USB-C 3.0 for data with transfer speeds of up to 5 Gbps
Maximum power output of the USB-C data port : 4,5 W
The total current available at the USB outputs depends on the power supply capacity of the connected device

Power Delivery up to 100 W
Includes a dedicated USB-C Power Delivery port that can supply up to 100 W of power to compatible devices. This allows the charger to remain connected to the hub while the other connections are used simultaneously.

1 x USB-C Power Delivery
Charging power of up to 100 W
Port dedicated exclusively to power supply
The USB-C PD port does not transfer data

Up to three video connections 4K
For setups with external monitors, this Doking features two HDMI outputs and one DisplayPort output, all supporting resolutions of up to 4K at 60 Hz. The HDMI connections allow you to use one or two external high-definition displays, while DisplayPort expands the connection options with compatible monitors.

2 x HDMI with resolutions of up to 4K at 60 Hz
1 x DisplayPort with resolutions of up to 4K at 60 Hz
Compatible with Thunderbolt devices
Compatible with USB-C supporting DP Alt Mode

Video compatibility via DP Alt Mode or Thunderbolt
To use the HDMI or DisplayPort outputs, the connected device must have USB-C compatible with DP Alt Mode or Thunderbolt. Not all USB-C ports can transmit video signals, so this feature must be checked on the device before using external monitors.

Requires USB-C with DisplayPort Alternate Mode support for video output
Compatible with Thunderbolt connections
USB-C ports without video output do not support HDMI or DisplayPort

Gigabit Ethernet network for stable connections
The RJ45 Gigabit Ethernet port lets you connect the device directly to a wired network, offering speeds of 10, 100 or 1,000 Mbps. It is a practical alternative for environments where a more stable connection than a wireless network is required.

1 x RJ45 Gigabit Ethernet
Compatible with 10/100/1,000 Mbps networks
Stable, high-speed wired network connection

Integrated SD and TF card readers
Thanks to its SD and TF card readers, the hub makes it easy to transfer photos, videos and other files without the need for additional adapters. The supported transfer speed is between 60 and 80 MB/s.

1 x SD slot
1 x TF slot
Card transfer speed: 60-80 MB/s

Audio connection for headphones and microphone
The combined 3.5 mm jack lets you connect compatible headphones and microphones, providing audio input and output directly from the hub and expanding its uses for video calls, work, study or entertainment.

1 x 3.5 mm combo jack
Compatible with headphones
Compatible with microphones
Audio input and output

Plug & Play and broad compatibility
The Doking Nanocable offers Plug & Play operation, so there is no need to install additional software or drivers. It is compatible with the main operating systems and can be used with a wide range of computers, tablets and smartphones equipped with a suitable USB-C connection.

Compatible with Windows
Compatible with macOS
Compatible with Android
Compatible with Linux distributions
No software or drivers required

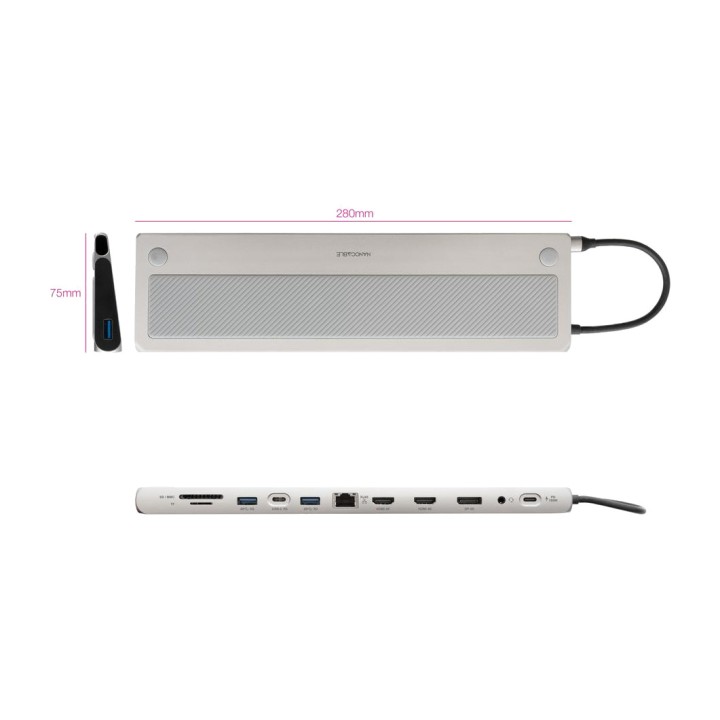

Dimensions, weight and construction
Its housing combines aluminium alloy and ABS, providing a durable construction for regular use with laptops and other devices. Its dimensions are 28 x 7,5 x 2 cm and it has a net weight of 266 g.

Dimensions: 28 x 7,5 x 2 cm
Net weight: 0.266 kg
Gross weight: 0.4733 kg
Cable length: 18 cm
Gray
Material: aluminium alloy and ABS

Other specifications
The hub complies with RoHS regulations, and each unit has been function-tested before being placed on the market. Supplied in a retail box and includes the USB-C 3.1 converter hub.

Regulation: RoHS
Function test: 100% tested
Packaging type: retail box
Approximate packaging dimensions: 336 x 117 x 26 mm
Approximate weight indicated for the packaging: 0.266 kg
Package contents: 1 x converter HUB USB-C 3.1
Volume (m ³): 0.0012
