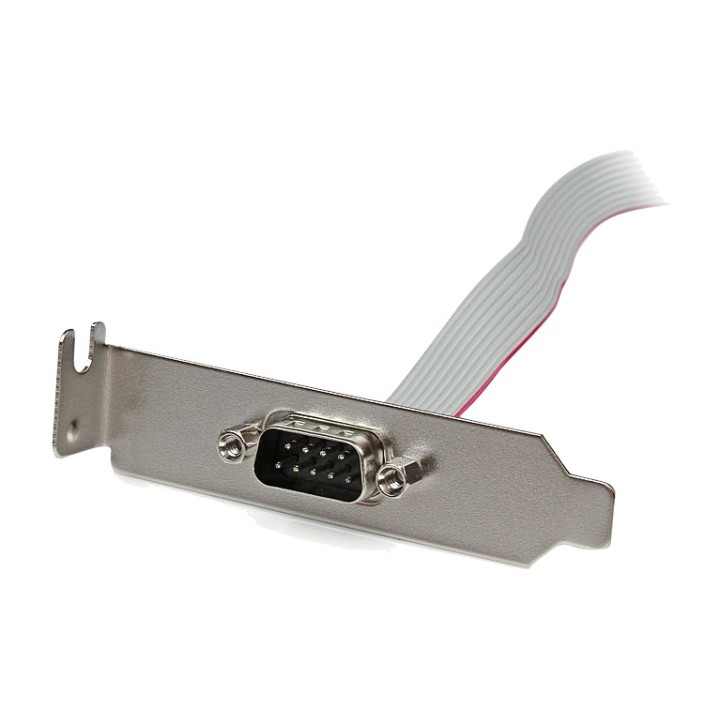

STARTECH.COM Low-profile DB9 serial port bracket with IDC header for motherboard RS232 40 CM PLATE9M16LP MGS0000029051

Features of the Low-Profile Serial Card PLATE9M16LP
The **PLATE9M16LP** is a compact, functional solution for anyone who needs to **add a DB-9 serial port to a computer via a 10-pin IDC header** on the motherboard. Ideal for system integrators, technicians and industrial environments, this low-profile cable provides a reliable connection to legacy serial devices such as printers, scanners, POS terminals or industrial control equipment.
Compact design and reliable connection
Its **low-profile** design makes it easy to install in compact chassis without compromising connectivity. The construction is designed to ensure stable data transmission between the motherboard and devices with a DB-9 port.

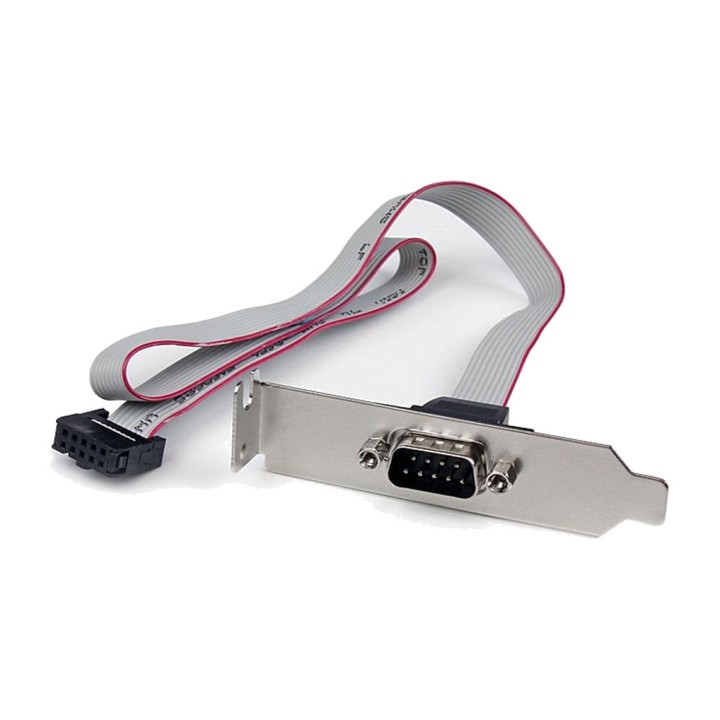

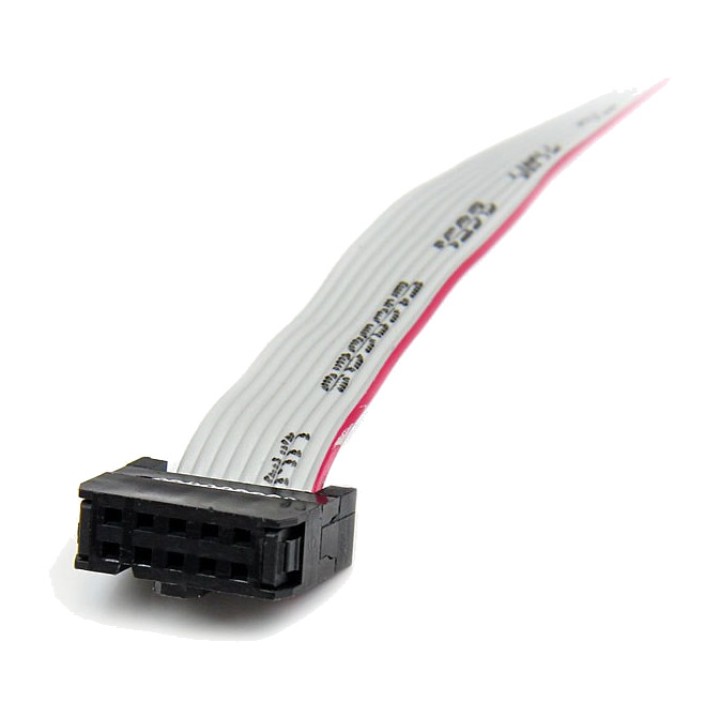

1 10-pin IDC connector (to motherboard)
1 female DB-9 connector (D-Sub)
Cable length: 380 mm

Easy installation and compatibility
This serial port bracket complies with the Apex10-Everex-Intel specification, allowing it to be used in compatible systems. Check the motherboard’s technical manual to confirm the wiring diagram and ensure a correct connection.

Ideal for compact systems or systems with low-profile requirements
Easy integration with compatible motherboards IDC 10
Includes mounting bracket and ready-to-use wiring

Dimensions and weight
The PLATE9M16LP is lightweight and easy to handle, making it a convenient choice for quick installations without special tools.

Product weight: 27 g
Dimensions: 42,5 cm (length) x 8,0 cm (width) x 2,2 cm (height)
Gray

Box contents

1 16-inch / 40 cm low-profile serial port bracket

Other specifications

Conductor gauge : 28 AWG
Package dimensions: 12,8 cm x 12,6 cm x 2,4 cm
Shipping weight: 48 g
Number of packages: 1 unit
Volume (m ³): 0.0001
