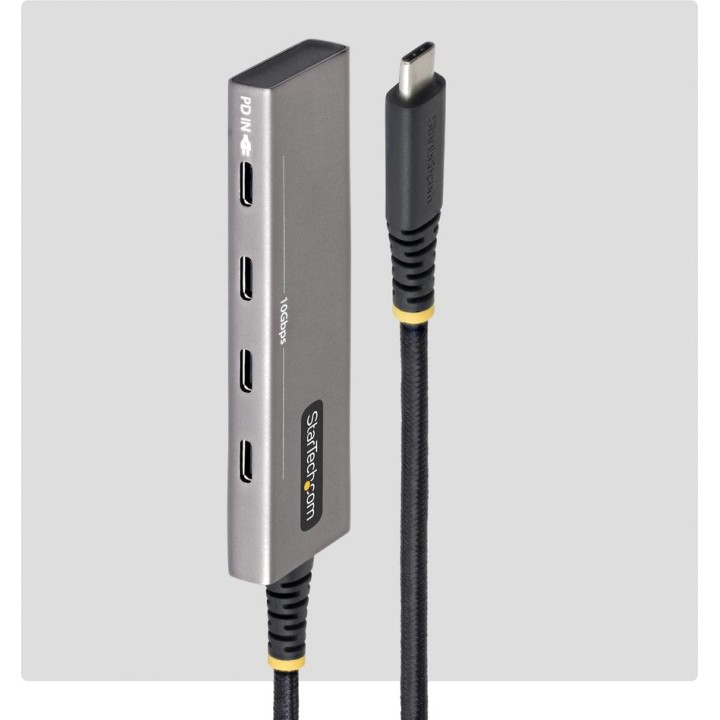

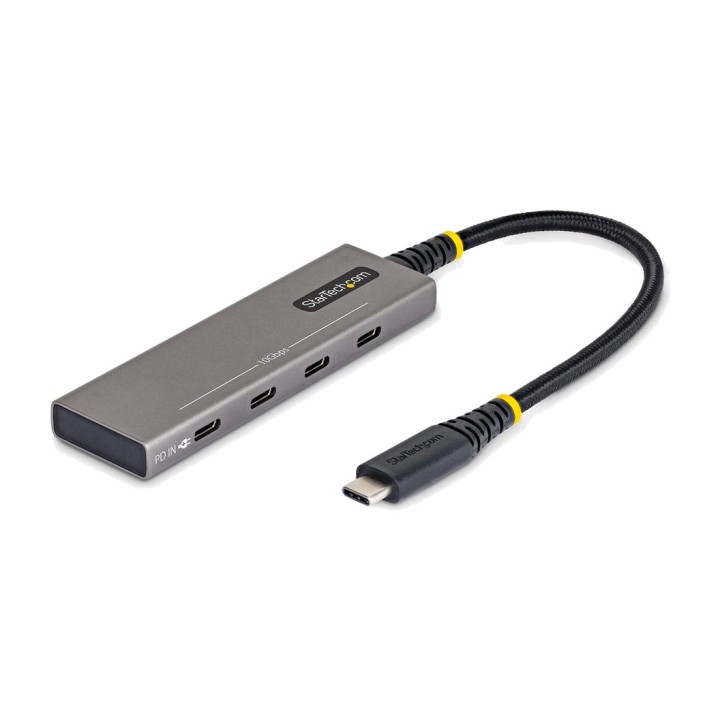

STARTECH.COM Hub with 4 USB-C ports for laptop and pass-through charging 10GBPS PD-100W 309B-USBCHUB DSP0000042334

Features of the 4-Port USB-C Hub 309B-USBC-HUB
The 309B-USBC-HUB USB-C Hub lets you turn a single USB-C port on a laptop into four USB-C connections, making it easy to connect peripherals and devices from one point. It offers data transfers of up to 10 Gbps and USB Power Delivery pass-through power of up to 100 W, combining connectivity, performance and charging in a compact design.
Four USB-C ports with speeds of up to 10 Gbps
Expand your device’s connectivity with four high-speed USB-C ports. Three are dedicated to data, while the fourth features Dual-Role functionality and can be used for transfers of up to 10 Gbps or as a USB Power Delivery input of up to 100 W.

3 USB-C data ports up to 10 Gbps and 4,5 W
1 USB-C Dual-Role port up to 10 Gbps and 4,5 W
USB Power Delivery input up to 100 W via the Dual-Role port
10 Gbps USB 3.2 Gen 2 interface
10 Gbps USB-C host connector and 4,5 W
UASP support

USB Power Delivery up to 100 W
The USB-C Dual-Role port supports USB Power Delivery input of up to 100 W via a compatible USB-C power adapter. The hub can consume up to 15 W, so the maximum power available for the laptop is 85 W. This setup lets you connect peripherals and power a compatible device using the same hub.

USB Power Delivery Rev. 3.0
Power delivery of up to 100 W
Maximum laptop charging power : 85 W
Hub power consumption : 15 W
output voltage : 5 V DC
Fast charging port: yes
1 port compatible with Battery Charging version 1.2

Connectivity for USB-C peripherals
Thanks to its various connections, the hub lets you connect modern USB-C peripherals through a single connection. It can be used with storage devices, audio equipment, keyboards, mice, webcams, capture cards, phones and tablets, making it practical for both fixed workstations and shared-device environments.

Compatible with USB-C storage devices and peripherals
Audio compatibility: yes
4K support: yes
Compatible displays : 1
Number of displays : 1
Bus type: USB-C

Plug-and-Play operation
Its Plug-and-Play design requires no driver installation, simplifying setup and deployment across different devices. The hub is designed for both professional use and users who regularly need to expand their laptop’s connectivity.

Driver-free operation
USB 3.2 Gen 2 at 10 Gbps
USB 3.2 Gen 2, also known as USB 3.1 Gen 2, at 10 Gbps
Chipset VIA VL103
Chipset VIA VL822

Compact design with recycled aluminium
Weighing just 43 g and measuring 9.5 mm in height, this hub is easy to carry with your laptop. It features a 203 mm braided cable and a housing made from post-consumer recycled materials, including 90% PCR aluminium and 75% PCR plastic.

Color: Space Gray
Material: 90% PCR aluminium and 75% PCR plastic
Length: 96.8 mm
Width: 28.5 mm
Height: 9.5mm
Weight: 43 g
Cable length: 203 mm

Power supply and operating requirements
The hub can be powered via the USB-C bus or together with a host USB-C power adapter. The host device must support USB Power Delivery to use power pass-through. The laptop’s own USB-C adapter can also be used optionally.

Power source: USB bus and host USB-C power adapter
Optional USB-C power adapter
24-pin USB Type-C for USB Power Delivery
If the USB-C host does not support USB Power Delivery, the PD port will not supply power to the device
The effective available power depends on the laptop’s charging requirements and the adapter used

Environmental conditions
The hub is designed to operate within specified temperature and humidity ranges, with an operating temperature of 0°C to 45°C and relative humidity between 10% and 85%.

Operating temperature: 0°C to 45°C
Storage temperature: 0°C to 45°C
Relative humidity: 10% to 85%

Contents and product details
The package includes a 309B-USBC-HUB USB-C hub ready to connect to a compatible device. Its packaging has compact dimensions for easy storage and transport.

Product ID: 309B-USBC-HUB
UPC: 065030923736
Included in the package: 1 USB-C hub
Package width: 190 mm
Package depth: 57 mm
Package height: 19 mm
Shipping weight: 108 g
Volume (m ³): 0.0002
