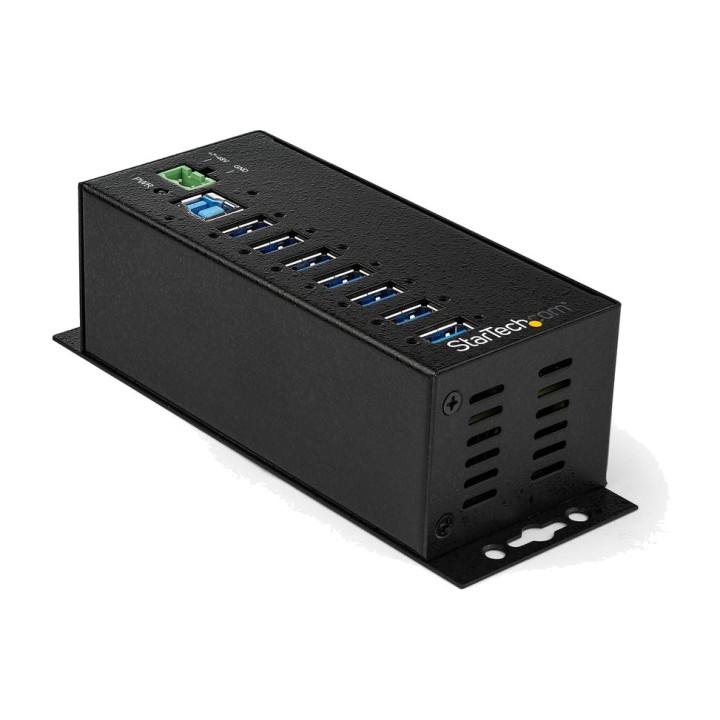

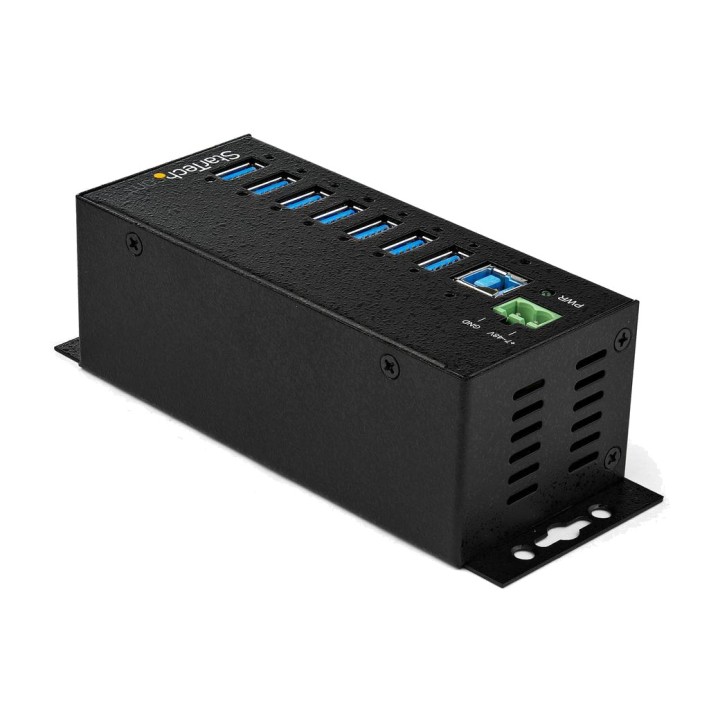

STARTECH.COM 7-port industrial USB hub with surge protection 3.2-GEN1 5GBPS HB30A7AME DSP0000042314

Features of the StarTech.com HB30A7AME 7-Port USB Hub
The StarTech.com HB30A7AME is an industrial-grade USB hub designed to expand connectivity for computers and professional equipment with 7 USB-A ports at 5 Gbps. Its rugged steel construction, multiple mounting options, and protection against electrostatic discharge and surges make it a solution suited to industrial installations and demanding environments.
7 USB ports with speeds of up to 5 Gbps
This hub lets you connect up to 7 USB-A devices to a host computer simultaneously. Its USB 3.2 Gen 1 interface provides transfer speeds of up to 5 Gbps and is backward compatible with earlier USB generations, making it easy to integrate new and existing peripherals.

7 USB-A ports for devices
USB 3.2 Gen 1 interface up to 5 Gbps
Connection to the host via USB-B at 5 Gbps
Backward compatible with USB 3.0, USB 2.0 and USB 1.1
UASP compatible
Genesys Logic chipset GL3523

Industrial construction and advanced protection
Its steel housing provides a robust structure for professional-use installations. It also features ±15 kV air and ±8 kV contact ESD protection, together with 350 W surge protection on the DFP and UFP panels, helping maintain a reliable connection in demanding conditions.

Industrial form factor
Steel enclosure
ESD protection: ±15 kV air
ESD protection: ±8 kV contact
Surge protection: 350 W on DFP and UFP panels
MTBF: 126.106 hours

Flexible installation on a DIN rail, wall or desk
The HB30A7AME design offers different mounting options to suit the workspace. It can be installed above or below a desk or table, mounted on a wall or placed on a DIN rail using the included brackets.

Compatible with DIN rail mounting
Integrated mounting tabs
2 DIN rail brackets included
4 mounting screws included
USB host cable included

Flexible power supply for professional installations
The hub supports a DC input range of +7 to 48 V, providing flexibility for integration into different installations. It includes a universal power adapter and also features a 2-wire terminal block connection.

Supported DC input range: +7 to 48 V
Adapter input voltage : 100-240 V CA
Input current : 1,4 A
output voltage : 20 V CC
Output current : 3,25 A
Power connector: 2-wire terminal block
Power consumption : 65 W
Device power consumption : 41 W

Up to 35 W of shared power
In addition to transferring data, its ports can power and charge USB devices. The hub offers up to 35 W of total shared power and can provide up to 2.4 A and 12 W on a maximum of 4 ports, or distribute lower power levels among the connected devices.

Total available power : 35 W
Up to 2.4 A and 12 W on a maximum of 4 ports
Fast charging port: yes
Compatible with the USB Battery Charging specification 1.2

Designed for a wide range of environmental conditions
Its design is suited to operating across a wide temperature range, a particularly important feature for industrial installations. It can operate between 0 °C and 70 °C and be stored in conditions ranging from -20 °C to 85 °C.

Operating temperature: 0 °C to 70 °C
Storage temperature: -20 °C to 85 °C
Relative humidity: 5% to 95 %

Compact and sturdy design
With dimensions of 145 x 55 x 45 mm and a weight of 326 g, the hub combines a sturdy metal construction with a compact form factor that makes it easy to integrate into workstations, technical cabinets and other professional installations.

COLOUR: BLACK
Material: Steel
LENGTH: 145MM
Width: 55mm
Height: 45mm
Weight: 326 g
Specified cable length: 2000 mm
Green power LED indicator

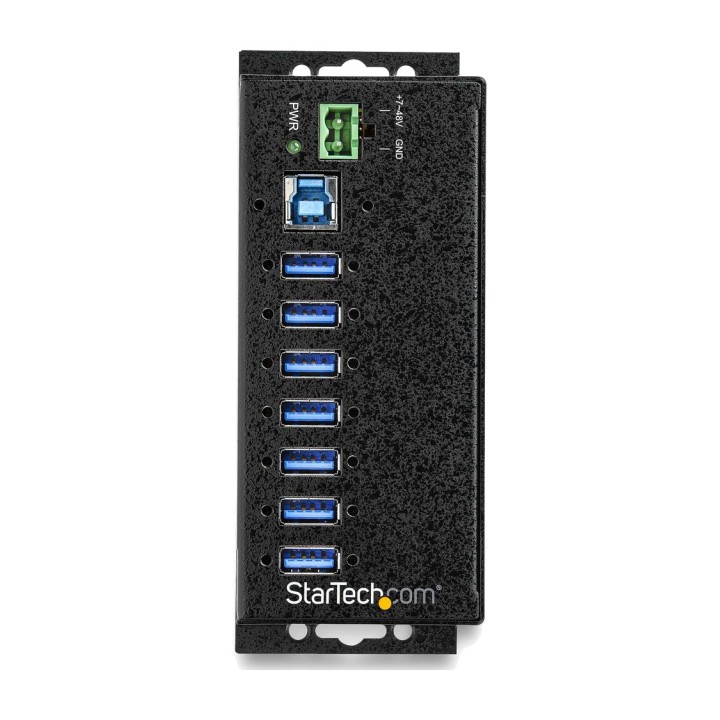

Connectors and compatibility
The StarTech.com HB30A7AME uses USB-A for devices and USB-B to connect to the host computer. To take advantage of USB 3.2 Gen 1 performance, the computer must have a compatible USB 3.0 port. If connected to a USB 2.0 port, performance may be limited.

7 USB-A connectors at 5 Gbps and 4,5 W
1 5 Gbps USB-B connector and 4,5 W
1 2-wire terminal block
No USB-C ports for devices
No USB-C connection for the host
Requires a host computer with an available USB 3.0 port to achieve its full performance

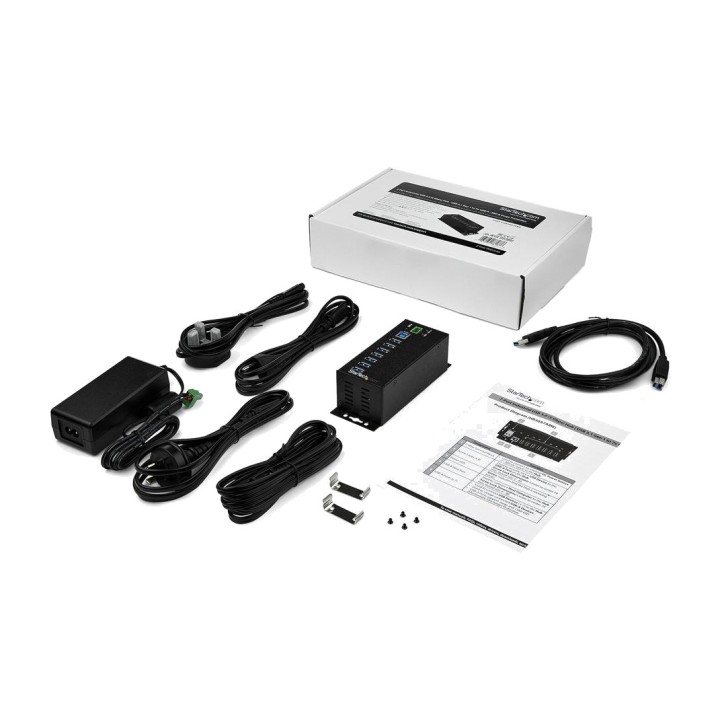

PACKAGE CONTENT
The hub includes the main items needed for connection, power and mounting, including a host USB cable, a universal power adapter and accessories for DIN rail installation.

1 USB hub
1 USB 3.0 host cable
1 universal power adapter for NA/JP, ANZ, UK and EU
2 DIN rail brackets
4 mounting screws
1 quick start guide

Other specifications
The HB30A7AME model is supplied in an individual package and comes with a 2-year warranty from StarTech.com and free lifetime technical support.

Product ID: HB30A7AME
UPC: 065030881876
Quantity per package : 1
Package width: 293 mm
Package depth: 183 mm
Package height: 68 mm
Shipping weight: 1310 g
Volume (m ³): 0.0042
